EclPanel TWCXL

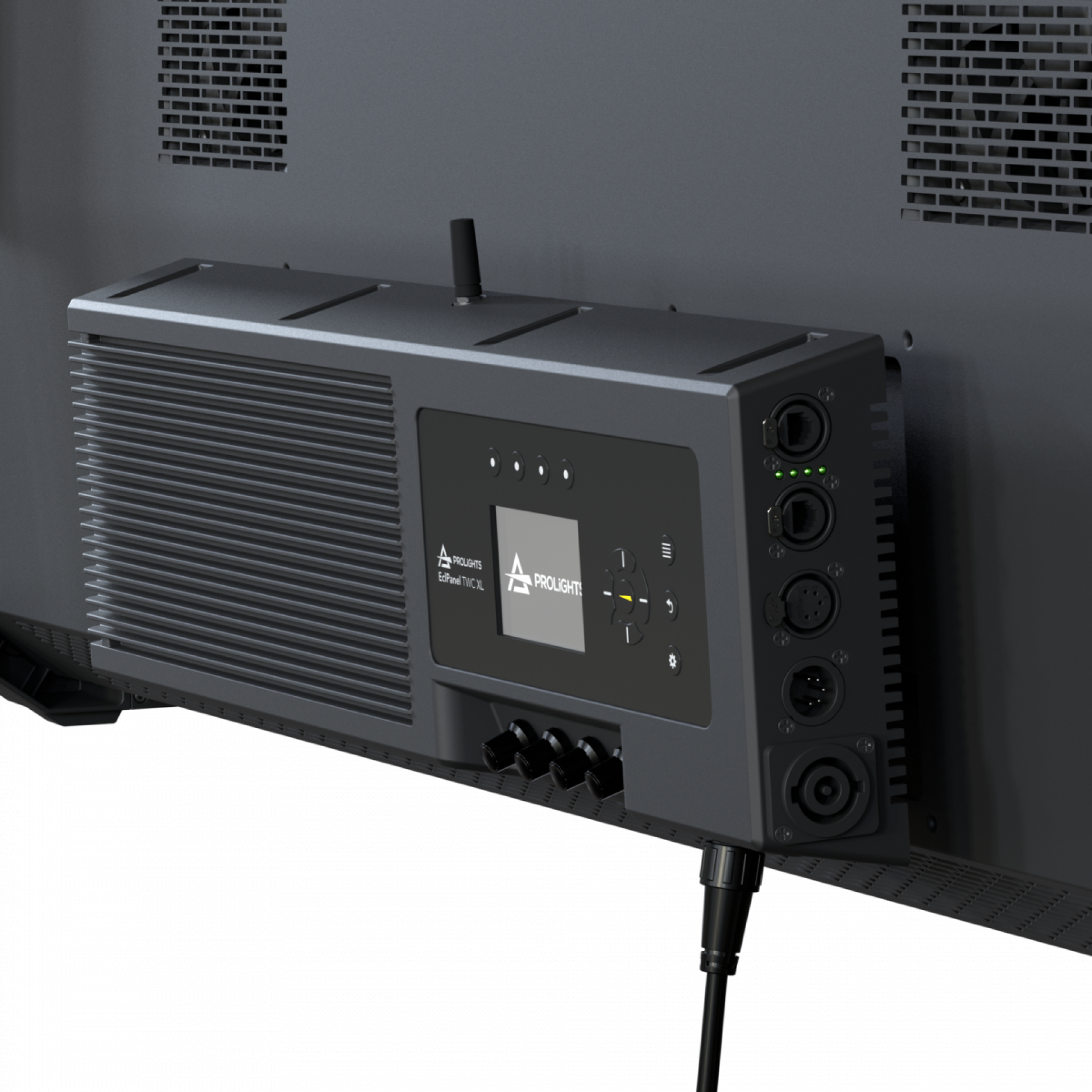

PROLIGHTS EclPanel TWCXL - control detail

EclPanel TWCXL

PROECLPANELTWCXL

Key Features:

1,500W RGB + Warm White LED source

48 section pixel control and built-in lighting effects for cinema applications, colour gels matching

Silent operation with multiple fan modes

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclPanel TWCXL

The PROLIGHTS EclPanel TWCXL is an ultra-bright LED soft light engineered for large scale Film & TV productions that provides an outstanding soft source of powerful lighting.

The PROLIGHTS EclPanel TWCXL comes with a full range of white tones, from daylight to tungsten, attaining a superior light quality with high CRI, TLCI, and TM-30 values. The EclPanel TWCXL allows for quick and accurate local control through 4 rotatory knobs with three fully-featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity and FX mode to access the pixel cinema effects.

Each of the 48 sections has individual control to play the customisable cinema effects or by pixel mapping from an external controller. The unit has an onboard driver, a built-in power supply, a wireless transceiver for remote DMX and RDM control, and network connectivity (Art-Net, sACN).

CRI >93; R9 >95; TLCI >93

Wireless DMX and RDM for wireless control and communication, Ethernet connectivity

Source: 1,500W RGB + Warm White LED

Luminous flux: 130,725lm @ 3,200K with LD filter

Lux: 2,442lx @ 5m full

CRI: 93.4 @3,200K; 95.4 @5,600K

Source life expectancy: > 50,000hr

Beam angle: 109°

Field angle: 158°

Lens type: medium density diffusion panel (interchangeable)

Additional optics: see available accessories

Colour control: XY, CCT, RGBW, Gel, HSI, source emulation, colour macros, CTO on colours

Colour mixing: RGB + Warm White

CCT: CCT control range from 1,800K to 20,000K, + / – green correction, tungsten emulation

White presets: 1,800K – 20,000K with 28K resolution

Colour wheel: virtual colour wheel with macros

Macros: gels library on-board

Control resolution: 16-bit dimmer, colours

Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns

Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

Protocols: DMX512, RDM, Art-Net, sACN, W-DMX

Stand alone: selectable mode through 4 rotatory knobs

Pixel control: 48 section control

Wireless control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (LumenRadio) and W-DMX (Wireless DMX)

RDM: RDM for remote monitoring and settings

Display: graphic user interface

Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
