EclMiniFresnel Range

Key Features:

  • TU (3,000K), DY (5,000K), VW (2,700K - 5,600K) and FC (2,800K - 8,000K) versions
  • Fresnel zoom lens
  • Silent operation for studio and stage use
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

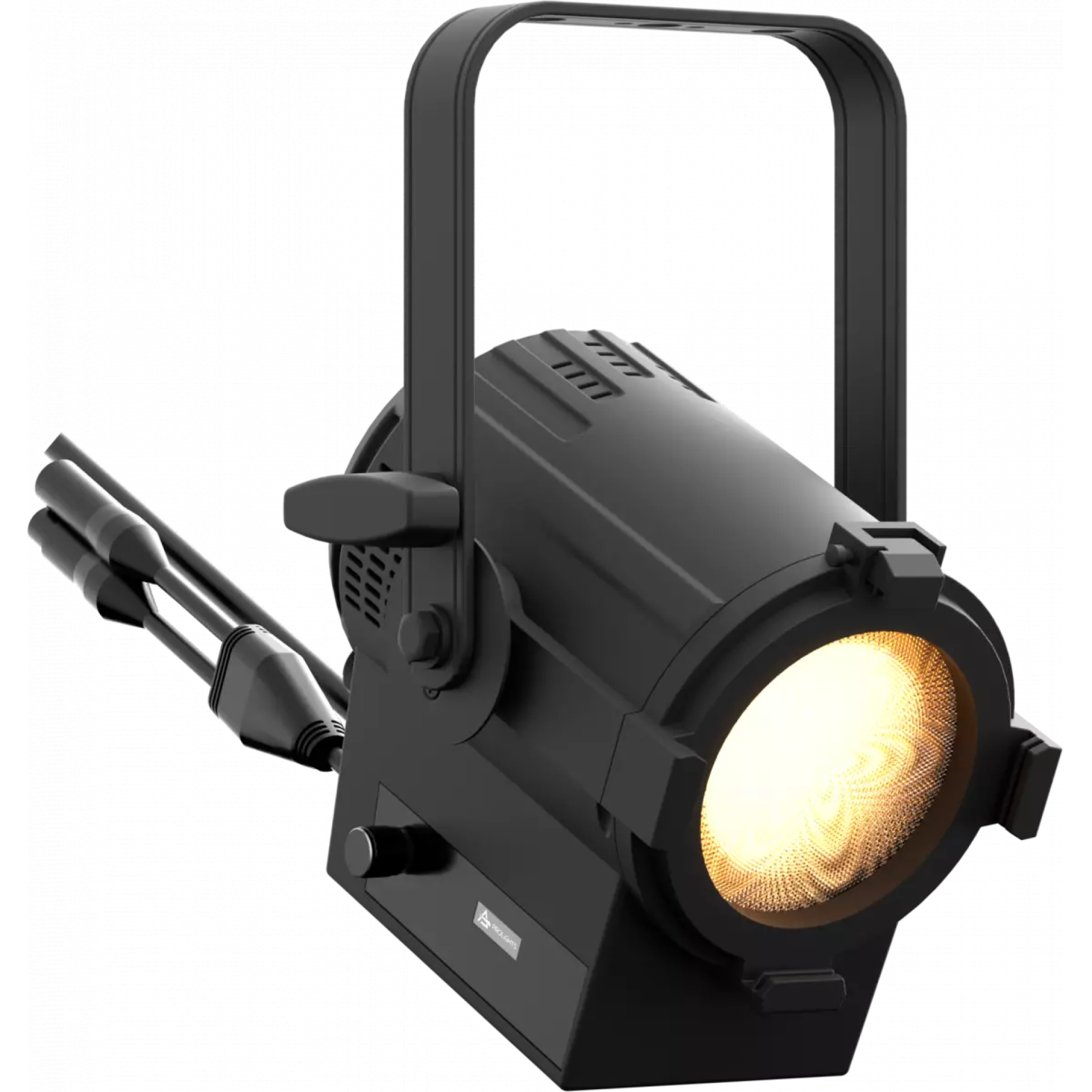

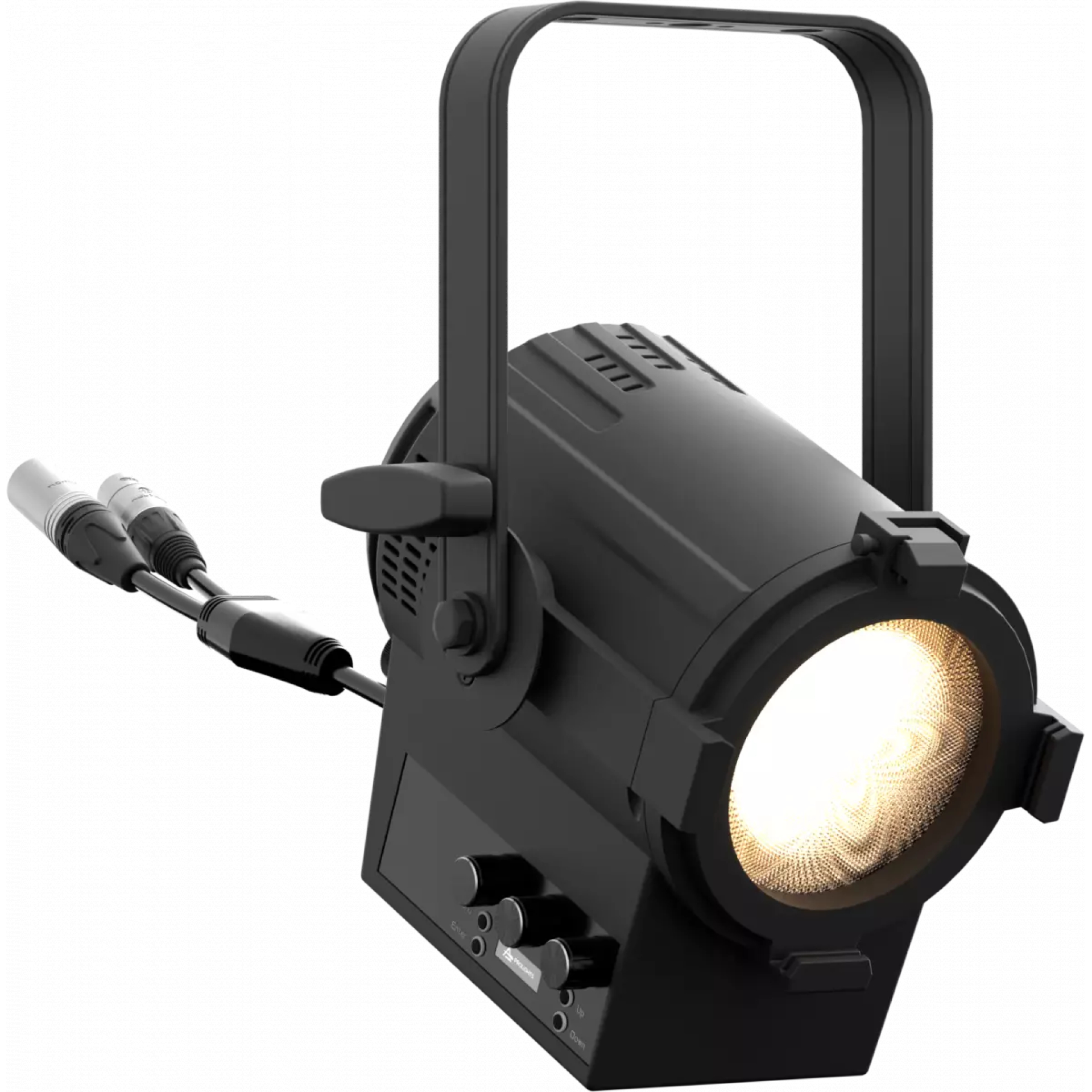

EclMiniFresnel Range

The PROLIGHTS EclMiniFresnel range is an advanced LED replacement for the traditional 300W Fresnel lamps.

Product Variants

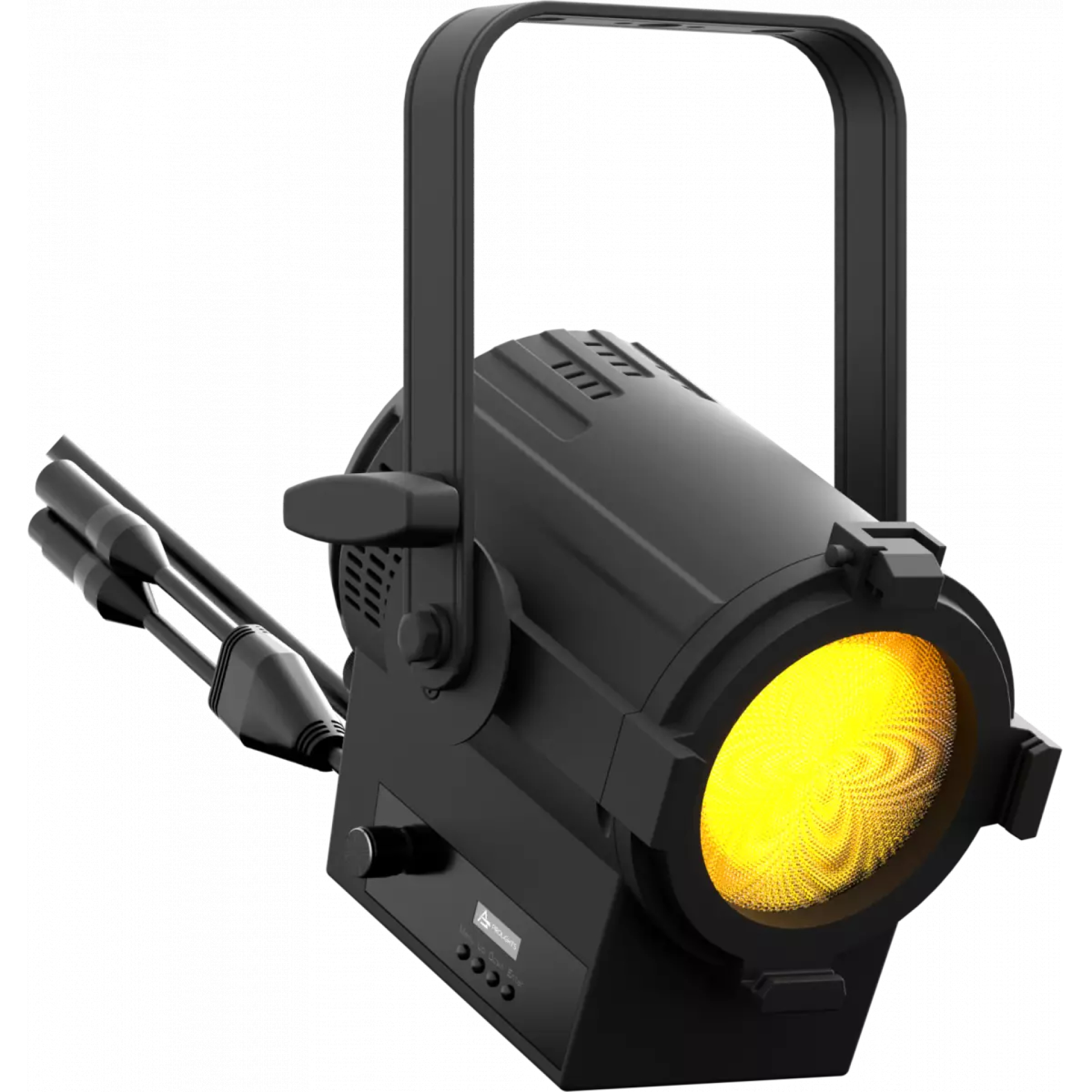

PROLIGHTS EclMiniFresnel FC
EclMiniFresnel FC
  • Colour temperature: 2,800K to 8,000K with extensive colour reproduction
  • 70W RGB + lime LEDs
  • Beam angle: 24° to 82°

Enquiry Form

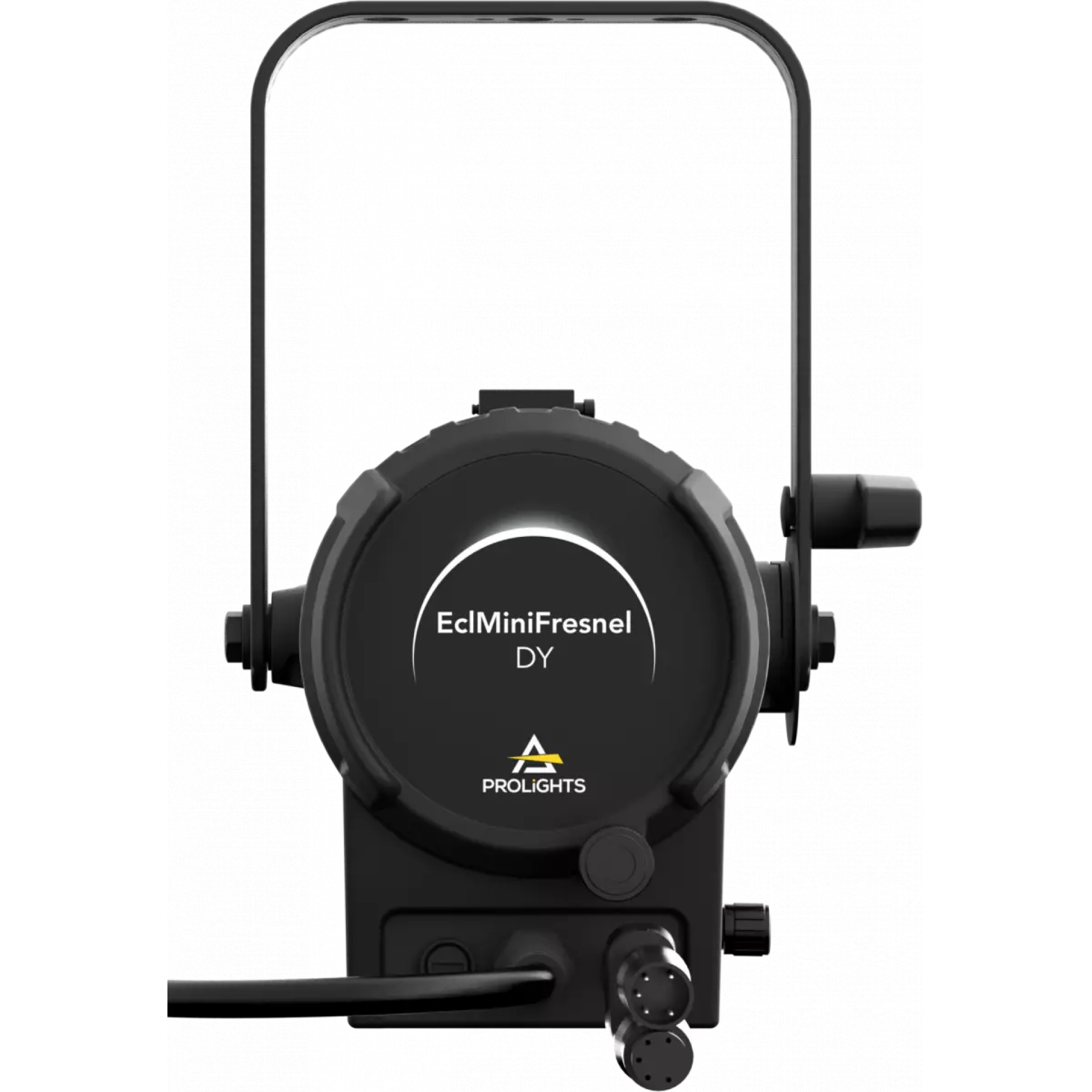

PROLIGHTS EclMiniFresnel DY
EclMiniFresnel DY
  • Colour temperature: 5,000K
  • 40W LEDs
  • Beam angle: 20° to 64°

Enquiry Form

PROLIGHTS EclMiniFresnel DY
EclMiniFresnel TU
  • Colour temperature: 3,000K
  • 40W LEDs
  • Beam angle: 20° to 64°

Enquiry Form

PROLIGHTS EclMiniFresnel VW
EclMiniFresnel VW
  • Colour temperature: 3,000K
  • 40W LEDs
  • Beam angle: 20° to 64°

Enquiry Form

Featuring all the output characteristics of a traditional Fresnel, but with the added benefits of beam control, functional barn doors and a power source that focuses on outstanding colour rendition.

The EclMiniFresnel FC has 4 colour mixing and delivers high precision reproduction of the white spectrum from 2,800K to 8,000K.

  • Source (TU & DY): 40W LEDs

    Source (VW): 60W Variable White LED

    Source (FC): 70W RGB + lime LEDs

    CCT: (TU) 3,000K; (DY) 5,000K; (VW) 2,700K - 5,600K; (FC) 2,800K – 8,000K

    Luminous flux: (TU) (20°) 856 lm; (64°) 2,183 lm @ full

    Luminous flux: (DY) (20°) 1,168 lm; (64°) 2,851 lm @ full

    Luminous flux (VW): (21°) 877 lm; (83°) 2,320 lm @ full

    Luminous flux: (FC) (24°) 151 lm; (82°) 732 lm @ full

    Lux: (TU) (20°) 236 lx; (64°) 86 lx @ 5m full

    Lux: (DY) (20°) 321 lx; (64°) 113 lx @ 5m full

    Lux (VW): (21°) 630 lx; (83°) 238lx @ 3m

    Lux: (FC) (24°) 27 lx; (82°) 18 lx @ 5m full

    CRI: (TU) >92; (DY) >81; (FC) 81 @ 6,000K

    CRI (VW): 96 @ WW; 95 @ CW; 95 @ full

    Source life expectancy: > 50,000 hr

    Zoom: 20° – 64° half peak angle (TU & DY)

    Zoom: 21° - 83° manual (VW)

    Zoom: 20° – 82° half peak angle (FC)

    Lens diameter: 100mm

    Lens type: Fresnel zoom lens

    Additional optics: 20° filter on board (FC)

    Other: spigot not included; gel frame and barndoors included

  • Macros: several pre-built macros with adjustable speed

    Static mode: selection of static dimmer

    Manual mode: manual adjust of dimmer through menu and knob

    Auto mode: built-in programs with execution speed adjustment

  • Colour mixing: RGBL

    CCT: CCT control through dedicated DMX channel and amber shift activation by DMX

    White presets: 2.800 K – 8.000K

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built macros with adjustable speed

    Static mode: selection of static colour

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, rotatory knob

    DMX channels: 1 / 2-1 / 2-2 / 3 / 5 channel (TU & DY)

    DMX channels: 1 / 2 / 3 / 4-1 / 4-2 / 5 / 9 / 6 / 7 / 9-1 / 9-2 / 12 / 14 / 17 channel (FC)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

    Master/slave: for synchronised operation of more units linked in a chain

    Other: 16bit control of dimmer (TU, DY & FC) and colour (FC)

EclMiniFresnel Range - Variant Downloads

You might like...

PROLIGHTS EclMiniProfile TU
Product - LIGHTING
EclMiniProfile Range
    • Fixed 3,200K (TU) or 5,600K (DY) high CRI sources
    • Lens options include fixed 19°, 26°, 36°, 50°
    • Compact form factor with stylish design
Find out more
PROLIGHTS EclFresnel TW
Product - LIGHTING
EclFresnel Range
    • High colour rendition sources for lighting faces and objects naturally
    • Silent operation for studio and stage use
    • HD dimming and functional barndoors
Find out more

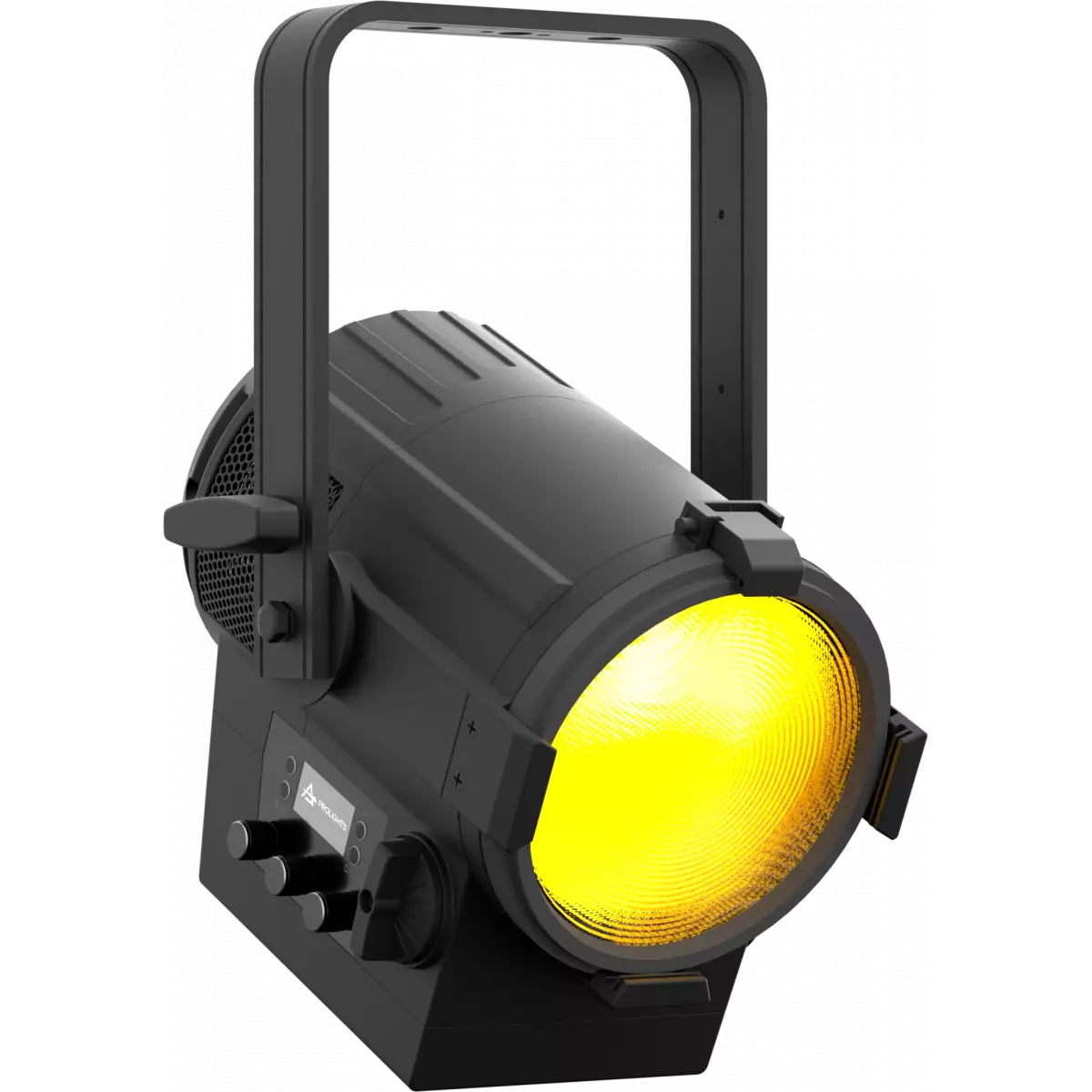

PROLIGHTS EclFresnel Jr TW
Product - LIGHTING
EclFresnel Jr Range
    • TU (3,200K), DY (5,600K) and TW (2,800K-10,000K) versions available with HD dimming
    • Battery ready, compatible with industry standard external batteries (optional)
    • Silent operation for studio and stage use
Find out more

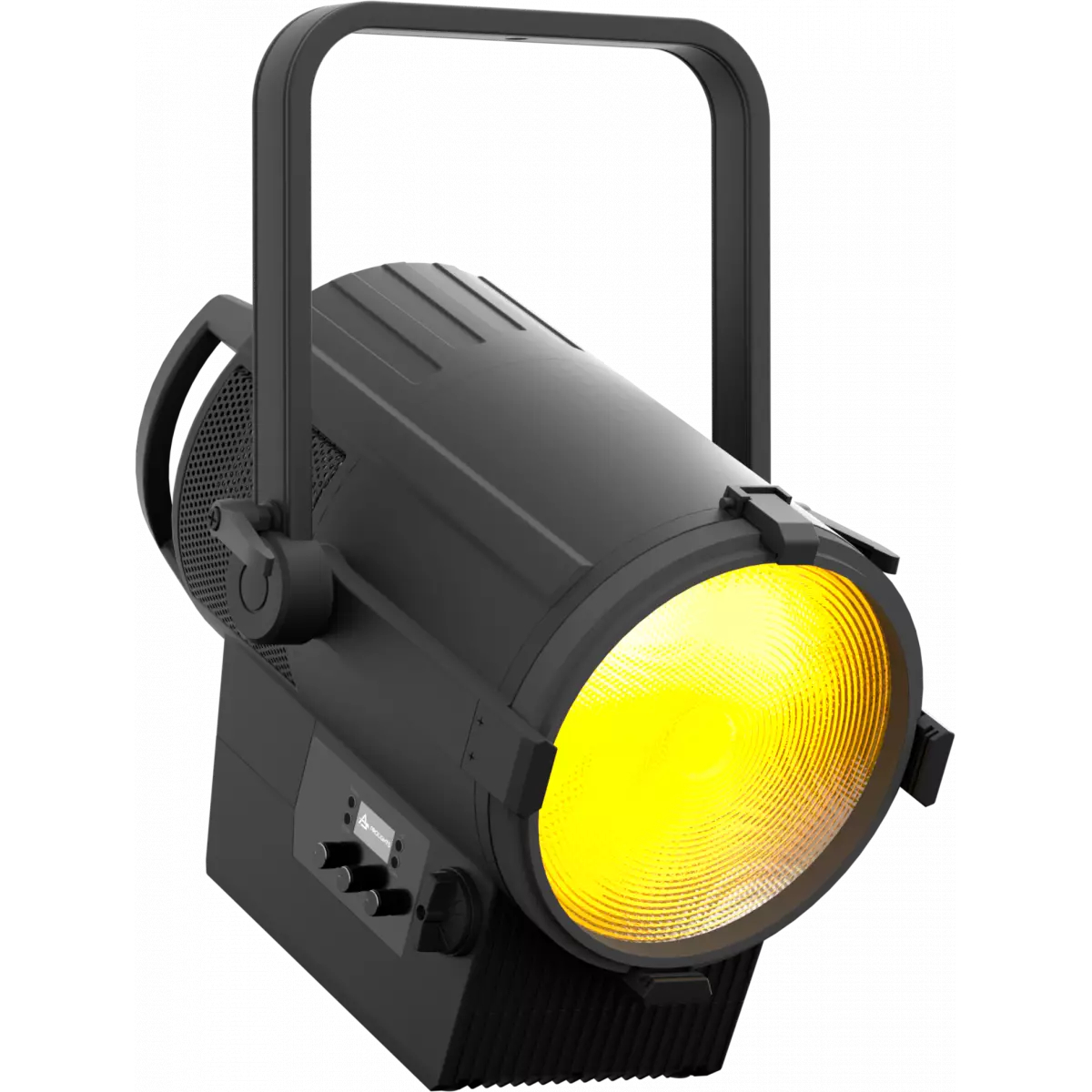

PROLIGHTS EclFresnel 2KTW
