Jet Spot4Z

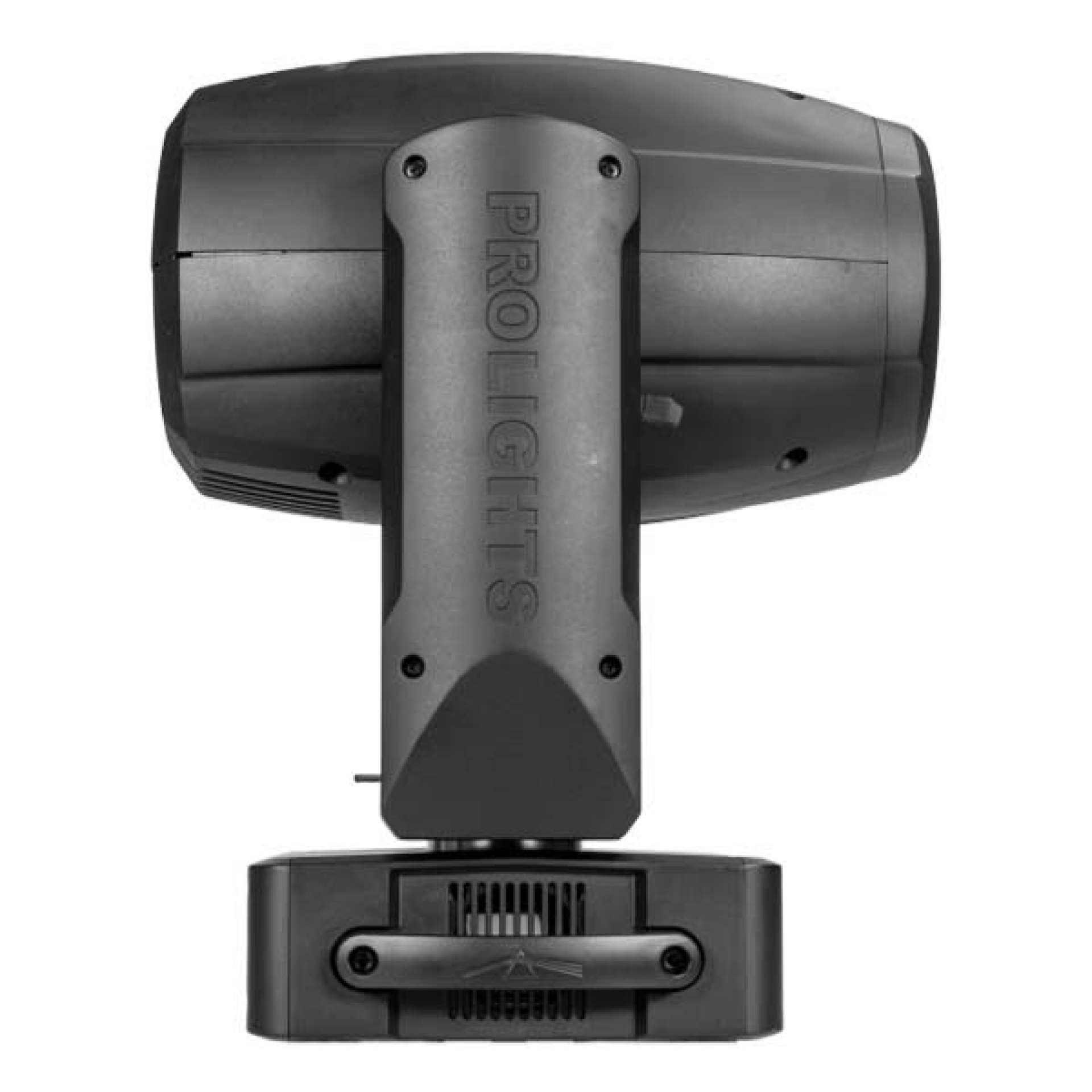

PROLIGHTS JetSpot4Z LED Moving Spot Light - side

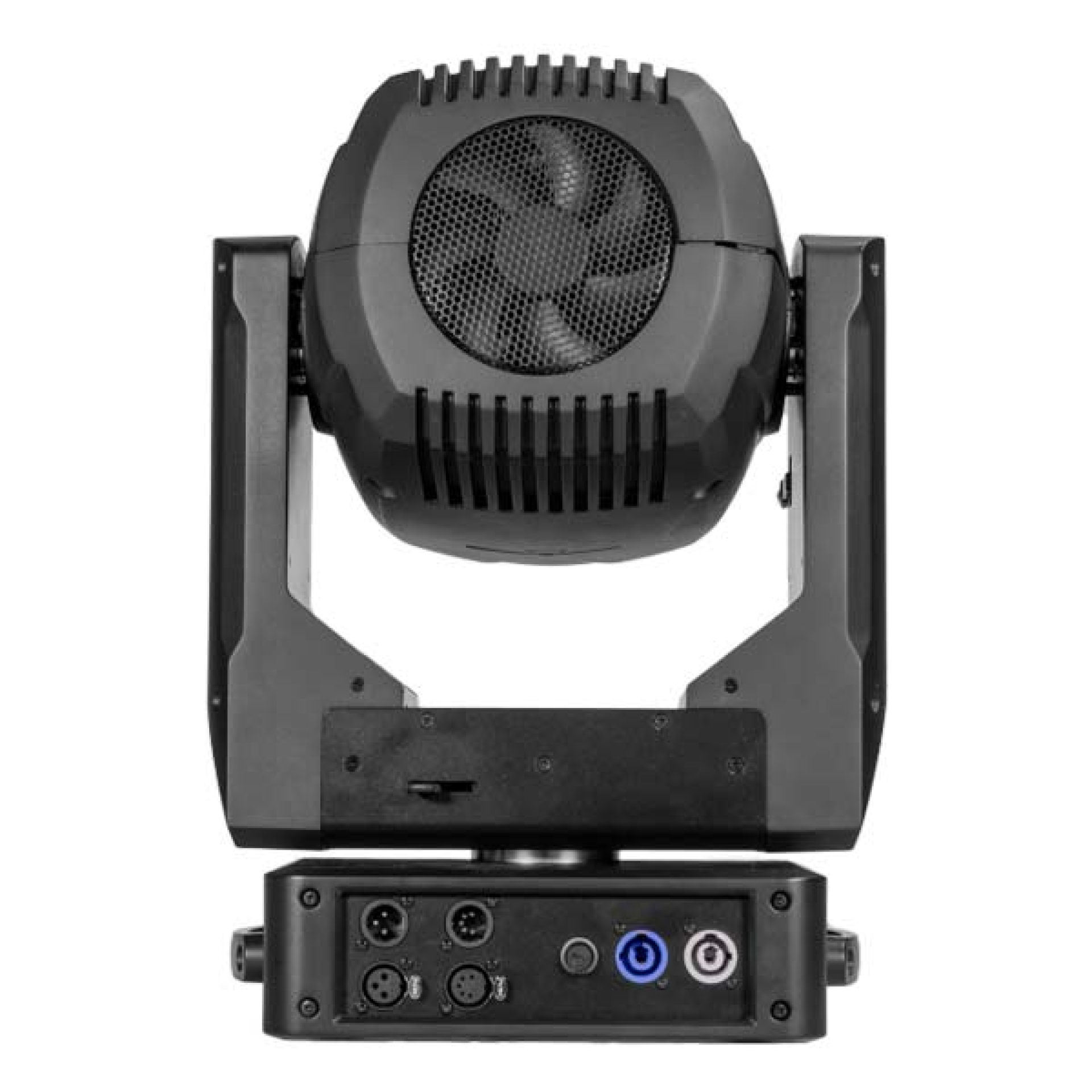

PROLIGHTS JetSpot4Z LED Moving Spot Light - back

Jet Spot4Z

PROJETSPOT4Z

Key Features:

Full CMY colour mixing system combined with colour wheel

Rotating and static gobo wheels, plus prism, iris and linear frost

HD dimming

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Jet Spot4Z

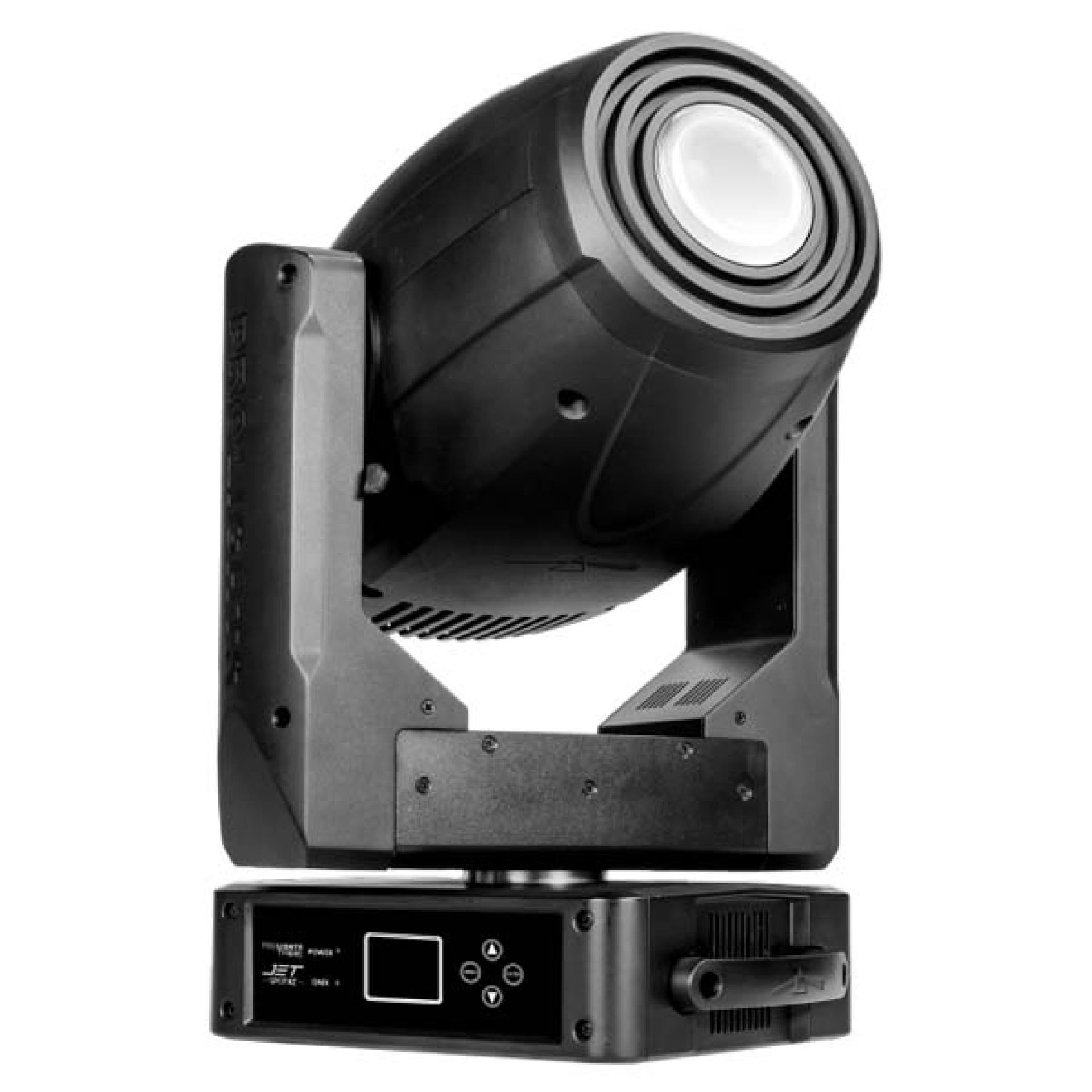

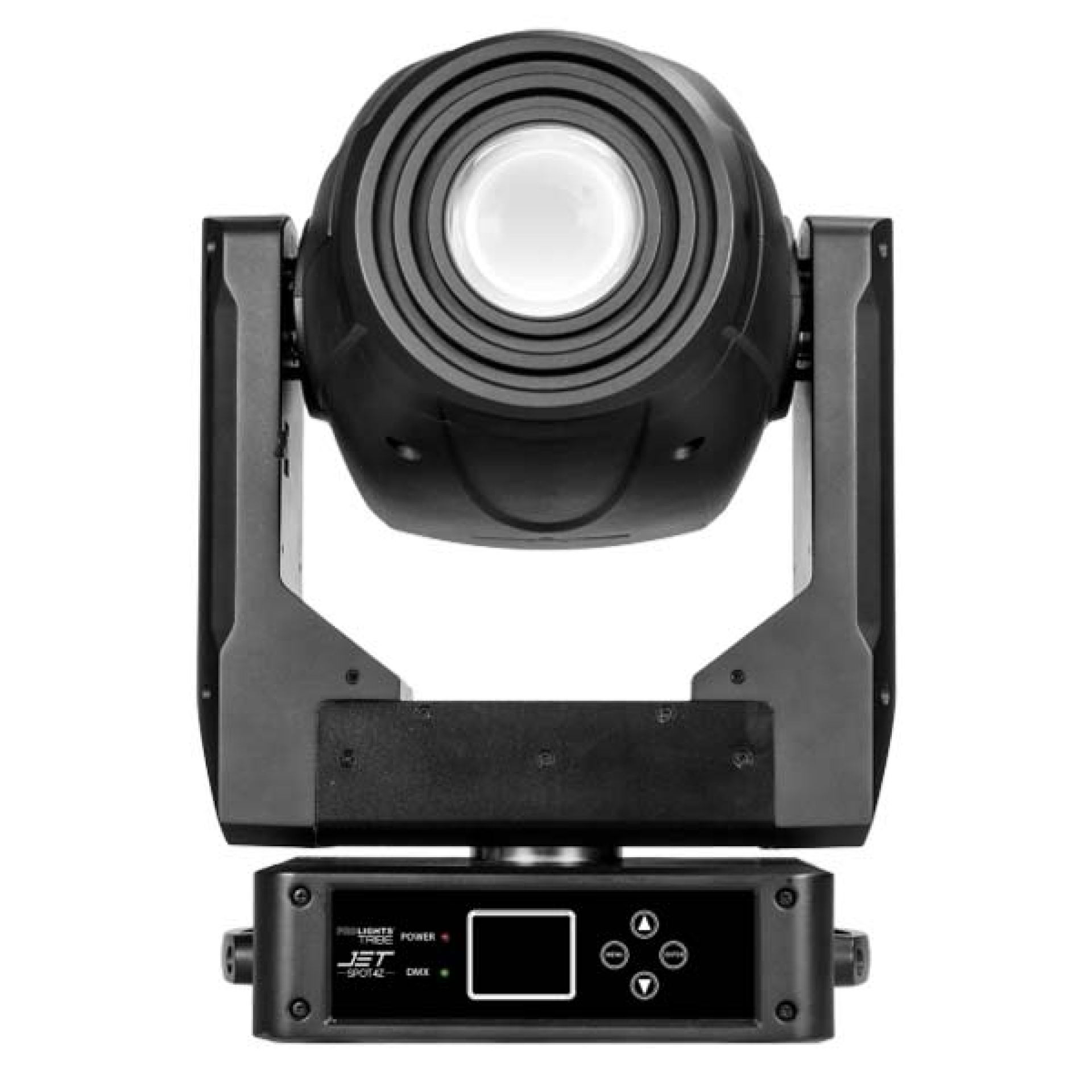

The PROLIGHTS Jet Spot4Z is a bright 180W 6800K LED spot luminaire designed to replace a 300W discharge fixture.

Featuring full CMY colour mixing, its custom optical system delivers a consistent output with a flat field and crisp gobo projection right though the massive 8° to 40° zoom range.

Source: 180W high power white LED CT: 6,800K CRI: 68Ra Luminous flux: 7,518lm Lux: 8°- 25,200 lux; 40° - 3,250lux @ 3m Lux: 8°- 2,268 lux; 40° - 292lux @ 10m Source life expectancy: >30,000hr Zoom: 8-40° motorised linear zoom Lens type: HQ glass lens optics Focus: motorised

Colour mixing: CMY colour system on 3 gradually fading colour wheels CTC: on wheel: 2,500K and 3,200K + CTB Colour wheel: 6 dichroic filters+open on 3 independent colour wheels Rotating gobos: 7 rotating gobos+open, interchangeable, indexing Gobo size: 24.5mm; img 20mm; 1.1mm Fixed gobos: 8 fixed gobos+open, interchangeable Circular prism: 3f with bi-directional rotation, indexing Frost: linear 0-100% frost filter Iris: 5 – 100% motorised linear iris Auto mode: built-in programs with execution speed adjustment

Protocols: DMX512, RDM DMX channels: 23/25ch RDM: RDM ready for fixture remote monitor and settings Display: black TFT high resolution display Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included Master/slave: for synchronised operation of more units linked in a chain
