ArcPod 27Q

ArcPod 27Q

PROARCPOD27Q

Key Features:

27x10W RGBW / FC LEDs delivering 11,500 lumens

LED emitters controllable in 3 linear sections

Compact form factor and fanless

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

ArcPod 27Q

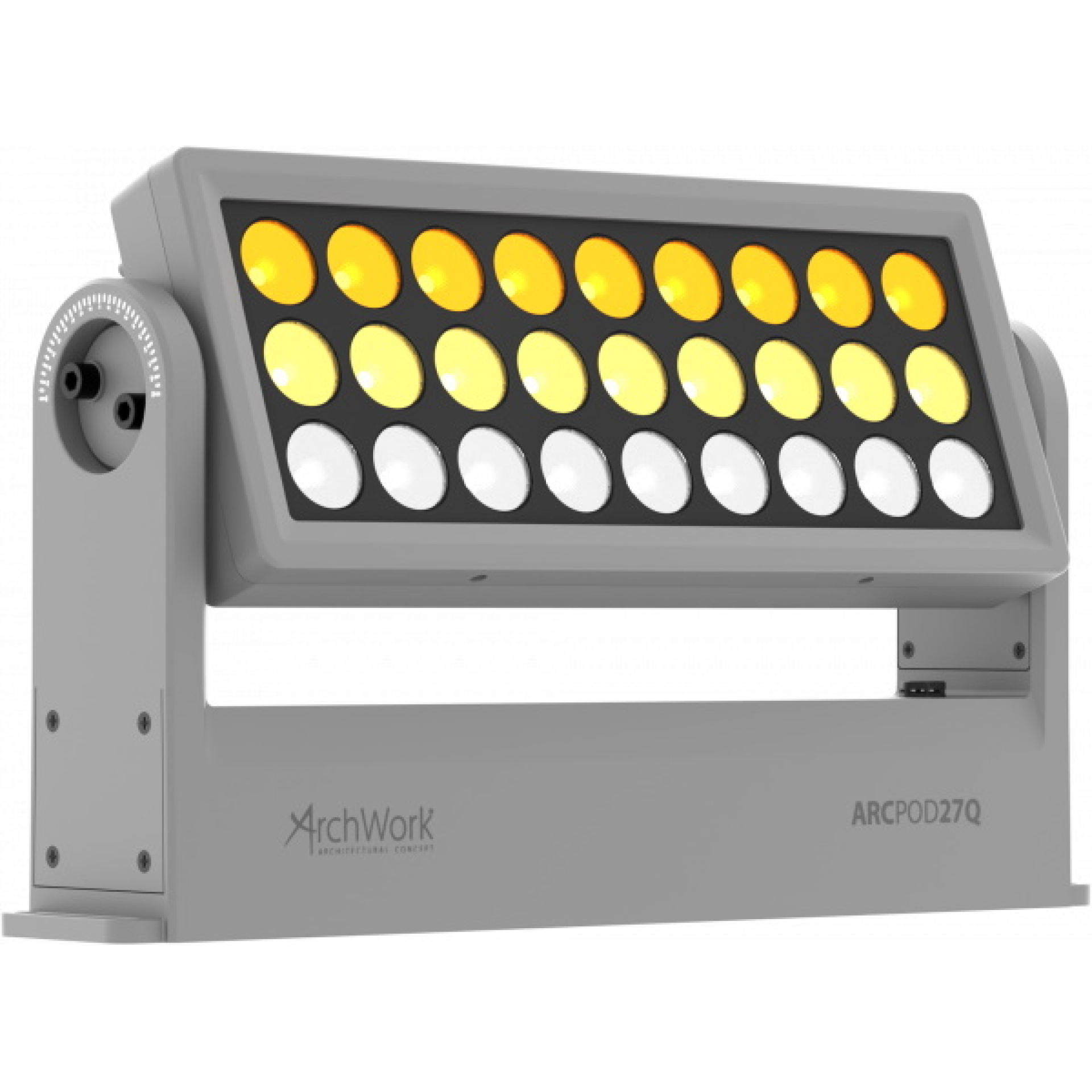

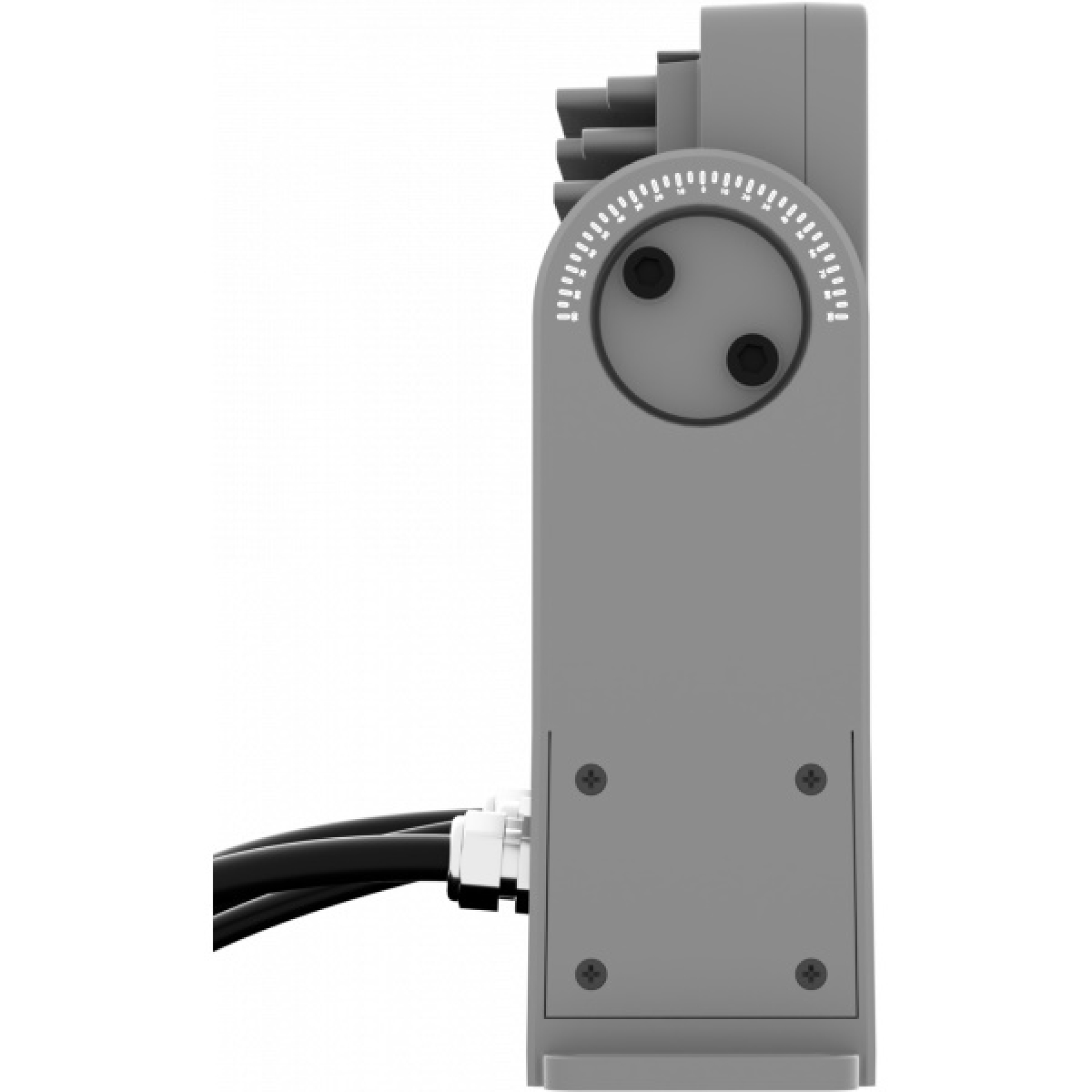

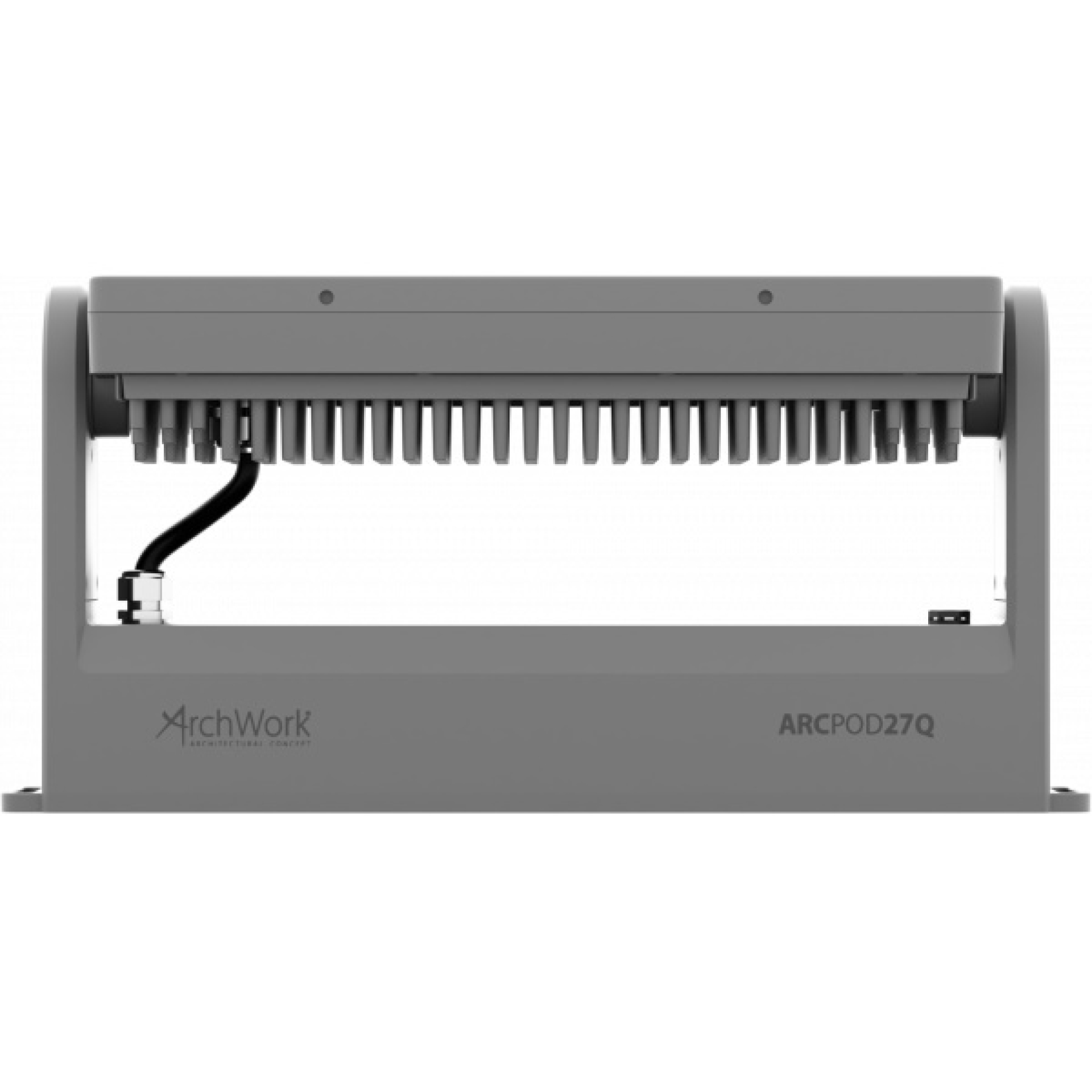

The PROLIGHTS ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11,500 lumens. It is equipped with 27x10 W RGBW / FC LEDs, delivering a limitless reproduction of colours and whites.

ArcPod 27Q is a compact high-power exterior wash light featuring an outstanding brightness of 11'200 lumens. It is equipped with 27x10W RGBW/FC LEDs, delivering a limitless reproduction of colours and whites. ArcPod 27Q is designed slim and fanless, and it's completed by a wide selection of available optics, making it an incredibly flexible and versatile device for any outdoor install.

Source: 27x10W RGBW / FC LEDs

Luminous flux: (10°) 9'437 lm; (15°) 11'179 lm; (25°) 10'757; (45°) 9'816lm @full

Lux: (10°) 17'953 lx; (15°) 14'017 lx; (25°) 6'340 lx; (45°) 1'454lx @3 m full

Lux: (10°) 6'463 lx; (15°) 5'046 lx; (25°) 2'282 lx; (45°) 523lx @5 m full

Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

Beam angle: 15°

Field angle: 28°

Colour mixing: RGBW / FC

CCT: CCT control through dedicated DMX channel

Colour wheel: virtual colour wheel with presets

Macros: several pre-built macros with adjustable speed

FX generator: up to 3 linear controllable sections

Static mode: selection of static colour

Protocols: DMX512, RDM

DMX channels: 5 / 7 / 10 / 13 / 17channel

Pixel control: up to 3 linear controllable sections

RDM: RDM for remote monitoring and settings

Display: user interface through DATAMASTER external coder (not included)

Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

Master/Slave: for synchronised operation of more units linked in a chain
