ArcPod 15Q
PROLIGHTS ArcPod 15Q - front

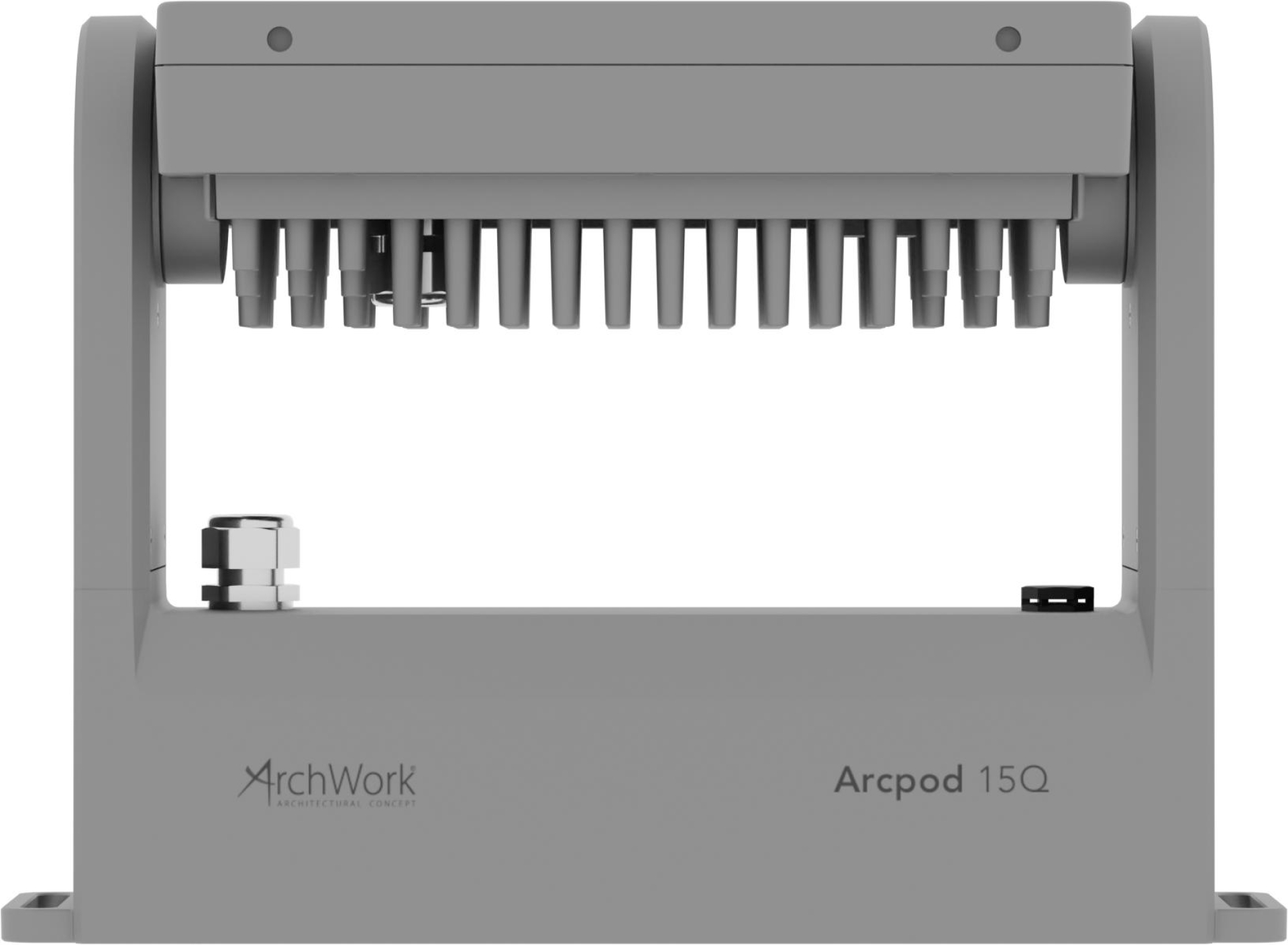

PROLIGHTS ArcPod 15Q - facing up

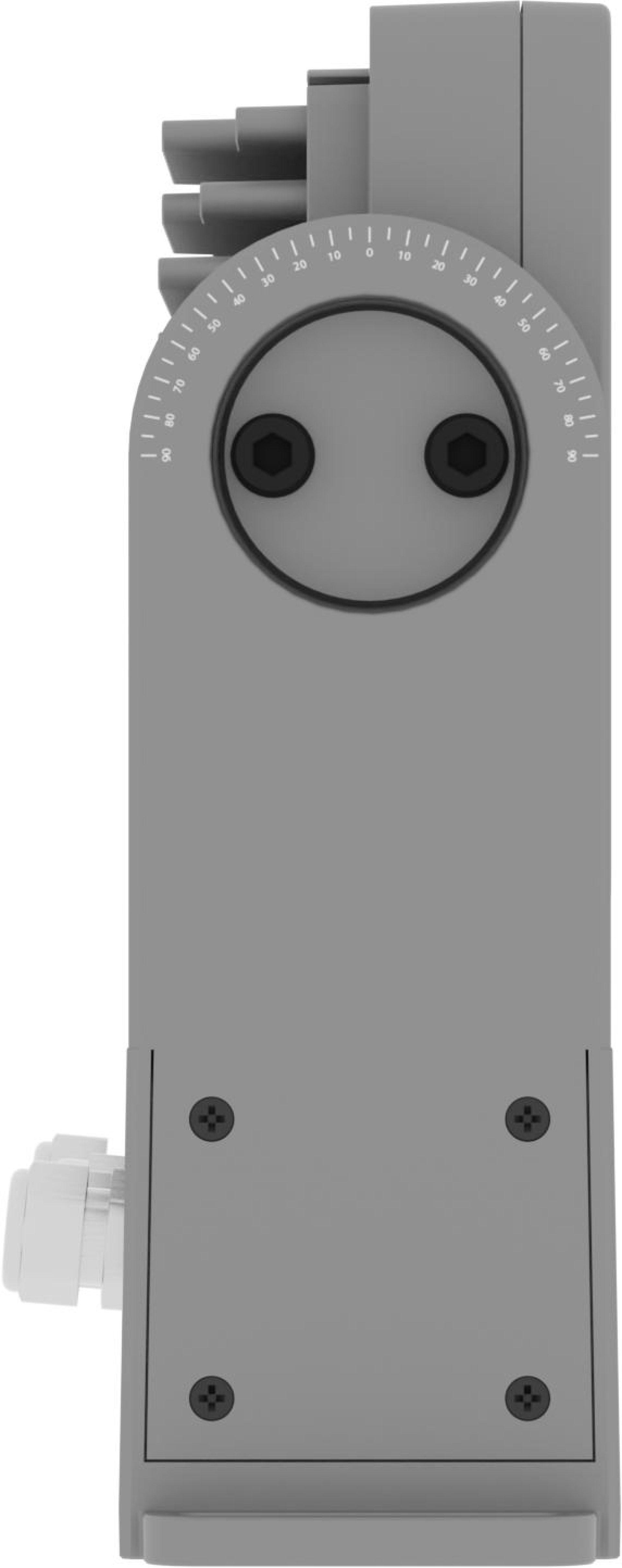

PROLIGHTS ArcPod 15Q - side
PROLIGHTS ArcPod 15Q - facing up
PROLIGHTS ArcPod 15Q - side

ArcPod 15Q

Key Features:

  • Tilt adjustment and multiple lens options for fine focusing
  • 15x10W RGBW / FC LEDs
  • Compact form factor and fan-free design
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

ArcPod 15Q

The PROLIGHTS ArcPod 15Q is a compact exterior wash fixture, featuring high-intensity light despite its small size. The unit is equipped with 15x10W RGBW / FC LEDs, delivering an exceptional output over than 5,900 lumens and a wide gamut of colours and whites. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15Q an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent light or for smaller-sized projects.

The unit is equipped with 15x10W RGBW / FC LEDs, delivering an exceptional output of over 5,900 lumens and a wide gamut of colours and whites. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15Q an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent lights or for smaller-sized projects.

    • Source: 15x10W RGBW / FC LEDs
    • Luminous flux: (10°) 4'552 lm; (15°) 5'678 lm; (25°) 5'732 lm; (45°) 5'390lm @full
    • Lux: (10°) 3'116 lx; (15°) 2'790 lx; (25°) 1'203 lx; (45°) 287lx @5 m full
    • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    • Beam angle: 25°
    • Field angle: 38°
    • Lens diameter: 36mm / 1.42''
    • Colour mixing: RGBW / FC
    • CCT: CCT control through dedicated DMX channel
    • White presets: 2.800 K ~ 10.000K
    • Colour wheel: virtual colour wheel with presets
    • Macros: several pre-built macros with adjustable speed
    • Static mode: selection of static colour
    • Protocols: DMX512, RDM
    • DMX channels: 5 / 7 / 10channel
    • RDM: RDM for remote monitoring and settings
    • Display: user interface through DATAMASTER external coder (not included)
    • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave: for synchronised operation of more units linked in a chain
