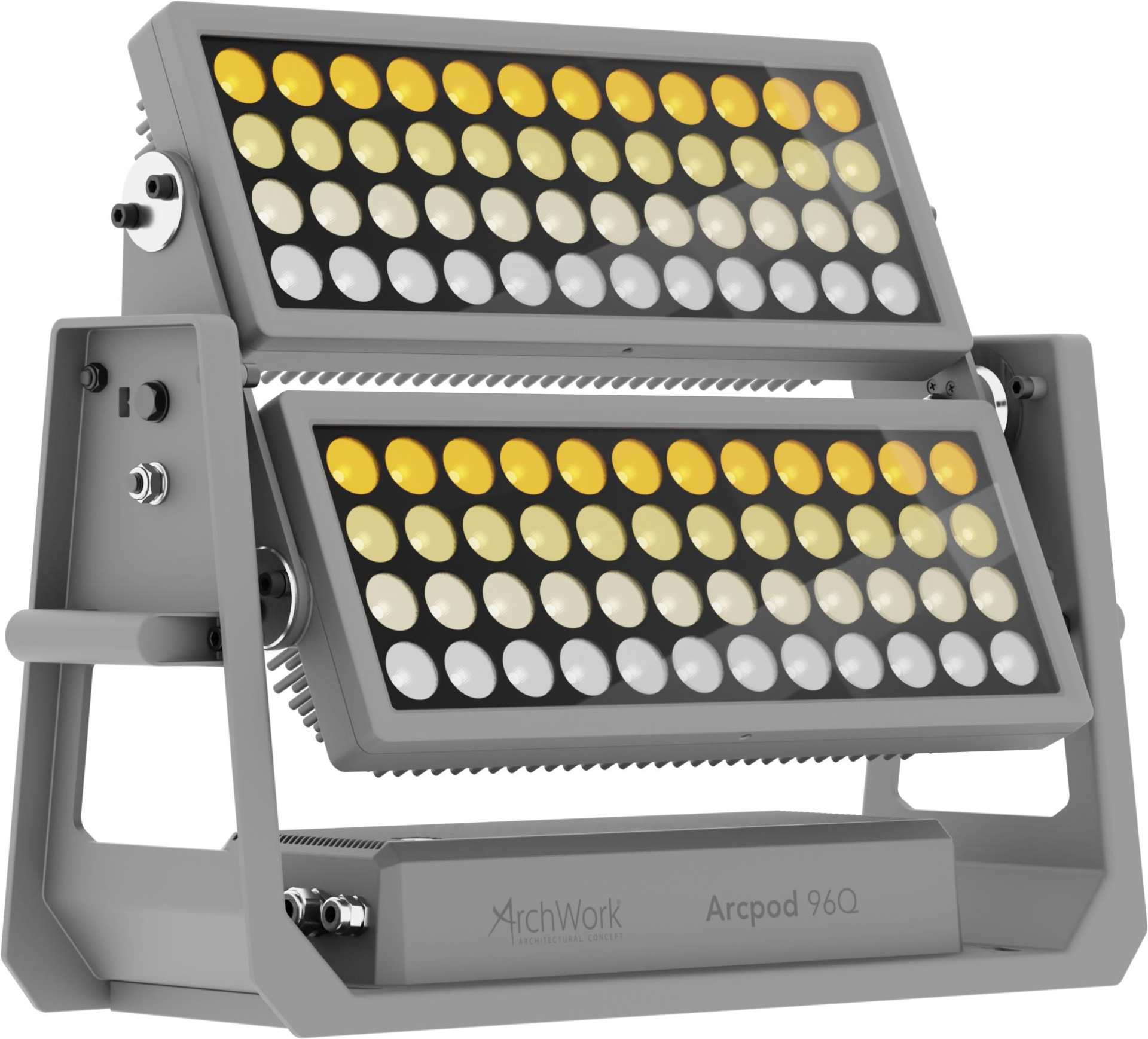

PROLIGHTS ArcPod 96Q Front

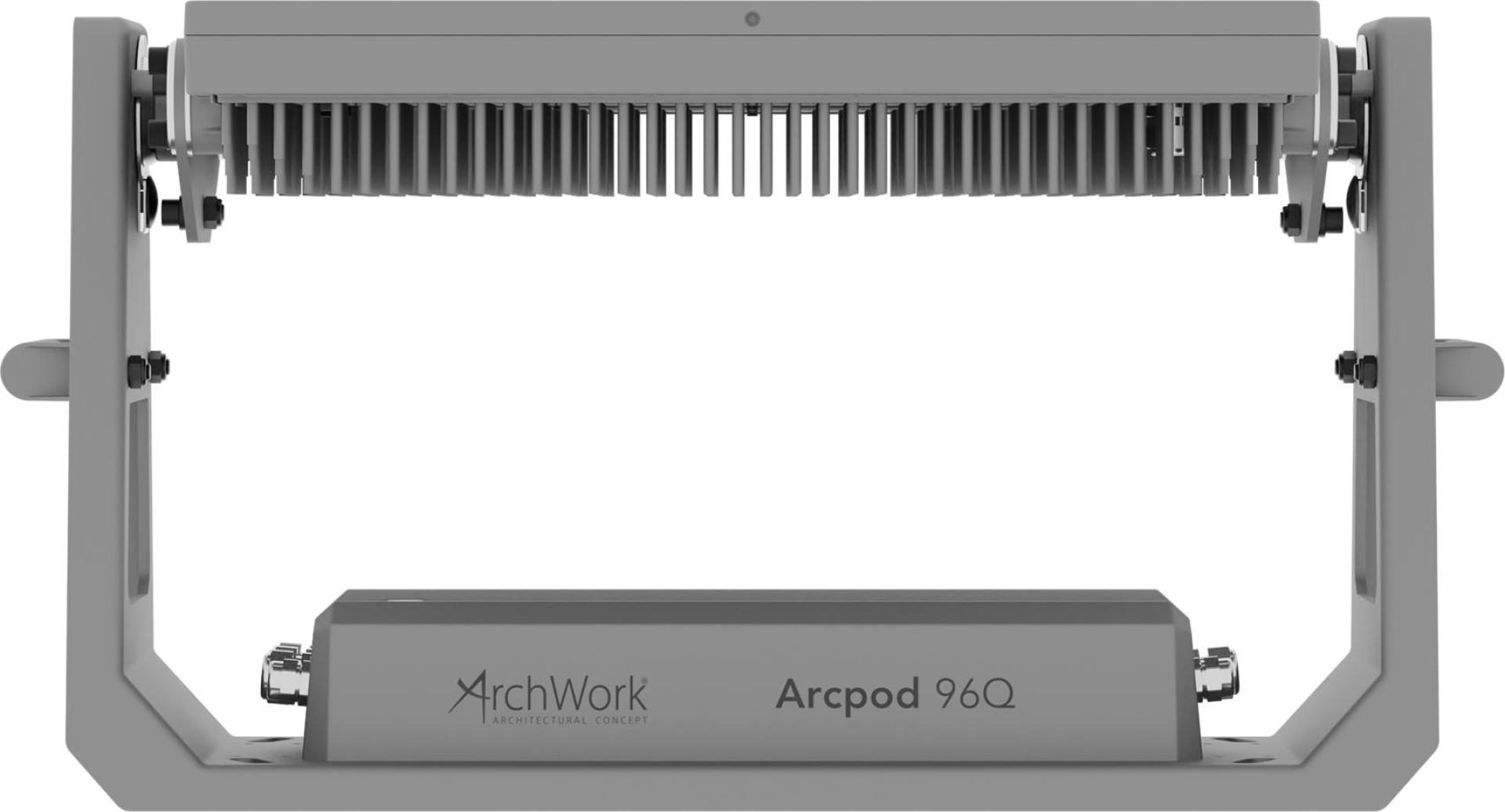

PROLIGHTS ArcPod 96Q Top

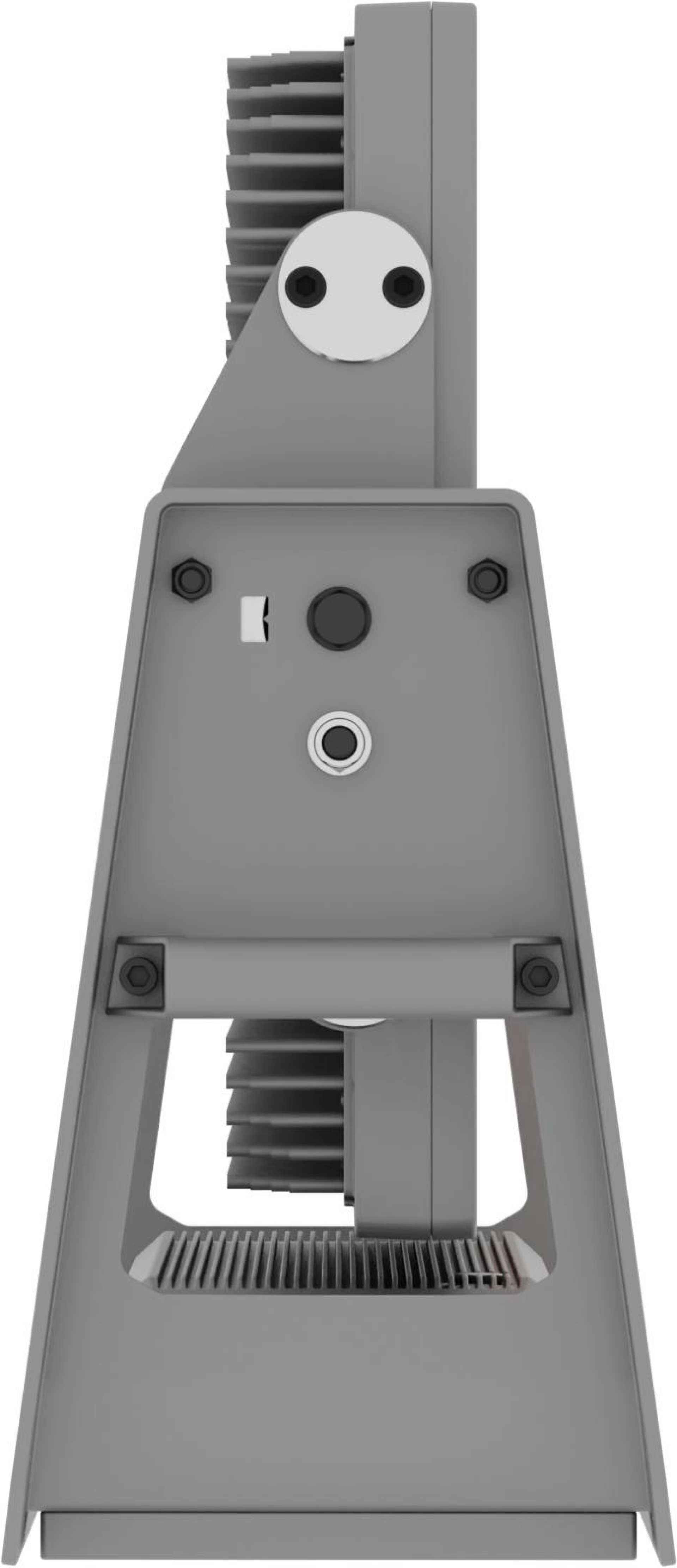

PROLIGHTS ArcPod 96Q Side
PROLIGHTS ArcPod 96Q Top
PROLIGHTS ArcPod 96Q Side

ArcPod 96Q

PROARCPOD96Q

Key Features:

  • Two head with individual tilt adjustment and multiple lens options for fine focusing
  • 96x10W RGBW/FC LEDs
  • Compact form factor and fan-free design
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

ArcPod 96Q

The PROLIGHTS ArcPod 96Q is a two-headed bright outdoor wash light, designed for large scale outdoor installations and long throw projection. Equipped with 96x10W RGBW/FC LEDs, delivering a superior colour mixing and extreme brightness with two different optics on each head (10° top and 15° bottom).

ArcPod 96Q is a two-headed bright outdoor wash light, designed for large scale outdoor installations and long throw projection. Equipped with 96x10W RGBW/FC LEDs, delivering a superior colour mixing and extreme brightness with two different optics on each head (10° top and 15° bottom).

Despite its bright output, it was designed with a slim size, and offers a wide range of optics selection that can be customised or change to different options on each single head. This makes the ArcPod 96Q an indispensable architectural lighting fixtures for larger setups.

  • Source: 96x10W RGBW / FC LEDs

    Luminous flux: (15°) 46'094 lm - (25°) 41'570 lm - (45°) 33'410lm @full

    Lux: (15°) 61'963 lx - (25°) 25'823 lx - (45°) 5'575lx @3 m full

    Lux: (15°) 22'307 lx - (25°) 9'266 lx - (45°) 2'007lx @5 m full

    Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

    Beam angle: (bottom head) 15° - (top head) 10°

  • Colour mixing: RGBW / FC

    CCT: CCT control through dedicated DMX channel

    Colour wheel: virtual colour wheel with macros

    Macros: several pre-built macros with adjustable speed

    FX generator: up to 8 linear controllable sections

    Static mode: selection of static colour

  • Protocols: DMX512, RDM

    DMX channels: 8 / 10 / 14 / 20 / 34 / 44channel

    Pixel control: up to 8 linear controllable sections

    RDM: RDM for remote monitoring and settings

    Display: user interface through DATAMASTER external coder (not included)

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain
