S16 Live Production Switcher

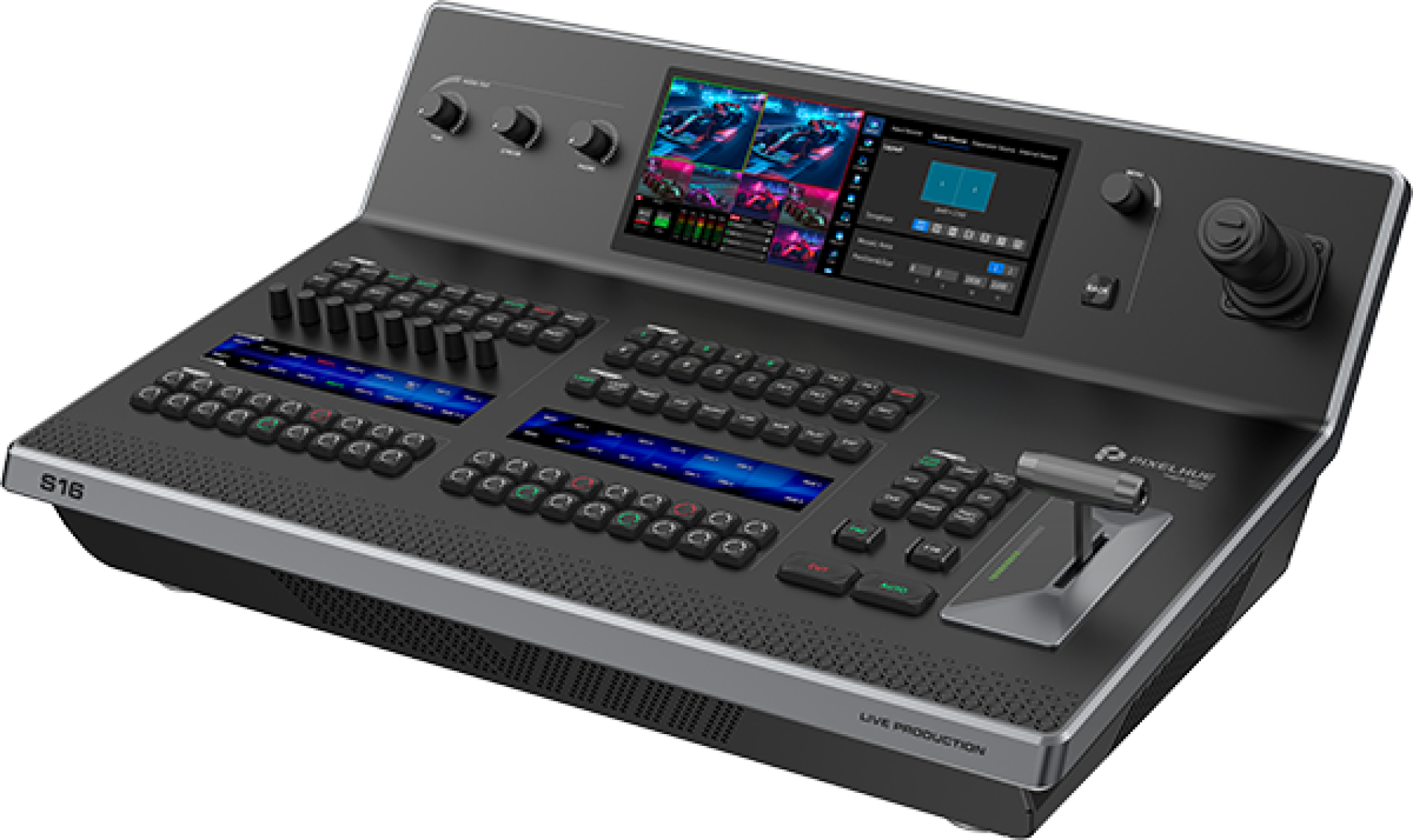

PIXELHUE S16 - front right view

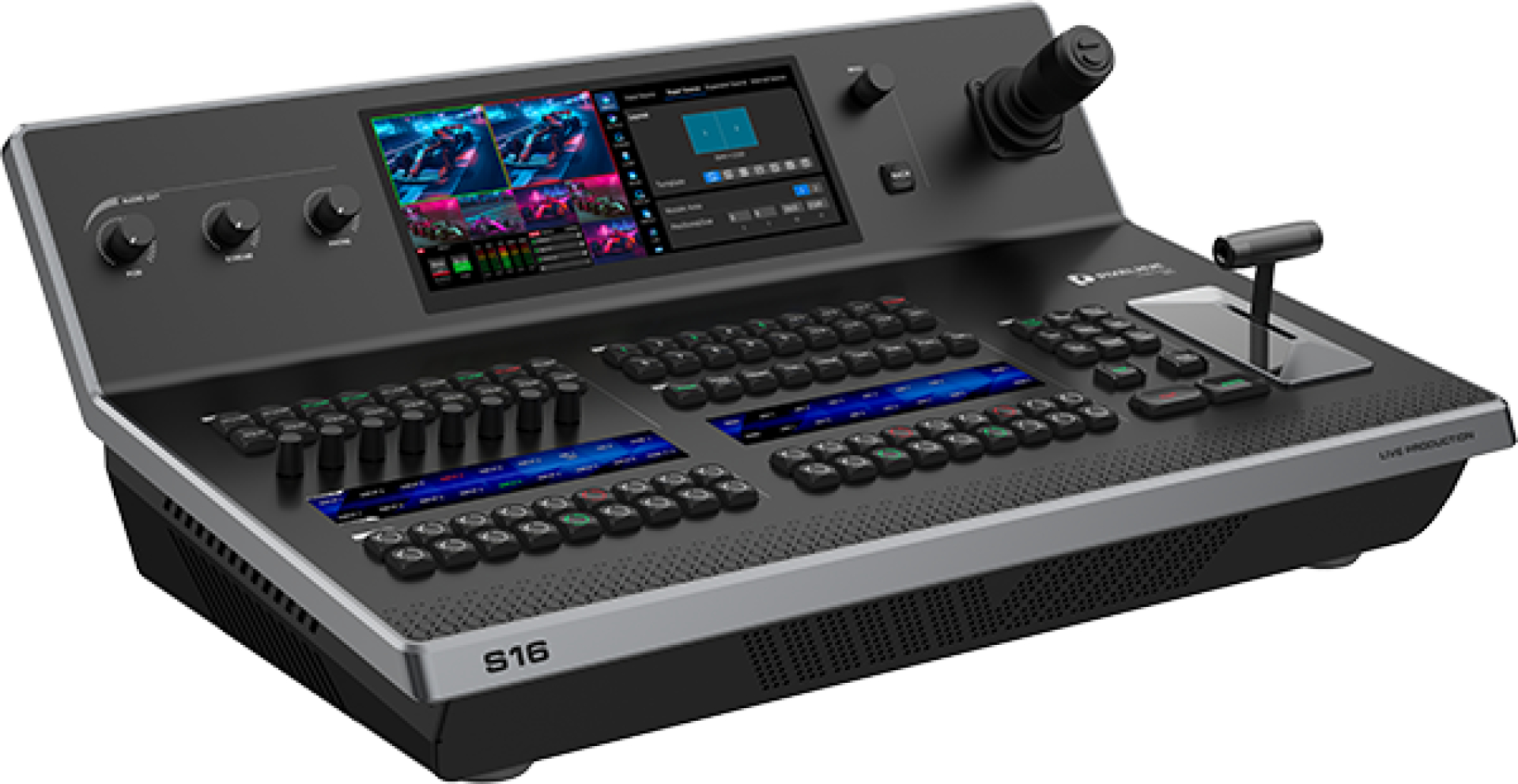

PIXELHUE S16 - front left view

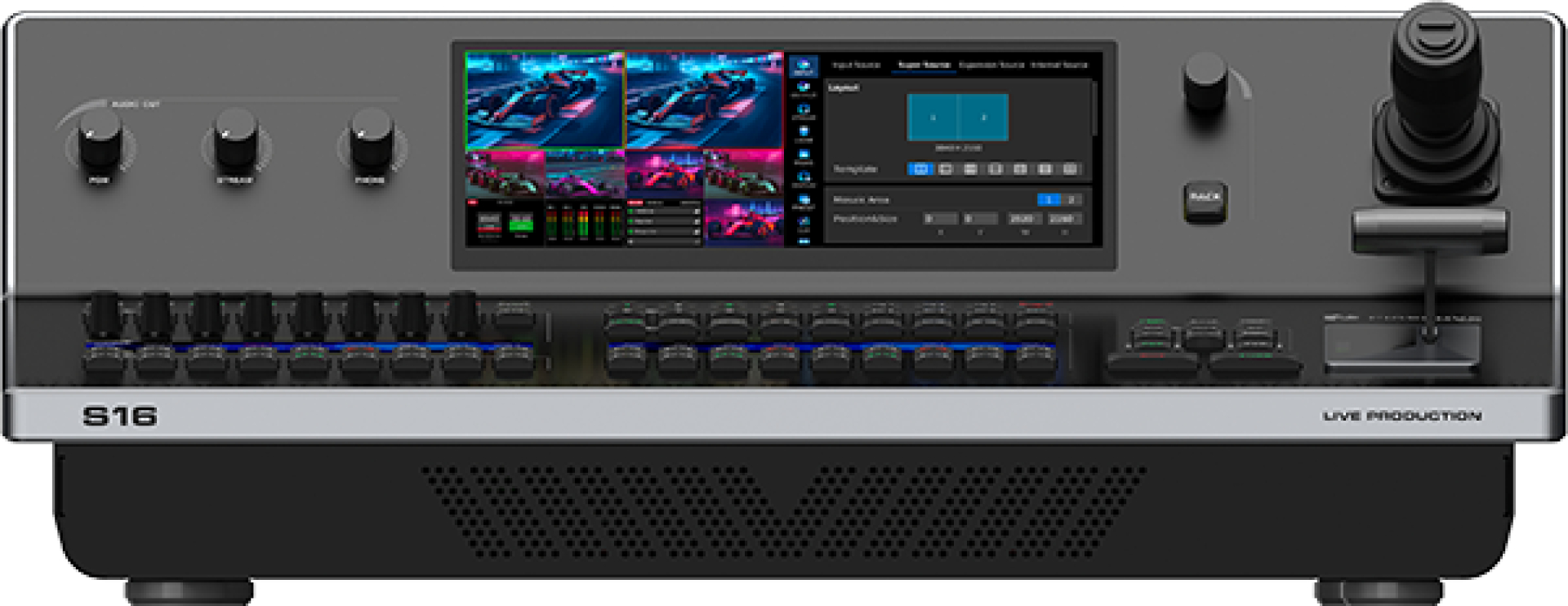

PIXELHUE S16 - front low level view

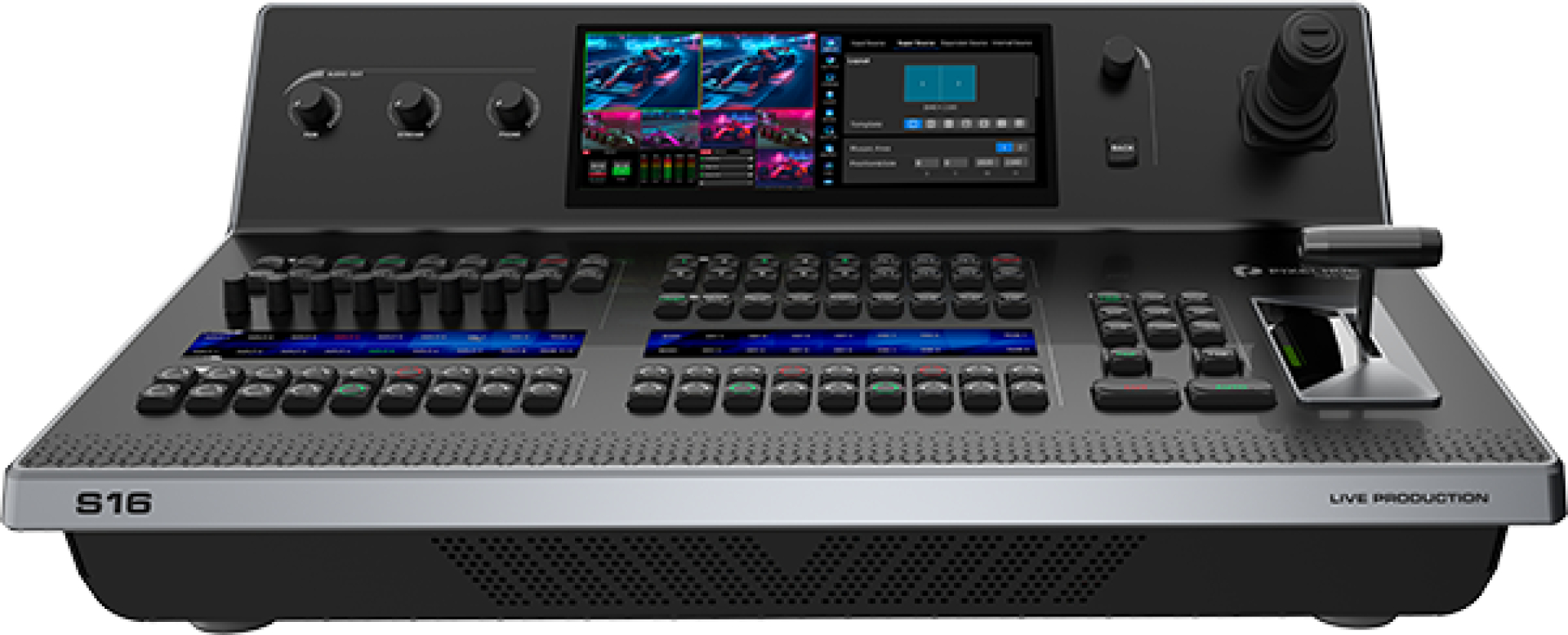

PIXELHUE S16 - front straight on view

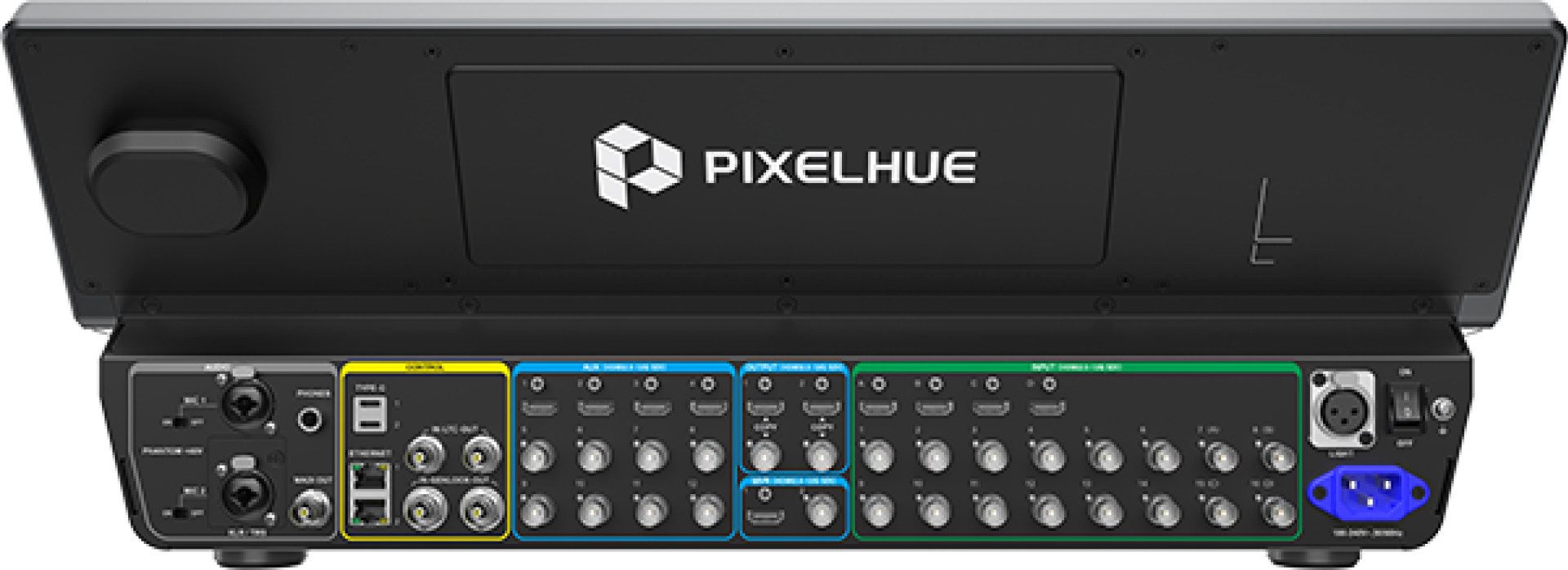

PIXELHUE S16 - back view

PIXELHUE S16 - front left view

PIXELHUE S16 - front low level view

PIXELHUE S16 - front straight on view

PIXELHUE S16 - back view

S16 Live Production Switcher

Key Features:

Live production switcher

Full 4K workflow

Versatile AV connectivity

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

S16 Live Production Switcher

Introducing the S16, state-of-the-art 4K live production switcher, integrated into a sleek control panel, perfect for professional tasks with unrivaled portability. Featuring up to 16 SDI and 4 HDMI inputs, UVC (USB Video Class)/RTMP, AUX outputs, 4 upstream keyers, 2 downstream keyers, SuperSource, BKGD, media players, and various transitions like MIX, DIP, and WIPE. The S16 includes built-in streaming, recording, audio mixer, and Multiviewer. Boasting up to 16 12G-SDI inputs, the S16 offers unmatched editing flexibility as a market-leading feature. Built on PIXELHUE's years of expertise, our live production switcher caters to your live event needs, ensuring flawless execution for small venues, corporate events, entertainment and cultural occasions, sports events, houses of worships, education and training, esports and gaming, personal studios, freelancers, or broadcast vans.

Built-in 10.25-inch LCD display

Up to 16x 12G-SDI inputs, and up to 4x HDMI 2.0 inputs

HDMI 2.0 and 12G-SDI for main, AUX and Multiviewer (independent/copy) outputs

End-to-end 4K

1x USB3.0 (Type-C) for 1080p@60Hz streaming (H.264)

Simultaneous streaming to a variety of live streaming platforms via 4x RTMP, such as YouTube, Facebook, instagram, linkedin, etc.

Audio: 2x XLR/TRS inputs, 2x XLR outputs, 1x TRS output, 2x Dante input and output

One-click recording

16x 12G-SDI, connecting up to 16 camera inputs with embedded audio

Comprehensive keyer adjustments, including scaling, cropping, color adjustment, keying, layout, mask, border and shadow

Various transition effects, such as MIX, DIP, and WIPE

8-direction joystick for controlling PTZ cameras (via ONVIF and VISCA over IP protocols) and keyers

Flexible keying options: 4x Upstream keyers, 2x Downstream keyers, 1x SuperSource, 1x BKGD

Versatile input options: Easily select and play video from local files, network streams, or UVC cameras

Up to 20 presets

Tally support: Tally indicators on Multiviewer and camera help you know when each source is on-air

Dual media players: Play media with transparency for output as keyers, or keying effects

Precise audio control by adjusting equalizer and dynamics for optimal sound

Timecode acquisition and generation support

Genlock support for syncing to the broadcast systems

Complete redundant backup for the input and output

Screen brightness adjustment

Easy and worry-free maintenance and repair

Designed to ensure 24/7 stable operation

S16 Live Production Switcher - Downloads
