P20/P20-DS Multi-Layer Presentation Switcher

P20/P20-DS Multi-Layer Presentation Switcher

Key Features:

  • 8x DP 1.2 / HDMI 2.0 + 4x 12G-SDI inputs
  • 8x HDMI 2.0 production outputs (+4x 12G-SDI on P20-DS)
  • 4x HDMI 1.3 AUX outputs
  • 8 OPT Fibre Outputs
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

P20/P20-DS Multi-Layer Presentation Switcher

Pixelhue P20 is a 3U seamless switcher that is twice the size of its smaller brother, the P10, designed for live show environments where multiple layers are required across multiple displays.

Product Variants

P20

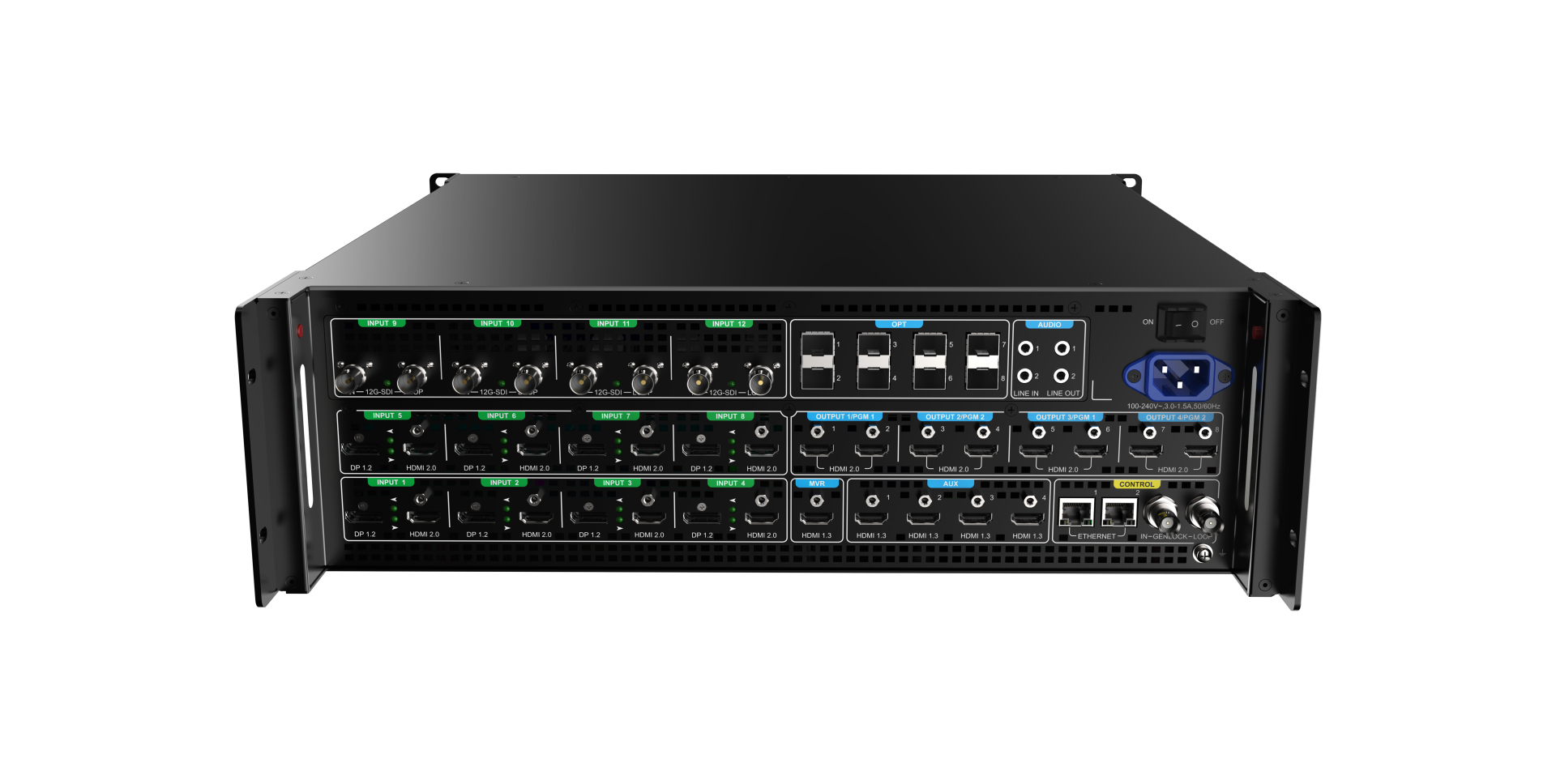

  • Inputs: 8x DP 1.2/HDMI 2.0 | 4x 12G-SDI (in&loop)
  • Outputs: 8x HDMI 2.0
  • Audio Connectors: 2x 3.5 mm line in | 2x 3.5 mm line out

Enquiry Form

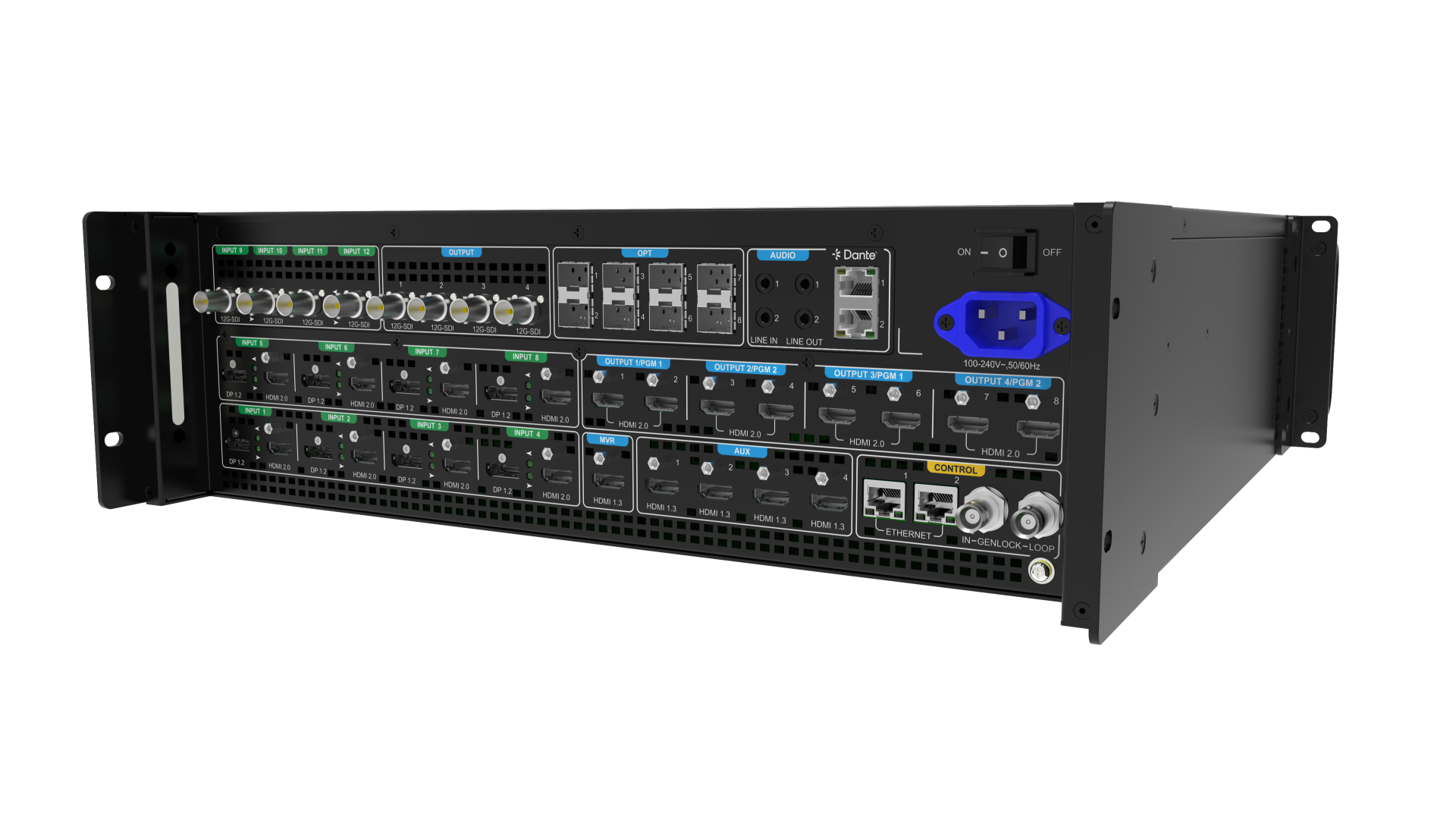

P20-DS
  • Inputs: 8x DP 1.2/HDMI 2.0 | 4x 12G-SDI
  • Outputs: 8x HDMI 2.0 | 4x 12G-SDI
  • Audio Connectors: 2x Dante connectors | 2x 3.5 mm line in | 2x 3.5 mm line out

Enquiry Form

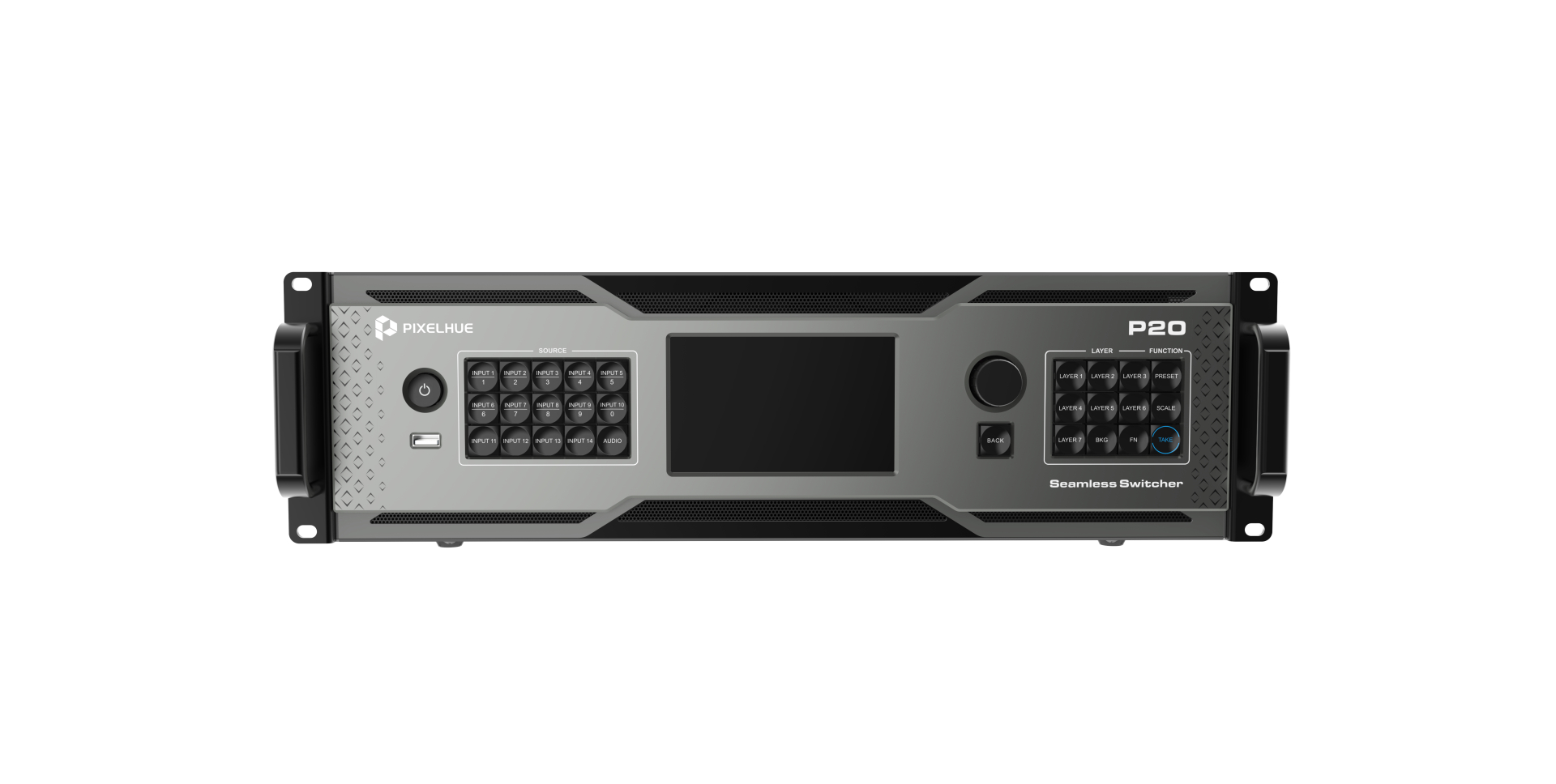

Just like the P10 the P20 can be easily controlled via the 5-inch LCD front panel, U5 or U5 Pro controllers, web GUI or Stream Deck allowing operators easy access to high performing features such as output splicing, format conversion, mapping and geometry/colour correction.  The P20 boast additional features such as Chroma & Luma keying and support of HDR signals.

  • Processing – Switcher Mode; 2x 4Kx2K@60Hz / PGM ONLY：8Kx4K@60Hz

    Layers -3x 4K layers + 4x 2K layers or 4x 4K layers

    Multi-viewer Outputs -1x HDMI 1.3

    Pre-sets – 128

    BKG & Logo Store – 255 (512Mb)

    DSK – Chroma & Luma Key

P20/P20-DS Multi-Layer Presentation Switcher - Downloads
PIXELHUE P Series Spec Sheet
Download
