Skypan Skylite Range
Mole-Richardson Skypan Skylite Range

Skypan Skylite Range

Key Features:

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Skypan Skylite Range

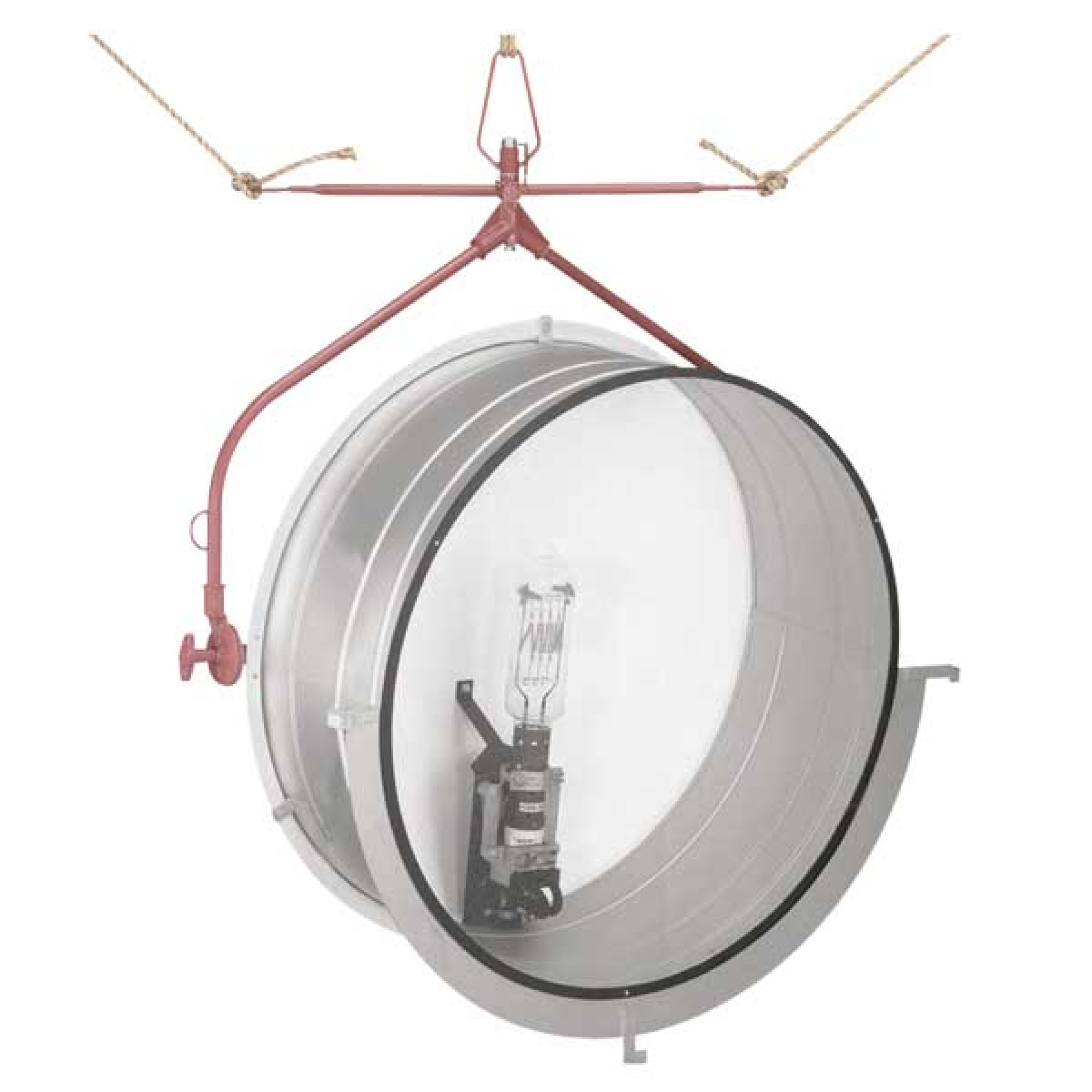

The Mole-Richardson Skypan Skylite range provides a soft and even fill-light for lighting backings or extremely large cyc’s in television, motion pictures and still photography.

Product Variants

5000W Skypan Skylite
MO245
  • 120/240V
  • 41.6A max

Enquiry Form

10000W Skypan Skylite
MO2461
  • 120/240V
  • 100A max

Enquiry Form

20000W Skypan Skylite
MO3471
  • 240V
  • 100A max

Enquiry Form

Diffuser holders and diffuser frames are available for using diffusion materials for a softer fill-light. Comes complete with a safety screen.

    • Head(s):
      Type 245 5000W
      Type 2461 10000W
      Type 3471 20000W

    • Rating:
      Type 245: 120/240V, AC or DC, 41.6A max - 5000W max
      Type 2461: 120/240V, AC or  DC, 100A max - 10000W max
      Type 3471: 240V, AC or DC, 100A max - 20000W max

    • Sockets: Mogul Bipost. Spring loaded contacts

    • Switch: Type 245: 60A, 125V heavy-duty double pole, snap action, mounted in rear of socket casting

    • Cable:
      Type 245: 3ft Type SO, 3 conductor #6 AWG with MC257G 3 pin plug
      Type 2461: 3ft Type SO, 3 conductor #4 AWG with 100A Bates plug (MC258G)
      Type 3471: 3ft Type SO, 3 conductor #4 AWG with MC259G 3 pin plug

    • Construction: Steel reflector with cast aluminum socket housing.

    • Yoke: Tubular steel and brass castings with removable 11/8″ dia. steel yoke pin.

    • Reflector: Steel with white reflecting surface.

    • Size:
      Type 245: 27 1/2″ diameter by 4 5/8″ deep reflector
      Type 2461: 52" diameter by 23 1/4" deep reflector with skirt
      Type 3471: 52″ diameter by 23 1/4″ deep reflector with skirt

    • Finish: Maroon powder coat enamel

    • Head Weight:
      Type 245: 22lbs
      Type 2461: 73lbs with diffuser holder
      Type 3471: 73lbs with diffuser holder

Skypan Skylite Range - Variant Downloads
