F4 Multi-screen Management System

F4 Multi-screen Management System

Key Features:

Up to 32×2K60p inputs and 24×2K60p outputs

Field-installable IO cards to provide a variety of connectivity possibilities

Removable and swappable dual power supplies

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

F4 Multi-screen Management System

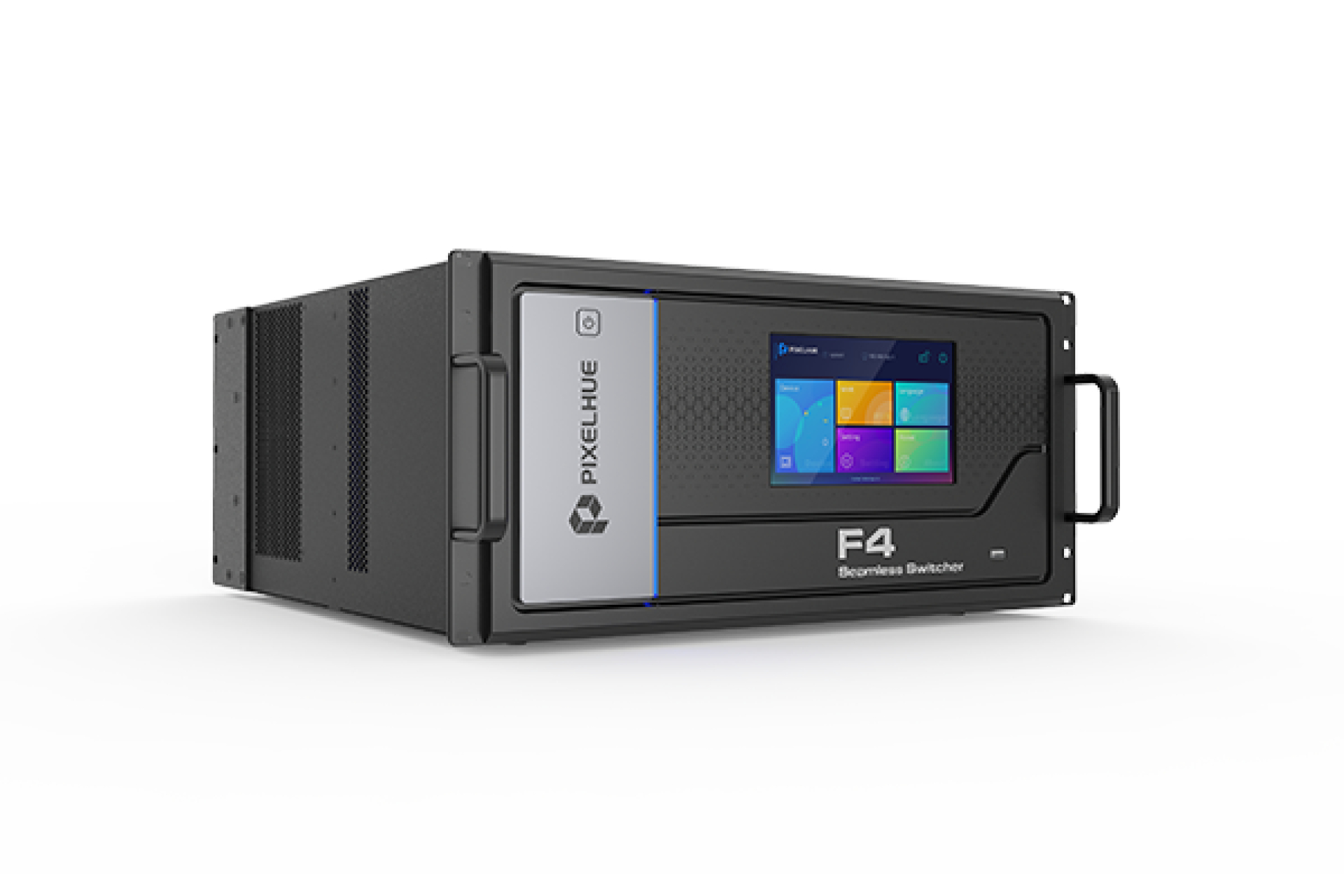

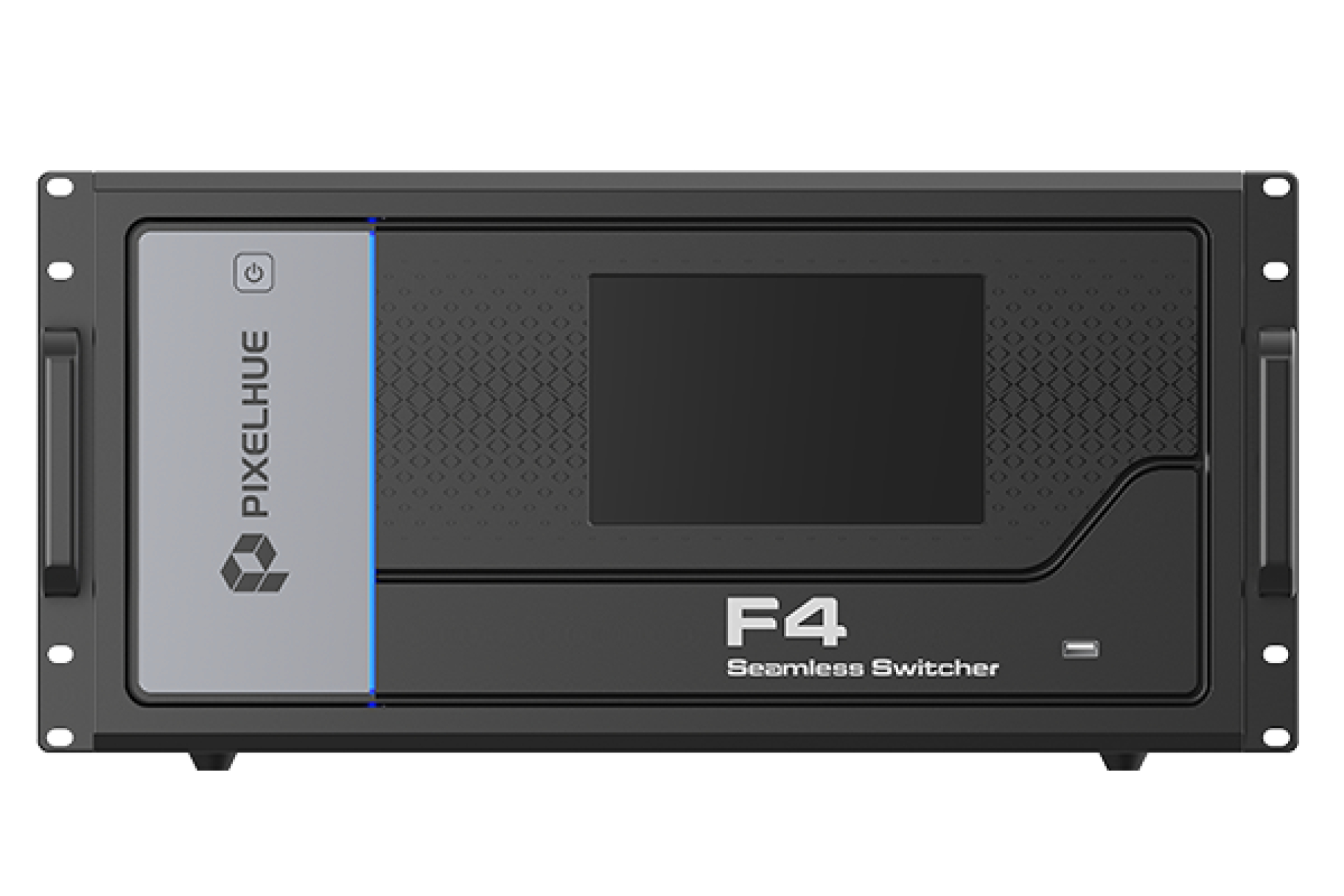

Pixelhue F4 is a high-performance presentation switcher designed for easy management of multiple displays for shows or visual management systems.

The F4 is designed with 8 input slots and 6 output slots, allowing you to easily select I/O modules with different input output connectors to match the visual systems requirements.

Designed with the latest high-performance FPGA Chipset, the F4 delivers reliable, stable, faster, and better image performance, and outputs non-compressed 4k@60hz 4:4:4 10bits video. The F4 supports at most 48 SL mix layers, or 24 DL mix layers or 12 4K mix layers. It also supports a variety of input and output connectors, including DVI, DP, HDMI, and 3G SDI connectors, allowing easy customization for any project or show.

The F4 can be controlled via its dedicated video processing software TRITON or via a U3 Live Event Controller or via Stream Deck.

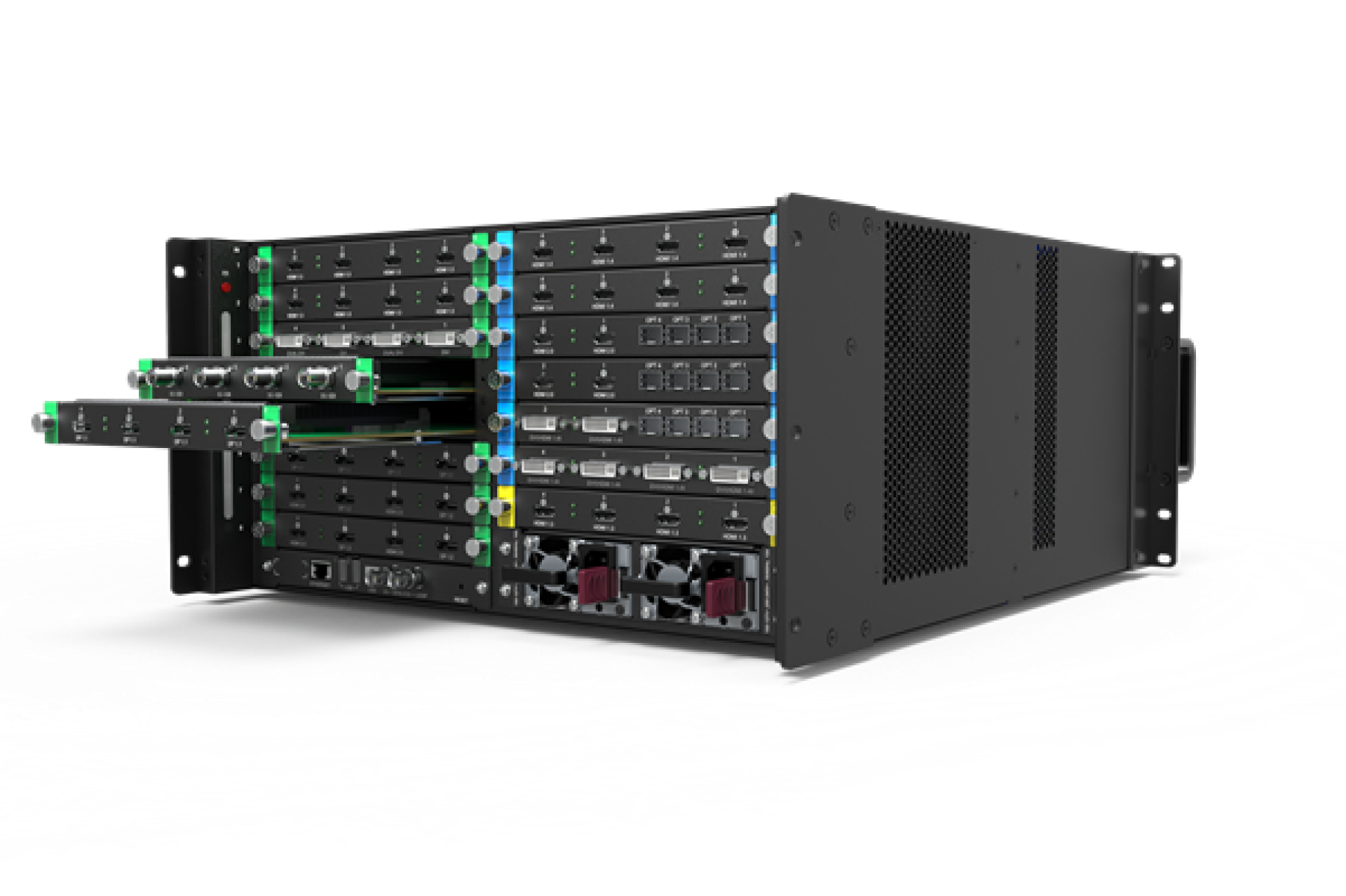

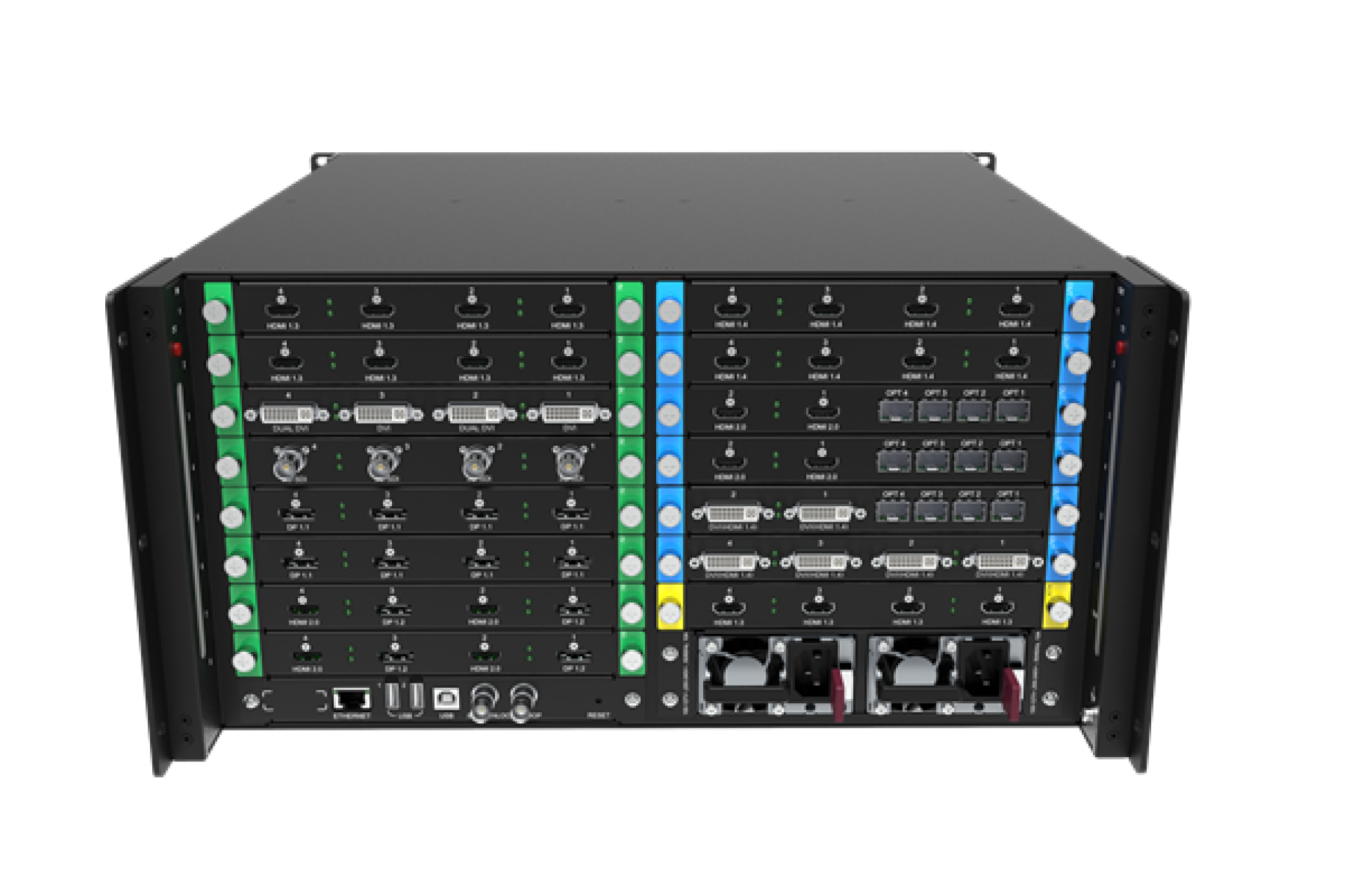

F Series chassis can be populated with I/O cards to help give rental partners/operators the greatest flexibility when configuring the system to meet their projects requirements. The I/O cards available are:

Inputs:

- Quad HDMI 1.4

- Dual 4K HDMI 2.0/DisplayPort 1.2

- Quad 12G-SDI

- Quad Single-Link DVI

- Quad 3G-SDI

- Quad HDMI 1.3

- Quad DisplayPort 1.1

Outputs:

- Quad 3G-SDI

- Dual 4K HDMI 2.0/Quad 10G OPT

- Quad Single-Link DVI

- Quad HDMI 1.3

- Quad Dual-Link DVI

- Dual Dual-Link DVI/Quad 10G OPT

- Quad HDMI 1.4
