The all new, highly efficient Class-D amplification module produces best-in-class 2000W of power and an impressive 143dB SPL. All the amplifiers were selected and optimized to match the full-range DZR’s high, mid (only for DZR315), and low frequency transducers, while separate, customized amps were developed for the DXS XLF subwoofers as well.
HF transducer
The HF transducers comprise a 2˝ voice coil and 1˝ throat compression driver, a titanium diaphragm, and a neodymium magnet housed in a durable, heat–resistant cast aluminium frame.
MF transducer for the 3-way

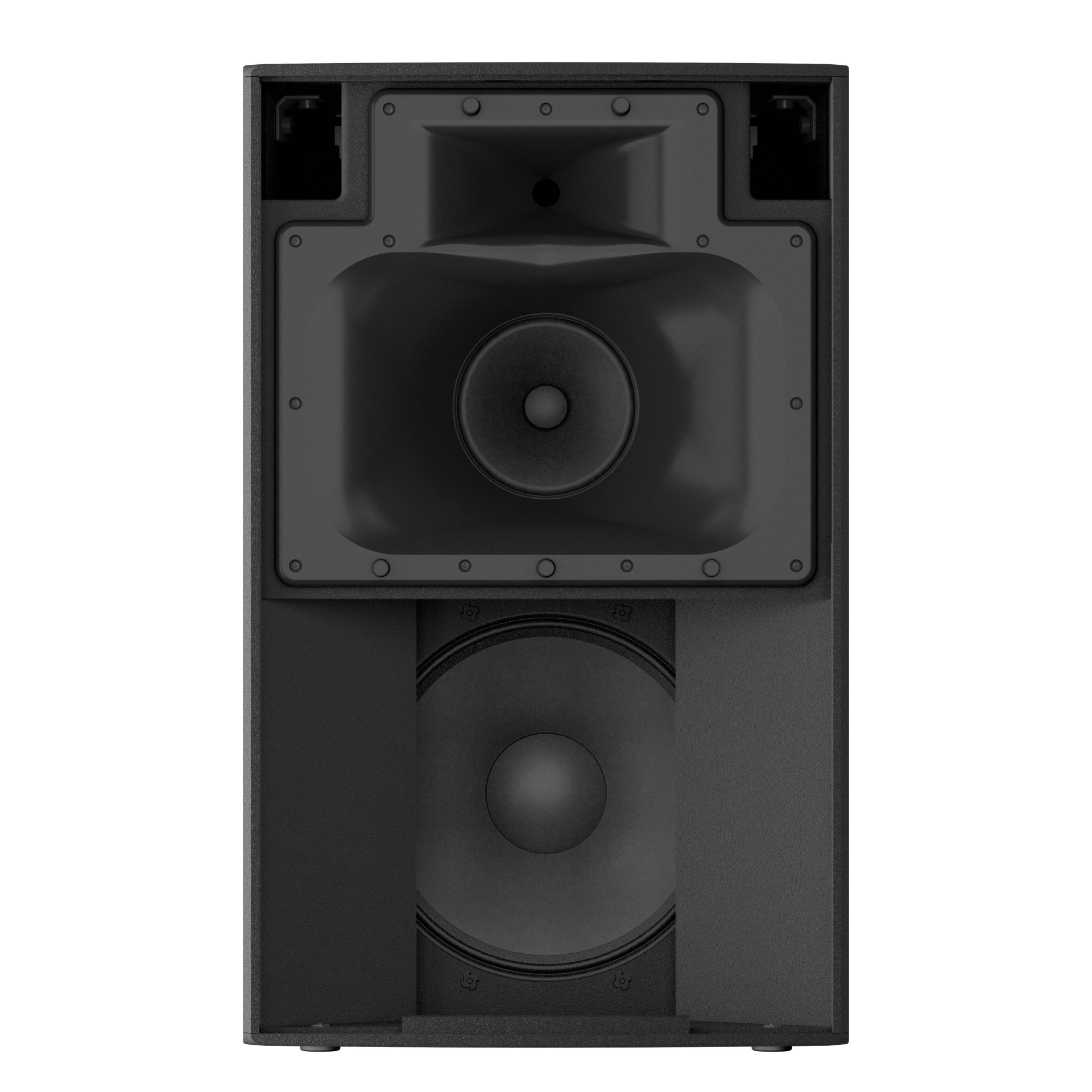

The MF transducer for the 3-way DZR315 models features an 8˝ cone and a 1.5˝ voice coil, delivering better efficiency and ultra-low distortion in the low-mid frequencies, contributing to the extraordinarily high 143dB maximum SPL and sound clarity.
LF transducer
Our newly developed proprietary LF transducers use large 3˝ voice coils, cast aluminium frames, and a strong, lightweight neodymium magnet to handle high power and deliver a powerful low-frequency response despite the lightweight construction. The response is tightly controlled, particularly in the mid-bass and vocal range, ensuring a powerful, distortion-free overall response even at the highest outputs.

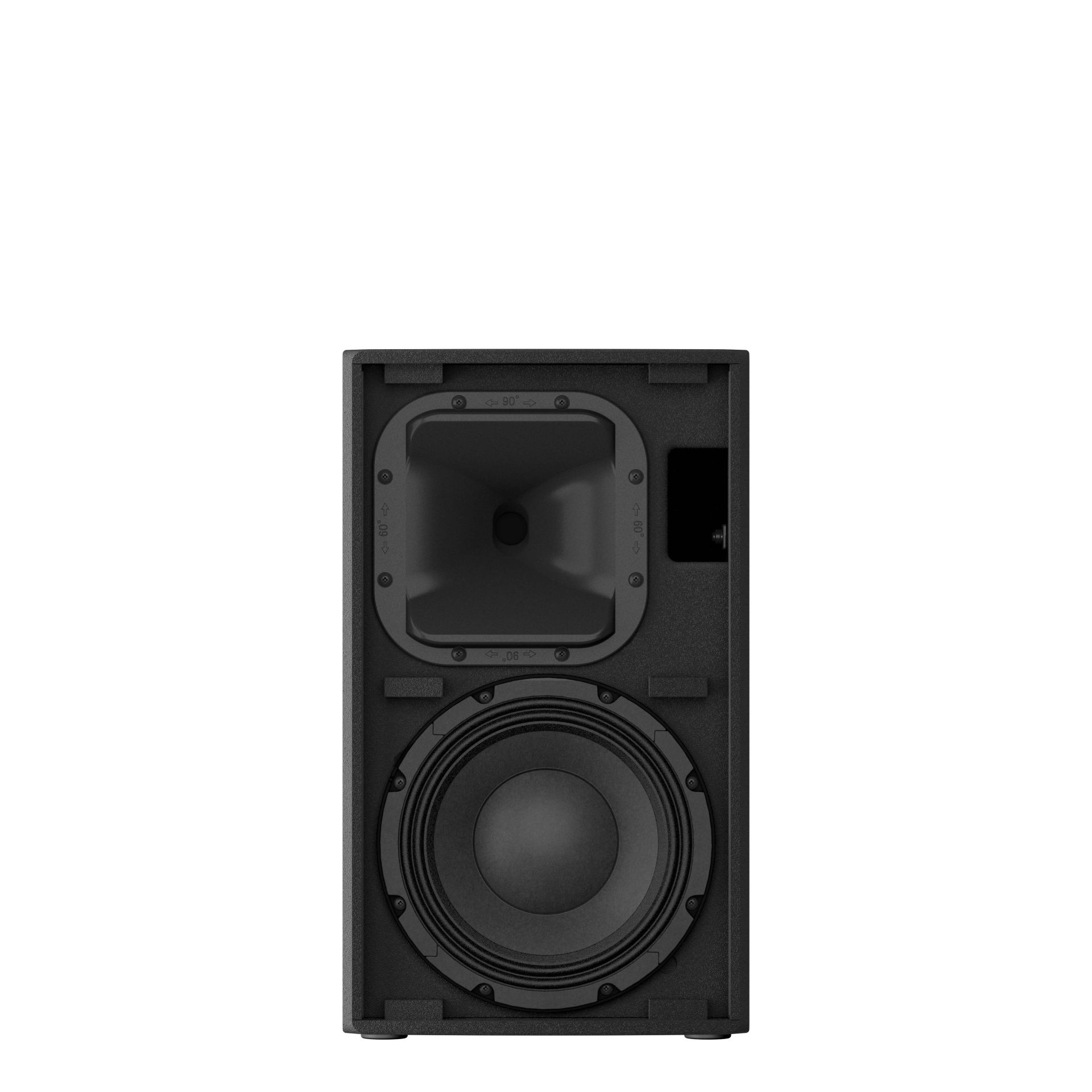

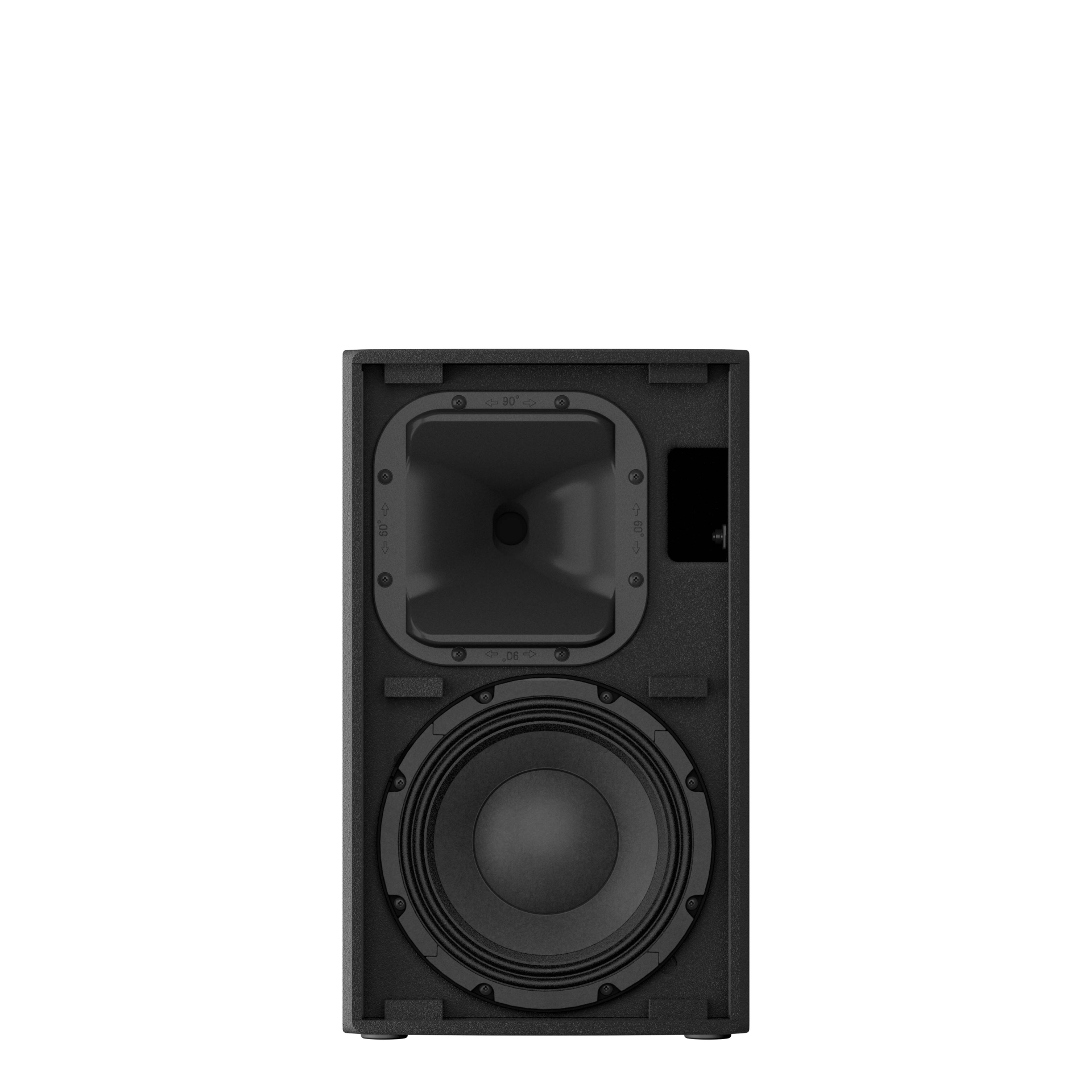

DZR15, DZR12, and DZR10 speakers feature a rotatable horn, allowing vertical or horizontal mounting to better suit a venue's acoustic dimensions. The DZR15 has a coverage angle of 90° x 50°, and the DZR12 and DZR10 have 90° x 60° dispersion from a vertical position. The constant directivity horns were designed to provide smooth, level coverage across the intended coverage area, minimising the roll-off common in conventional horn designs.

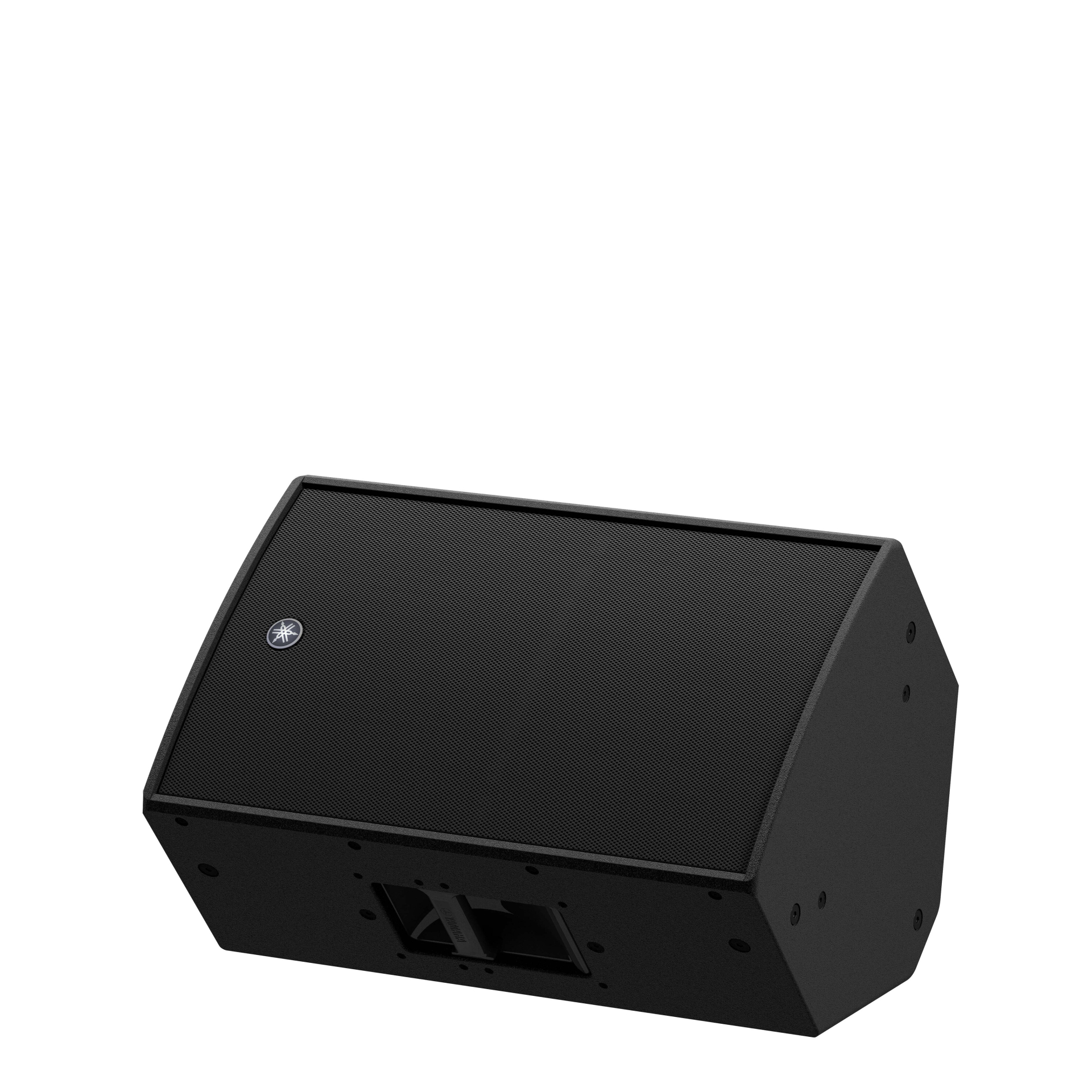

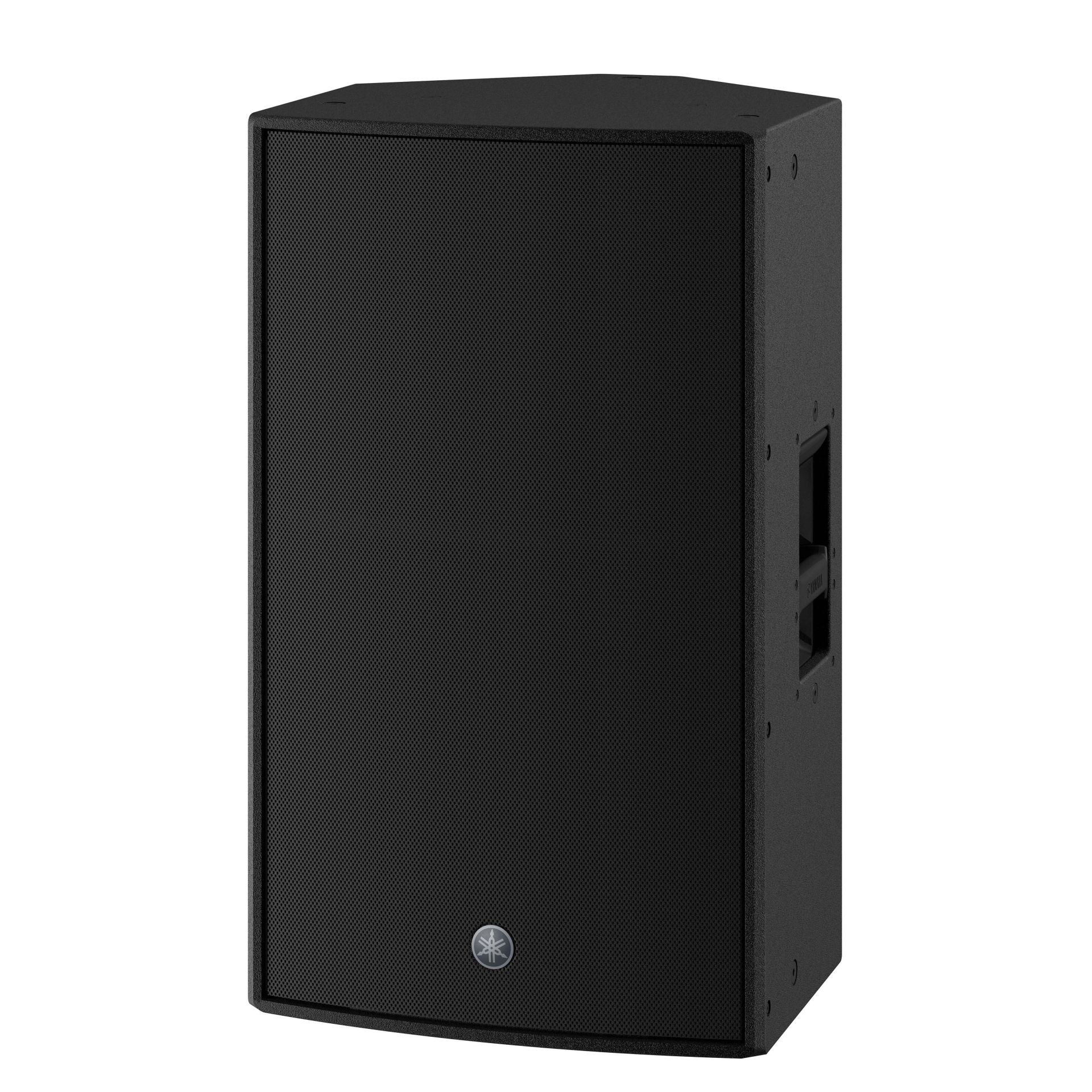

The cabinets are constructed from high-grade 15 mm-thick plywood and then painted with an extremely durable, military-grade polyurea coating. The full-range speaker enclosures also feature butterfly joints for added strength and reduced cabinet vibration, plus a wide, flare-shaped port that helps minimise port noise even at very high output levels. The enclosure design for the DZR15, DZR12 and each of their Dante models enables mirror-mode monitor placement that produces a symmetrical sound field for the performer, creating a larger, more defined “sweet spot” than conventional monitoring configurations. (DZR10 / DZR10-D are asymmetric.) Used in either a balanced dual-mono configuration or a stereo monitor mix setup, mirror-mode floor monitoring can significantly enhance your playing and performance.
