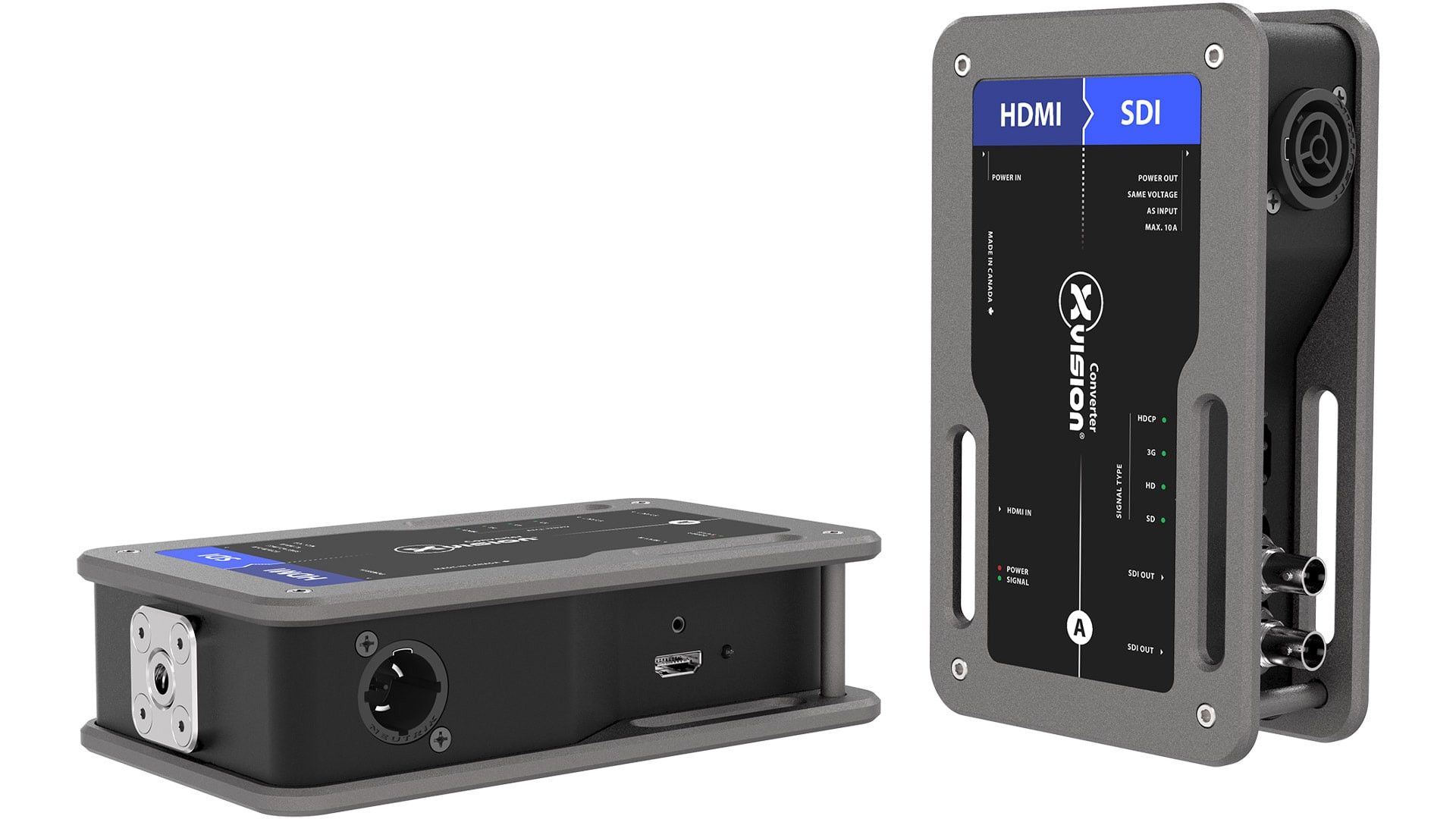

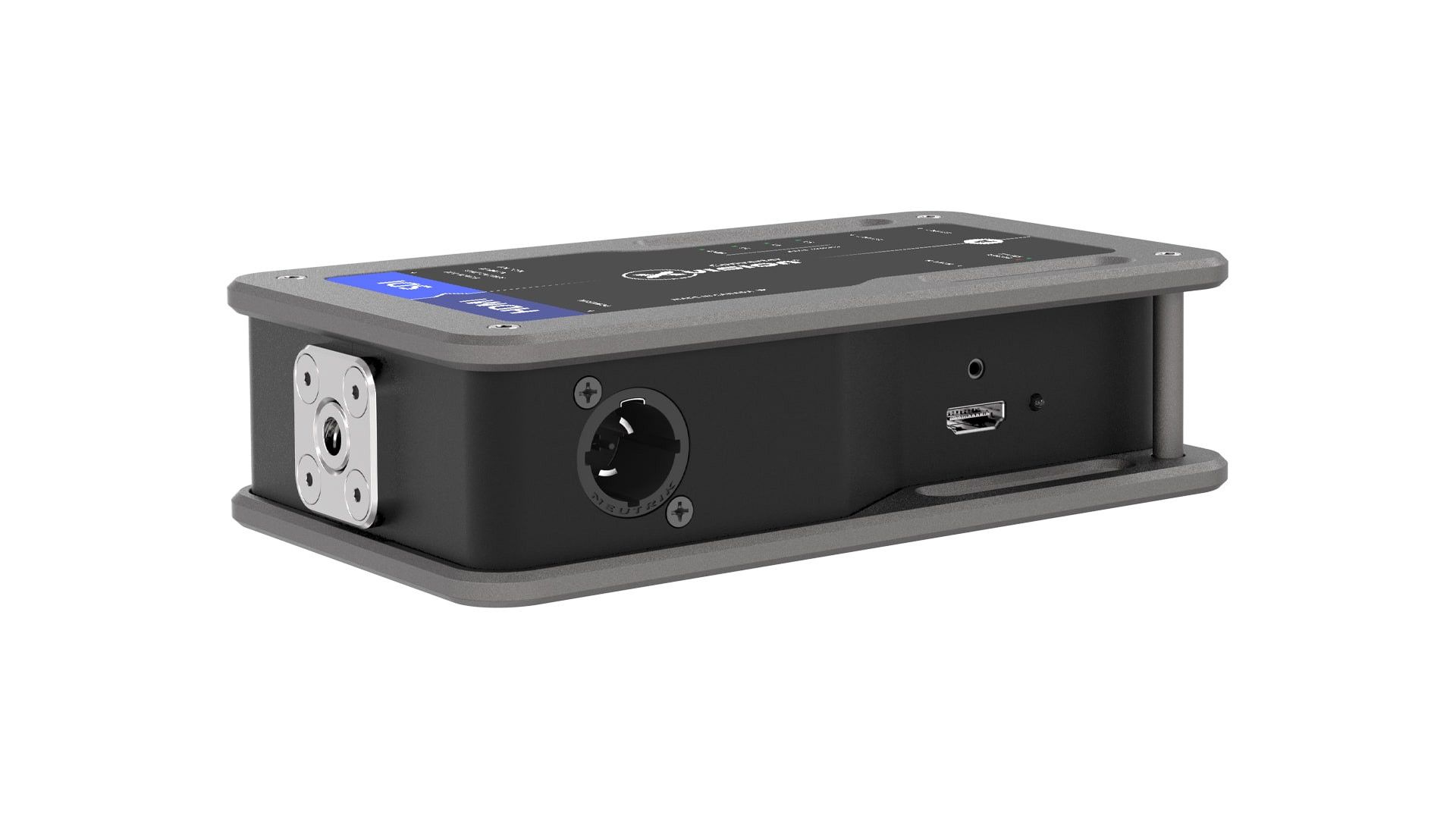

Theatrixx xVision Converter - HDMI1.2 To 3G-SDI - PT1 In/Thru

Theatrixx Converter HDMI1.2 To 3G-SDI - PT1 In/Thru

£ 290.00

Ex-VAT

4 Available

Condition:

Brand New

Boxed

12 Month Warranty

Shipping is to UK only. Export customers, please call for more info.

Or call us today on

+44 (0)1494 446000

Theatrixx Converter HDMI1.2 To 3G-SDI - PT1 In/Thru

Theatrixx xVision Converter - HDMI1.2 To 3G-SDI - PT1 In/Thru. Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.

Features

Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.
Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.

Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
Clear and ample status LED indicators for quick troubleshooting.
HDMI input tested and compatible with Apple computers and iPad.
Easy on-the-field identification with unique color and alphabetic coding system.
Locking HDMI port prevents accidental disconnection.
Integrated SDI splitter : Dual SDI outputs.
Proudly designed and assembled in Canada.

Video Input 1 x HDMI 1.2 type A with locking system

Video Output 2 x 3G/HD/SD SDI BNC

3G Format Support 1080p50, 1080p59.94, 1080p60.

HD Format Support 720p50, 720p59.94, 720p60, 1080i50,

1080i59.94, 1080i60, 1080p23.98,

1080PsF23.98, 1080p24, 1080PsF24, 1080p25,

1080PsF25, 1080p29.97, 1080PsF29.97,

1080p30, 1080PsF30

SD Format Support 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL

SDI Video Sampling 4:2:2 and 4:4:4

SDI Audio Sampling Sample rate of 48 kHz and 24 bit

SDI Color Space YUV and RGB

SDI Auto Switching Automatically detects incoming signal format

SMPTE Standards 425M Level A & B, 424M Level A, 292M, 259M

Height 50 mm (1.97 in)

Depth 180 mm (7.08 in)

Width 107 mm (4.21 in)

Weight 1 kg (2.2 lbs)

Alternate Form Factor Also available as a Reversible Module
