The DM5 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications.
Product Variants

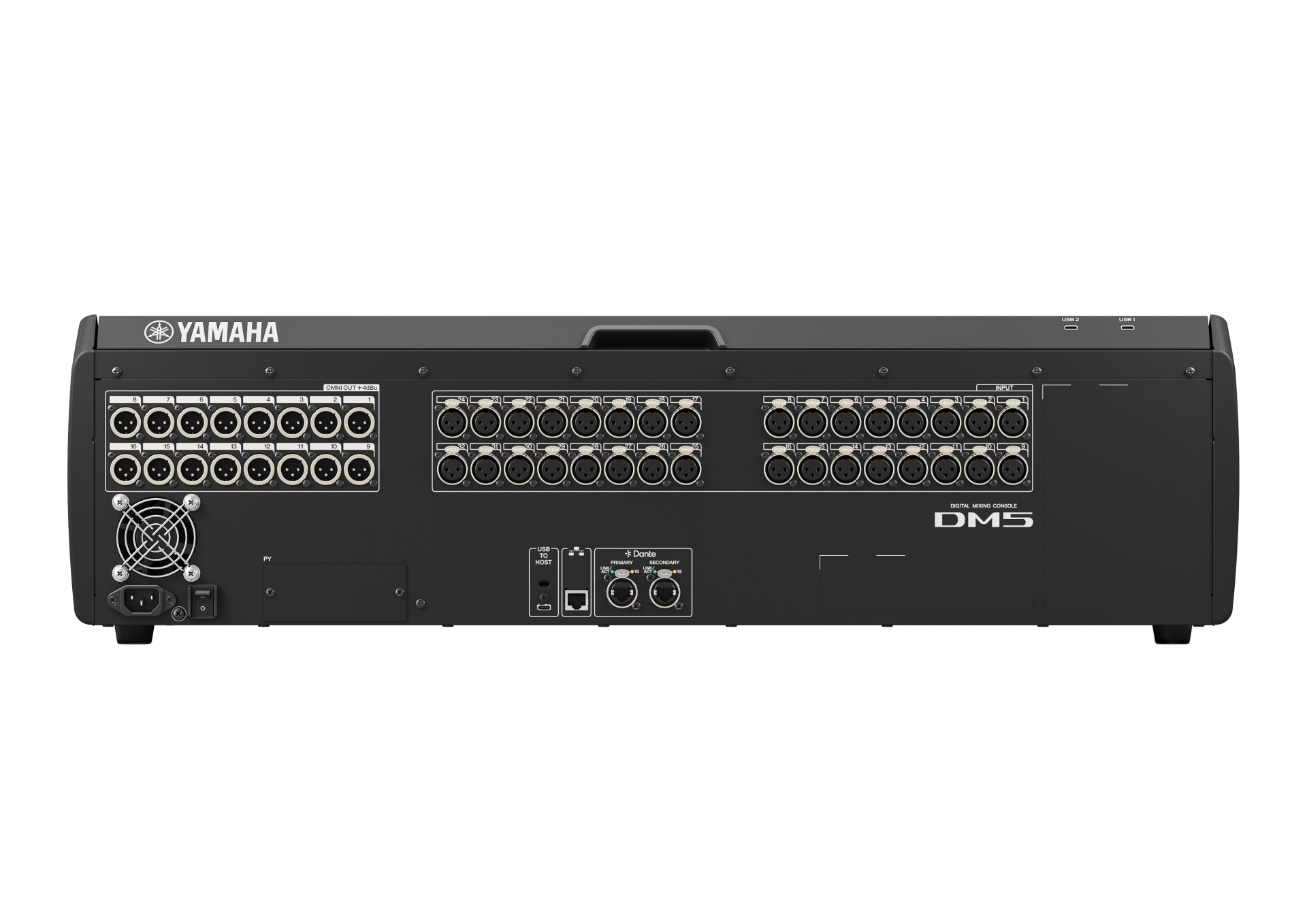

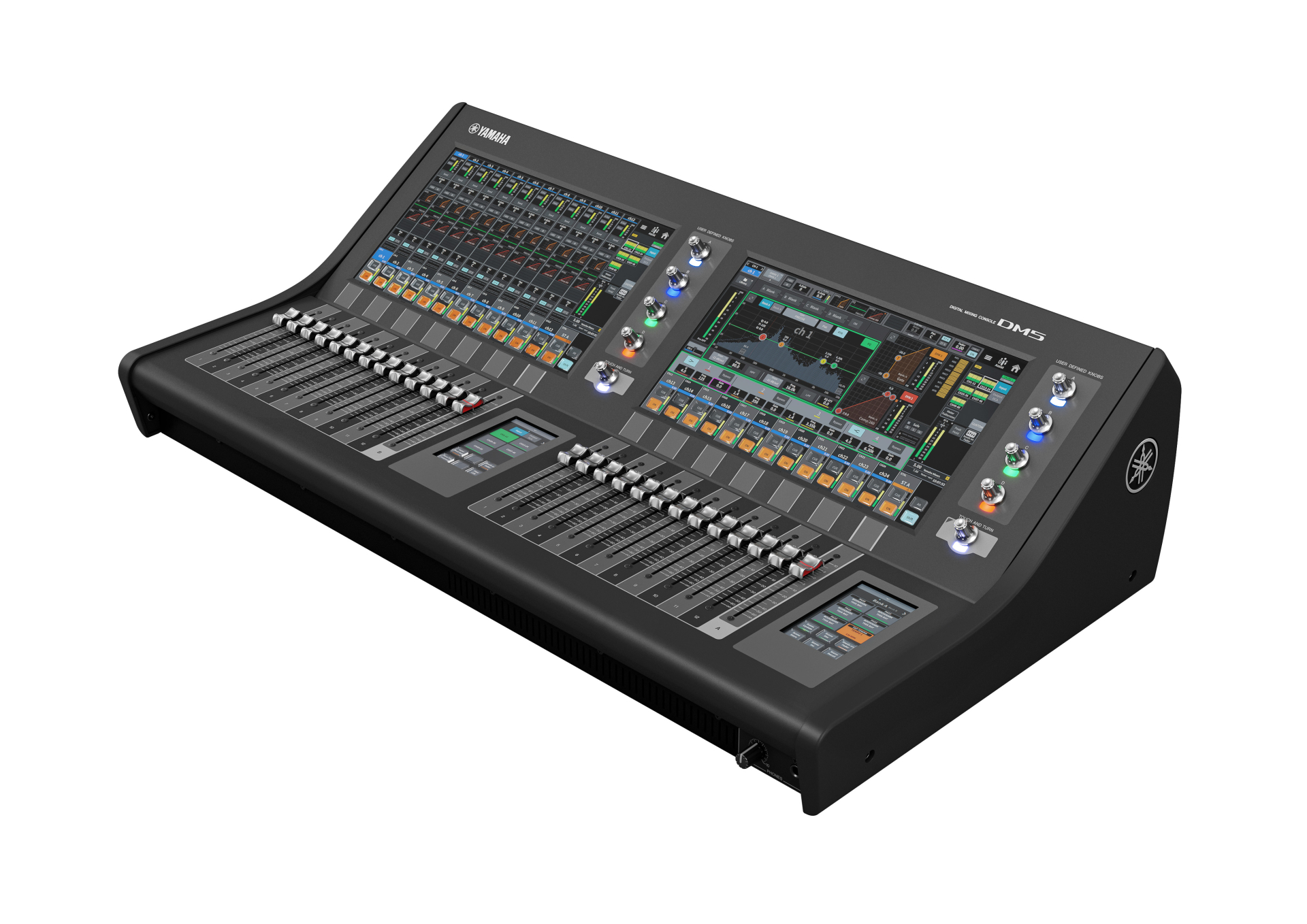

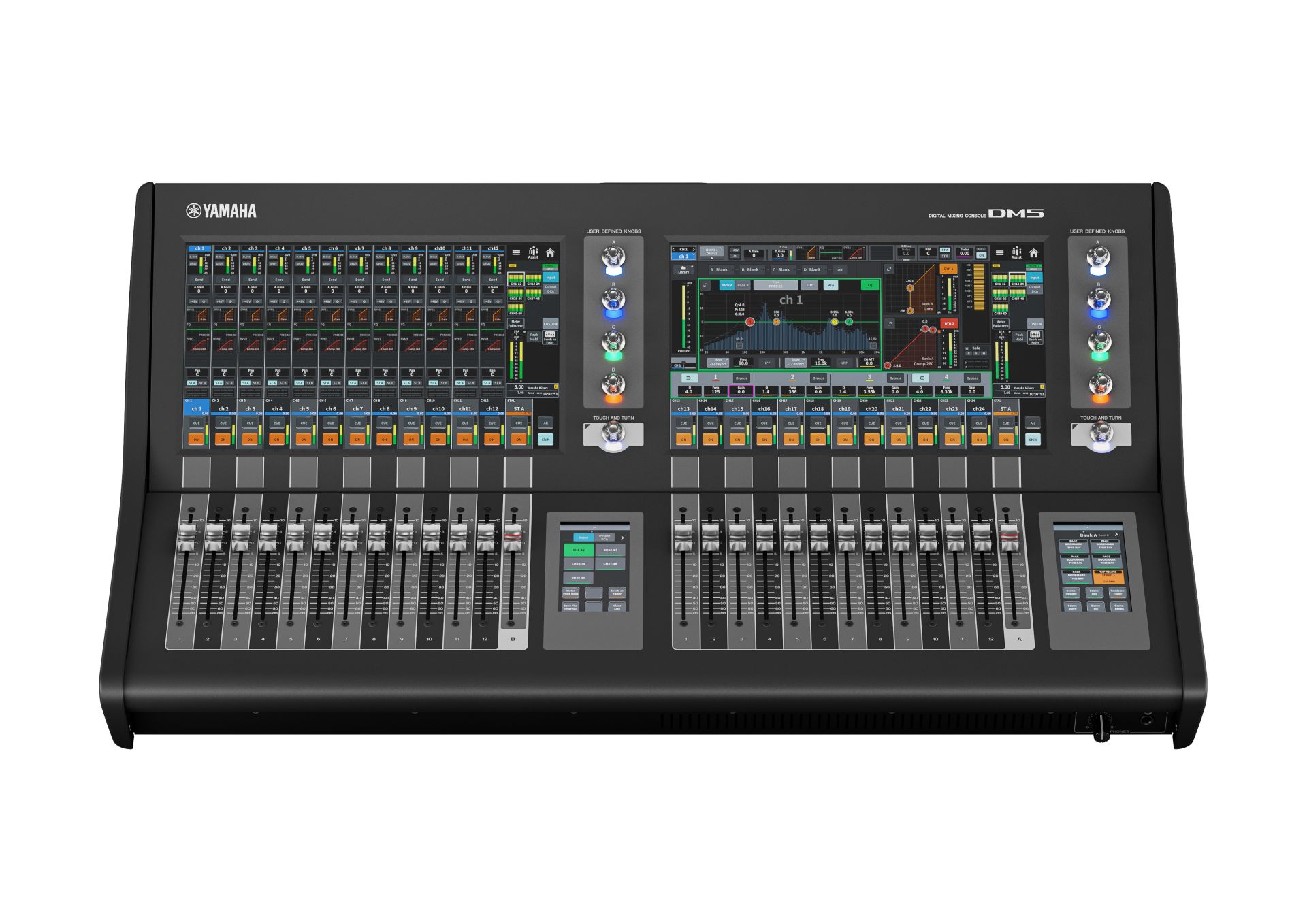

DM5
60 mono input channels
24 mix buses
12 matrix buses
2 Stereo buses
Dante primary / secundary
Sampling frequency: 96 kHz / 48 kHz
2 x 13,3" tiltable multi touch screens
2 x 4,3" multi touch Utility scherm
26 x 100 mm touch-sensitive faders
8 user defined knobs, 2 Touch & Turn
12 DCA Groups, 12 mute/dim groups
16 effects, 24 PEQ/GEQ
32 Premium effects with optional PY-DSP
12 channels Dugan Automixing (Expandable to 60 by optional DEK-DUGAN)
Dante-interface: 64 inputs / 64 outputs
Local I/O: 32 Mic/Line inputs / 16 outputs
USB-C 2.0 Audio-interface: 18 inputs / 18 outputs
Dante-interface: 64 inputs / 64 outputs
Bluetooth audio playback
1 PY Slot
DAW-Remote mode
Size (B x H x D): 826 x 235 x 441 mm
Weight: 21,5kg
Included: Power cord, Dust cover, Nuendo Live, VST Rack Elements
Enquiry Form

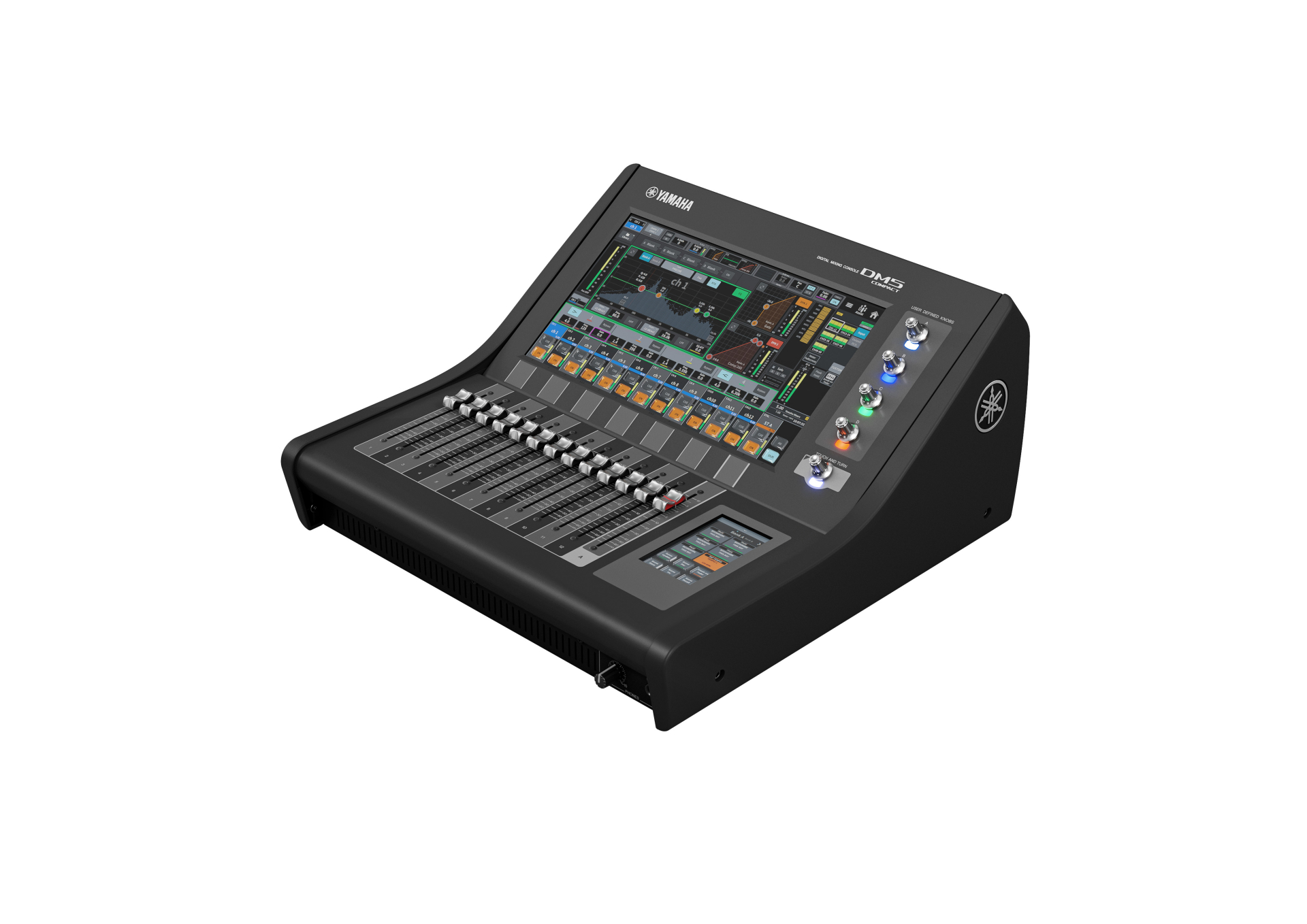

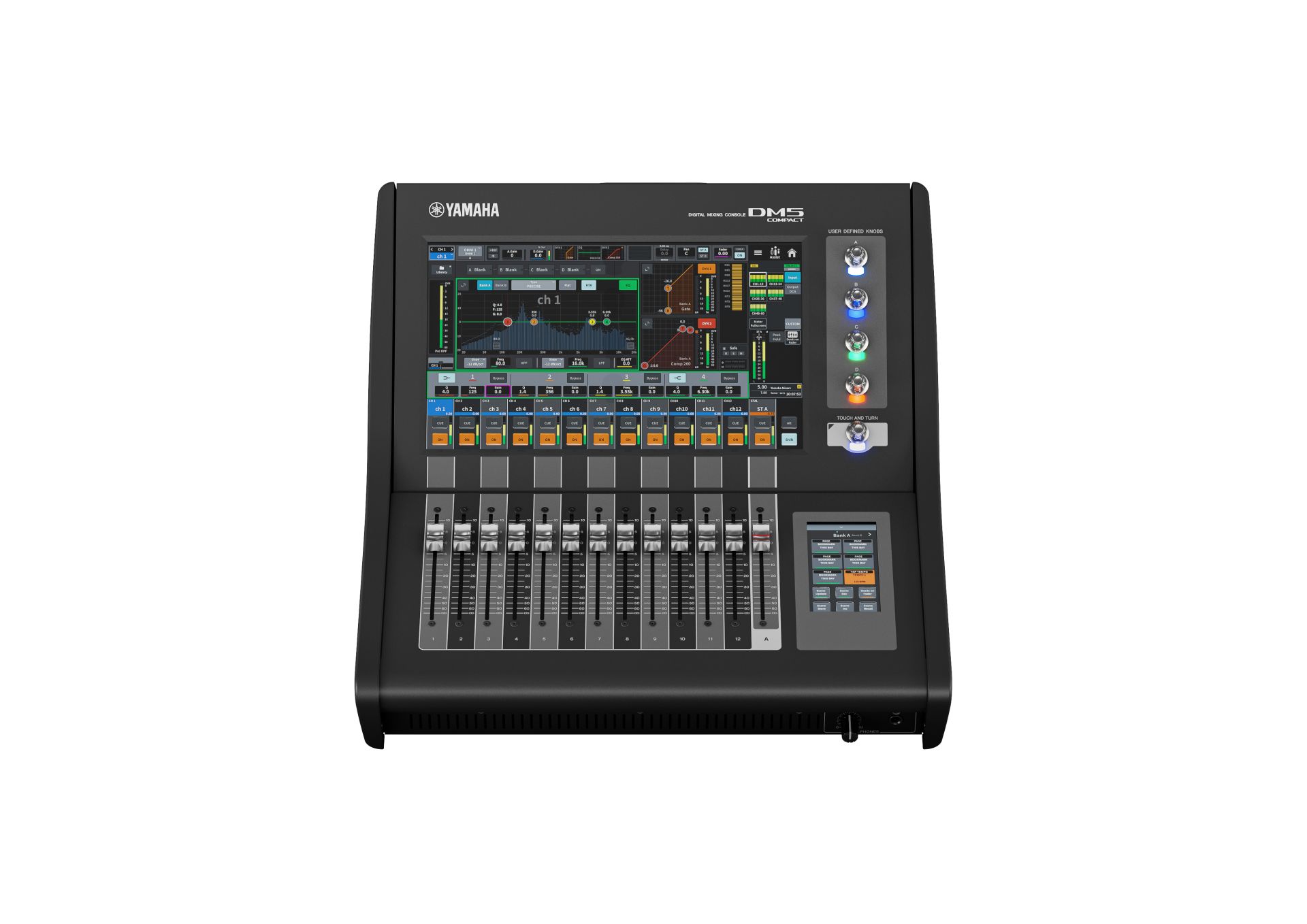

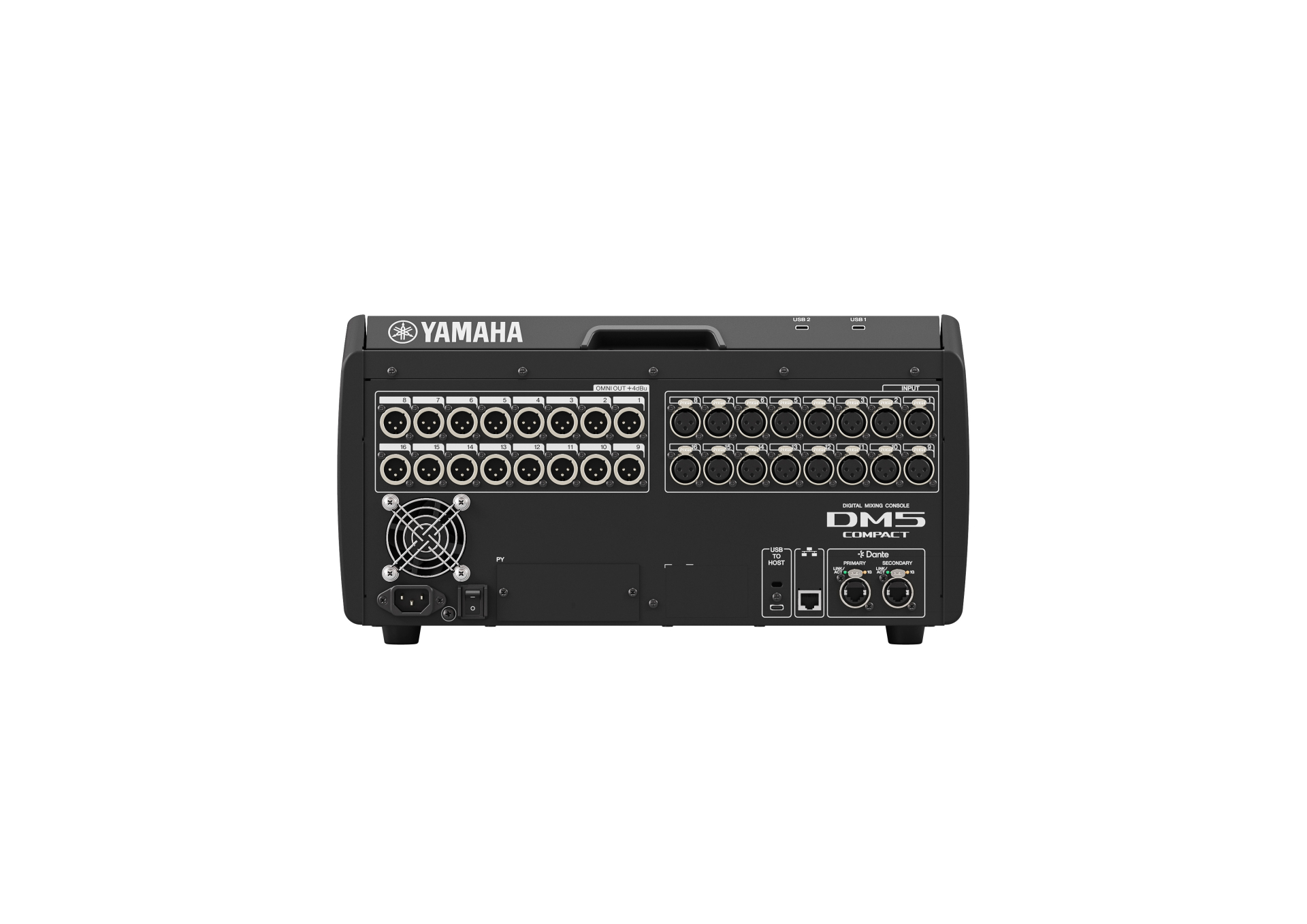

DM5C
48 mono input channels
24 mix buses
12 matrix buses
2 Stereo buses
Dante primary / secundary
Sampling frequency: 96 kHz / 48 kHz
13,3" tiltable multi touch screens
4,3" multi touch Utility scherm
13 x 100 mm touch-sensitive faders
4 user defined knobs, 1 Touch & Turn
12 DCA Groups, 12 mute/dim groups
16 effects, 24 PEQ/GEQ
32 Premium effects with optional PY-DSP
12 channels Dugan Automixing (Expandable to 48 by optional DEK-DUGAN)
Dante-interface: 64 inputs / 64 outputs
Local I/O: 16 Mic/Line inputs / 16 outputs
USB-C 2.0 Audio-interface: 18 inputs / 18 outputs
Dante-interface: 64 inputs / 64 outputs
Bluetooth audio playback
1 PY Slot
DAW-Remote mode
Size (B x H x D): 446 x 235 x 441 mm
19" with optional RK5
Weight: 13,3kg
Included: Power cord, Dust cover, Nuendo Live, VST Rack Elements
Enquiry Form
Forward Thinking
Capture the sound from the stage as-is and overlay the tones you need to bring the artist and audience together. The DM5 series delivers the mix you want every time, bringing speed, certainty, and creativity to the process of building your sound, with a range of functions to support your work in compact formats and polished, intuitive user interfaces. A carefully selected set of controls with freely customizable functions and parameters that elevate your workflow to the next level.
Backed by over three decades of experience in this field, Yamaha provides undeniable reliability and uncompromising audio quality. By integrating seamlessly with your current processes, the DM5 series sets a new standard for professionals who are ready to take their workflows to the next stage.
Sound
The DM5 series honours Yamaha’s legacy of transparent sound, capturing sound directly from the stage so you can build and layer a mix that’s all your own. With powerful channel strip processing, effects, and plugins running on the PY-DSP, the DM5 series gives you everything you need to give free rein to your creativity and build your mix with confidence.
Choose from four EQ types to suit your sound sources and how you build your sound, and use the real-time analyser (RTA) display to help with quick adjustments. Dugan Automixer makes it easy to reinforce multiple mics while maintaining an overall level that avoids feedback thanks to the Dugan Speech System™ algorithm.
The built-in multi-effects processor provides 43 high-quality effect types, delivering a powerful toolkit that expands your sound-shaping possibilities.
Workflow
Everyone has a different workflow, and having your own is key to consistently achieving your sound. The DM5 series lets you tailor the operating styles and parameters for each operator, giving you everything you need to make your current workflow smoother and more intuitive.
DM5 consoles are more than just compact. Designed with the operator in mind, the layout eliminates any unnecessary elements while preserving the space needed for efficient operation. A console depth similar to a laptop keeps the large 13-inch display within easy reach for intuitive operation. Light and compact, DM5 consoles are easy to transport and set up anywhere, making them ideal for a wide range of applications.
Yamaha mixers provide better operating environments for every stage of use. Choose either the Selected Channel View or Overview screens to suit individual operators and create a working environment that fits their needs.
When setting up and configuring your system, the Selected Channel View allows at-a-glance monitoring of signal flows for individual channels while you work, while Overview allows monitoring of settings during live performances or when working across multiple channels.
Channel visibility is a critical factor when it comes to operation speed. DM series consoles support multilingual channel name displays, enabling artist and instrument names to be shown in the operator’s own language for more intuitive operation. (Use the Editor or the StageMix app to input channel names in other languages.)
Control
In a digital mixer, control functions are essential for achieving better sound, faster. The DM5 series offers seamless integration with other connected devices for two-way control, plus remote operation capabilities that enhance your workflow. Together, these capabilities help bring performances to life.
