Pixie ZoomXB

Pixie ZoomXB

PROPIXIEZOOMXB

Key Features:

280W proprietary RGB + warm white LED delivering high CRI, TLCI, TM30 values

6° to 45° linear zoom with superior evenness

IP65 (events) and WDMX on-board

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Pixie ZoomXB

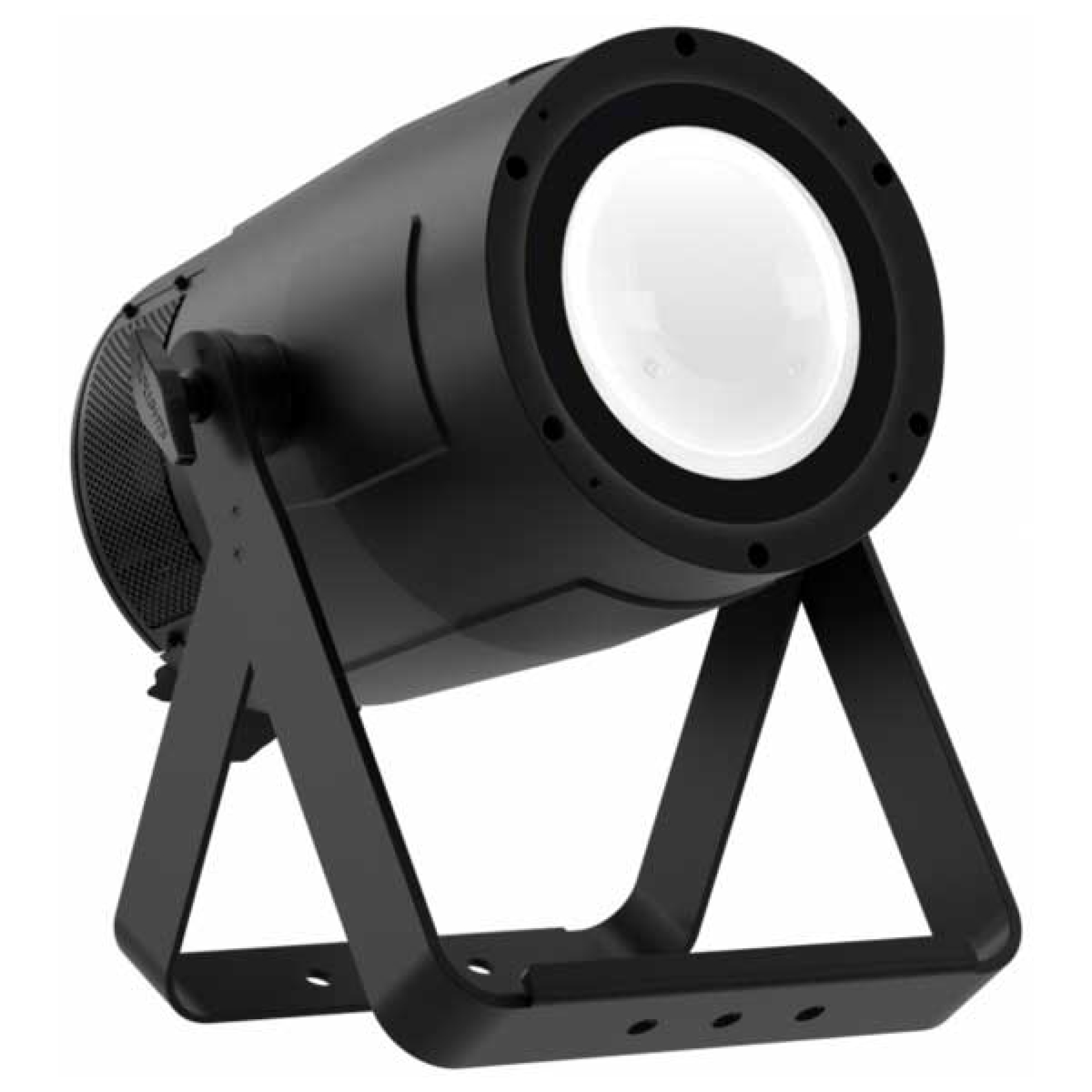

The PROLIGHTS Pixie ZoomXB is an IP65 rated super bright, single-source LED PAR featuring a 6°- 45° linear zoom and a fully homogenised output.

The Pixie ZoomXB is equipped with a proprietary 280W RGB + warm white LED module which delivers a high-quality white with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie ZoomXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being IP rated and offering a wide zoom range, the fixture offers unprecedented flexibility and is a truly indispensable unit for every rental house.

Source: 280W RGB + warm white

CT: 6,500K

CRI: > 92

R9: > 94

Luminous flux: (6°) 3670lm – (45°) 3795lm

Lux: (6°) 29900 lux; (45°) 1590lux @ 3m full

Lux: (6°) 10764 lux; (45°) 572lux @ 5m full

Source life expectancy: 70,000hr

Zoom: 6° – 45° motorised linear zoom

Field angle: 11° – 58°

Lens diameter: 125mm

Lens type: high-quality glass lens optics

Colour mixing: RGB+warm white

CTC: CTC control through independent DMX channel and amber shift activation by DMX

White presets: 2,800 – 10,000K

Colour wheel: virtual colour wheel with presets

Macros: several pre-build macros with adjustable speed

Manual colour mode: manual adjustment of colour

Auto mode: built-in programs with execution speed adjustment

Protocols: DMX512, RDM, W-DMX

DMX channels: 5 / 7 / 11 channel

W-DMX: included, wireless solution receiver

RDM: RDM ready for fixture remote monitor and settings

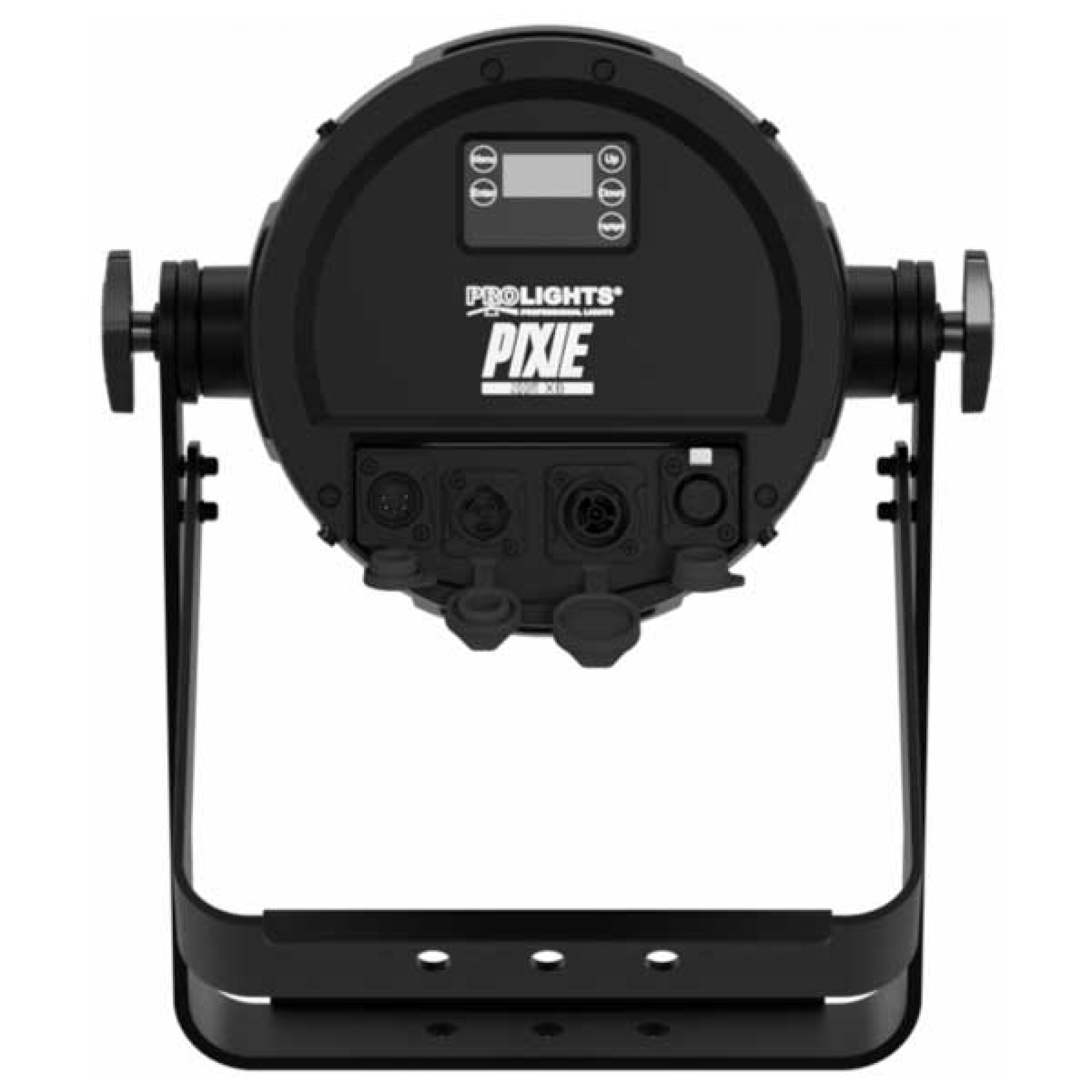

Display: black OLED high resolution display

Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

Master/slave: for synchronized operation of more units linked in a chain
