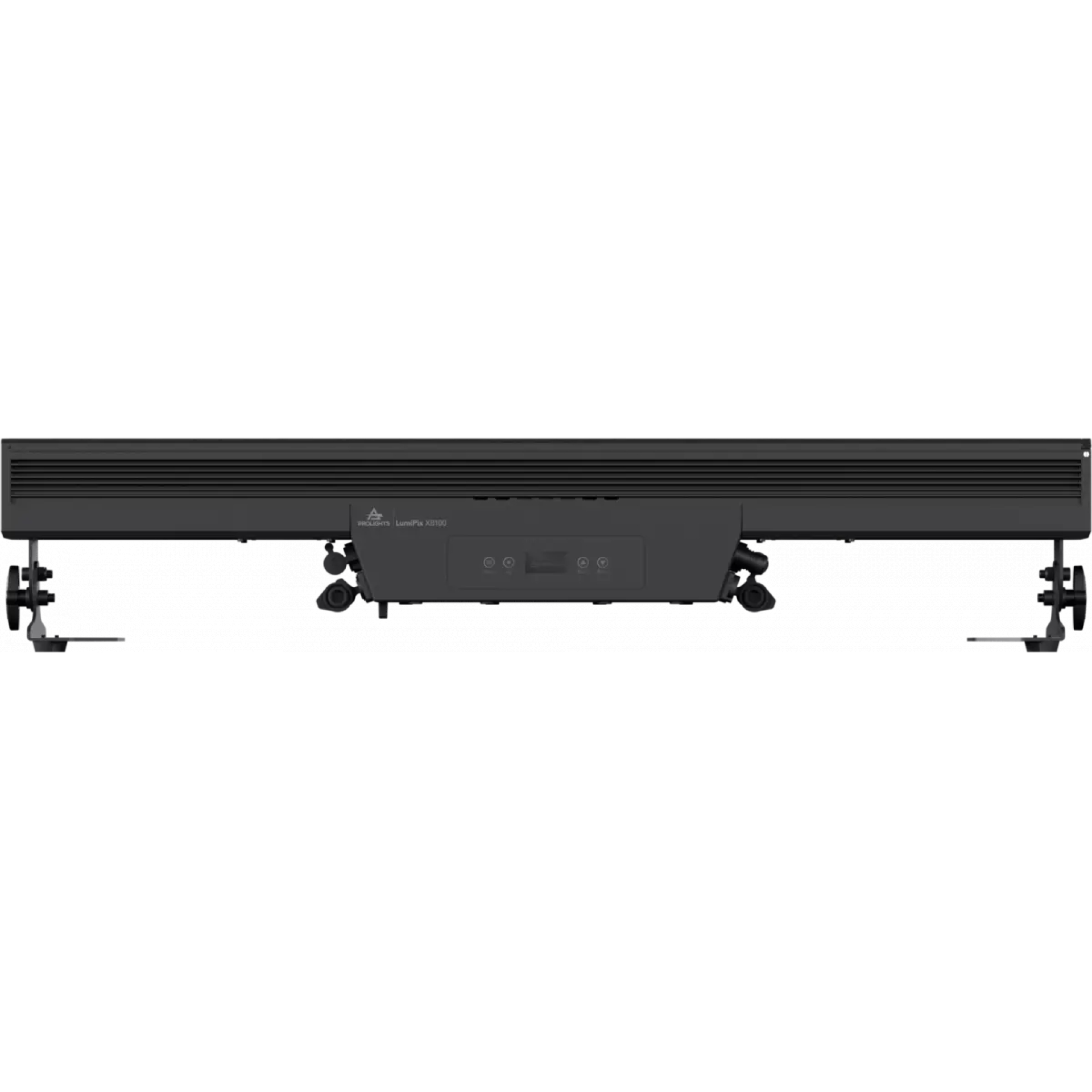

PROLIGHTS LumiPix XB100 - back

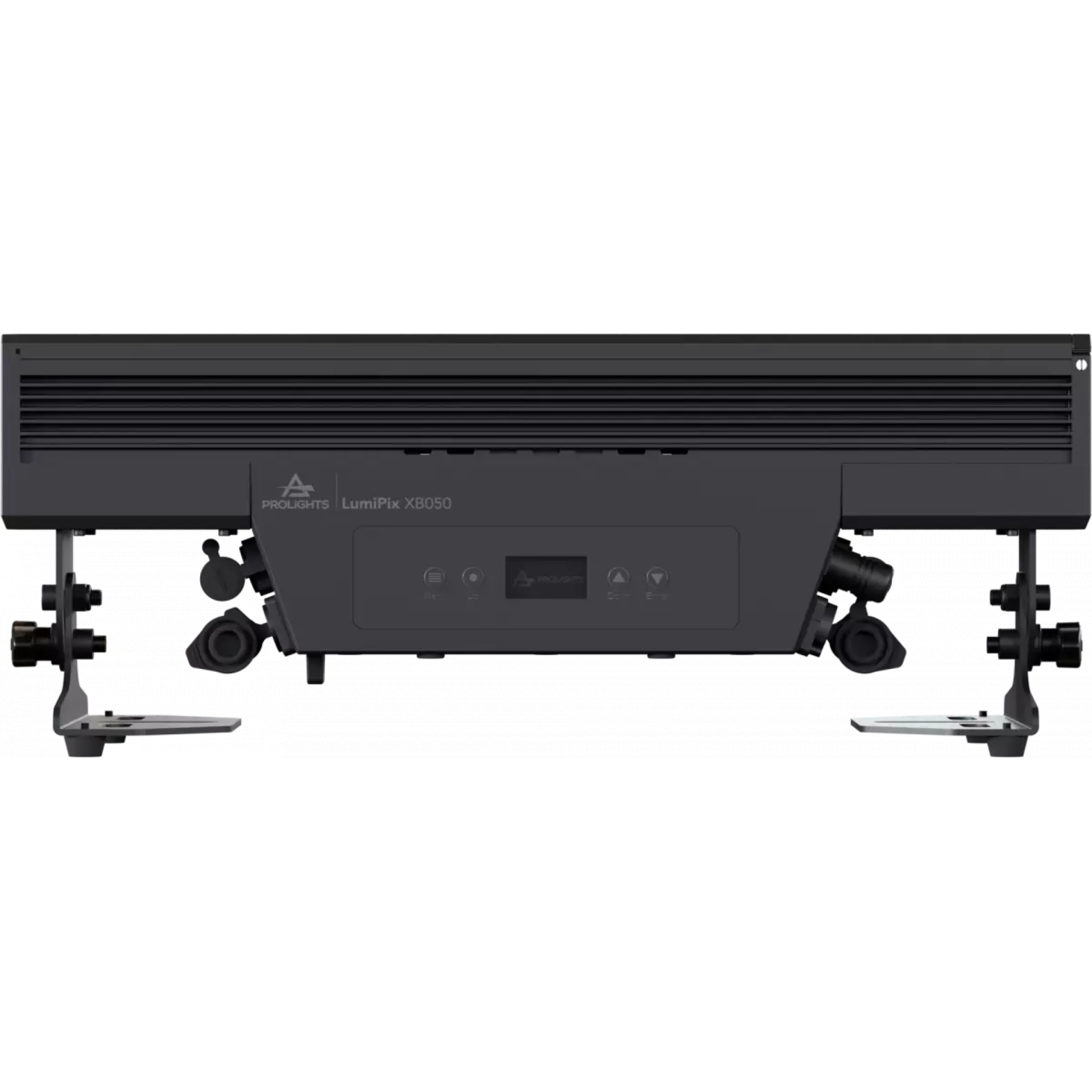

PROLIGHTS LumiPix XB050 - back

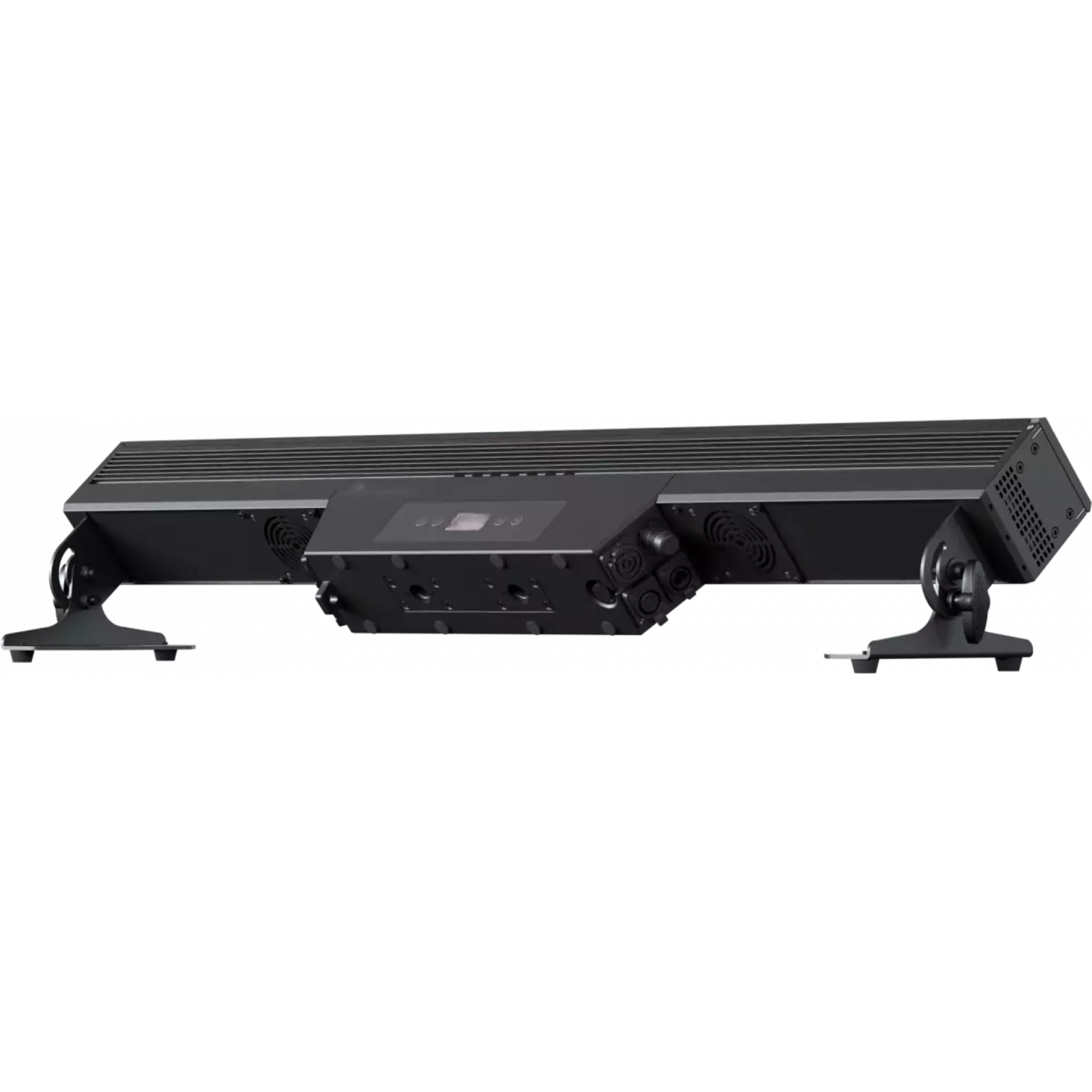

PROLIGHTS LumiPix XB100 - angled back

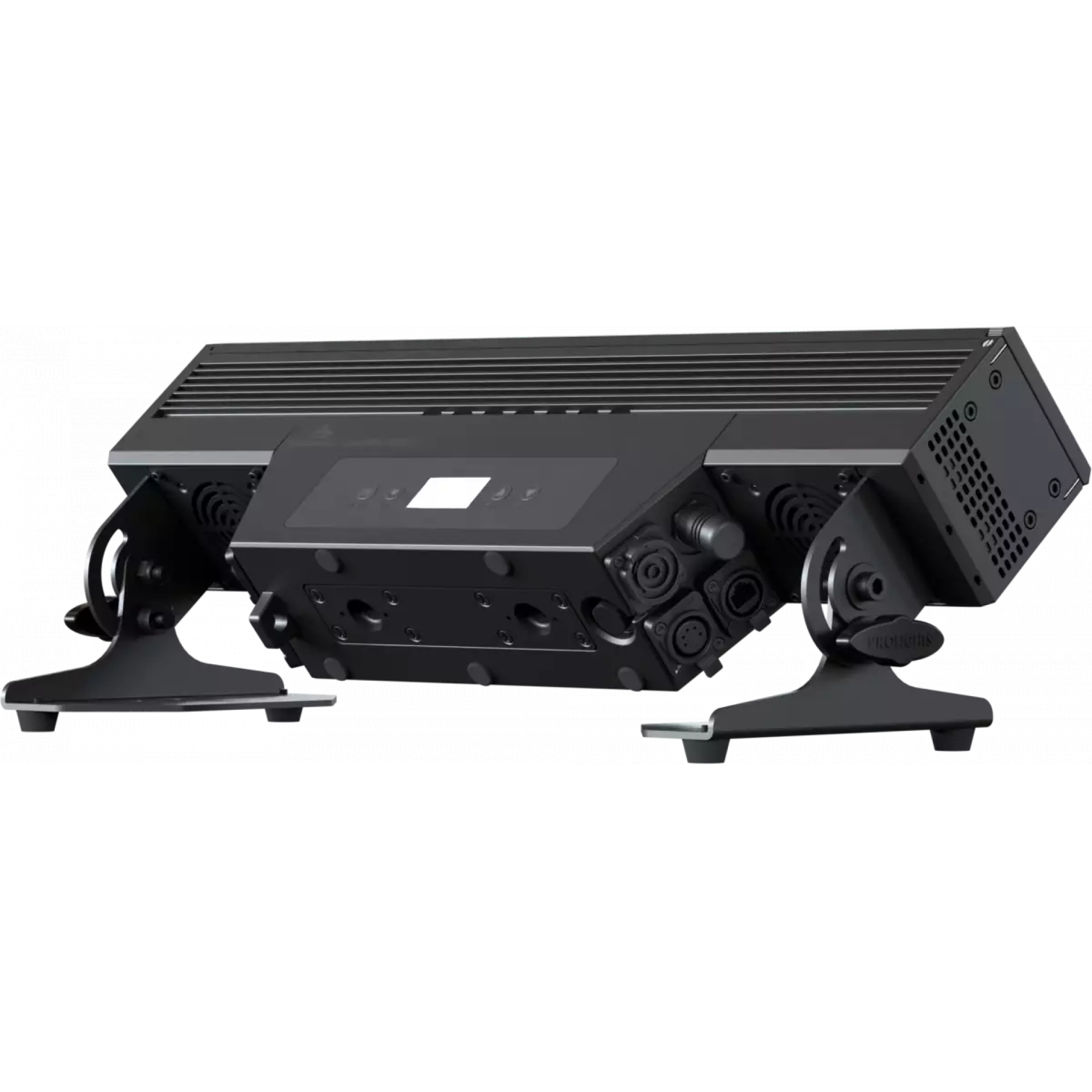

PROLIGHTS LumiPix XB050 - angled back

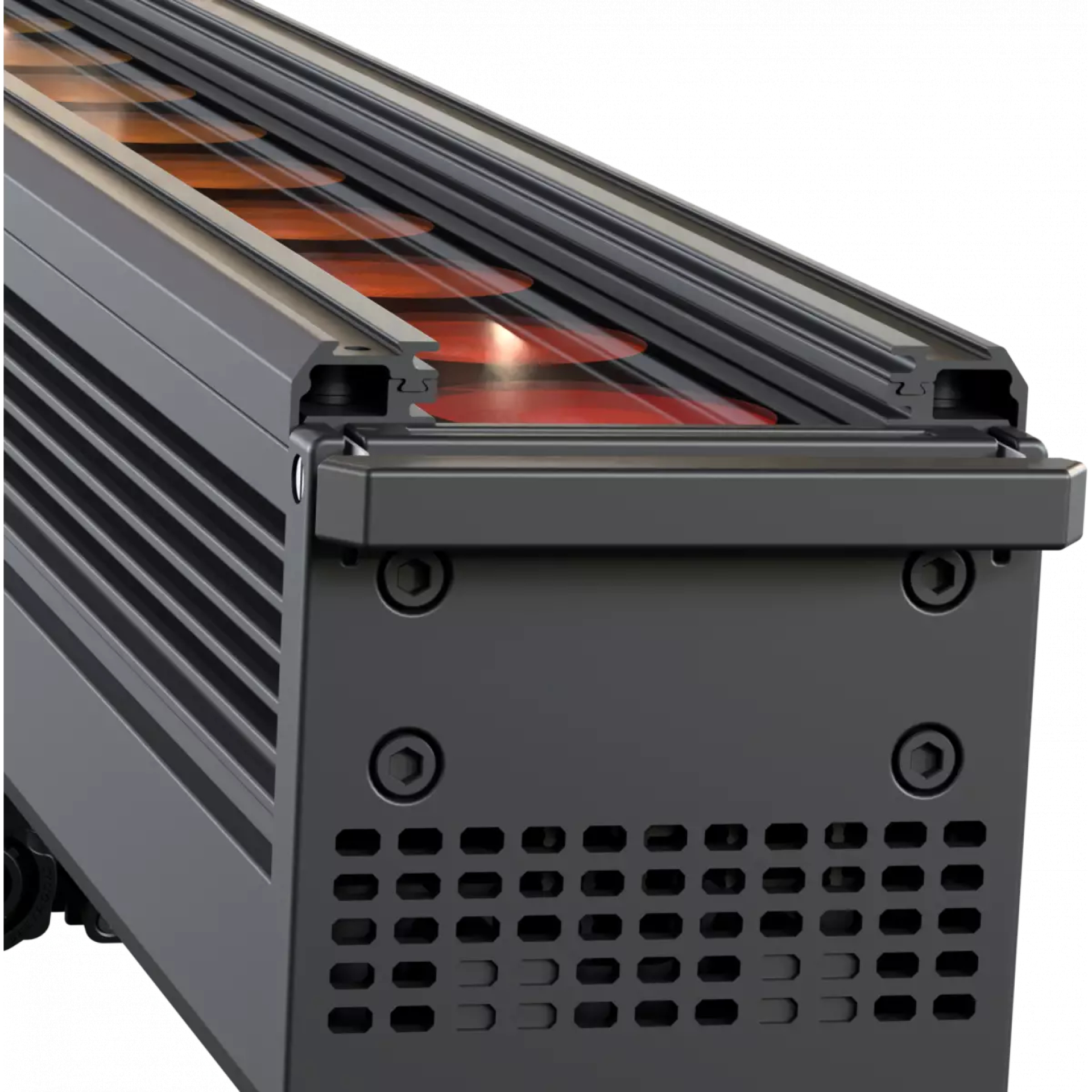

PROLIGHTS LumiPix XB - side open

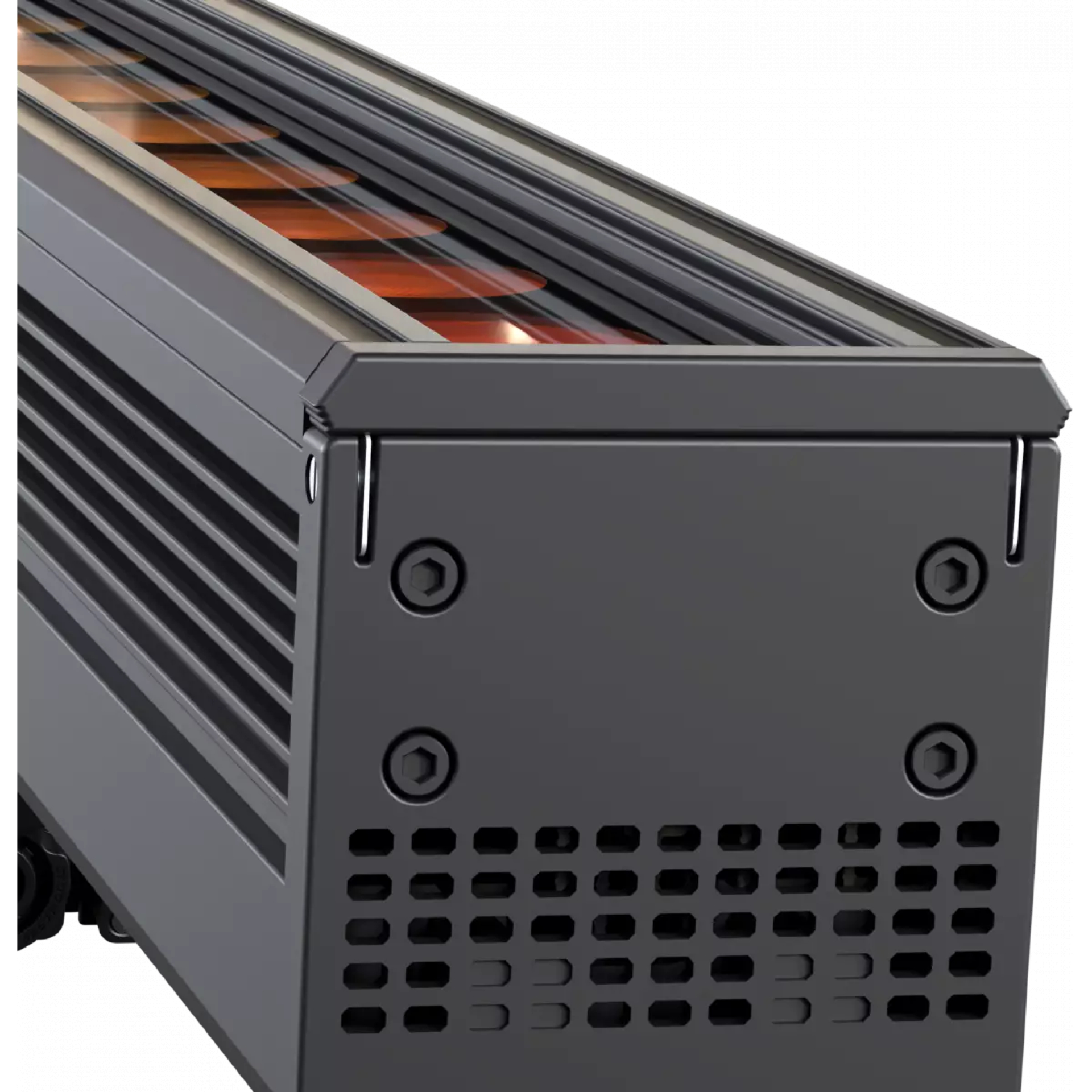

PROLIGHTS LumiPix XB - side closed
PROLIGHTS LumiPix XB050
PROLIGHTS LumiPix XB100 - back
PROLIGHTS LumiPix XB050 - back
PROLIGHTS LumiPix XB100 - angled back
PROLIGHTS LumiPix XB050 - angled back
PROLIGHTS LumiPix XB - side open
PROLIGHTS LumiPix XB - side closed

LumiPix XB Range

Key Features:

  • IP65, pixel-controlled LED linear fixture, available in 18 pixels and 9 pixels
  • 20W RGB+WW led source, delivering high CRI (>90), advanced colour control and effects generator
  • DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

LumiPix XB Range

The LumiPix XB is a family of IP65 high power and high quality linear luminaire, designed to meet advanced requirements from film, TV and staging professionals.

Product Variants

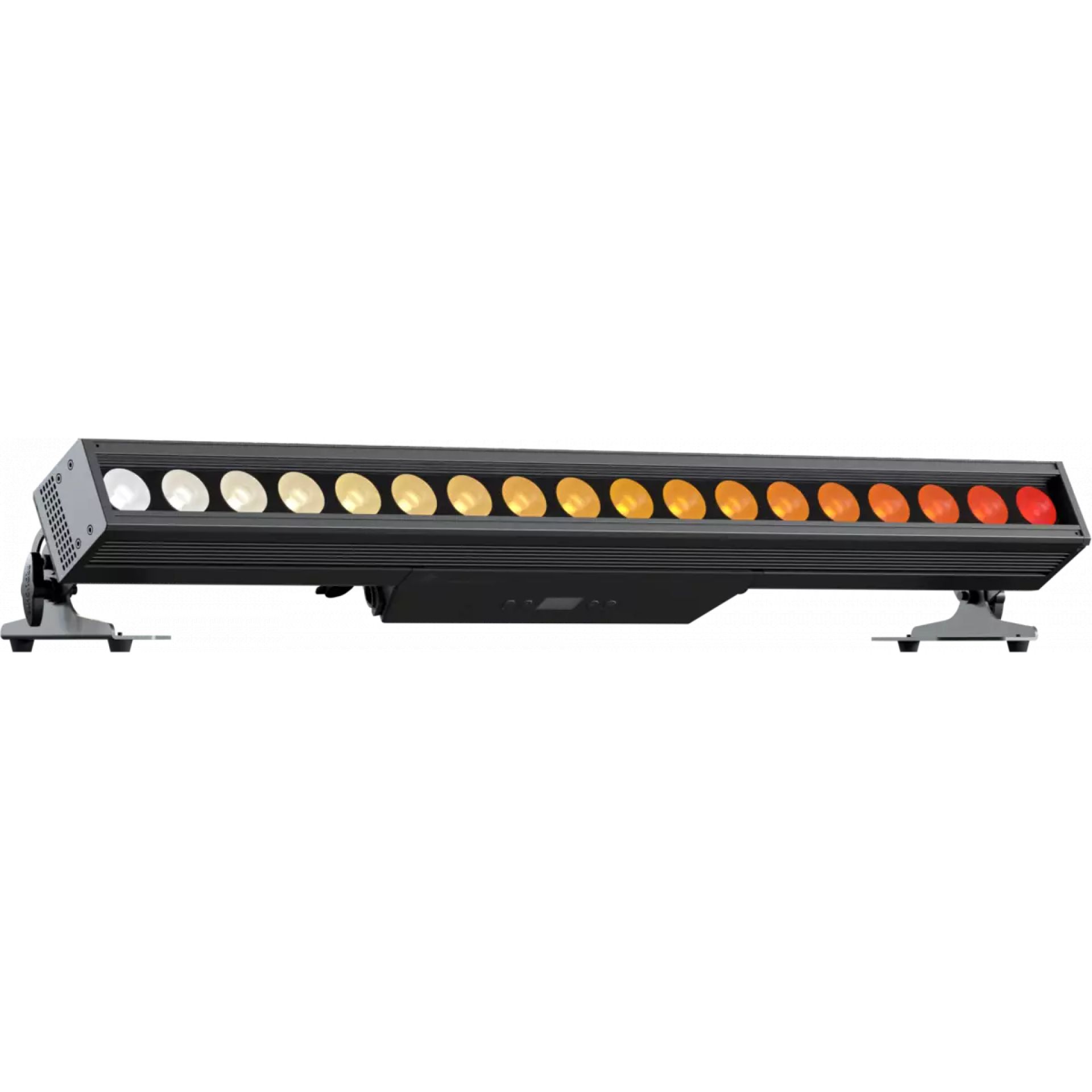

PROLIGHTS LumiPix XB100
LumiPix XB100
  • 18x20W RGB + Warm White LED

Enquiry Form

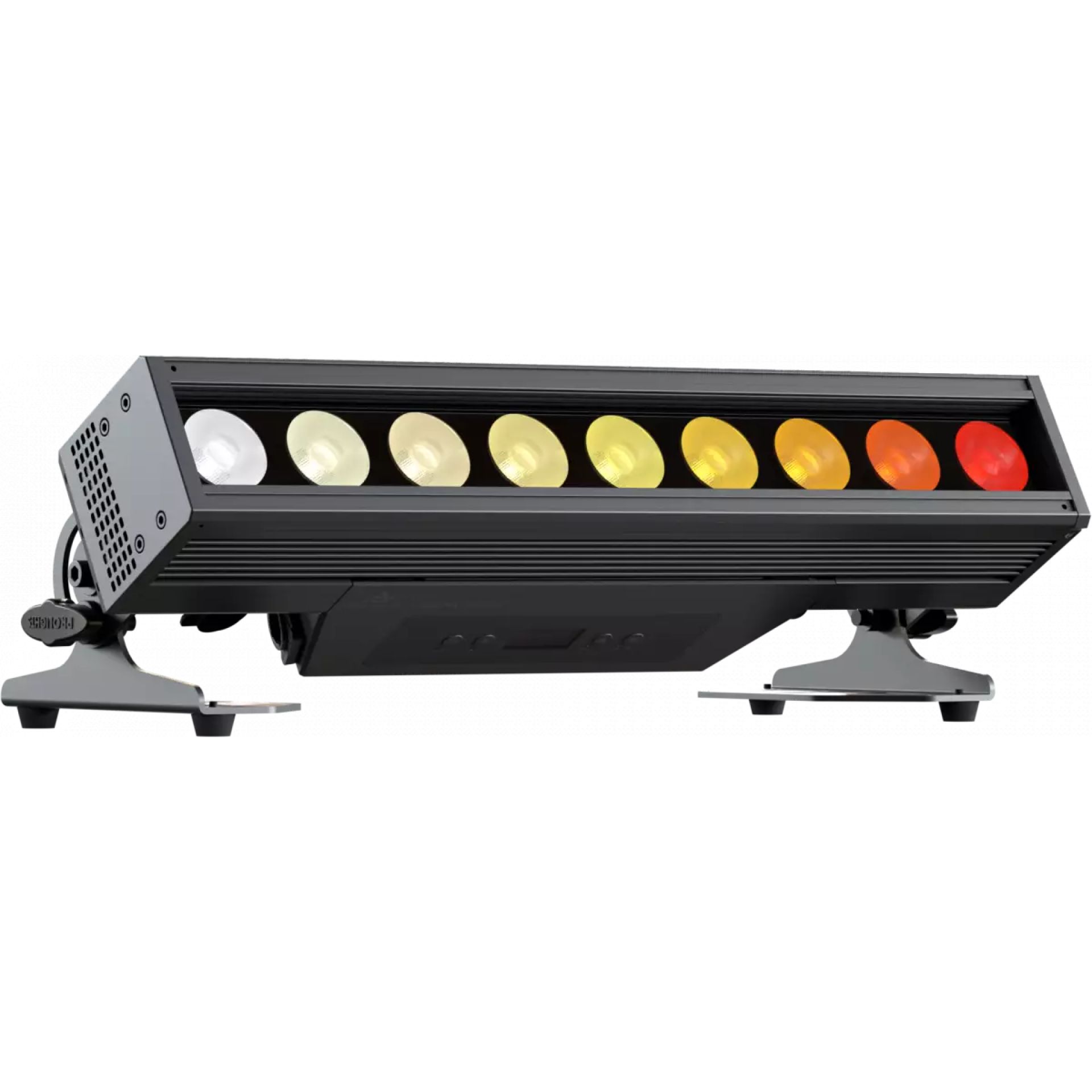

PROLIGHTS LumiPix XB050
LumiPix XB050
  • 9x20W RGB + Warm White LED

Enquiry Form

The units are available in 100cm (18 pixels) and 50cm (9 pixels) and designed around a 20W RGB + Warm White LED source, delivering a bright 10° narrow beam angle beam angle, but still keeping smooth colour mixing, high CRI and TM30, and calibration down to pixel.

  • Source (050): 9x20W RGB + Warm White LED

    Source (100): 18x20W RGB + Warm White LED

    Luminous flux: (050) 3,889lm; (100) 7,996lm @ full

    Lux: (050) 11,687lx; (100) 16,724lx @ 3m

    Lux: (050) 4,207lx; (100) 6,021lx @ 5m

    CRI: >94 @ 3,200K ; >96 @ 5,600K

    Source life expectancy: > 50,000hr

    Beam angle: 10°

    Field angle: (050) 18°; (100) 20°

    Lens type: different optics available

    Additional optics: several filters available

  • Colour mixing: RGB + Warm White

    CCT: CCT control, + / - green correction, tungsten emulation

    White presets: 2,800K - 10,000K with 28K resolution

    Colour wheel: virtual colour wheel with macros

    Control Resolution: 16-bit dimmer, colours

    Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns

    Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

  • Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX

    Pixel control: (050) 9 pixel2pixel control; (100) Pixel control: 18 pixel2pixel control

    Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

    RDM: RDM for remote monitoring and settings

    Display: Graphic User Interface

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain

LumiPix XB Range - Variant Downloads

You might like...

PROLIGHTS LumiPix LED Battens
Product - LIGHTING
LumiPix Range
    • Linear batten with RGBAW-UV LED’s
    • Individual pixel control
    • Onboard effects
Find out more

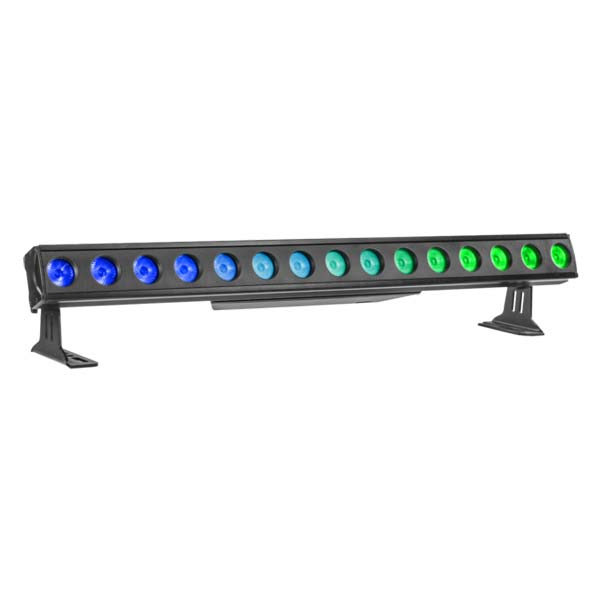

PROLIGHTS Lumipix 15IP
