Astra Blade100IP

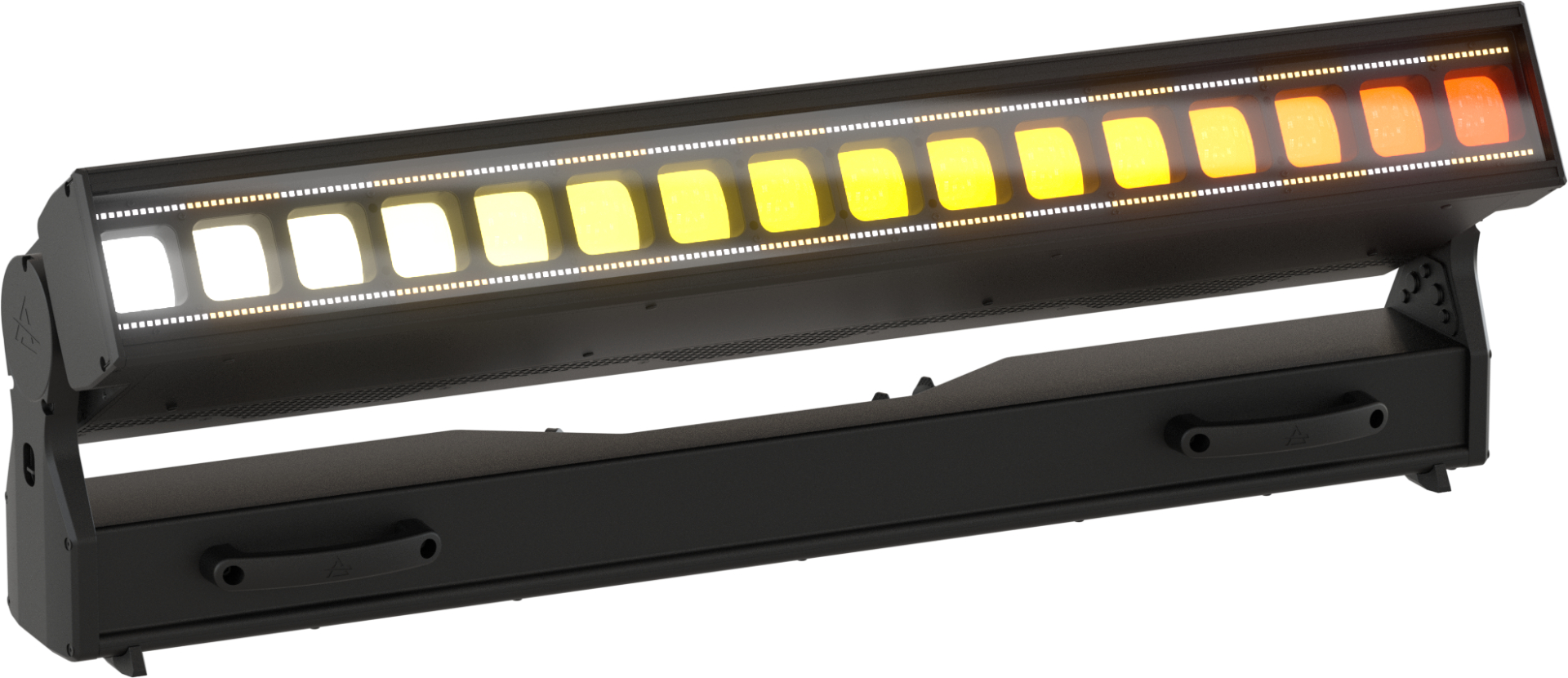

PROLIGHTS Astra Blade100IP - front view

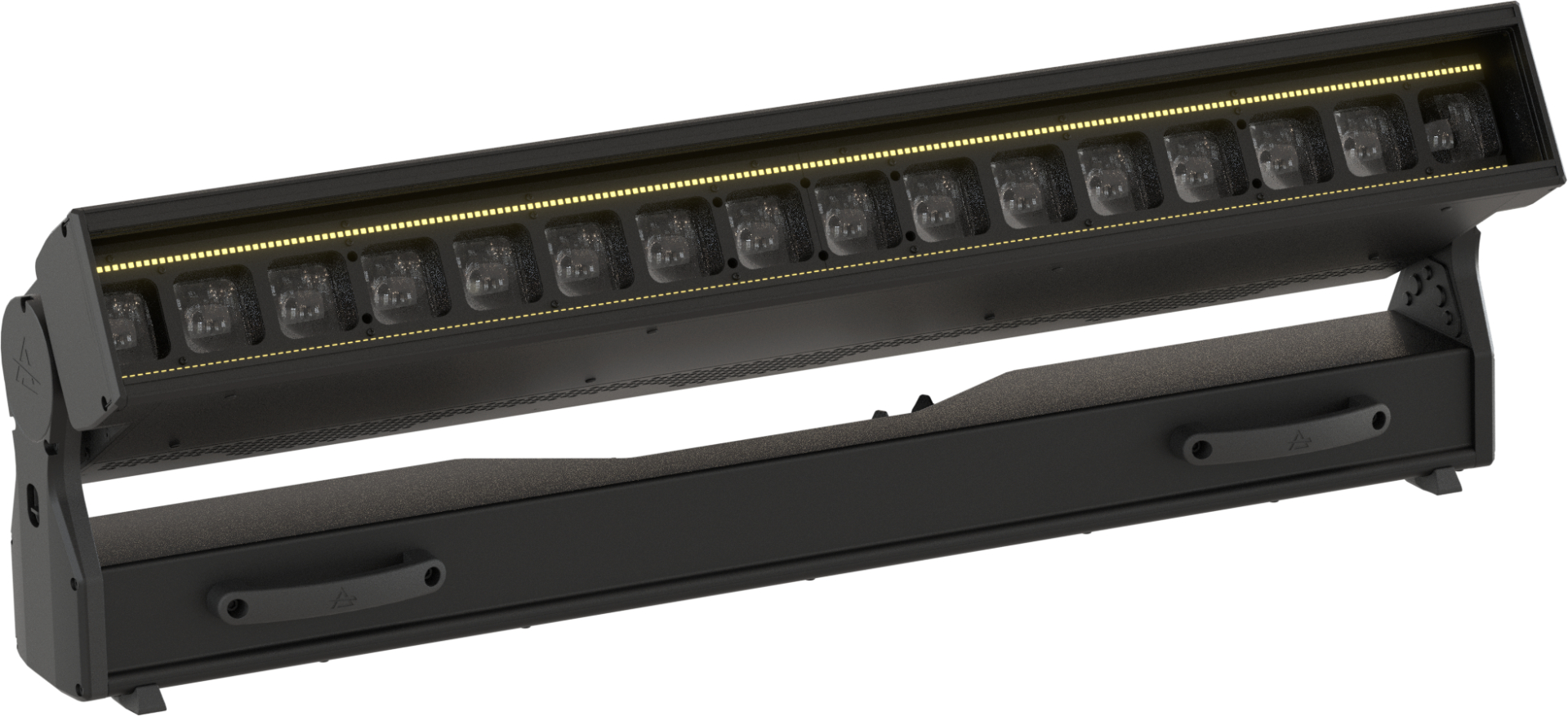

PROLIGHTS Astra Blade100IP - variable white LED strips

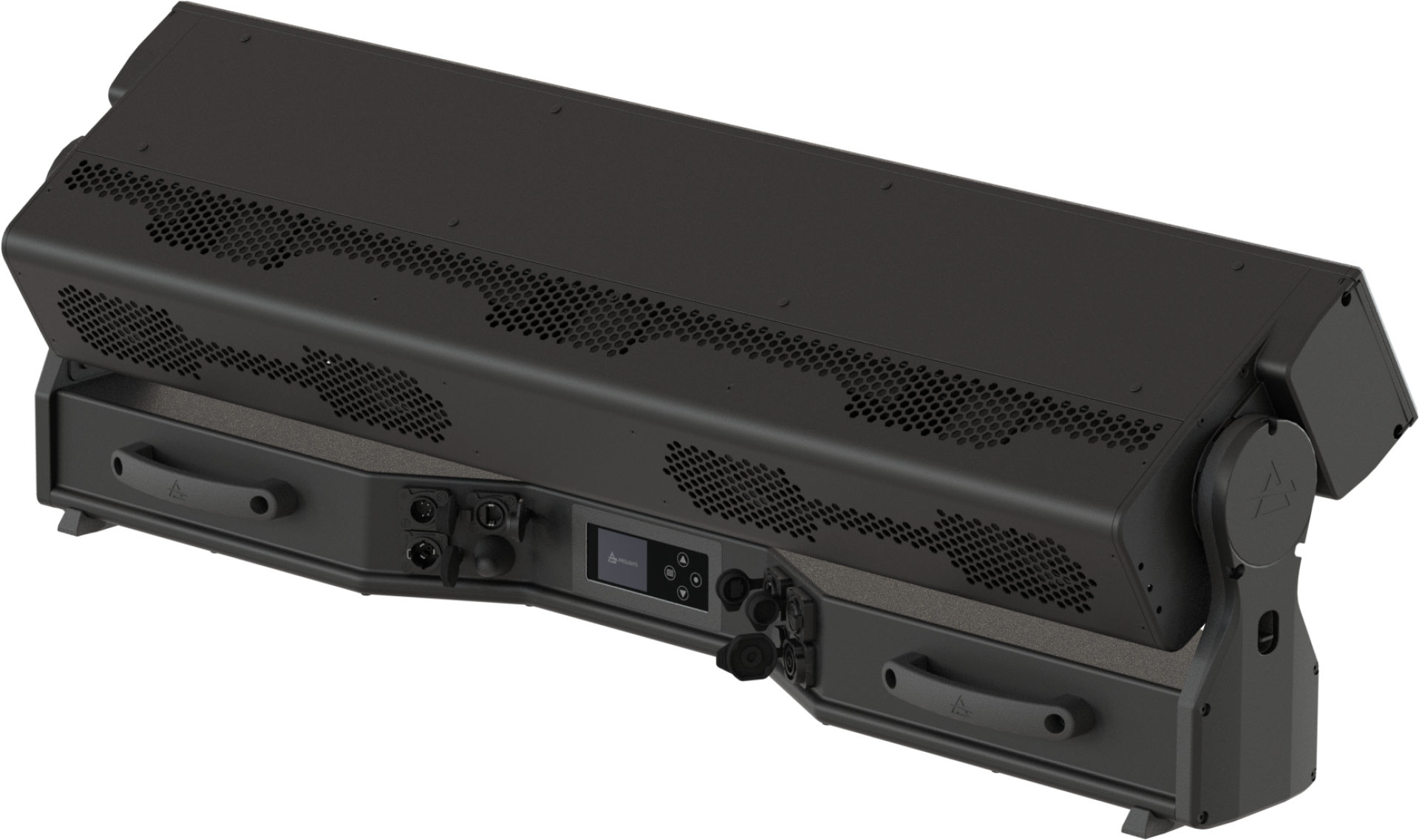

PROLIGHTS Astra Blade100IP - back view

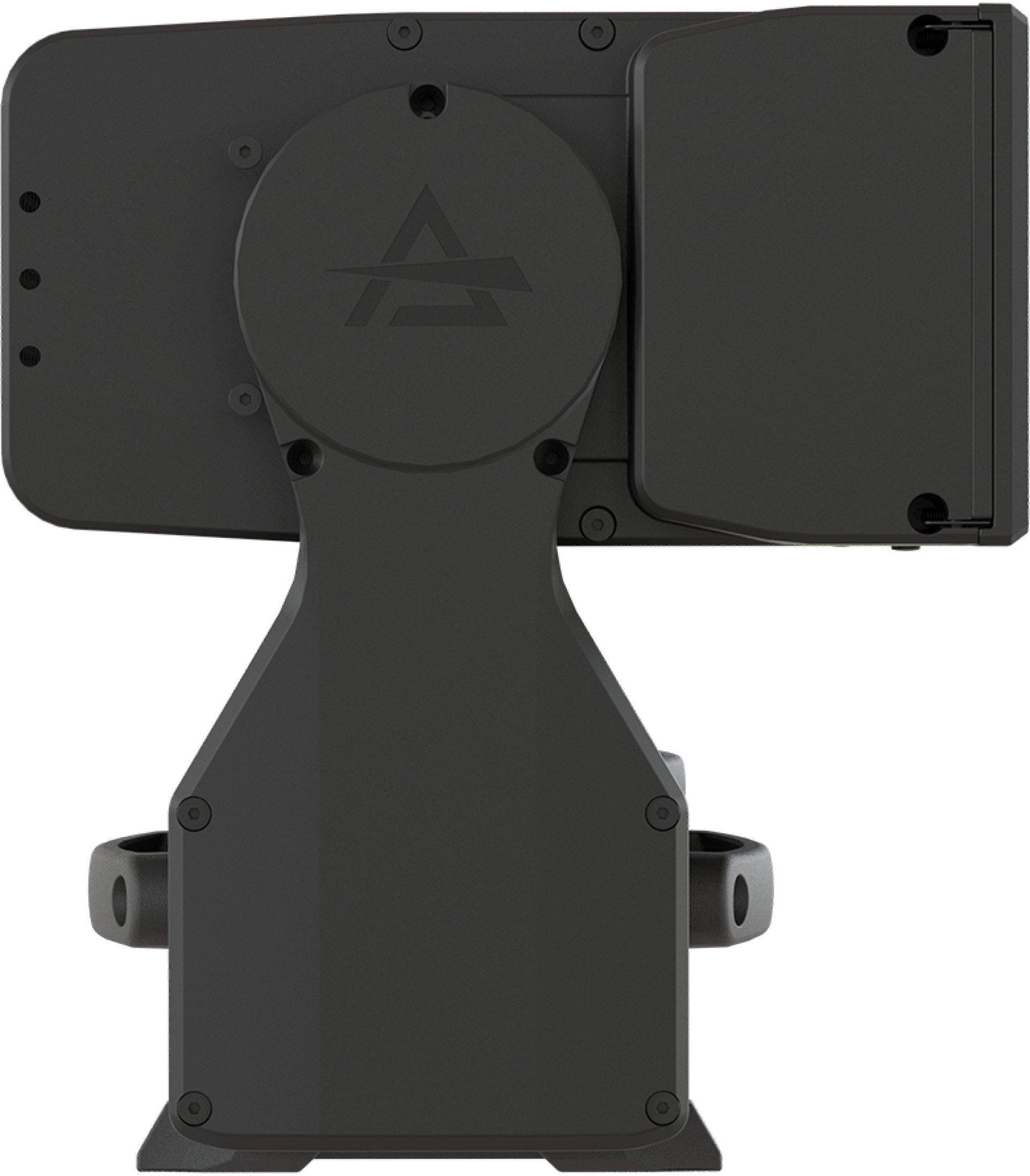

PROLIGHTS Astra Blade100IP - side view
PROLIGHTS Astra Blade100IP - variable white LED strips
PROLIGHTS Astra Blade100IP - back view
PROLIGHTS Astra Blade100IP - side view

Astra Blade100IP

PROASTRABLADE100IP

Key Features:

  • IP65 motorised 100cm LED batten with tIlt and zoom control
  • 16x40W RGB+WW LEDs with two variable white linear LED strips on both sides, pixel control
  • Zoom from 4° to 40°
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Astra Blade100IP

The Astra Blade100IP is an IP65 rated, linear motorised LED batten, featuring high output through 16 x 40W RGB+WW LEDs and two variable white pixel linear LED strips on both sides, a wide zoom range, and control through the powerful PROLIGHTS Spektra OS algorithm that reproduces perfect white spectrums with high colour rendering.

The new squared lens design maximises lumen efficiency and provides a bright curtain of light at its narrowest angle of just 4°, while delivering smooth and homogeneous washes at its widest 40° wash when zoomed out.

Astra Blade100IP offers motorised tilt and individual pixel control across the 16 emitters and 32 sectors for your side strips, as well as both wired and wireless CRMX operations or through multi-protocol ethernet support.

The water and dustproof design ensures enhanced reliability for any indoor or outdoor stages, making it virtually maintenance-free.

    • Source: 16x40W RGBW Osram Ostar LEDs
    • Luminous flux: (4.5°) 12,028 lm; (43.6°) 14,054 lm @ full
    • Lux: (4.5°) 50,695 lx; (43.6°) 2,156 lx @ 5m full
    • Other: 2 VW linear LED strips with 32 individual sections (16 sections on the top + 16 sections on the bottom)
    • Source life expectancy: > 50,000 hrs
    • Zoom range: 4.5° - 43.6° motorised linear zoom
    • Lens diameter: 50mm / 1.97'' square shape
    • Lens type: high-quality glass lens optics
    • Colour control: CCT, RGBW, HSI, Colour Macros
    • CCT: CCT control, + / - green correction, tungsten emulation
    • Colour wheel: virtual colour wheel with macros
    • Macros: several pre-built pixel macros with adjustable speed
    • Control Resolution: 16-bit dimmer, colours
    • Pixel patterns: pre-programmed dynamic and static patterns
    • FX generator: adjustable foreground/background colour, index, speed, direction
    • Static mode: selection of static dimmer, colors and color temperature
    • Manual mode: manual adjustment of colour
    • Protocols: DMX512, RDM, ArtNet, sACN, CRMX
    • Pixel control: 16 px (main) + 32 px (strips) pixel2pixel control
    • Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
    • RDM: RDM for remote monitoring and settings
    • Display: LCD high resolution colour display with autoflip
    • Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included)
    • Master/Slave: for synchronised operation of more units linked in a chain
    • EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
