EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications.

There is an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.

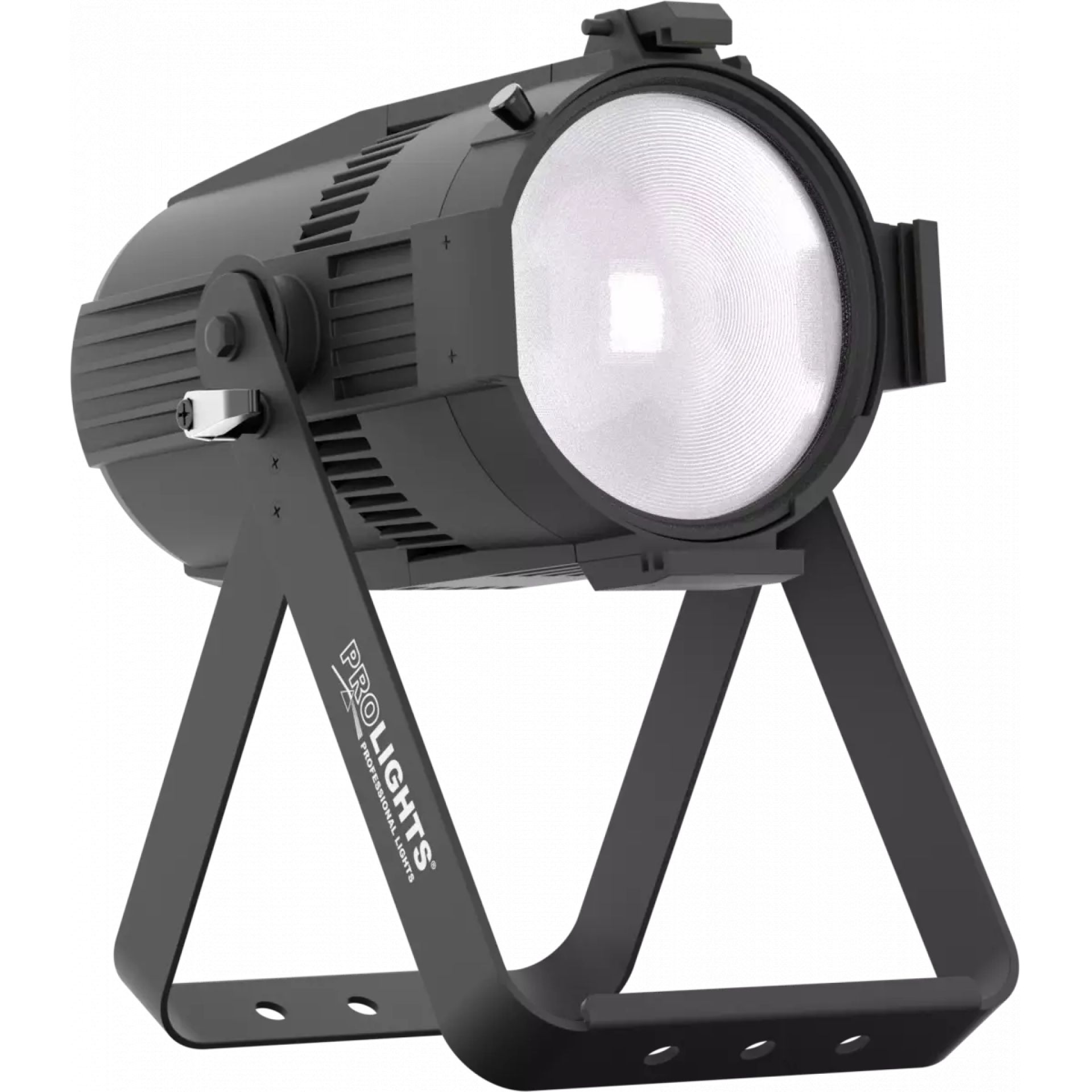

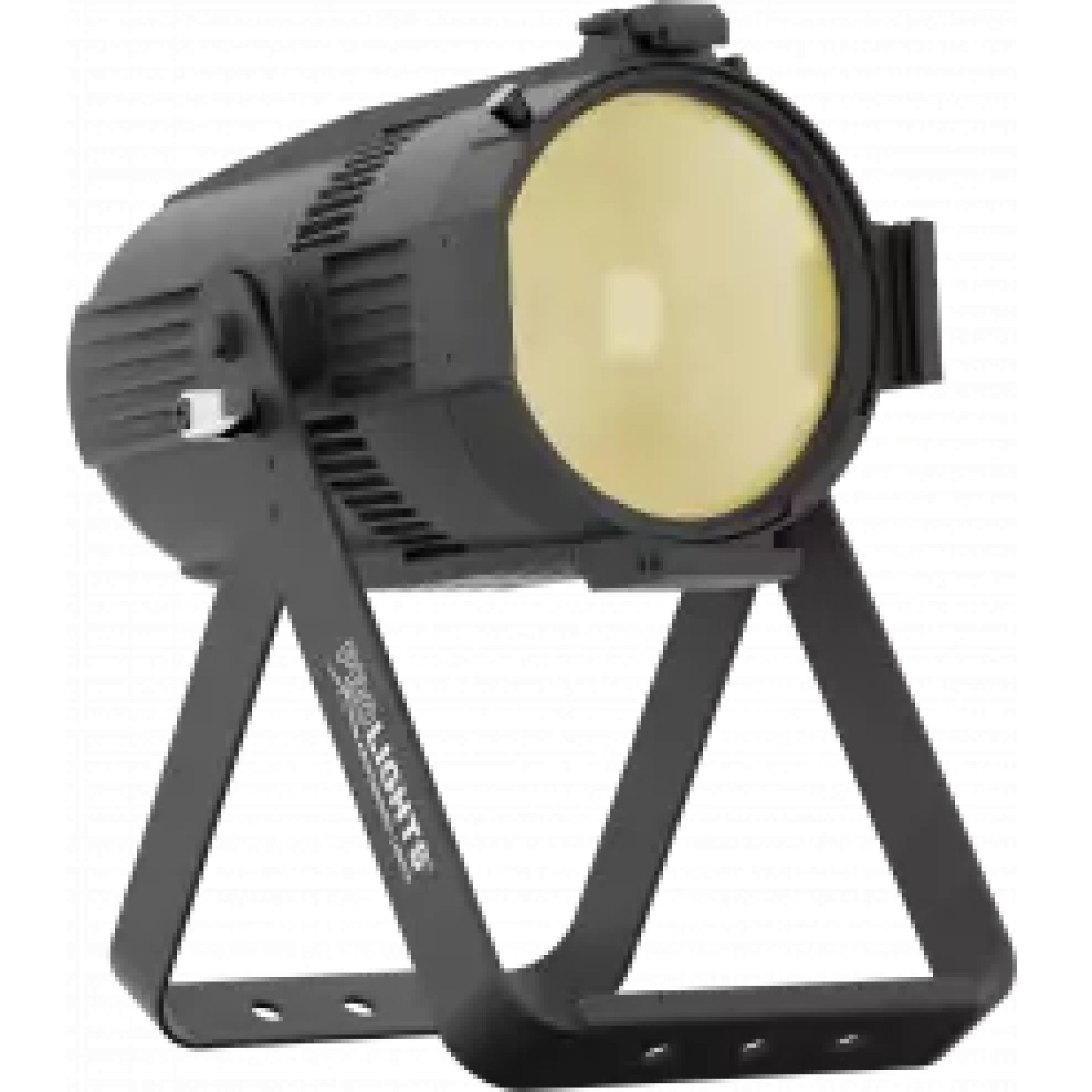

The EclPar TU (3,200K) and DY (5,600K) feature a 177W white LED source delivering a tremendous lumen output and superior light quality with CRI and R9 >95.

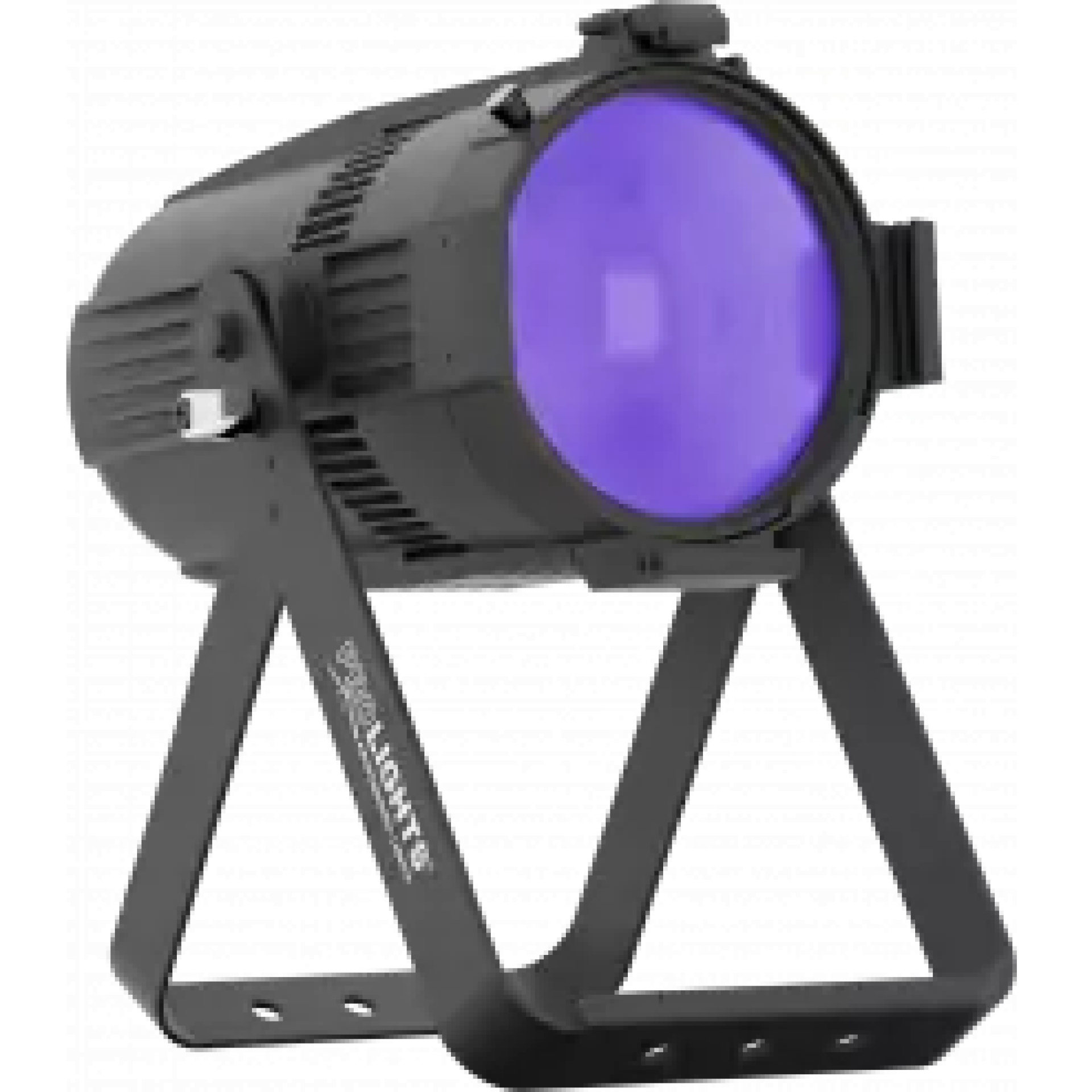

The EclPar UV features a UV LED source with a wavelength of 365nm.

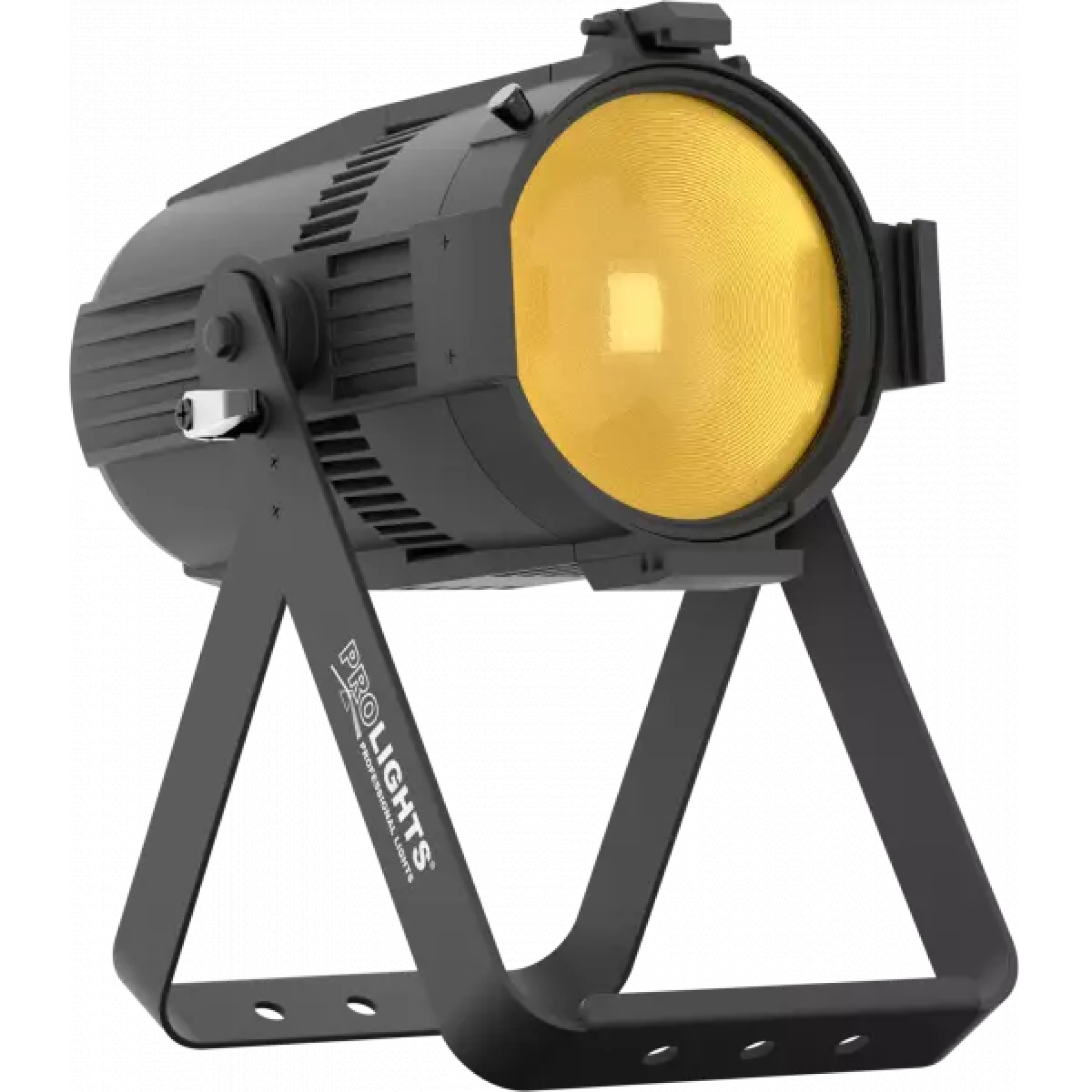

The EclPar FC features a 150W RGB + warm white LED source and delivers a superior white CTC with +/- tint control, Red-shift (CRI>92 and R9>94) and colour mixing.

Source: 177W white LED / 108W UV LED / 150W RGB+Warm White LED

CT: (TU) 3,200K; (DY) 5,600K

CRI: > 96 for TU and DY versions

Luminous flux: (FC) 24° 5,983lm; 73° 5,774lm @ full

Luminous flux: (TU) 12° 11,726lm; 24° 12,454lm; 73° 11,384lm @ full

Luminous flux: (DY) 12° 13,739lm; 24° 14,436lm; 73° 13,913lm @ full

Luminous flux: (UV) 229.07lm @ full

Lux: (FC) 24° 1,040lx; 73° 166lx @ 5m full

Lux: (TU) 12° 5,102lx; 24° 2,333lx; 73° 344lx @ 5m full

Lux: (DY) 12°: 5,947lx; 24° 2,777 lx; 73° 413lx @ 5m full

Lux: (UV) 5,724lx @ 5m full

Source life expectancy: >70,000hr (TU / DY / UV); > 50,000hr (FC)

Beam angle: 12° / 24° / 73° with different lens included (TU / DY); 24° on board or 73° included (FC)

Field angle: 27° / 40° / 104° with different lens included (TU / DY); 28° on board or 104° included (FC)

Lens diameter: 163mm

Lens type: Fresnel lens

Additional optics: 24° (onboard FC / TU / DY), 12° (included TU / DY) and 73° (included FC / TU / DY), 40° lens optional (TU / DY)

Other: 40° lens only included on board in UV version; no other lenses available

Colour mixing: RGB + Warm White (FC)

CCT: CCT control, + / - green correction, tungsten emulation (FC)

White presets: 2,800K - 6,500K (FC)

Colour wheel: virtual colour wheel with macros (FC)

Macros: built-in white presets (FC)

Static mode: selection of static colour

Manual mode: manual adjustment of colour

Auto mode: built-in programs with execution speed adjustment

Special features: linear crossfade channel from any white to any colour; virtual CTO on colours (FC)

Protocols: DMX512, RDM

DMX channels: theatre 1 / 2 / 4 / 5 / 6 / 10 / 15 / 17 channel (FC) tour 4 / 6 / 10 / 15 channel (FC); 1 / 2 / 3 / 6 channel (TU / DY / UV)

RDM: RDM ready for fixture remote monitor and settings

Display: Graphic user interface (FC); OLED display (TU / DY / UV)

Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included

Master/slave: for synchronised operation of more units linked in a chain
