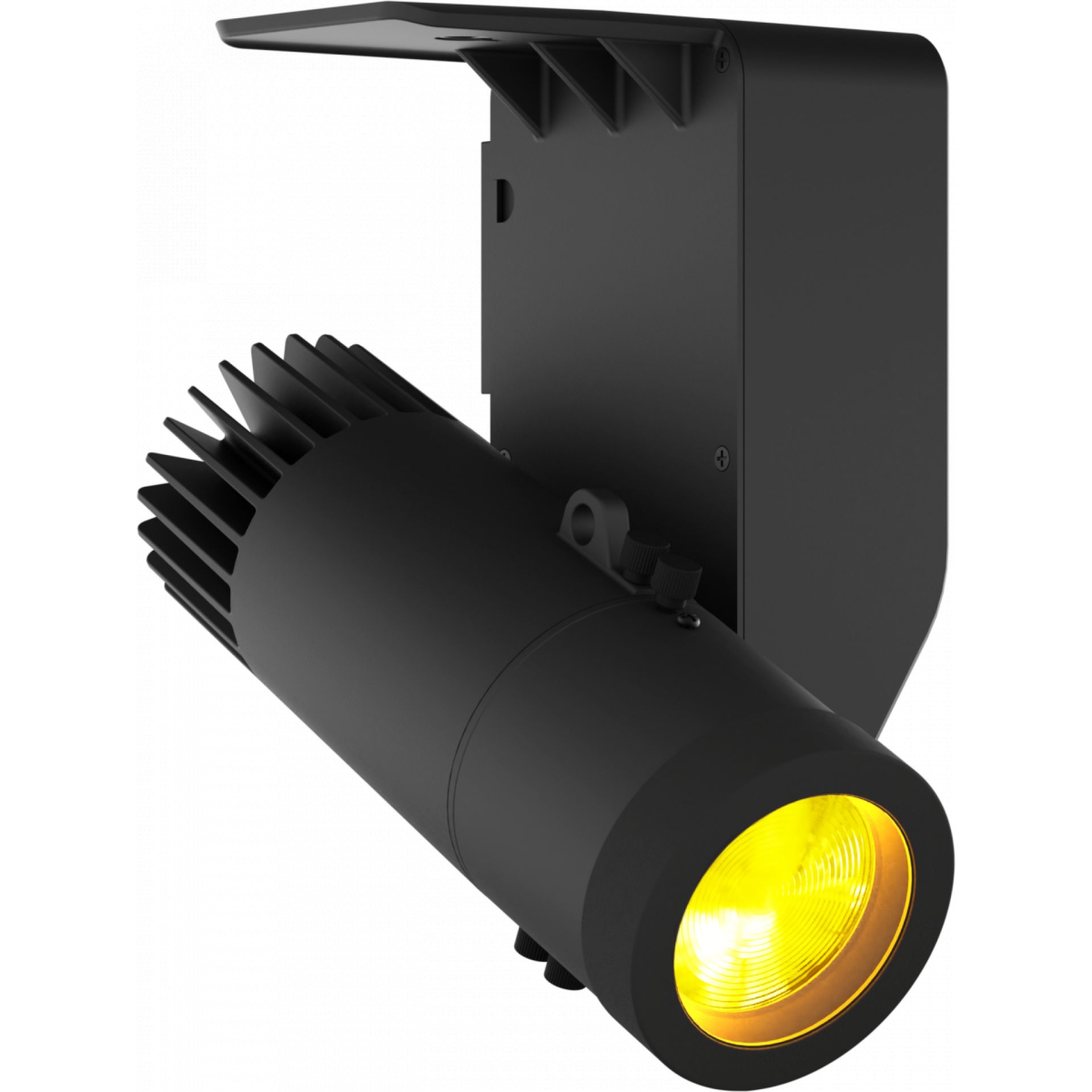

PROLIGHTS EclDisplay UN - black body - plain front

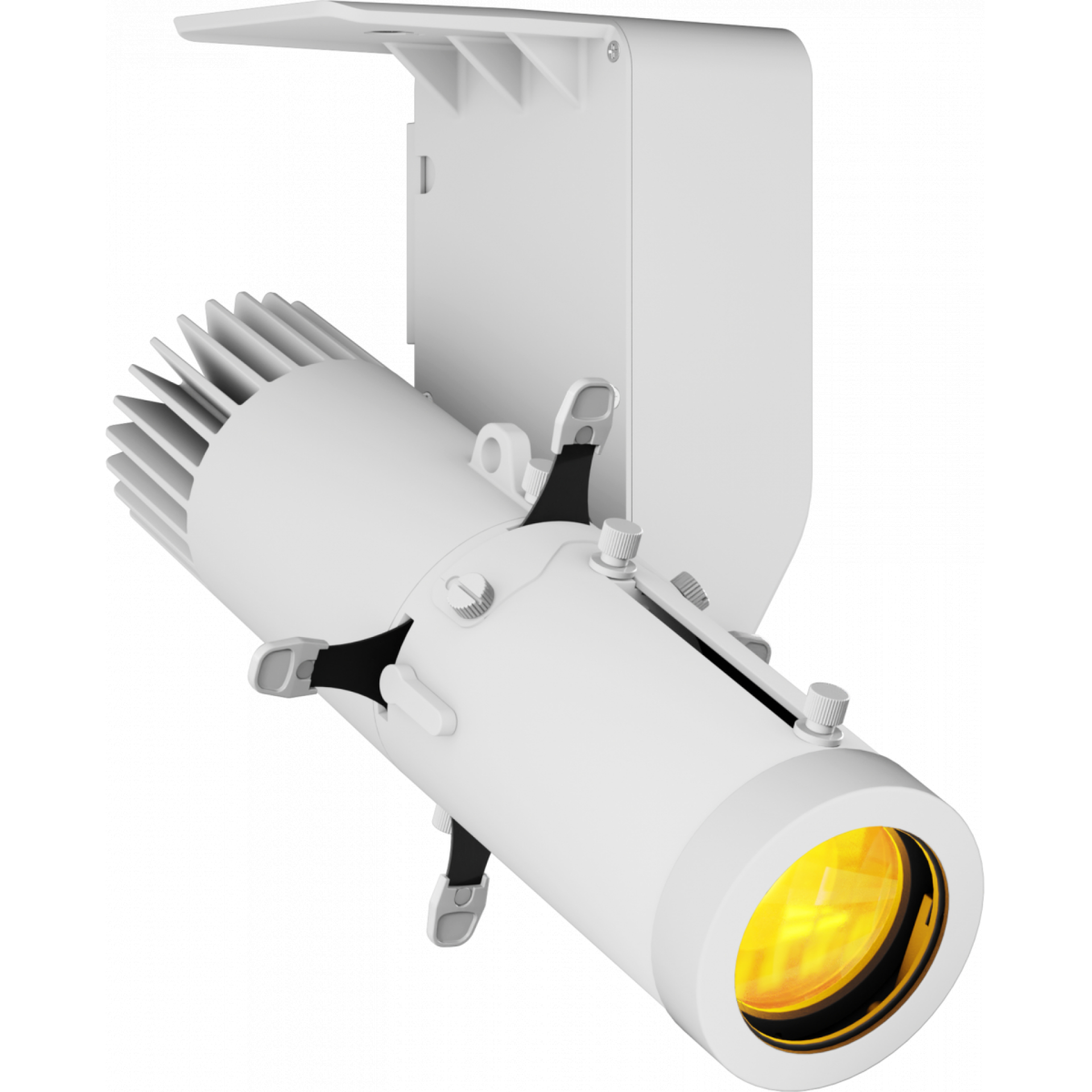

PROLIGHTS EclDisplay UN - white body - front

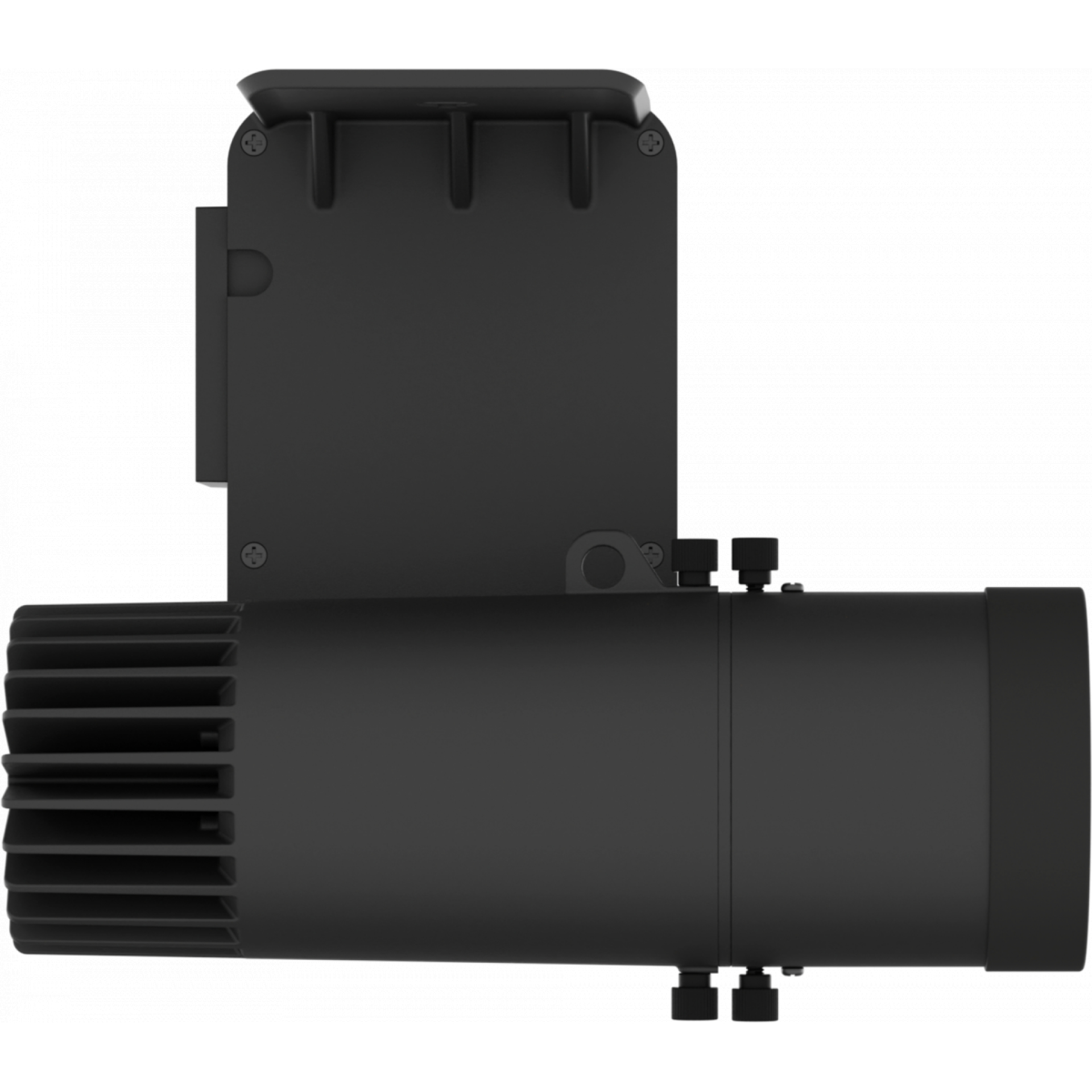

PROLIGHTS EclDisplay UN - black body - short side
PROLIGHTS EclDisplay UN - black body - plain front

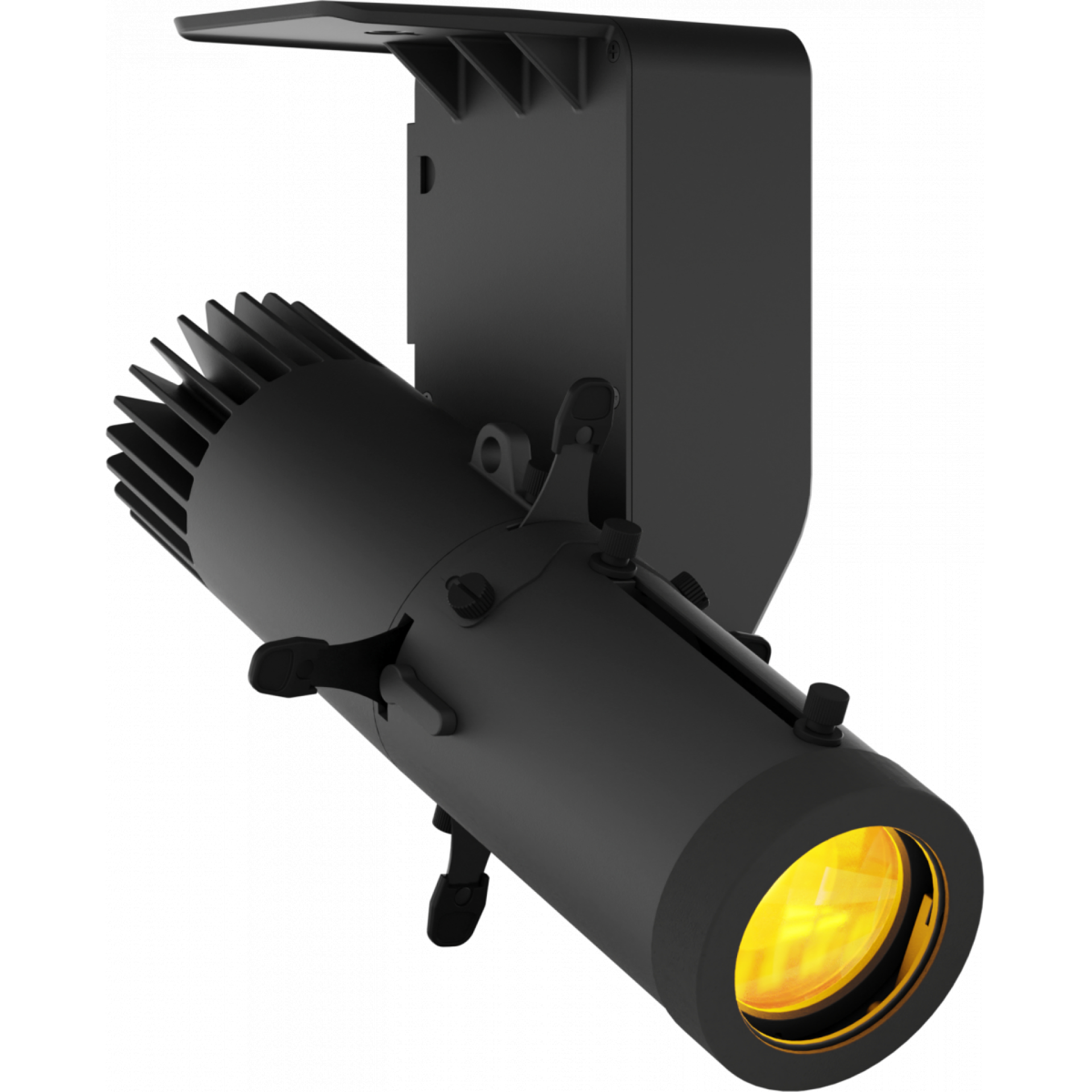

PROLIGHTS EclDisplay UN - black body - front

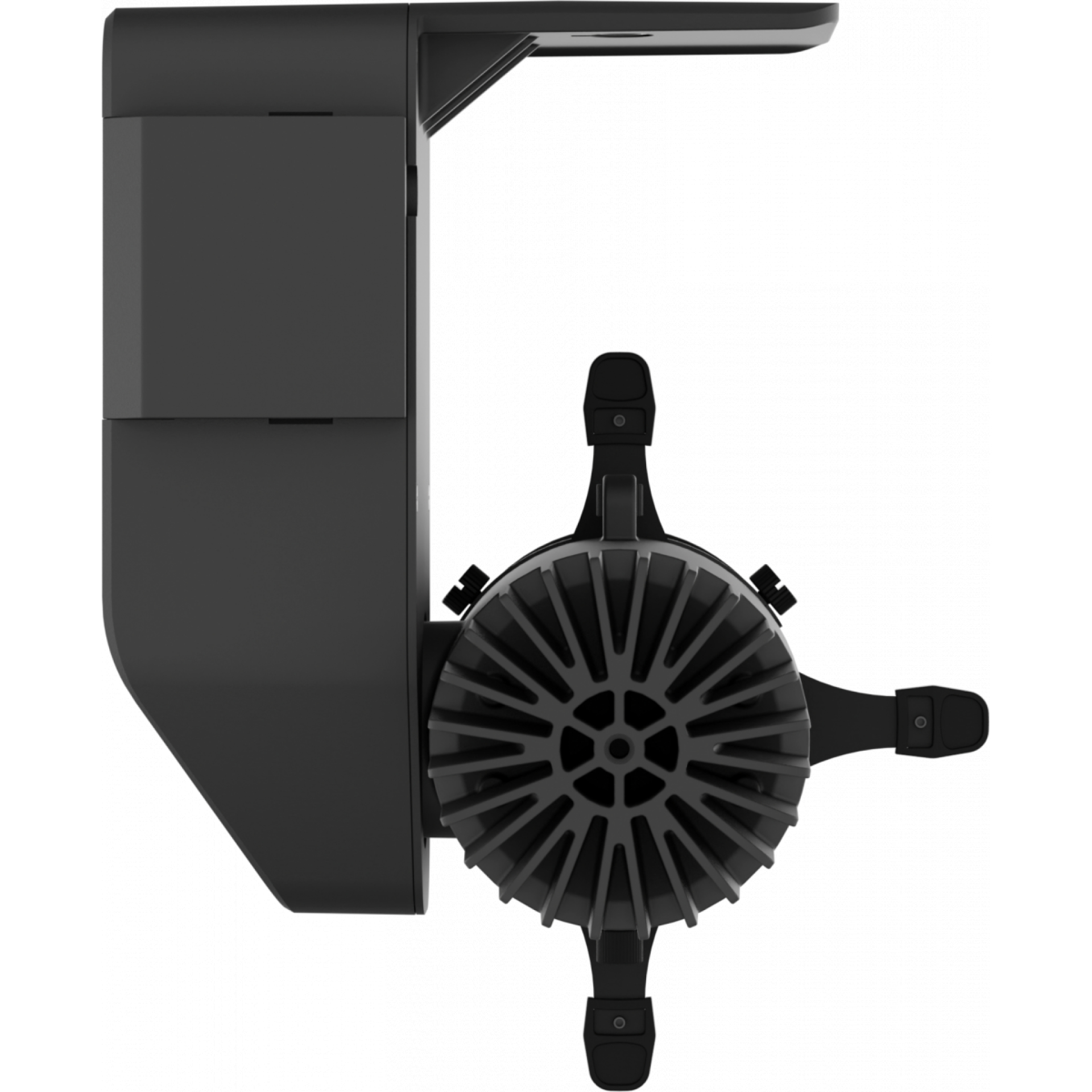

PROLIGHTS EclDisplay UN - black body - back
PROLIGHTS EclDisplay UN - white body - front
PROLIGHTS EclDisplay UN - black body - short side
PROLIGHTS EclDisplay UN - black body - plain front
PROLIGHTS EclDisplay UN - black body - front
PROLIGHTS EclDisplay UN - black body - back

EclDisplay UN Range

Key Features:

  • Universal control through RDM, DMX, DALI, phase-cut dimming and local knob dimming
  • Multiple lens options: zoomable profile or wash optics
  • Body colour available in black, white and custom RAL
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclDisplay UN Range

The PROLIGHTS EclDisplay is a range of revolutionary and flexible LED spotlights designed for galleries, retail and any public venue where an advanced but classical looking fixture is needed, with several control options, sources and optic versions available to precisely meet any application.

Product Variants

PROLIGHTS EclDisplay UN - black body - plain front
EclDisplay UNWhite
  • LED: 25W white
  • Colour temperature: 5,600K

Enquiry Form

PROLIGHTS EclDisplay UN - black body - plain front
EclDisplay UNWhite
  • LED: 25W white
  • Colour temperature: 4,000K

Enquiry Form

PROLIGHTS EclDisplay UN - black body - plain front
EclDisplay UNWhite
  • LED: 25W white
  • Colour temperature: 3,000K

Enquiry Form

PROLIGHTS EclDisplay UN - black body - plain front
EclDisplay UNWhite
  • LED: 25W white
  • Colour temperature: 2,700K

Enquiry Form

PROLIGHTS EclDisplay UN - black body - plain front
EclDisplay UNFC
  • LED: 25W white

Enquiry Form

The EclDisplay UN range can be set and addressed through RDM and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control.

  • Source: available in 40W RGB + Warm White LED and 25W White COB LED

    Source life expectancy: > 50,000hrs (L70B10 @Ta 25° C / 77° F)

    Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50° – (profile lens – optional) 20° ~ 40°

    Hardware on-board: lockable tilt with screw

    Body: aluminium die-casting

    Body colour: RAL 9004 or RAL 9010

    RDM: RDM for remote monitoring and settings

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

    Dimmer: linear 0 ~ 100% electronic dimmer

    LED Control: flicker free operation

    Mains power supply: 100-240V – 50/60Hz

    IP rating: 20

EclDisplay UN Range - Variant Downloads

You might like...

PROLIGHTS EclDisplay CC - black body - plain front
Product - LIGHTING
EclDisplay CC Range
    • Constant current version for connection to external PSU and driver
    • Multiple lens options: zoomable profile or wash optics
    • Body colour available in black, white and custom RAL
Find out more
PROLIGHTS EclDisplay DAT - black body
Product - LIGHTING
EclDisplay DAT Range
    • Data control through RDM, DMX, DALI and local knob dimming
    • Multiple lens options: zoomable profile or wash optics
    • Body colour available in black, white and custom RAL
Find out more

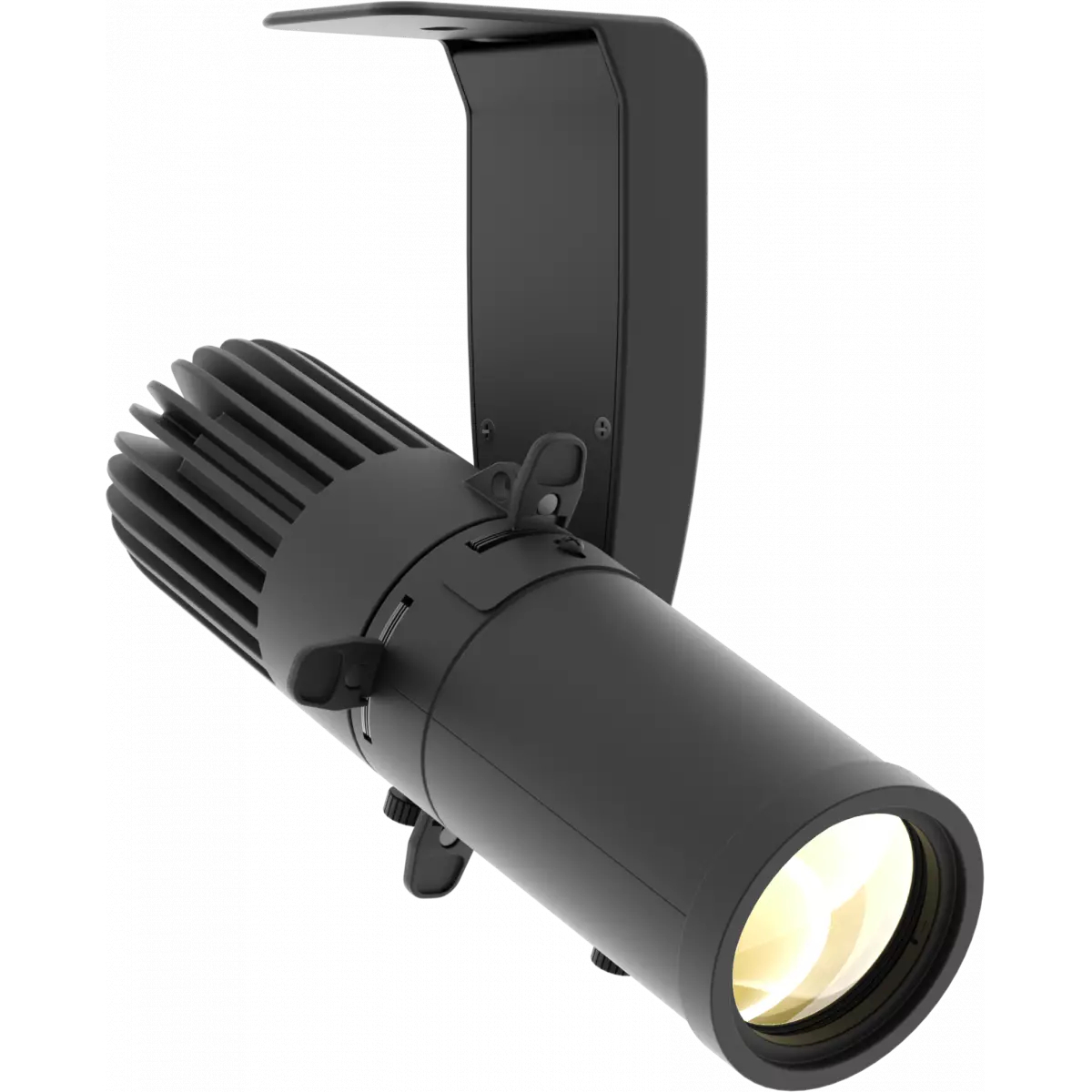

PROLIGHTS EclMiniProfile TU
