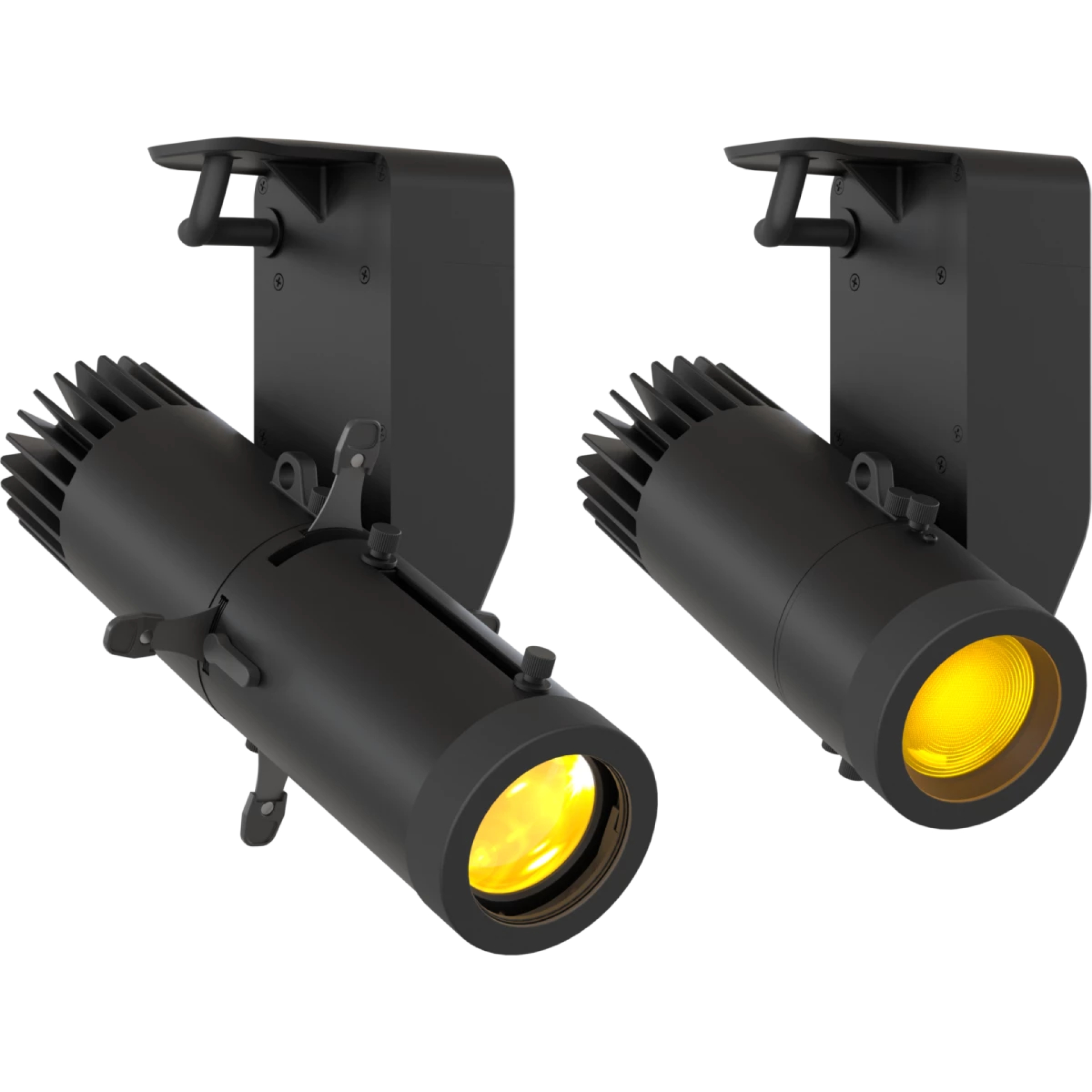

PROLIGHTS EclDisplay XB - front lens options

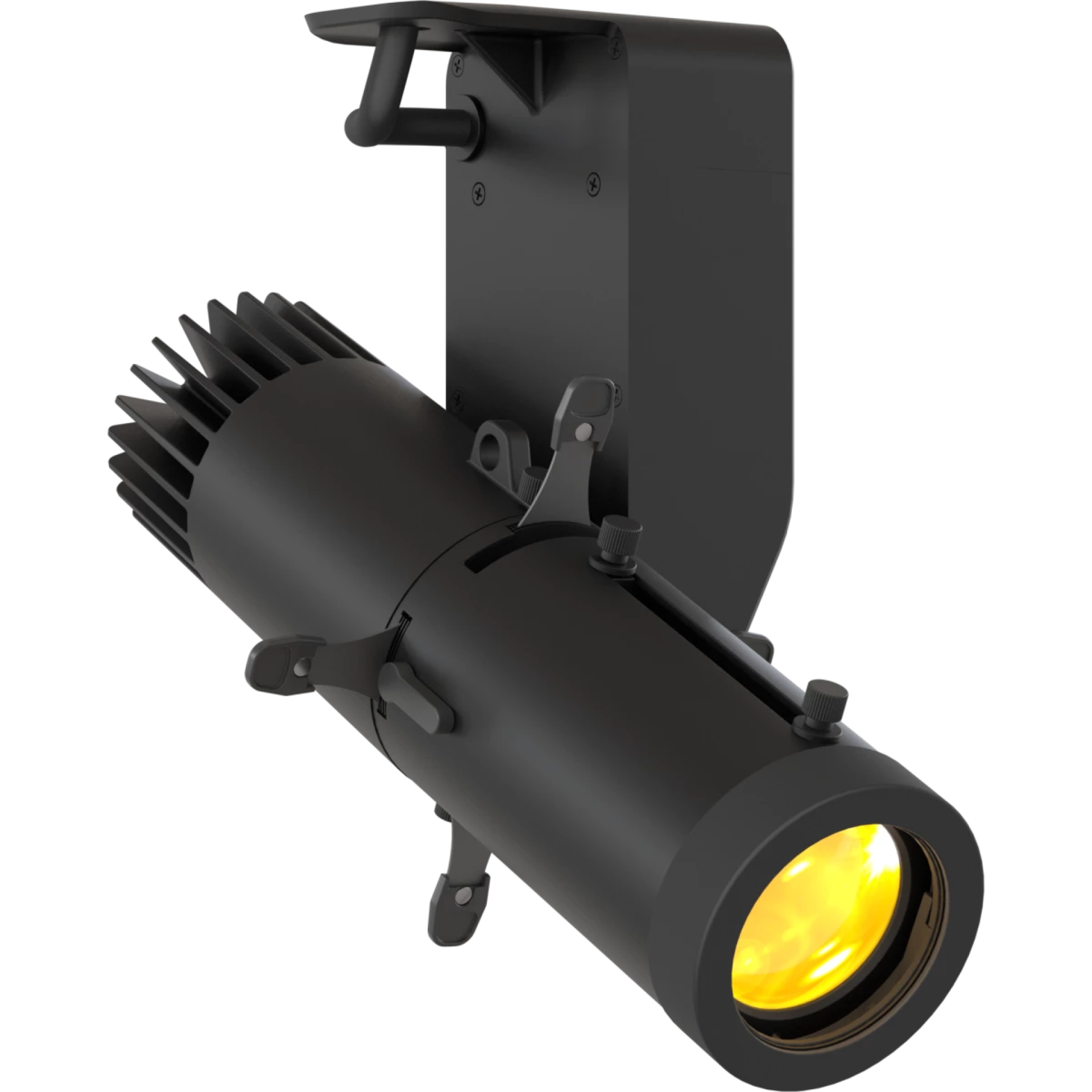

PROLIGHTS EclDisplay XB - front long

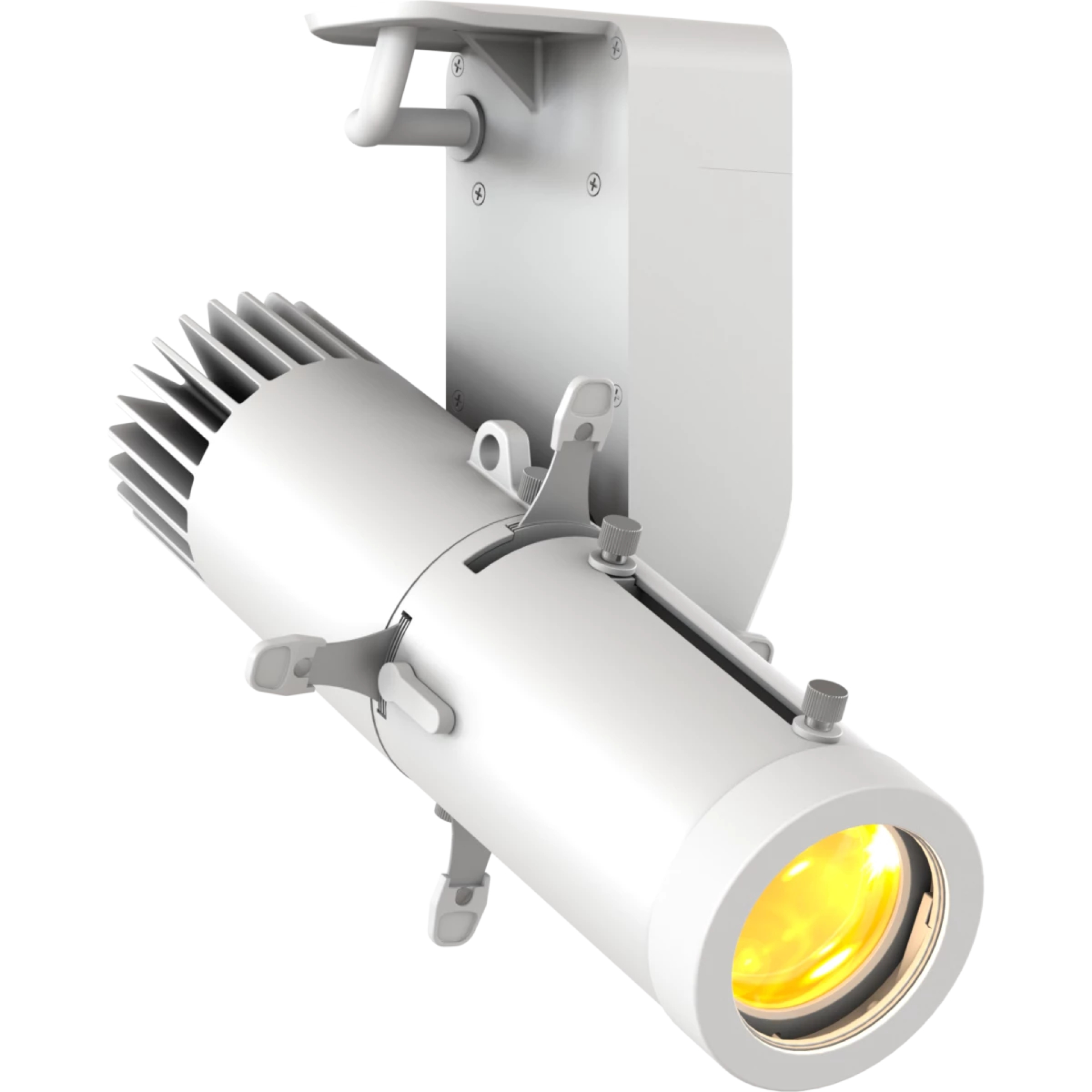

PROLIGHTS EclDisplay XB - white

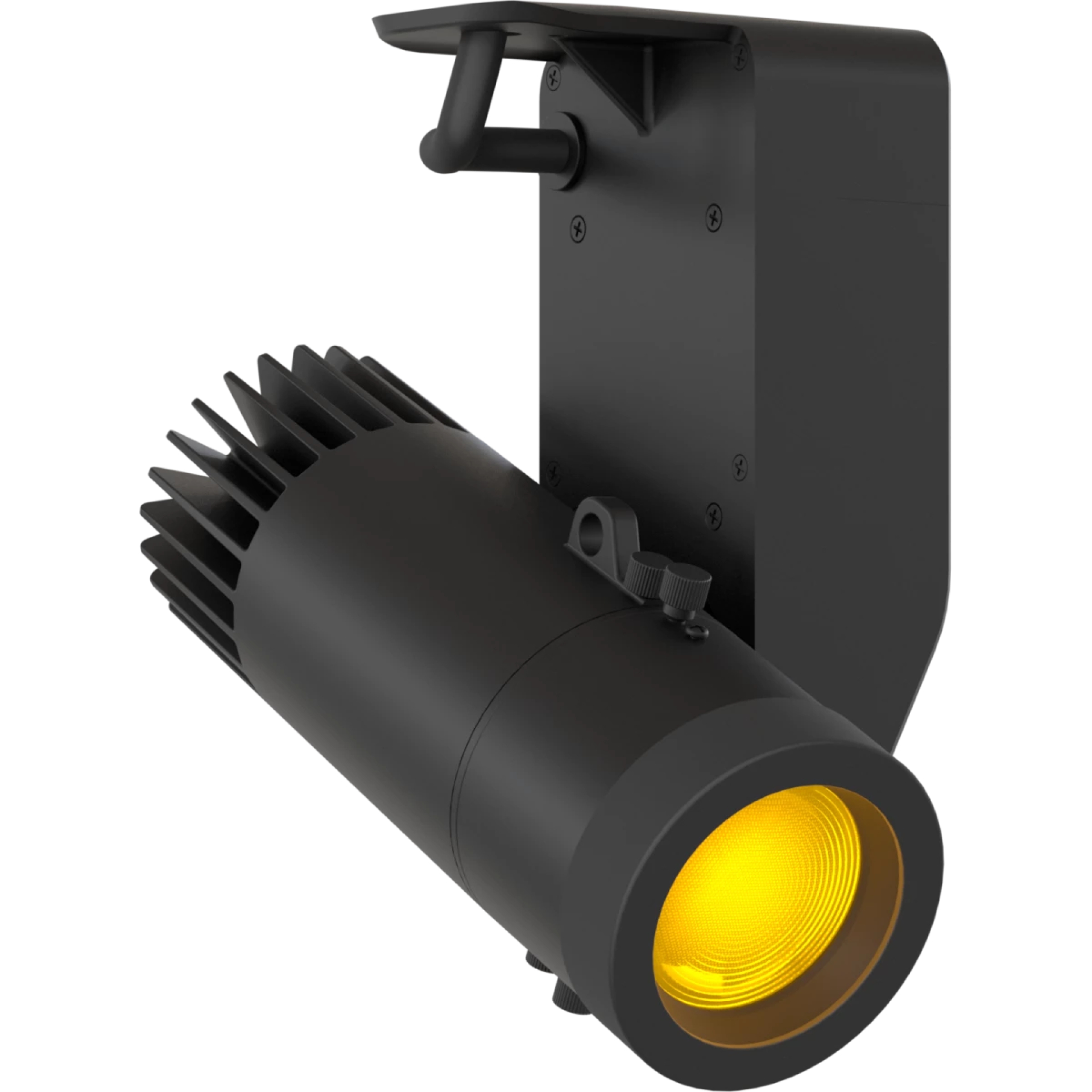

PROLIGHTS EclDisplay XB - front short lens

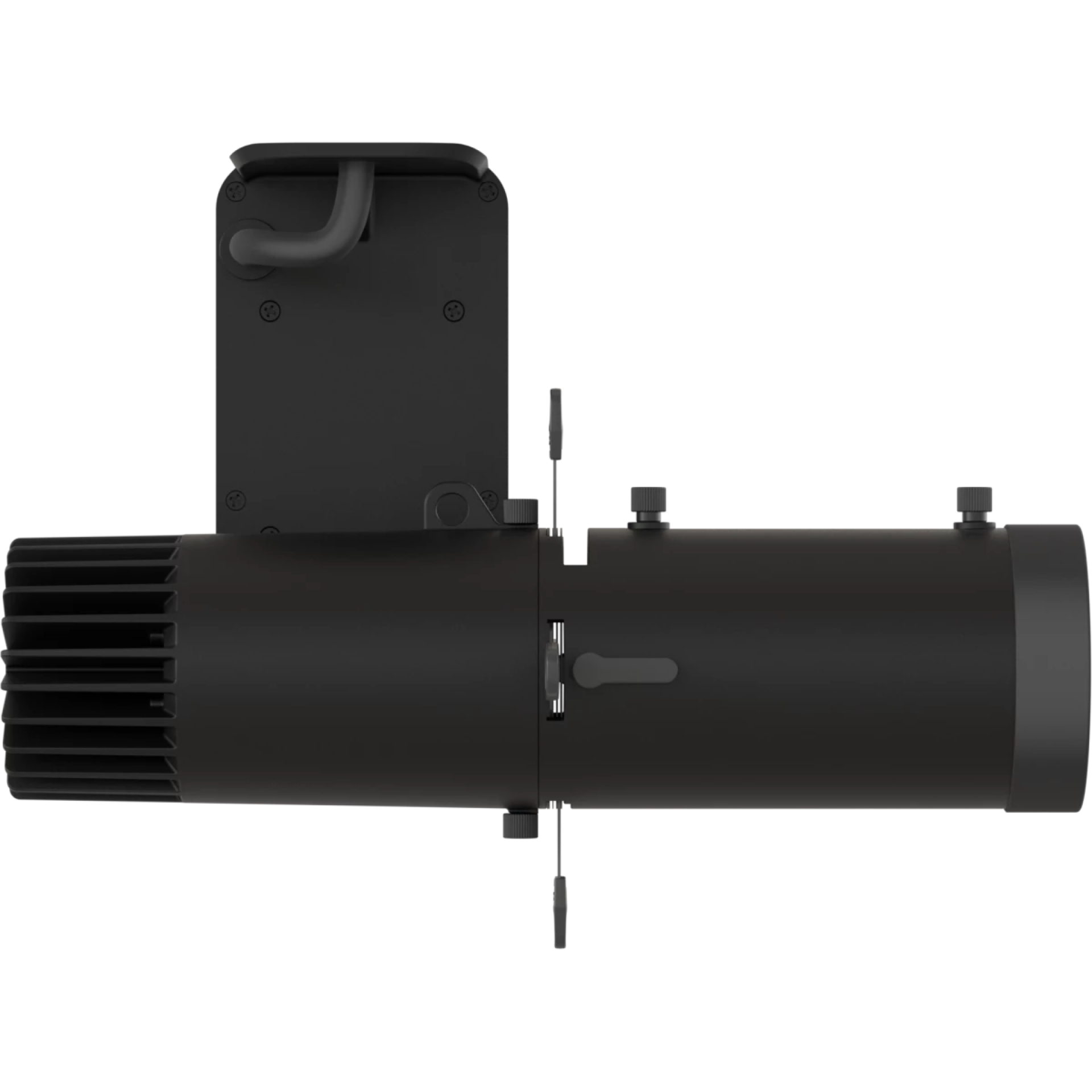

PROLIGHTS EclDisplay XB - long side view

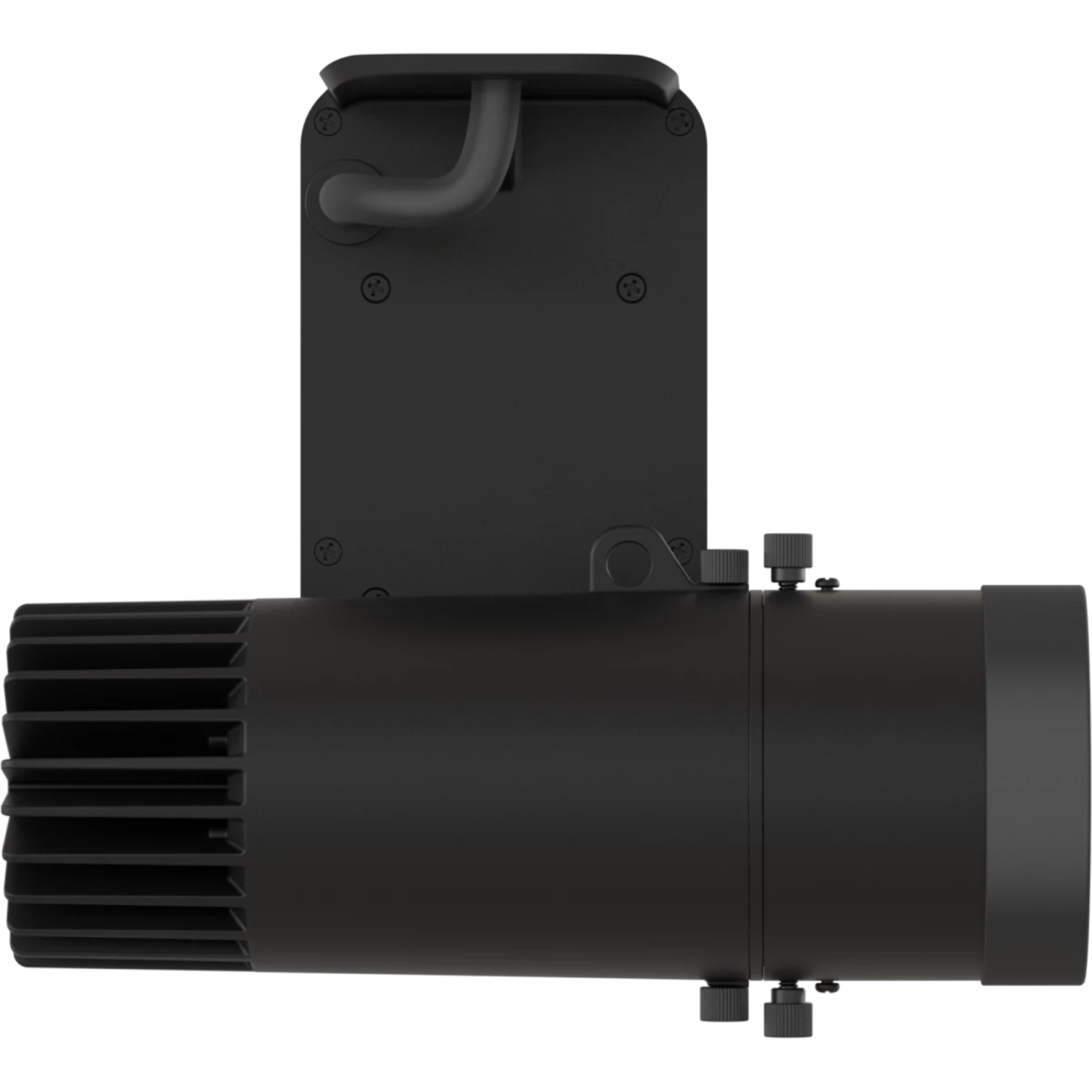

PROLIGHTS EclDisplay XB - short side view

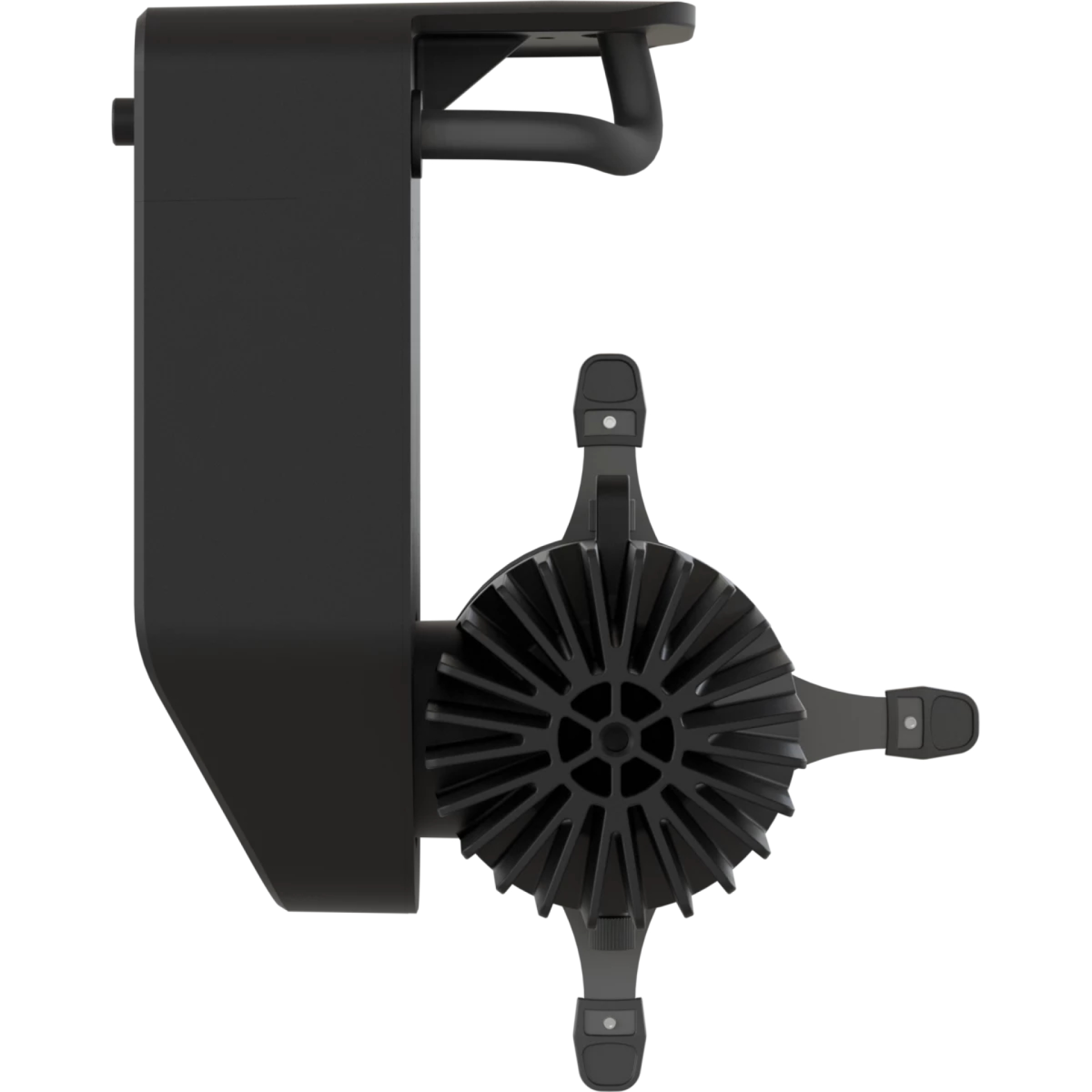

PROLIGHTS EclDisplay XB - back view

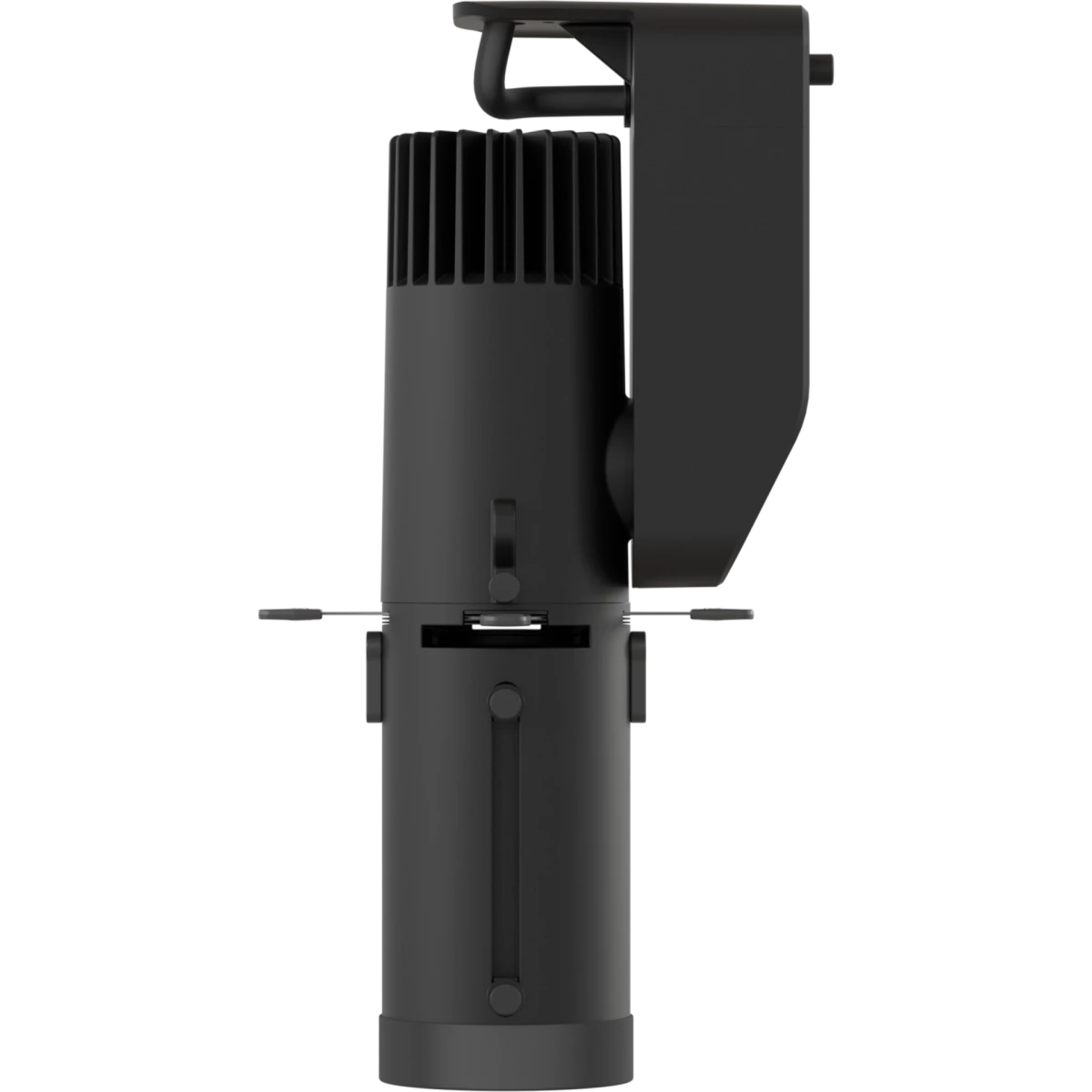

PROLIGHTS EclDisplay XB - top view
PROLIGHTS EclDisplay XB - front long
PROLIGHTS EclDisplay XB - white
PROLIGHTS EclDisplay XB - front short lens
PROLIGHTS EclDisplay XB - long side view
PROLIGHTS EclDisplay XB - short side view
PROLIGHTS EclDisplay XB - back view
PROLIGHTS EclDisplay XB - top view

EclDisplay XB Range

Key Features:

  • 40W RGB+Lime LED
  • Up to 600 lm @ full
  • Data control through RDM, DMX, optional CRMX receiver and local knob dimming
  • Compatible with all EclDisplay lenses: profile (zoom and static) or wash optics
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

EclDisplay XB Range

The EclDisplay XB range presents an innovative and versatile range of LED spotlights, designed for use in galleries, commercial spaces, and other public venues.

These advanced fixtures are distinguished by their refined design and multiple control options, including both wired and wireless protocols. They are adaptable to a variety of applications, thanks to the availability of different sources and optics.

Each EclDisplay XB unit can be programmed and controlled via RDM, built-in input control protocols such as DMX and local knob dimming.

At the heart of the EclDisplay XB is a highly efficient 40W RGB+Lime, LED source, capable of delivering both a Full Colour spectrum and also tunable White. The fixture's versatility is further enhanced by an extensive range of optional accessories, including profile (zoom and static) or wash lenses and additional optical elements like louvres and snoots. This makes the EclDisplay XB not just a lighting fixture, but a comprehensive lighting solution adaptable to a multitude of environments and needs.

  • Source: 40W RGB + lime LEDs

    Luminous flux: (profile 36 HD) 644 lm; (profile 2040 HD - min) 584 lm; (profile 2040 HD - max) 571 lm @ full

    Lux: (profile 36 HD) 121 lx; (profile 2040 HD - min) 372 lx; (profile 2040 HD - max) 107 lx @ 5m full

    Source life expectancy: > 50,000 hrs (L70B10 @ Ta 25° C / 77° F)

    Zoom range: (wash lens - optional) 15° ~ 30° or 25° ~ 50°; (profile lens - optional) 10° ~ 20° or 20° ~ 40° or 8°

    Other: 360° lens rotation - shutter blades lockable - optional 360° rotating barndoors and gel frame holder

    Other: (profile lens) shutter blades lockable

    Other: (profile lens - optional) manual rotating gobo holder size E, outer: 37mm; image: 23mm; thickness: max 3mm

  • Colour mixing: RGB + lime / full colour

    CCT: CCT control through dedicated DMX channel

    Colour wheel: virtual colour wheel with macros

    Control Resolution: 16-bit dimmer, colours

    Static mode: selection of static colour

    Manual mode: manual adjustment of colour

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM, CRMX (optional)

    Stand Alone: 1 push encoder

    DMX channels: 5 / 6 / 15 channel

    Wireless Control: Optional LumenRadio TiMoRX

    RDM: RDM for remote monitoring and settings

    Display: user interface through DATAMASTER external coder (not included)

    Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
