ArcPod 300FCLT

ArcPod 300FCLT

PROARCPOD300FCLT

Key Features:

Exterior narrow-beam full colour wash light

Native 2.5° beam angle lens for long-throw projection

IP66 with C5M for permanent exterior installation

Comprehensive selection of optics, holographic filters and light modifiers

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

ArcPod 300FCLT

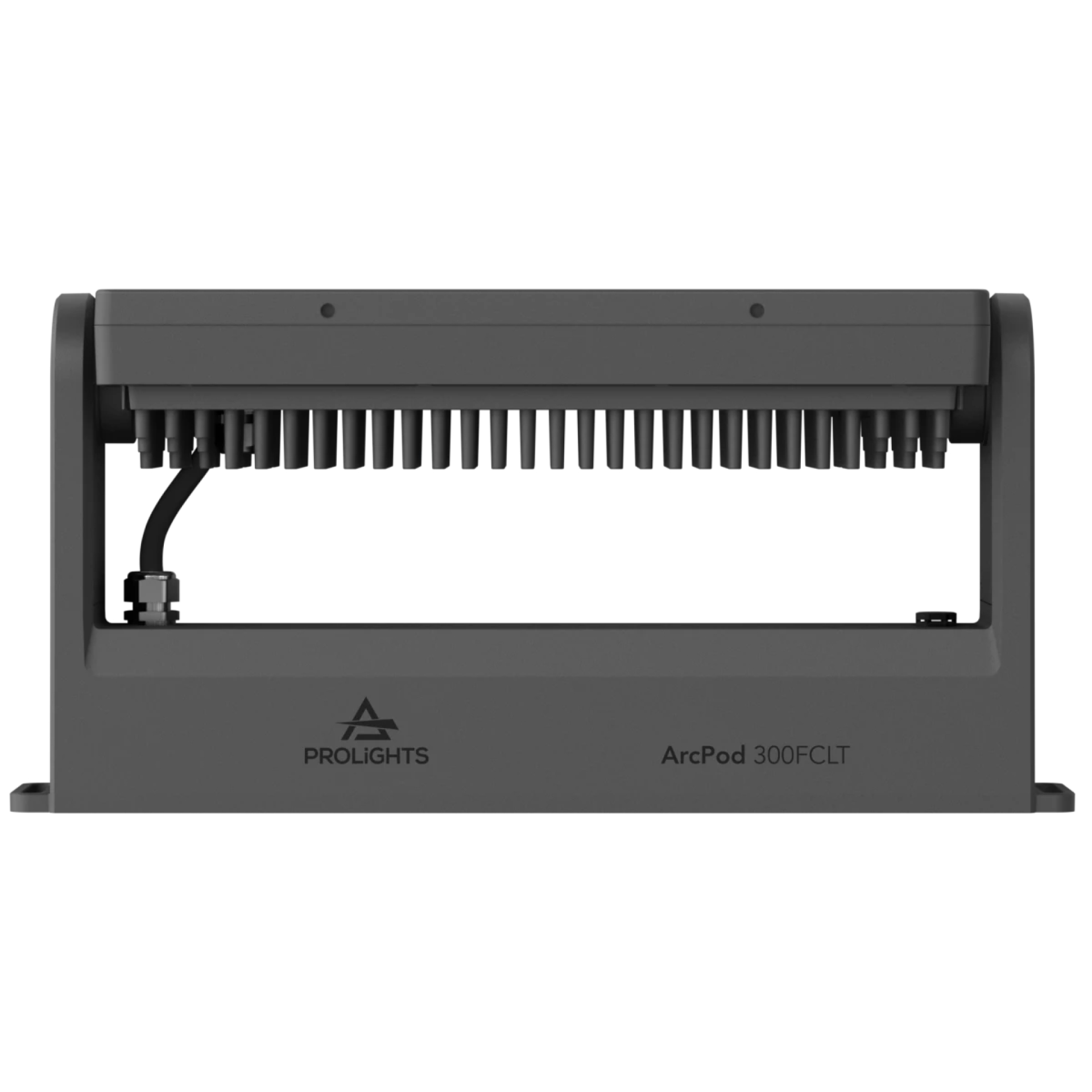

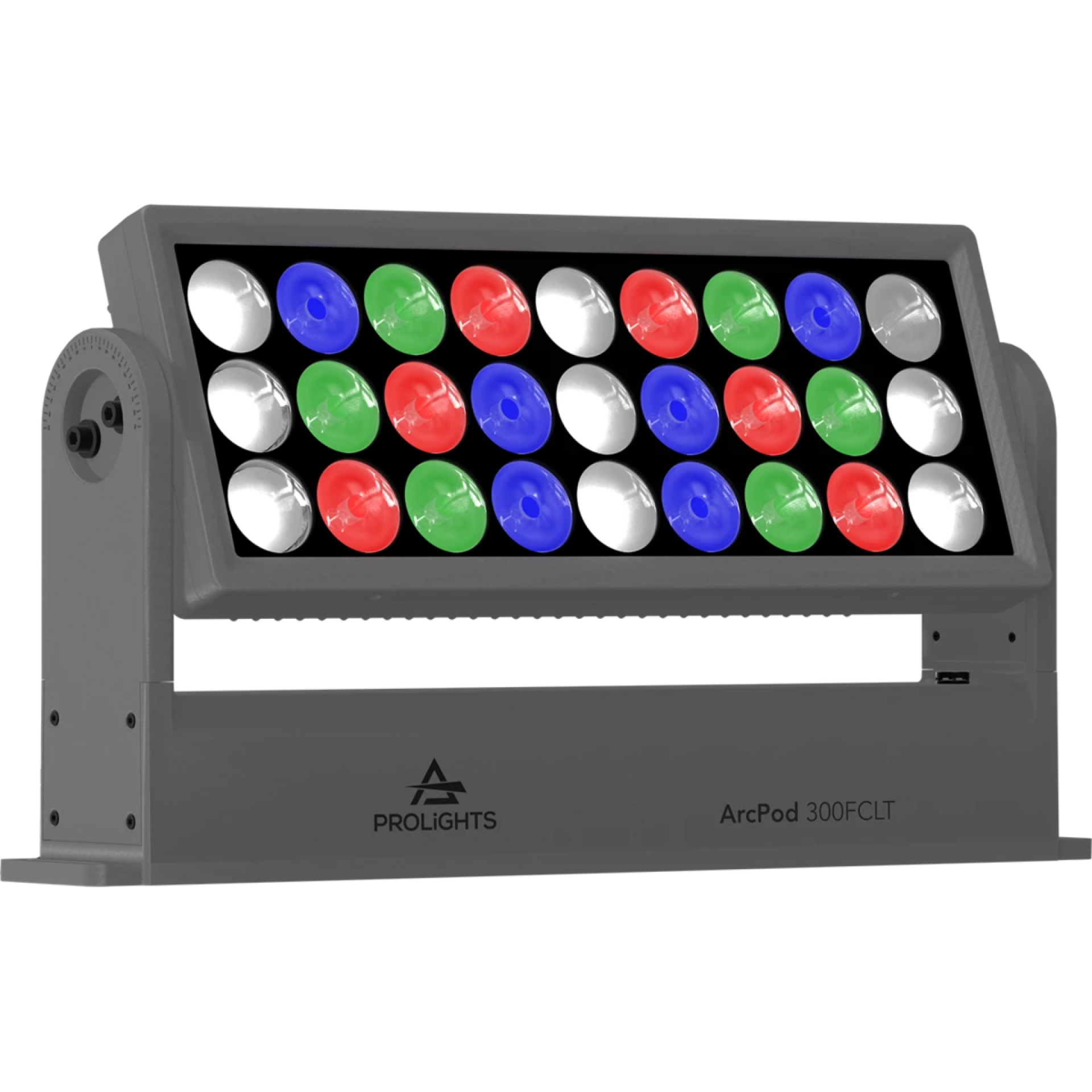

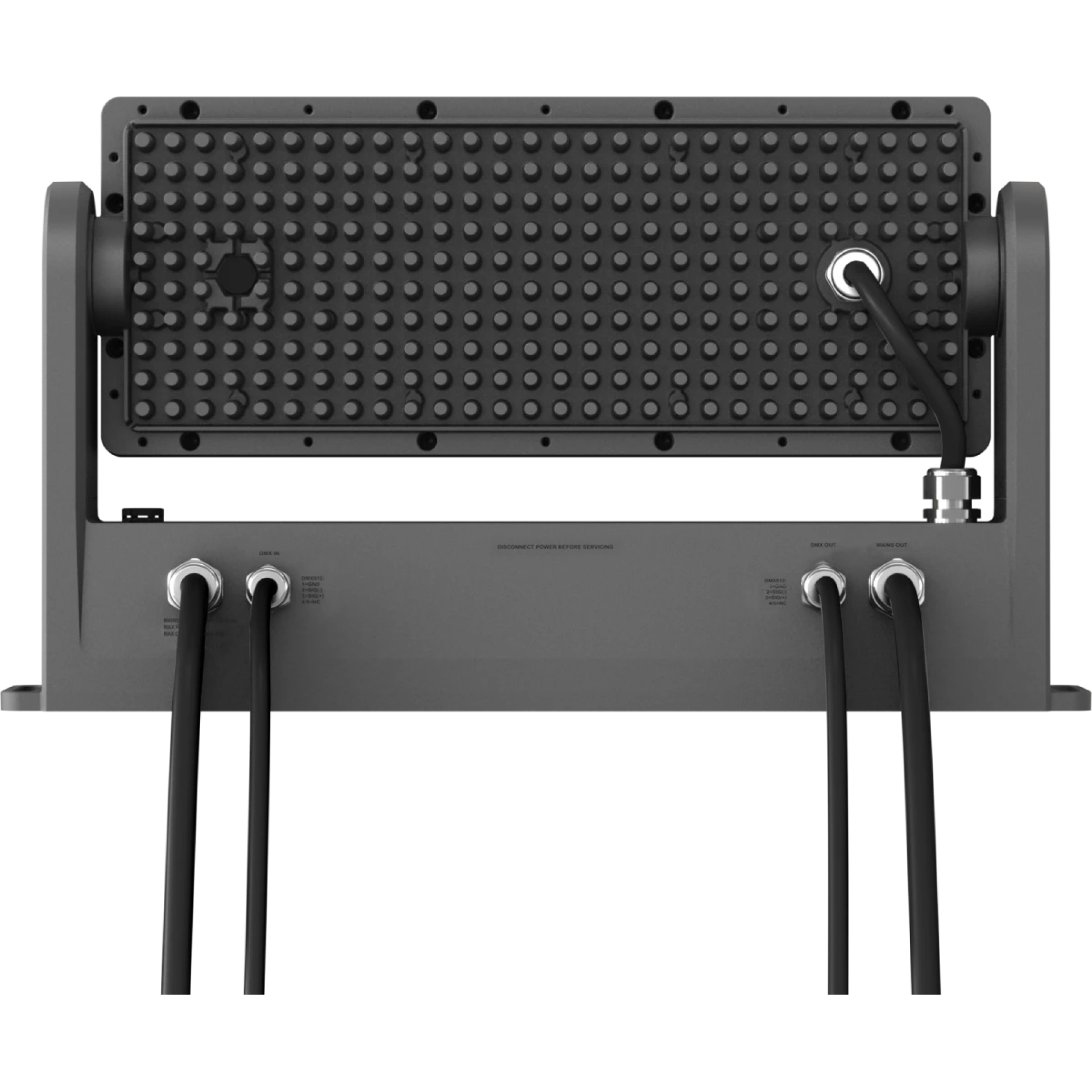

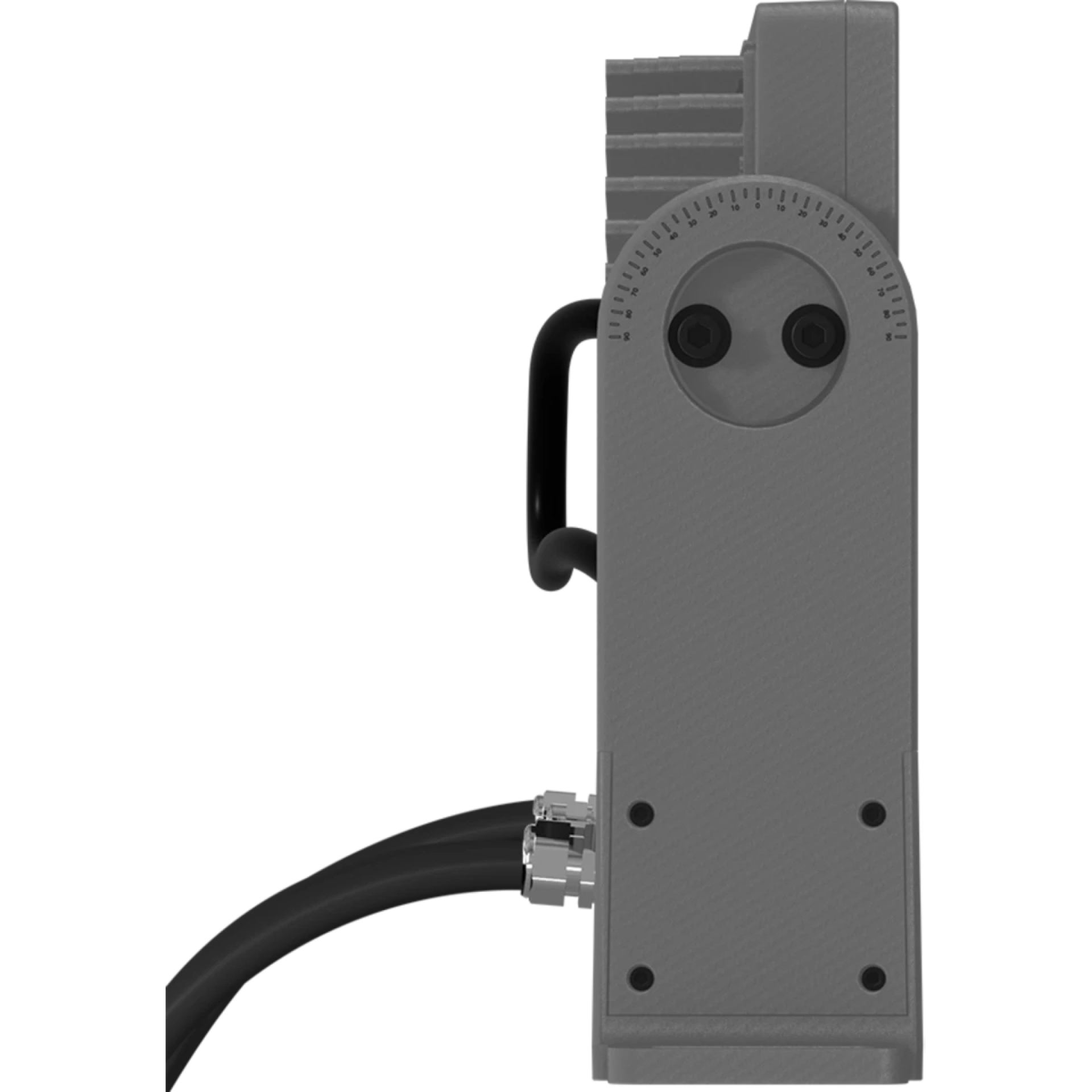

The ArcPod 300FCLT is a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for large-scale exterior installations requiring long-distance projection, such as bridges, stadiums, and city towers.

The ArcPod 300FCLT delivers 700 lux at 40m, providing directional and precise illumination to minimise light pollution. With an IP66 rating and C5M marine corrosion protection, it offers enhanced durability against liquids, sand, and salt.

Weighing just 12kg, the ArcPod 300FCLT is ideal for outdoor use, requiring minimal maintenance. Secure mounting and optical customisation are ensured with a wide range of brackets and lens modifiers. Combining precision, durability, and advanced technology, the ArcPod 300FCLT sets a new benchmark in architectural lighting.

- Source: (6 x red, 6 x green, 6 x blue, 9 x white) 27x10W RGBW LED
- CCT: W: 6300K
- Luminous flux: (with 3° filter on-board) 10,573 lm @ full
- Lux: (with 3° filter on-board) 676lx @ 40m full
- Lux: (with 3° filter on-board) 43,251lx @ 5m full
- Source life expectancy: > 50,000 hrs (L70B10 @ Ta 25° C / 77° F)
- Optics: 3° holographic filter fitted on board
- Beam angle: (with 3° filter on-board) 4° - (only native lens) 2.5°
- Field angle: (with 3° filter on-board) 7.5 - (only native lens) 5.3°
- Lens type: TIR lenses
- Additional optics: different holographic filters available as options to put behind the glass

- Colour mixing: RGBW
- White presets: 2800K ~ 10000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built macros with adjustable speed
- Static mode: selection of static colour

- Protocols: DMX512, RDM
- DMX channels: 5 / 7 / 10 channel
- RDM: RDM for remote monitoring and settings
- Display: user interface through DATAMASTER external coder (not included)
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
- Master/Slave: for synchronised operation of more units linked in a chain
