ArcPod 15QC5M

ArcPod 15QC5M

PROARCPOD15QC5M

Key Features:

Tilt adjustment and multiple lens options for fine focusing

15x10W RGBW / FC LEDs

Compact form factor and fan-free design

Enquire

Enquiry Form

First Name ^*

Surname ^*

Email ^*

Company Name

Country ^*

Are you an existing customer? ^*

Yes No

Phone ^*

How can we help?

Call us today on

+44 (0)1494 446000

ArcPod 15QC5M

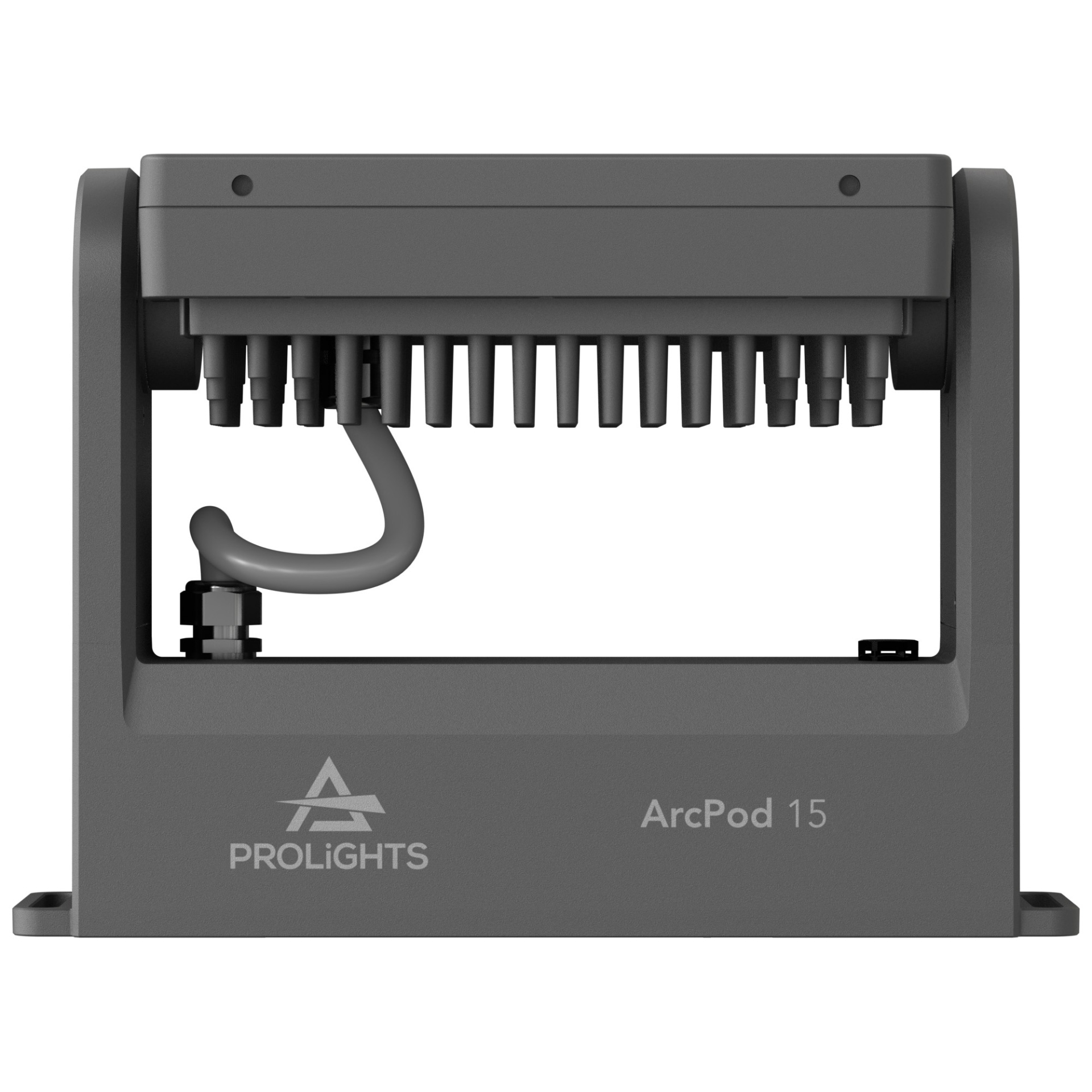

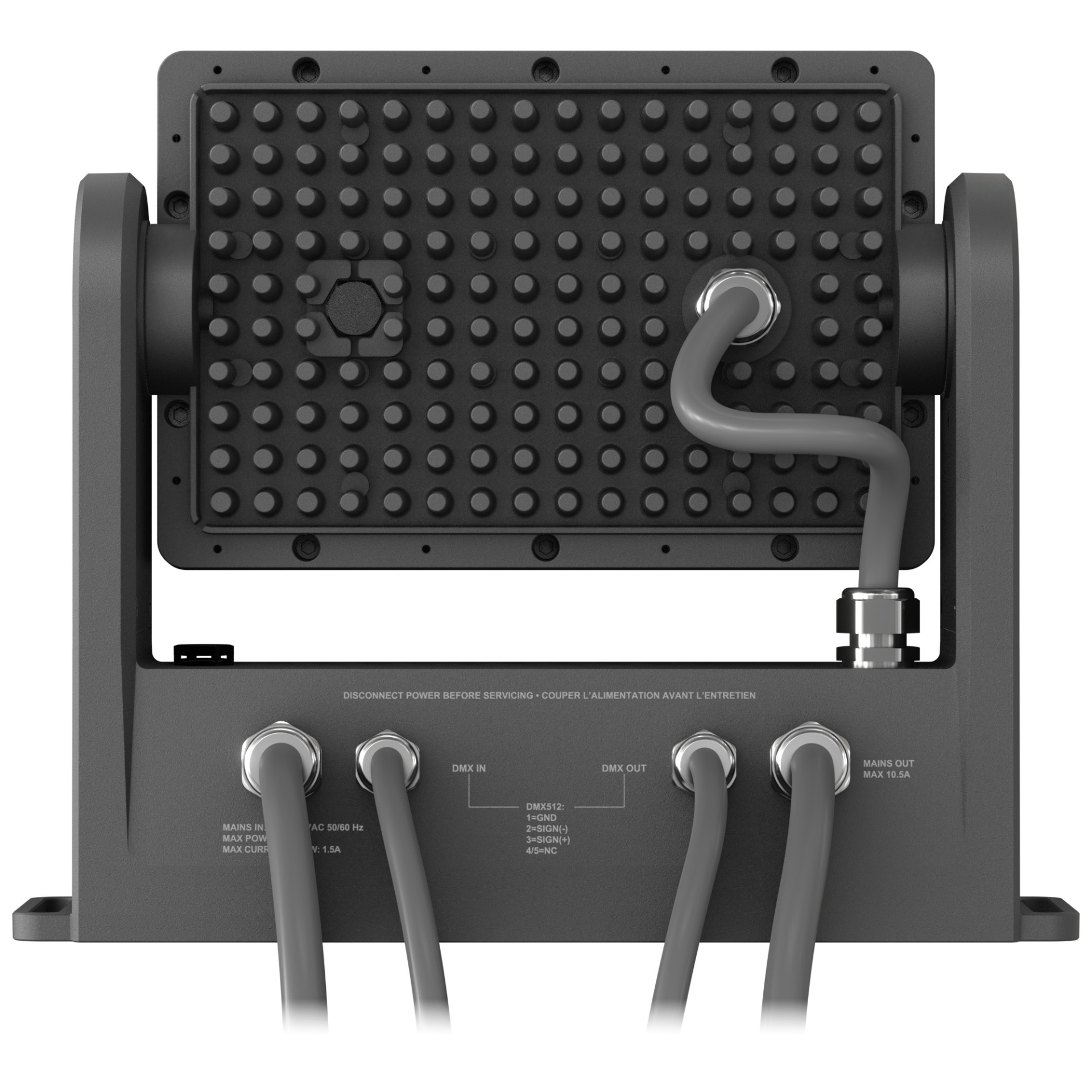

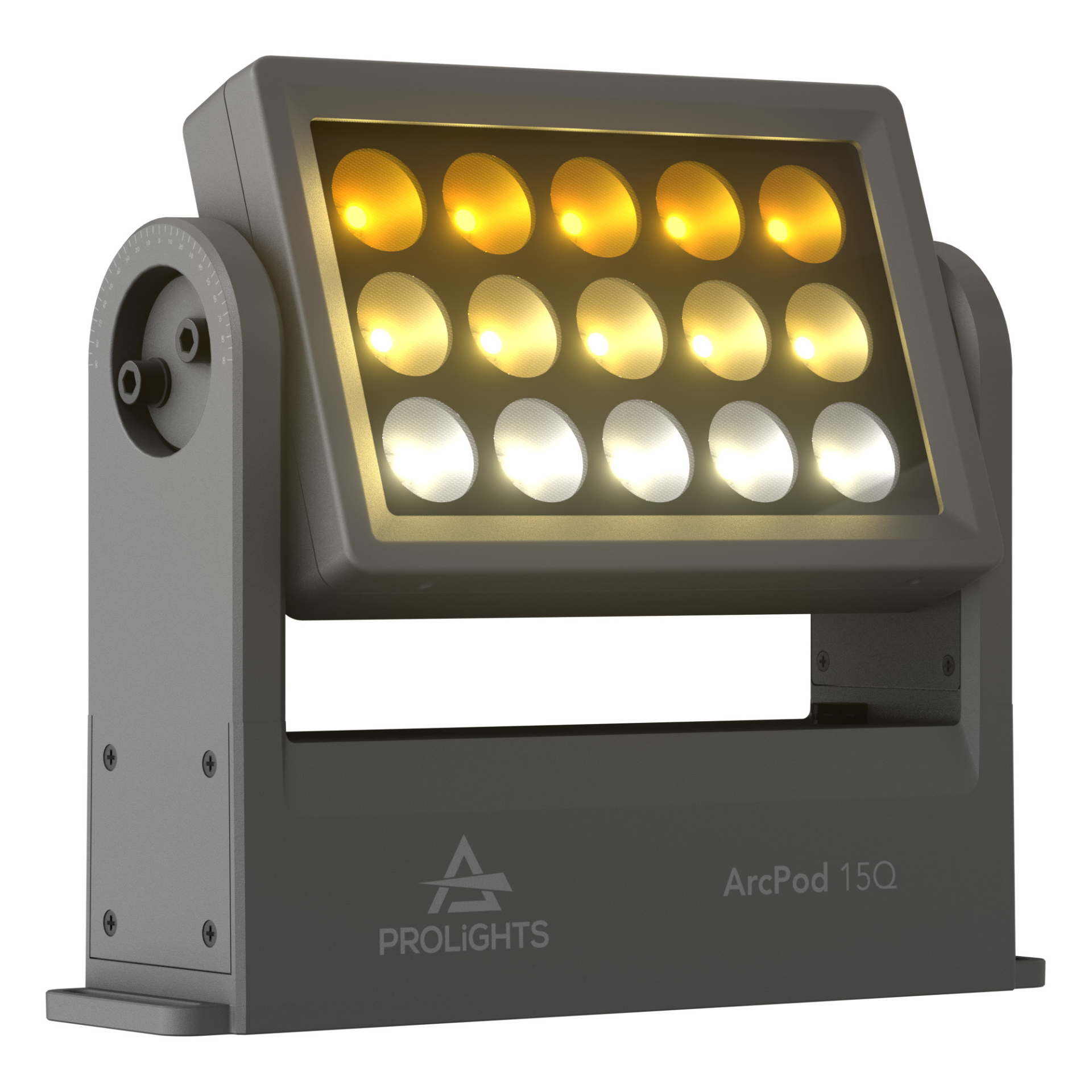

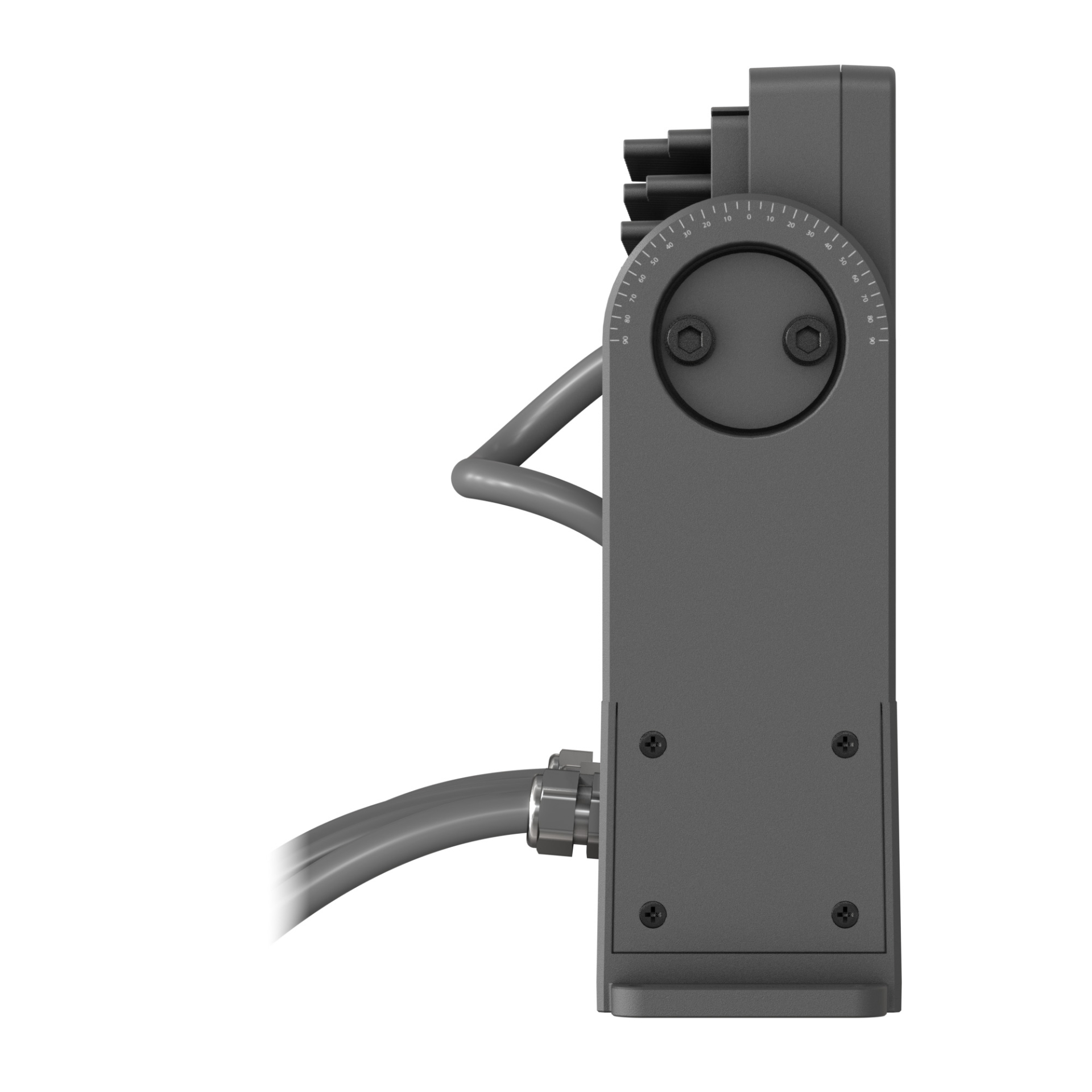

The PROLIGHTS ArcPod 15QC5M is a compact exterior wash fixture, featuring high-intensity light despite its small size. Enhanced with a C5-M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.

The unit is equipped with 15x10W RGBW / FC LEDs, delivering an exceptional output over than 5,900 lumens and a wide gamut of colours and whites. The slim sizing, as well as the wide range of available optics, makes the ArcPod 15QC5M an incredibly flexible architectural fixture to complement the bigger versions in large outdoor installs as accent light or for smaller-sized projects.

- Source: 15x10W RGBW LEDs
- Luminous flux: (10°) 4,552 lm; (15°) 5,678 lm; (25°) 5,732 lm; (45°) 5,390 @ full
- Lux: (10°) 3,116 lx; (15°) 2,790 lx; (25°) 1,203 lx; (45°) 287lx @ 5m full
- Source life expectancy: > 50,000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle: 25°
- Field angle: 38°
- Lens diameter: 36mm / 1.42''
- Additional optics: 10° - 15° - 45° (optional)

- CCT: CCT control through dedicated DMX channel
- White presets: 2,800 K ~ 10,000K
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built macros with adjustable speed
- Static mode: selection of static colour

- Supported Protocols: DMX512, RDM
- DMX channels: 5 / 7 / 10 channels
- RDM: for remote addressing and parameter configuration
- Display: user interface through DATAMASTER external coder (not included)
- Master/Slave: for synchronised operation of more units linked in a chain
