Now you can leverage the power and flexibility of the most comprehensive matrix processing to be found on a power amplifier, all enhanced by the simplicity and ease of Dante connectivity, to create a fully integrated, effective sound solution. What’s more, full compatibility with ProVisionaire series gives you complete control over the entire network chain, from mixers through to amplifiers, processors, and speakers. In short, the PC-D / DI series gives you what every sound engineer has always dreamed of—total control.

Powerful Matrix Functionality and Dante I/O provides Superior Flexibility

The impressive 20 x 8 input matrix capability of PC-D / DI Series amplifiers combines with Dante I/O to provide dramatic improvements to the versatility of any system. The PC-D / DI Series can be used as a supplementary matrix to expand the overall system matrix, and even in systems without mixers or additional DSP, allows direct sound input from other analog devices or Dante-equipped gear to offer more flexible routing capabilities. The onboard Dante inputs and outputs also allow redundant connections for handling 16 input/16 output audio at up to 96 kHz with low latency, while combining the PC-D / DI Series with remote software such as ProVisionaire Control provides even more flexibility and intuitive control.

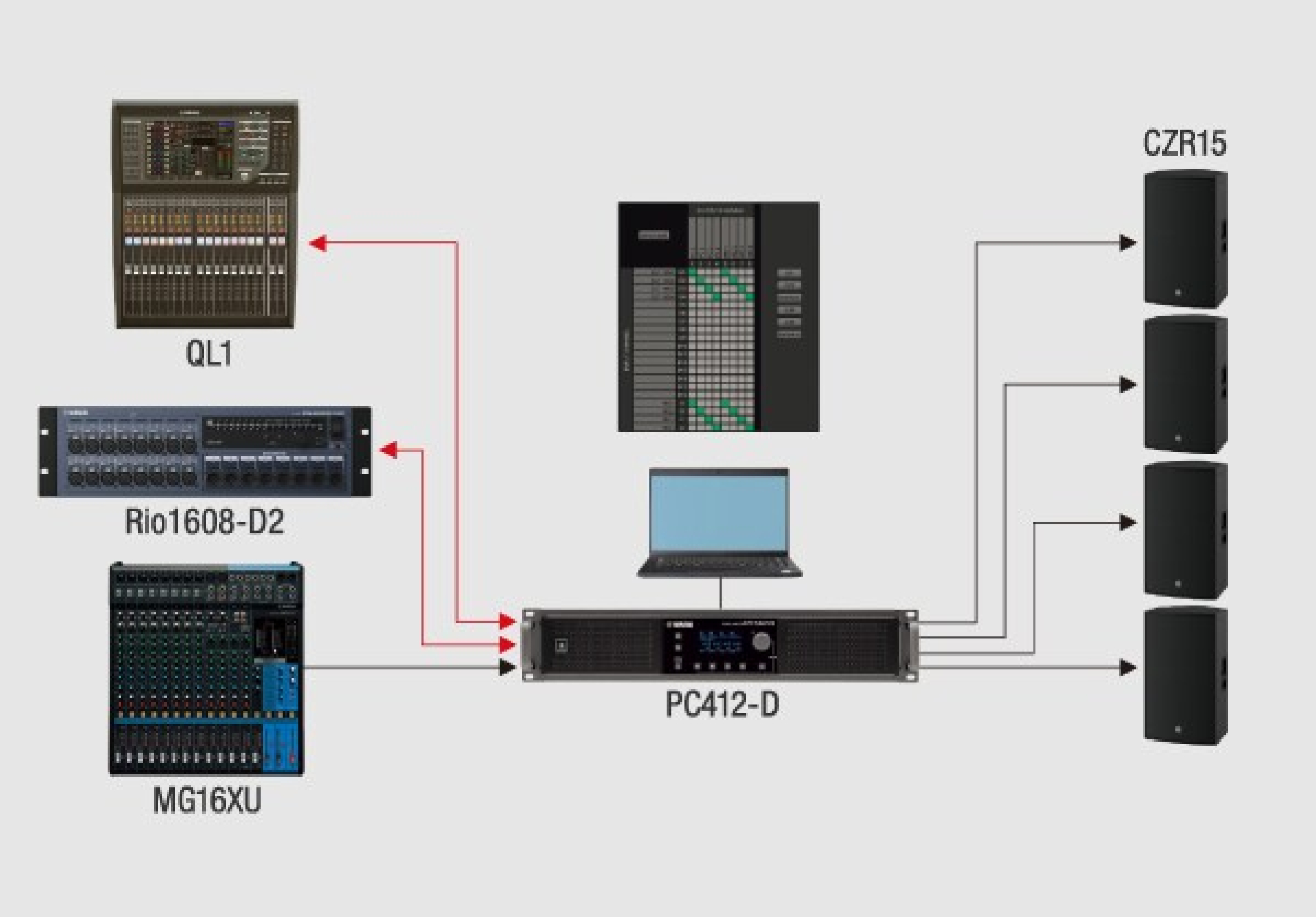

Using matrix applications for flexible routing
An analogue mixer's sound is input into a PC412-D, along with sound output from a digital mixer. Input matrix functionality can be used to output the combined sound to speakers or other Dante devices.

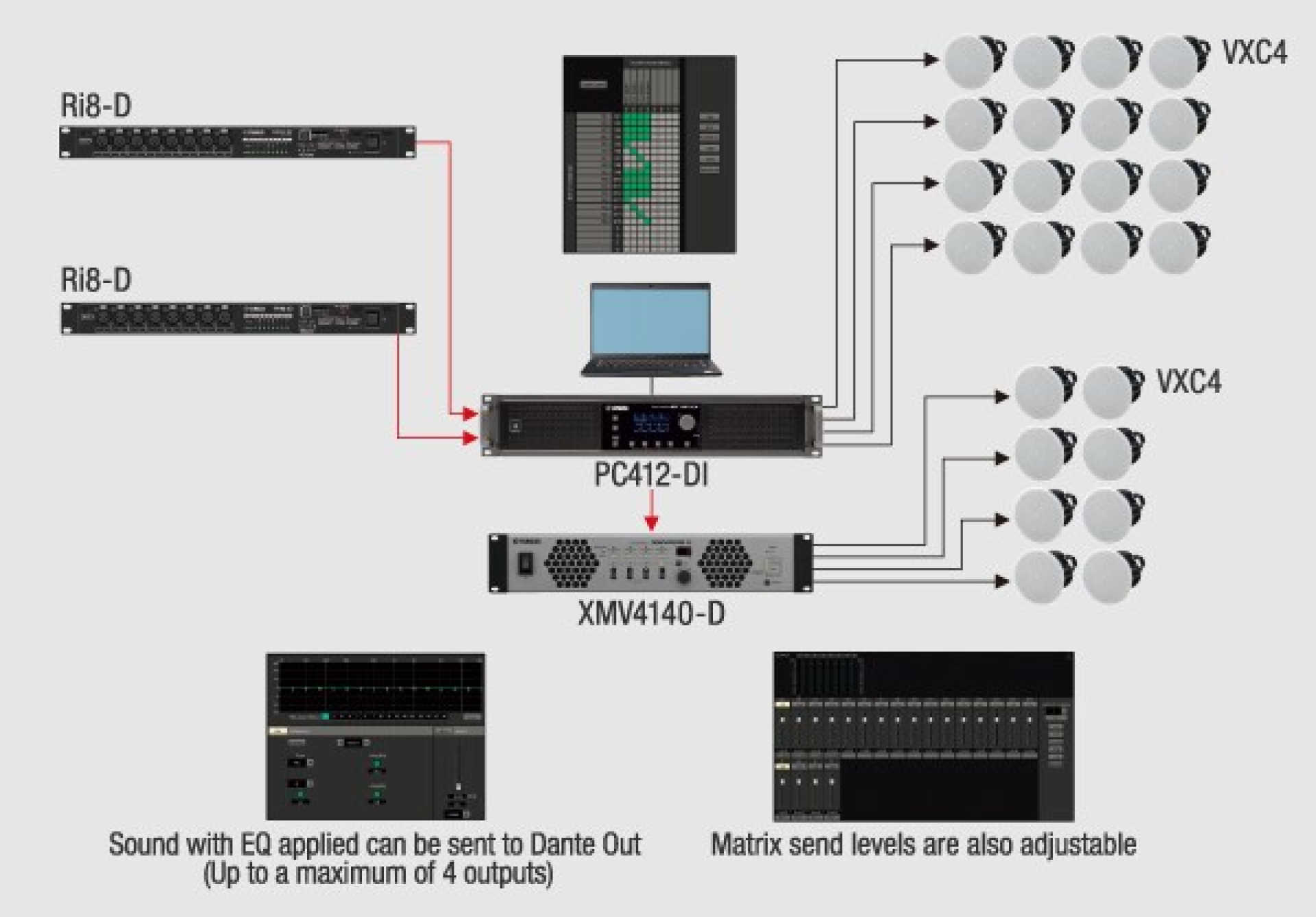

Constructing a mixer-less system
Sound is fed from Dante inputs on two devices to a PC412-DI. Use the input matrix to route the combined sound to speakers. You can also use Dante Out to send EQ-adjusted sound to other amplifiers.
Power you can count on
The PC-D / DI Series feature highly efficient Class-D amplifiers that deliver supreme sound quality with outstanding precision and stability, even when driving high loads. Both the “D” touring models and the “DI” installation models come in 600 W and 1200 W versions, each with connectivity best suited to its application. The DI models handle high-impedance connections easily, allowing you to build systems with many speakers. All models come with detachable handles and replaceable filters.
Packed with processing power
Featuring powerful onboard speaker processors as standard, PC-D / DI Series amplifiers offer processing such as 16-band PEQ, delay, peak limiting, and RMS limiting, as well as FIR filters that achieve linear phase, allowing users to tune speakers perfectly with precision and ease. Dante outputs can be used to transmit further parameter adjustments of Room EQ to other amps, allowing EQ for multiple amp channels to be adjusted centrally. The speaker preset library is well-stocked with optimised presets for the Yamaha CZR Series and others, making it effortless to achieve the perfect speaker tuning for your system.
The ProVisionaire Series… from start to finish
The PC-D Series lets you create detailed designs using two types of ProVisionaire.
ProVisionaire Design is a comprehensive Windows software application that allows intuitive sound design when using compatible Yamaha products. It is perfect for designing systems that utilise Yamaha products, including the PC-D Series, DME/MRX processors, Rio/Tio interfaces, and ADECIA solutions. ProVisionaire Design can also be combined with the ProVisionaire Control computer application, allowing integrated control of all aspects of a project, from system design and configuration to everyday operation and management.
