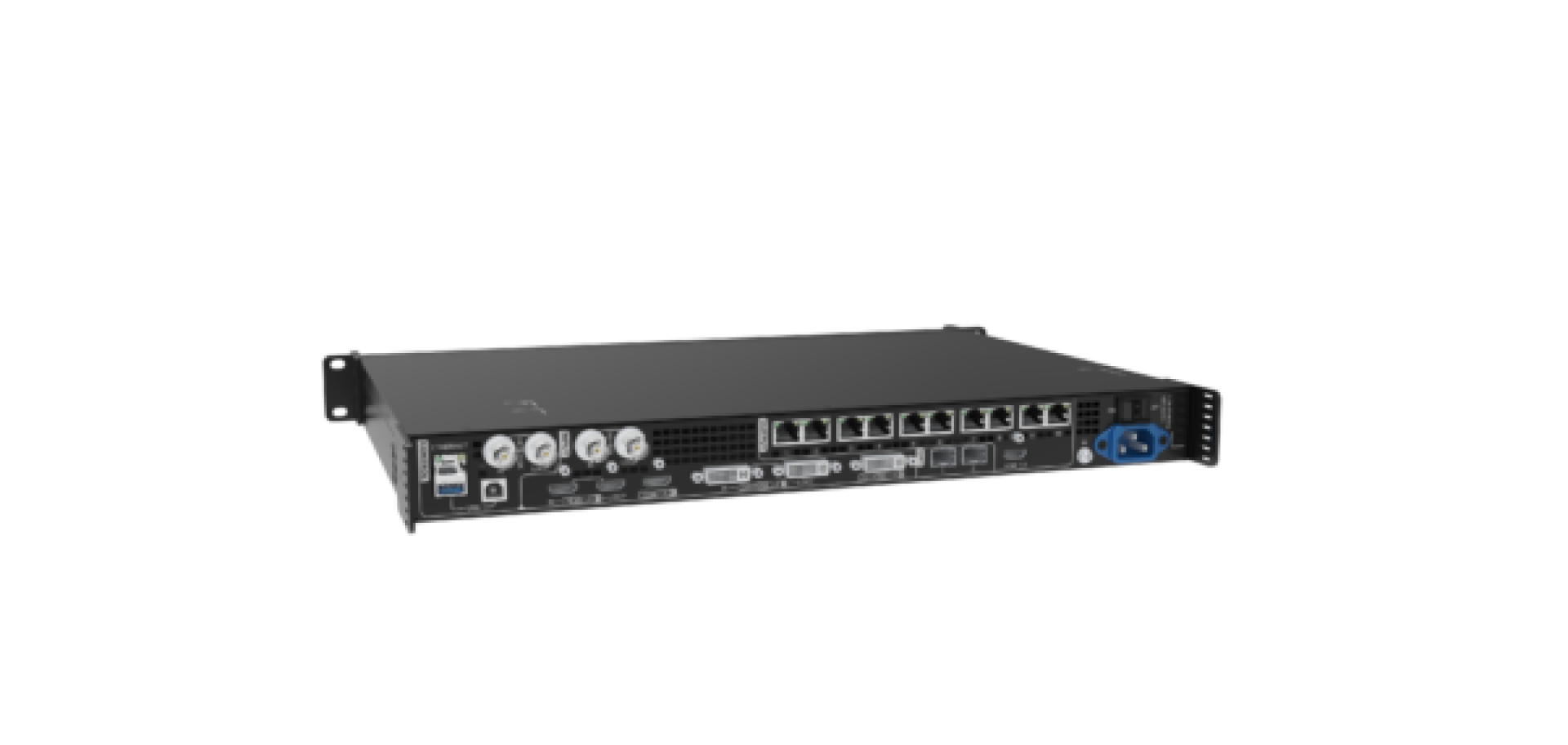

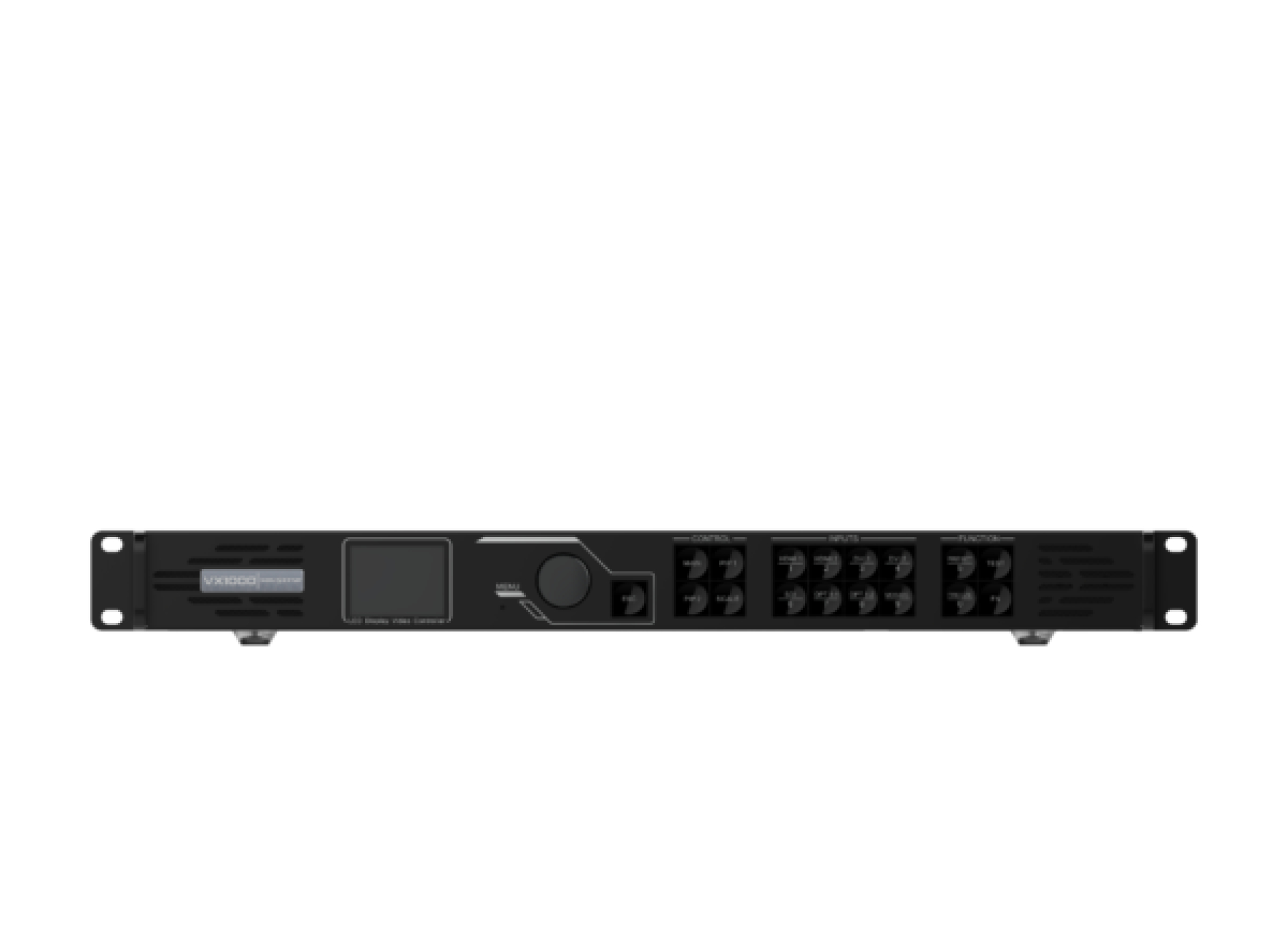

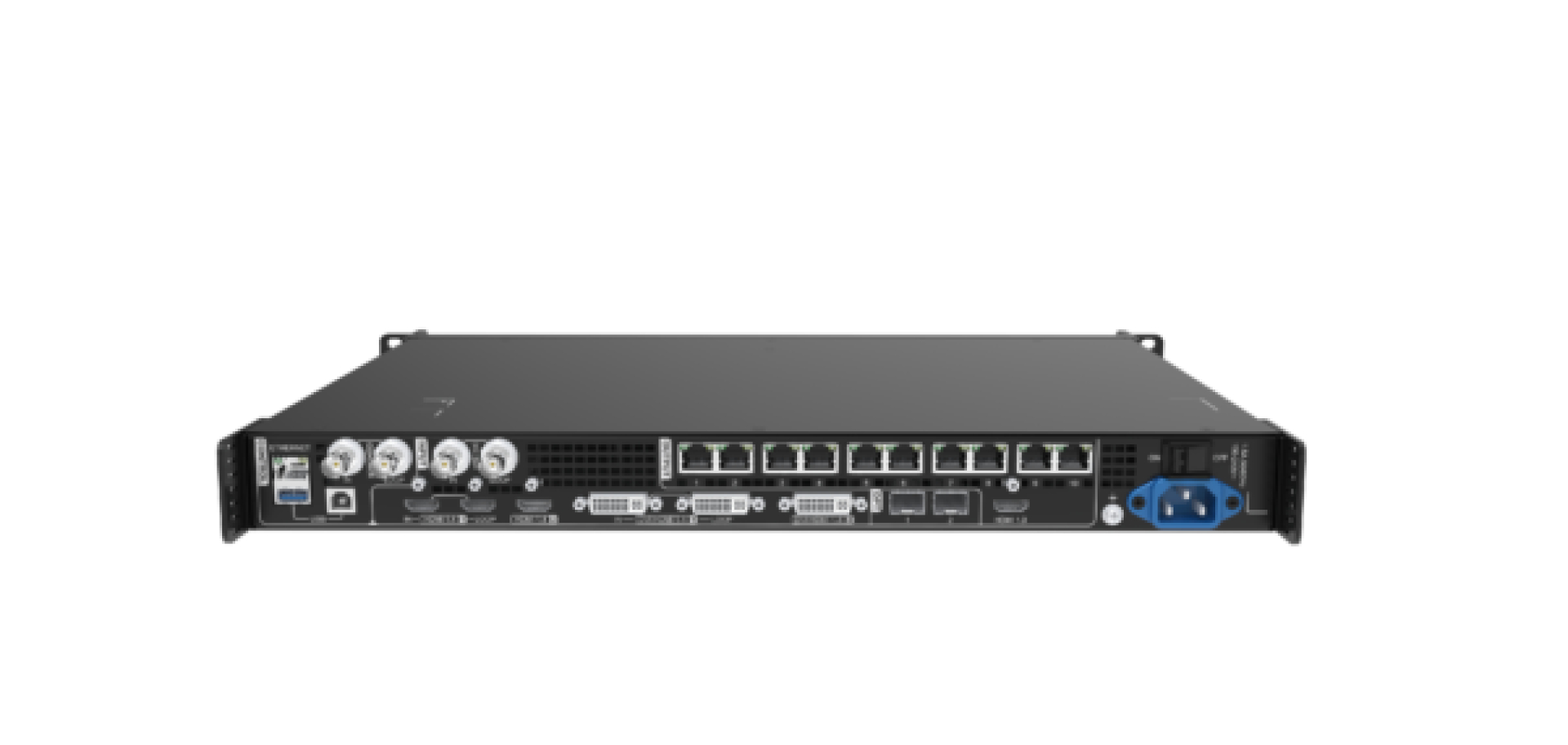

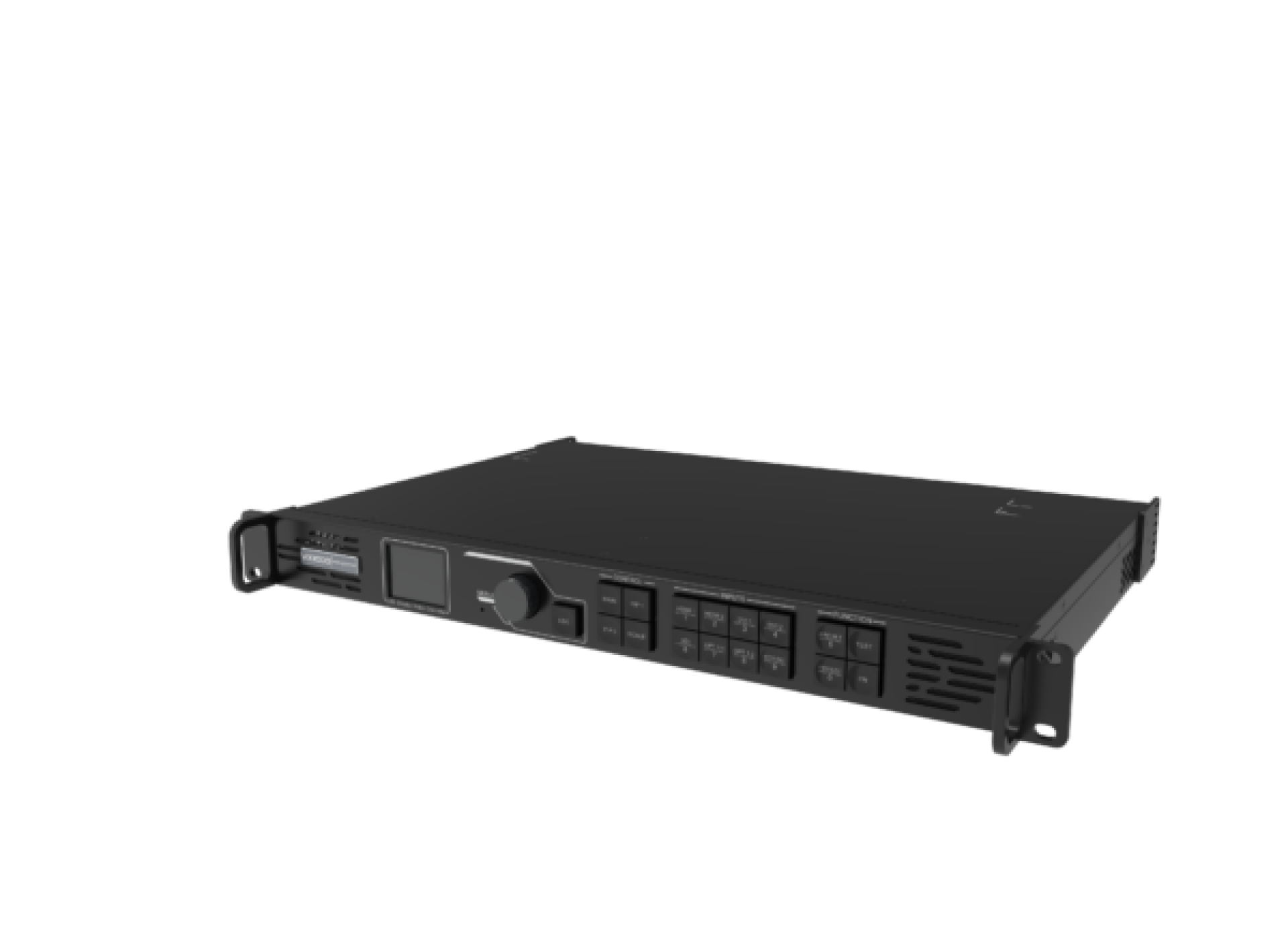

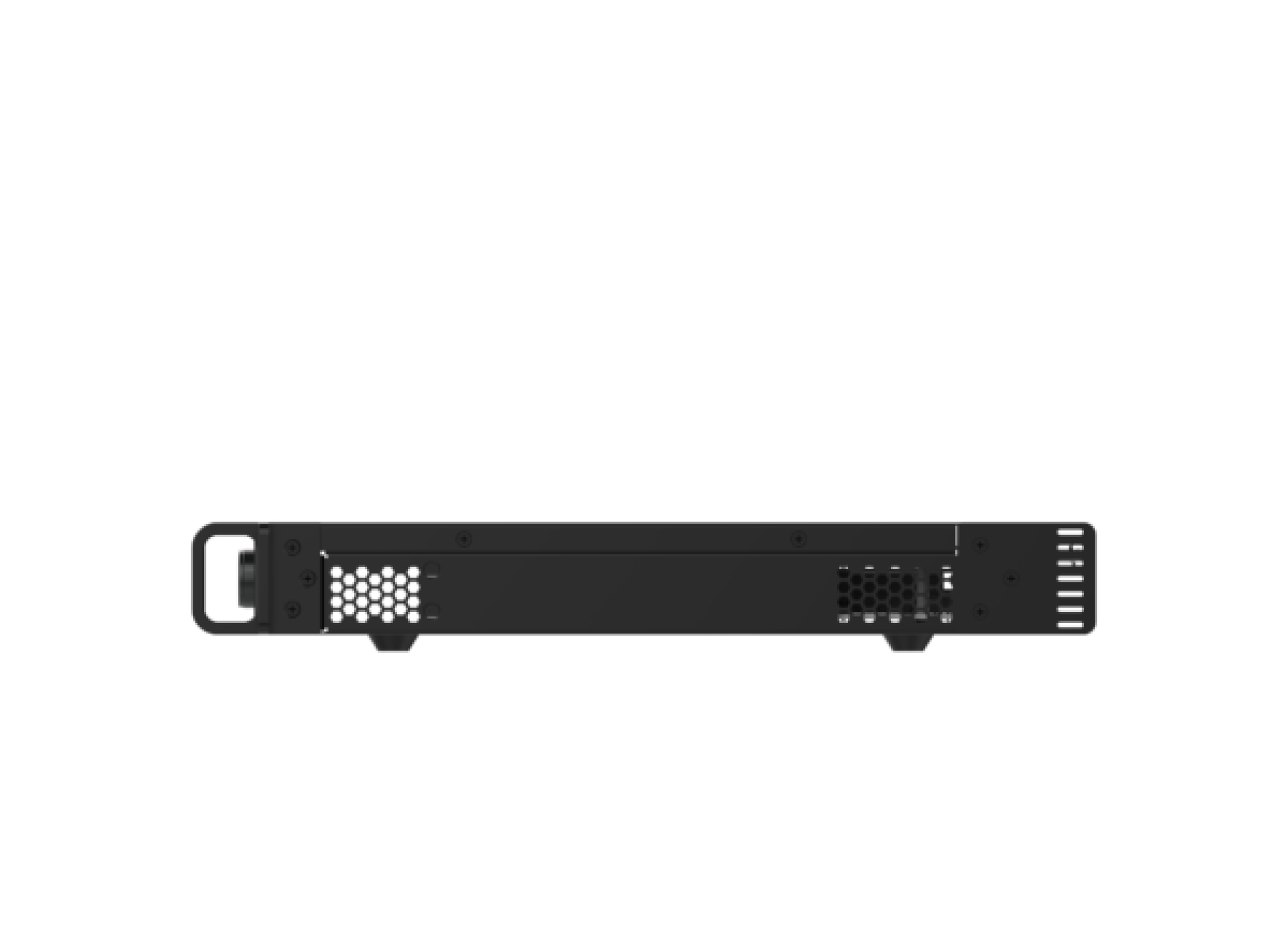

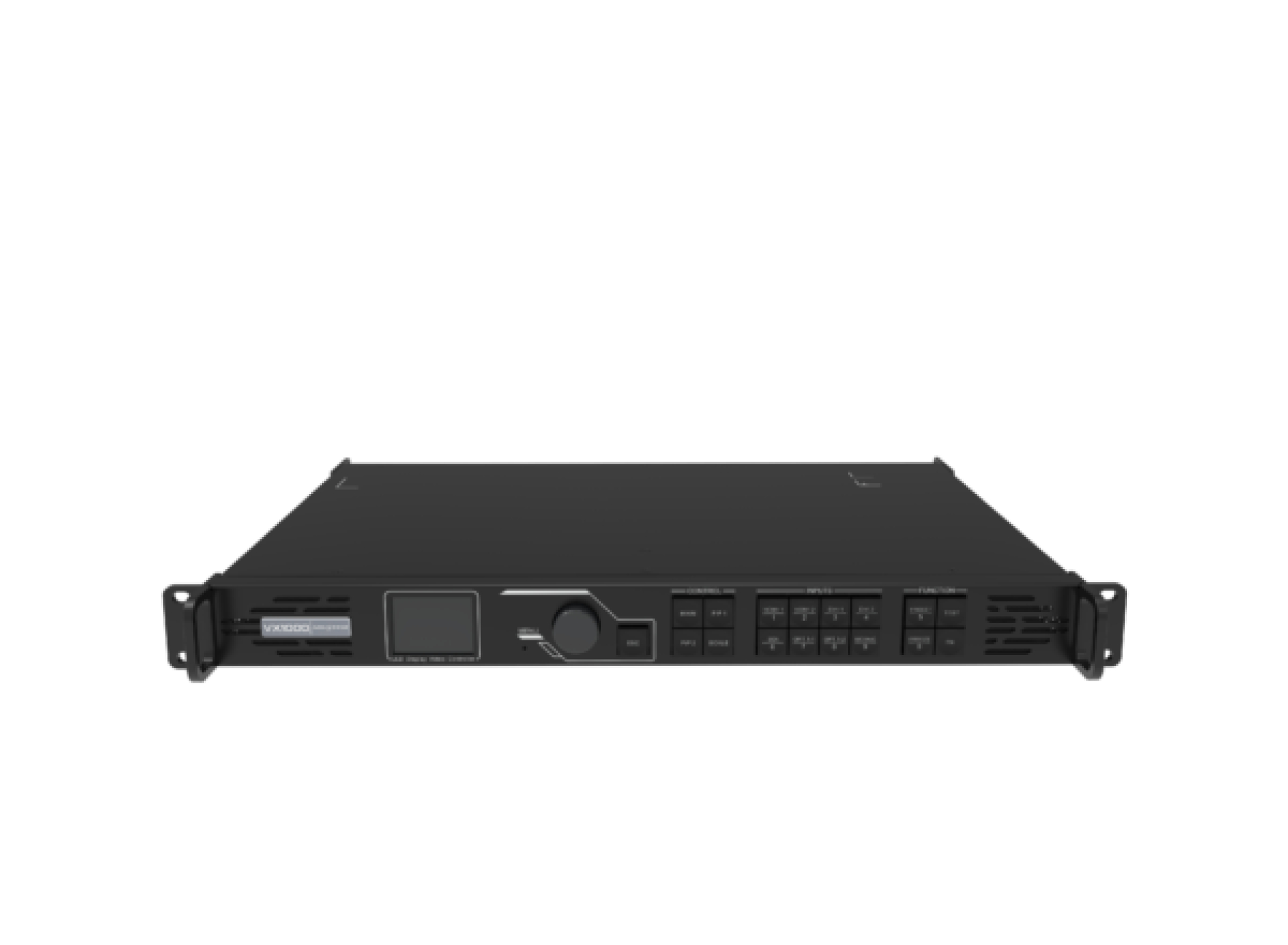

The Novastar VX1000 all-in-one video controllers that integrates video processing and video control into one box.
The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control capabilities into one box. It features 10 Ethernet ports and supports “Video Controller”, “Fibre Converter” and “Bypass” working modes. One VX1000 unit can drive up to 6.5 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels, respectively, ideal for ultra-wide and ultra-high LED screen applications.
The VX1000 is capable of receiving a variety of video signals and processing 4K×1K@60Hz high-resolution images. Furthermore, the device features stepless output scaling, low latency, 3D, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
What’s more, the VX1000 can work with NovaStar’s intuitive software NovaLCT and V-Can to greatly facilitate your on-site operations and control, such as screen configuration, Ethernet port backup settings, layer management, pre-set management and firmware update.
Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.
V-Can Support
Genlock
Supports up to 3x layers
Memory for 10 presets
Cascading via USB possible
Display configuration without computer possible
Control via USB or LAN
2x HDMI 1.4 (max. 3840×1080@60Hz / max.3840×2160@30Hz)
2x DVI ((HDMI 1.4)max. 3840×1080@60Hz / max.3840×2160@30Hz)
1x 3G-SDI (max. 1920×1080@60Hz)
10x LED-Out (RJ45)
1x HDMI 1.3 Out
1x DVI Loop
2x OPT-Out (10G)
