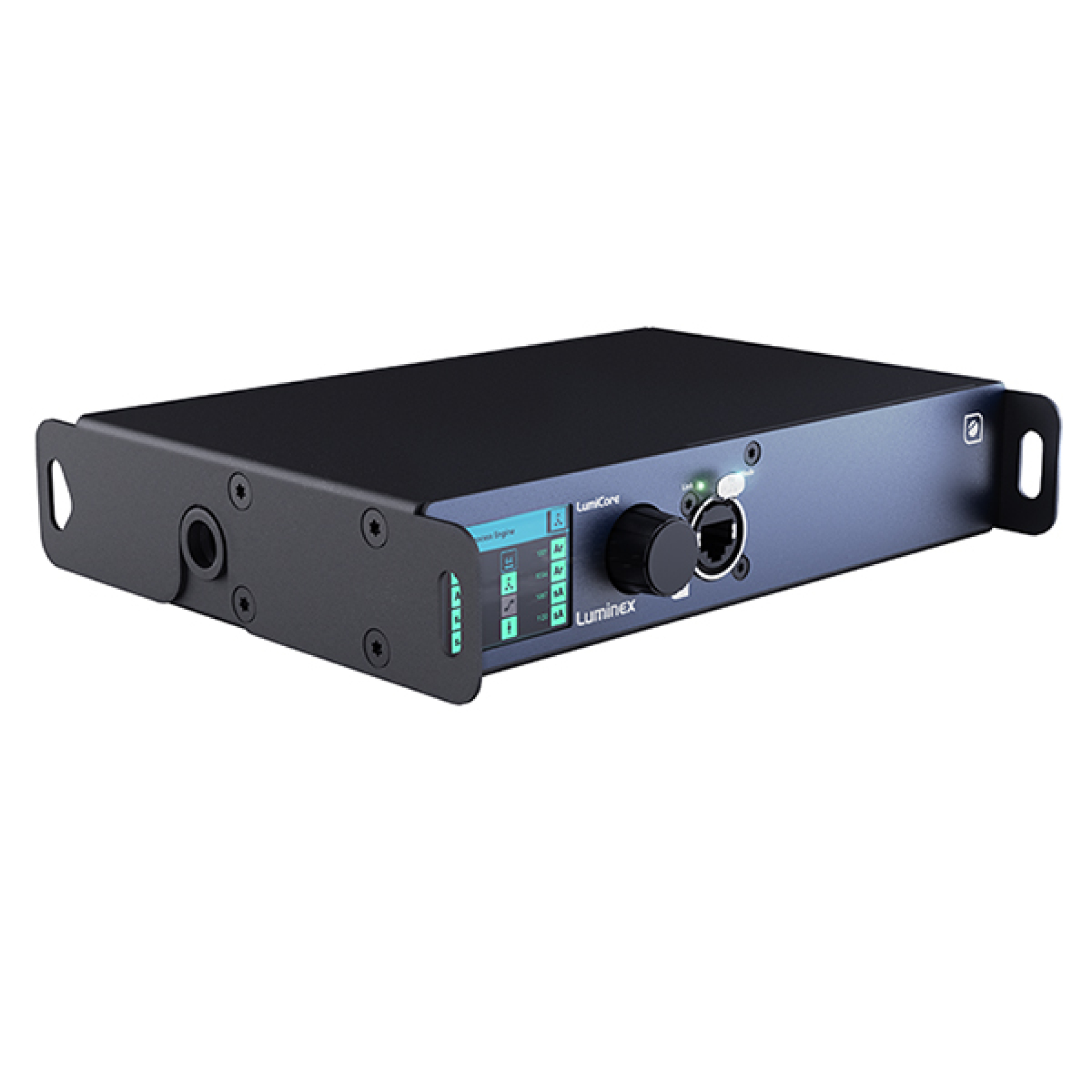

Luminex LumiCore

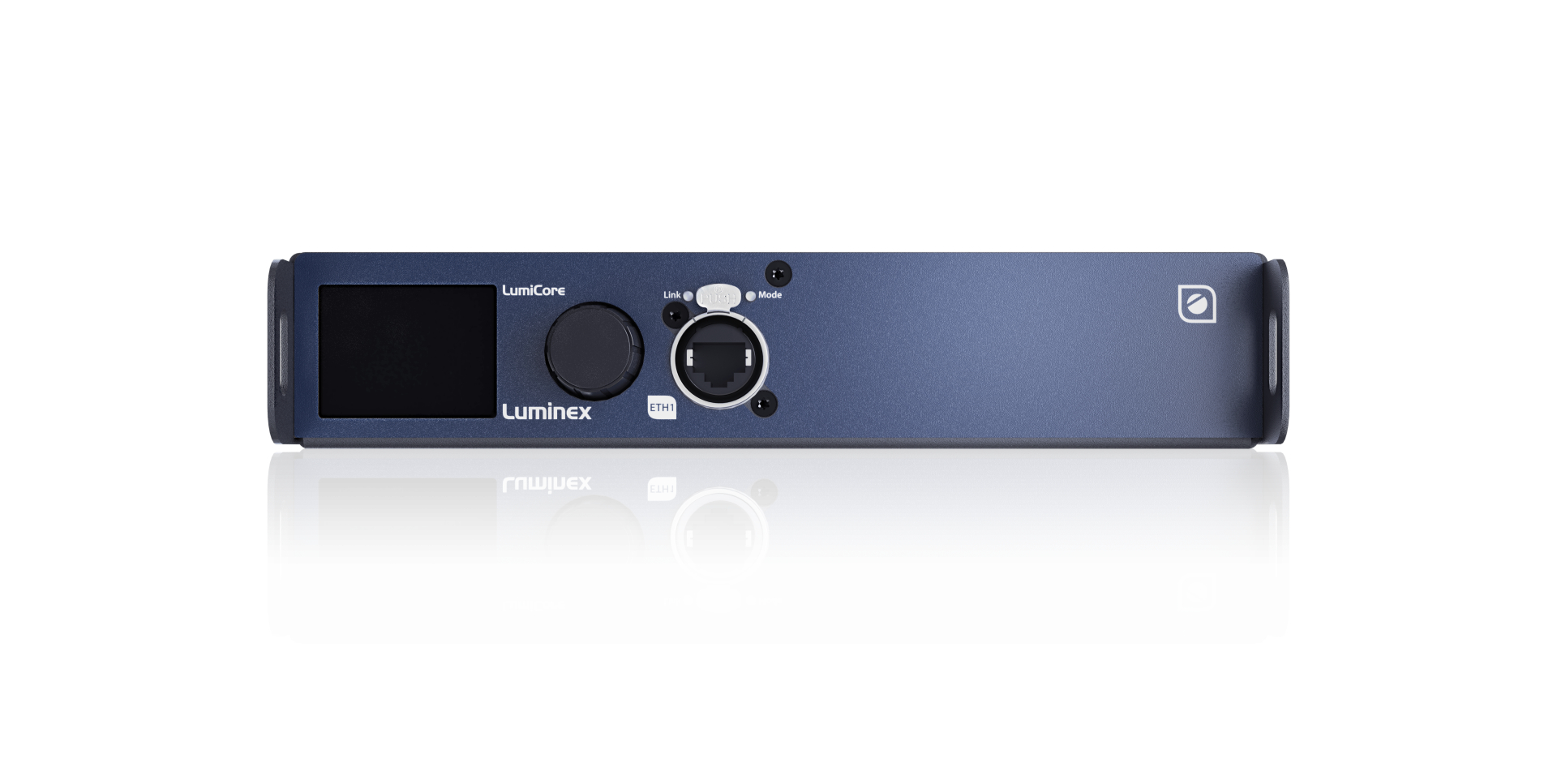

Luminex LumiCore front
Luminex LumiCore front



Key Features:

  • Mount one or two units in a 1U rack space
  • Robust making it ideal for touring applications
  • 64 processing engines

Enquiry Form

Call us today on

+44 (0)1494 446000


With 64 built-in engines, the Luminex LumiCore allows you to merge and route up to 64 x 4 input sources toward 64 newly defined universes.

This way, LumiCore becomes the ideal solution to isolate your control setup on a festival, a theatre or in a TV studio.

As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode but then directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extreme low latency.

  • Merge in HTP, LTP, Backup, Switch, Crossfade or Custom Mode

    The engine technology allows you to merge in HTP, LTP, Backup, Switch, Crossfade or custom mode, with different triggers that can be assigned even on a per channel basis.

    In large pixel mapping applications LumiCore is the ideal bridge to merge different control sources into new network streams.

    In TV studio’s LumiCore will allow you to have control desks in the IT environment.

    With its split interface possibilities, LumiCore allows you to isolate your lighting rig LAN from the IT infrastructure. This allows you to monitor your control infrastructure from the IT department and to centralize show storage on IT side meanwhile sharing these resources over several studios. LumiCore acts as a real bridge and can be deployed in a fully redundant way.
