LumiSplit

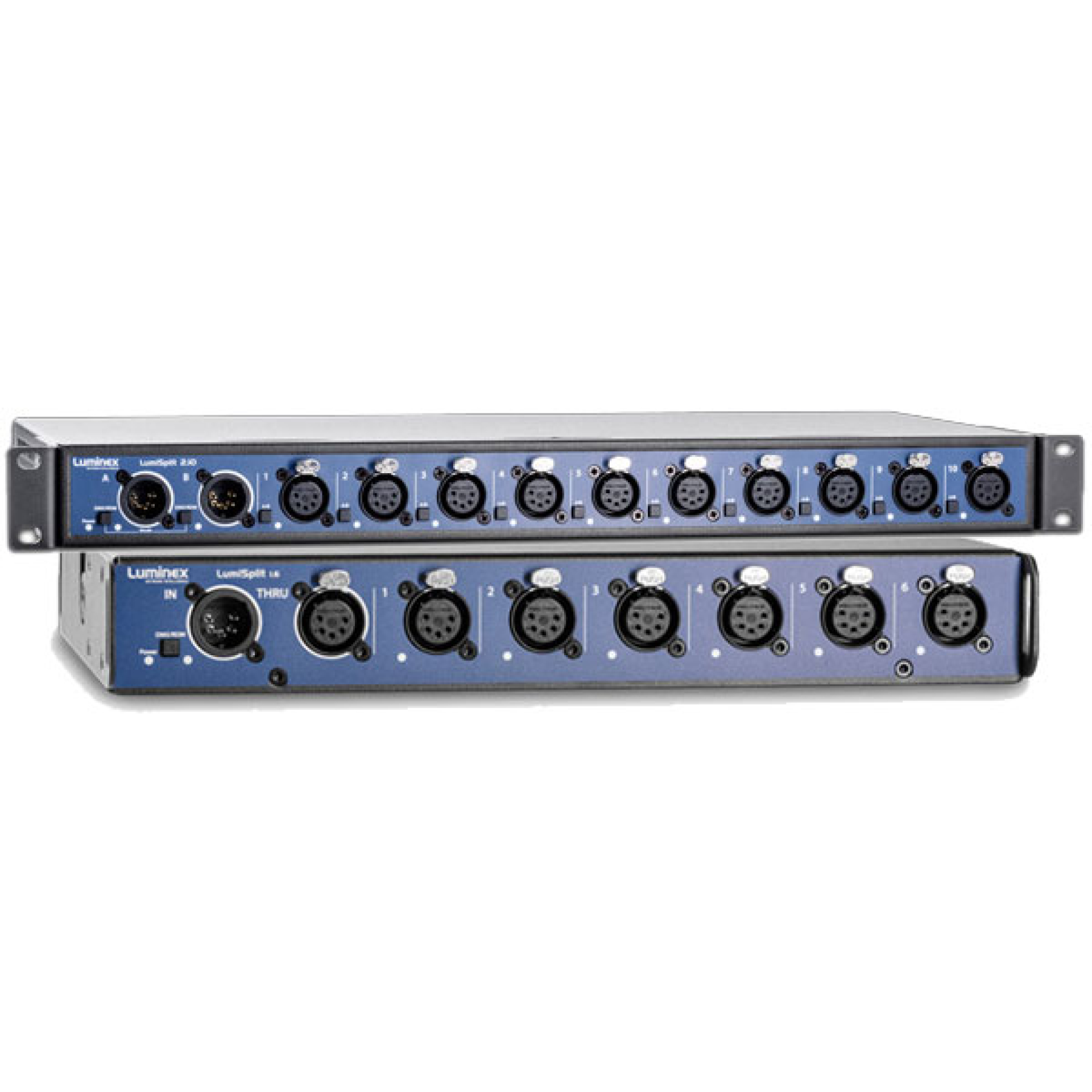

Luminex LumiSplit Splitters

LumiSplit

Key Features:

  • DMX and RDM splitter with RDM management tools
  • DMX Backup and DMX Merge (both LTP & HTP)
  • Robust, tourable design with ruggedised, galvanically isolated connectors
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

LumiSplit

The Luminex LumiSplit is a range of DMX/RDM splitters. A splitter is a device that takes a DMX line in and repeats it on multiple DMX outputs. This comes in very useful when you have more than 32 lighting fixtures to be controlled on one line. You also need a splitter when you have fixtures in different locations and they cannot be incorporated in a ‘daisy chain’.

Product Variants

LumiSplit 2.10
LU0100044
  • 4 x 5 pin XLR input ports
  • 10 x 5 pin XLR output ports

Enquiry Form

LumiSplit 1.6
LU0100064
  • 1 x 5 pin XLR input ports
  • 7 x 5 pin XLR output ports

Enquiry Form

All Luminex LumiSplit devices have enhanced RDM features, which enable users to discover, manage and setup every unit directly from any RDM controller. You never have to climb the truss again to change a small setting or patch fixtures. Even future LumiSplit upgrades can be executed over RDM.

  • Tired of issues with non-RDM-compliant fixtures? LumiSplit has RDM filtering per zone (A/B) and per single outlet. This prevents RDM incompatible fixtures from being flooded by undesired RDM packets so they never behave strangely anymore when sending RDM data.

    LumiSplit 2.10 can be configured in different operating modes, such as HTP or LTP merging mode, backup mode and regeneration mode. Simply connect each lighting console to an input (A or B) and select the correct mode from the front panel or through the ‘LumiNet Monitor’ software.

    Luminex LumiSplit’s full optic and galvanic isolation protects the devices in the unlikely event of spikes and power surges on the different DMX lines. When that occurs, only the specific port will be damaged and the device will continue operating and can easily be repaired after the show. it also secures all upstream DMX lines and connected devices from being damaged.

    All Luminex devices have robust metal housing and ruggedised connectors to make them ideal for touring, events and productions. Plug, unplug and replug without any harm.

  • Advanced RDM features: never climb the truss again.

    RDM filtering per zone (A/B) and per single outlet.

    Different operating modes, such as HTP or LTP merging mode, back-up mode and regeneration mode

    Full optic and galvanic isolation.

    Robust metal housing and ruggedised connectors – ideal for touring, events and productions

LumiSplit - Variant Downloads

You might like...

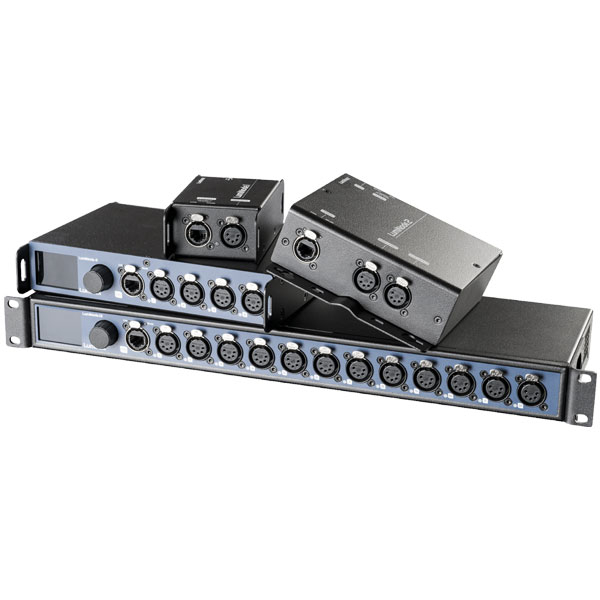

Luminex LumiNode - Ethernet to DMX Converters Luminex logo
