NEXUS Range
LSC NEXUS Range
LSC NEXUS 1 port
LSC NEXUS 5 port rack mount
LSC NEXUS 5 port truss mount
LSC NEXUS 1 port
LSC NEXUS 5 port rack mount
LSC NEXUS 5 port truss mount

NEXUS Range

Key Features:

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

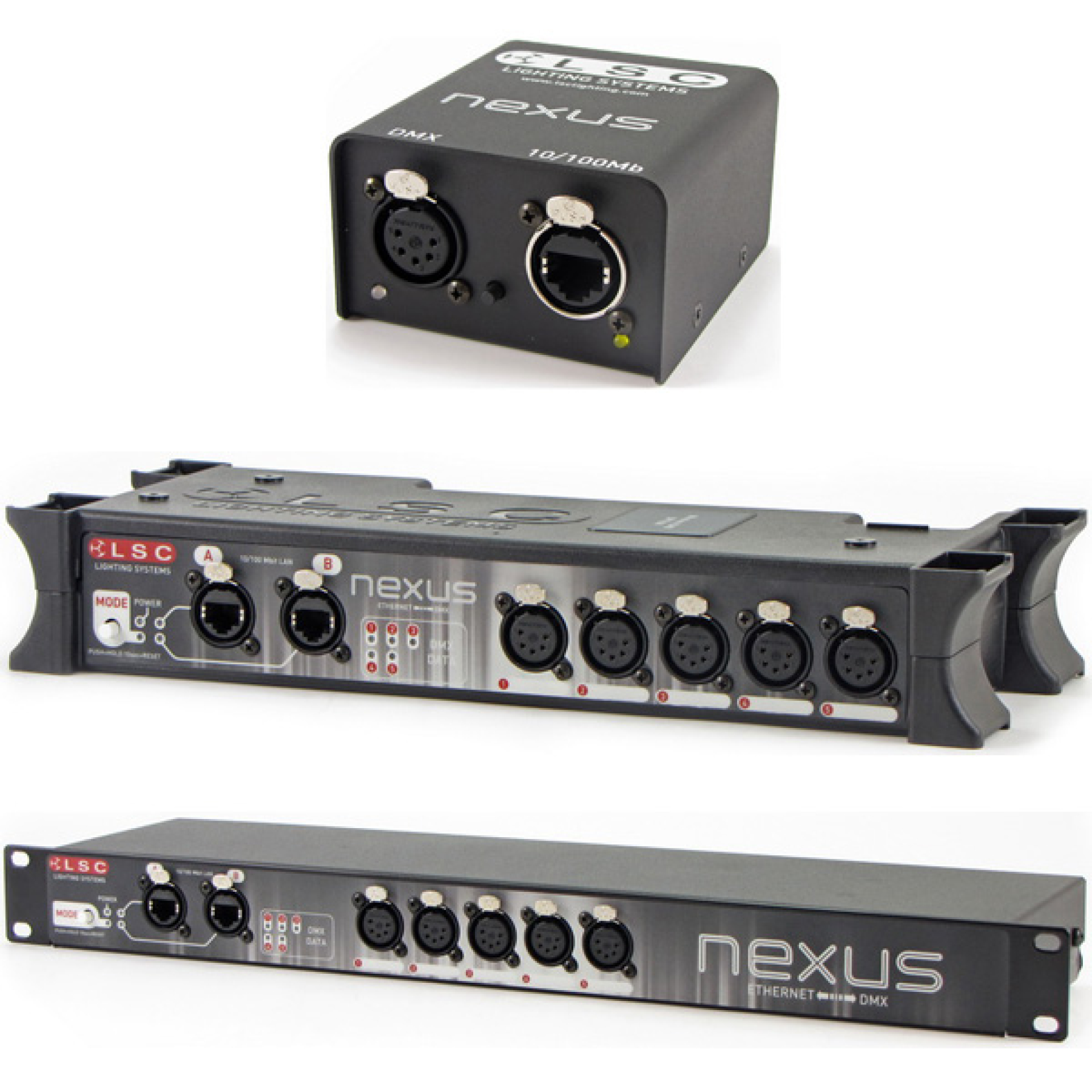

NEXUS Range

Much more than a standard DMX512 to Ethernet converter, the LSC Control Systems NEXUS range of both 1-port and 5-port interfaces is a problem solver for those weird and wonderful configurations required in today’s demanding and complex shows.

Product Variants

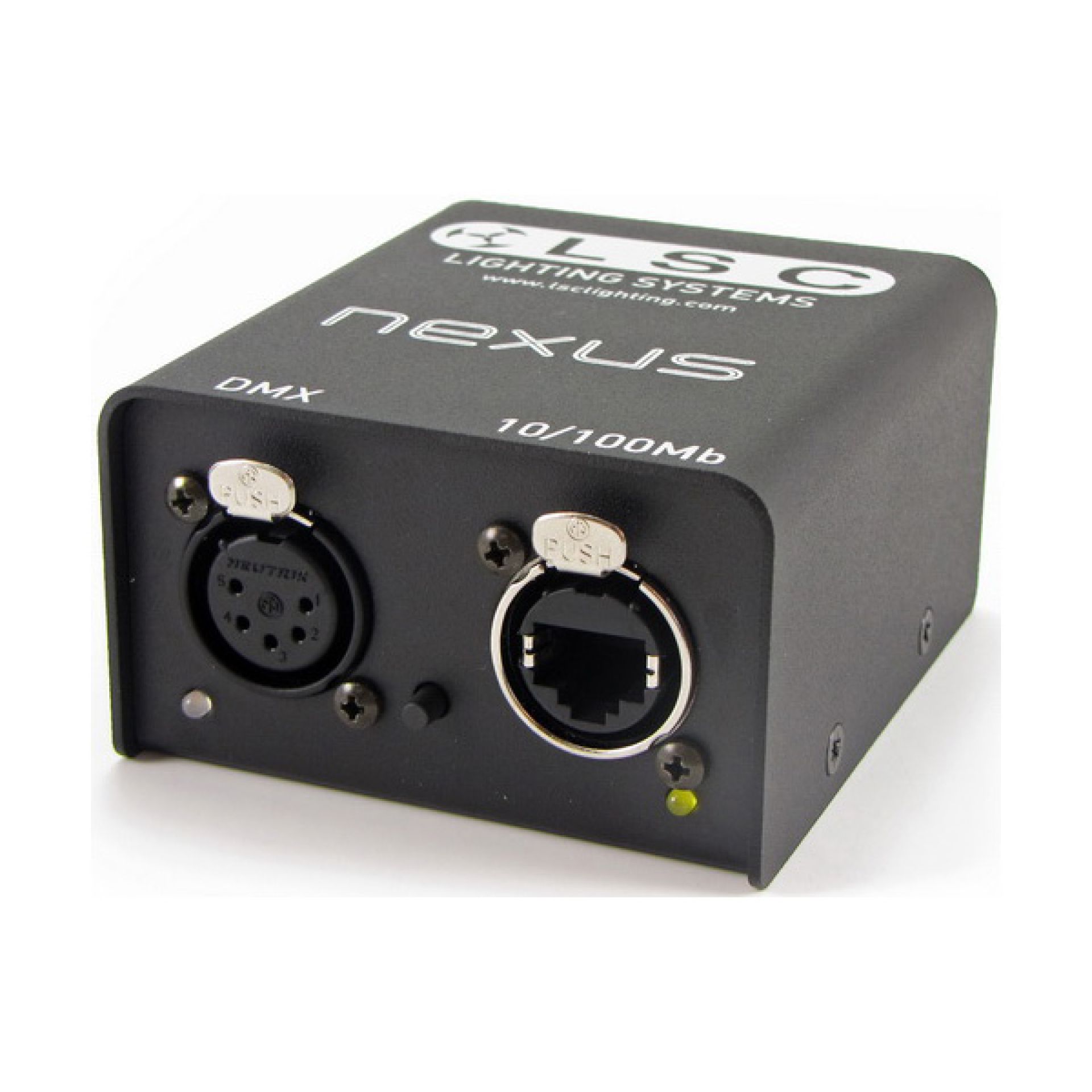

LSC NEXUS 1 port
NEXUS Portable
  • Inlet Ports: 1 x RJ45
  • Outlet Ports: 1 x 5 pin XLR
  • Mounting: Portable

Enquiry Form

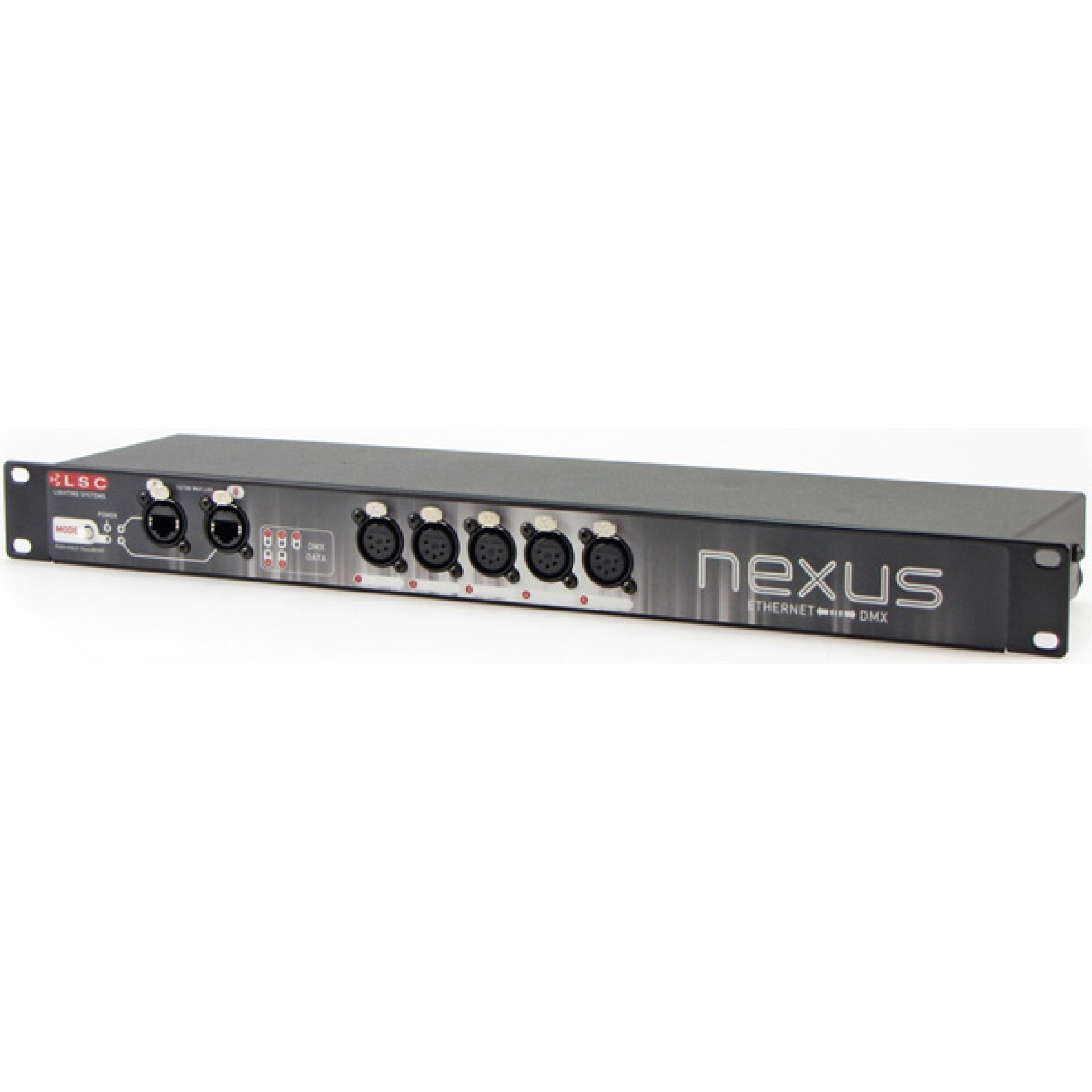

LSC NEXUS 5 port rack mount
NEXUS 1RU rack mounted
  • Inlet Ports: 2 x RJ45
  • Outlet Ports: 5 x 5 pin XLR
  • Mounting: Rack mounted

Enquiry Form

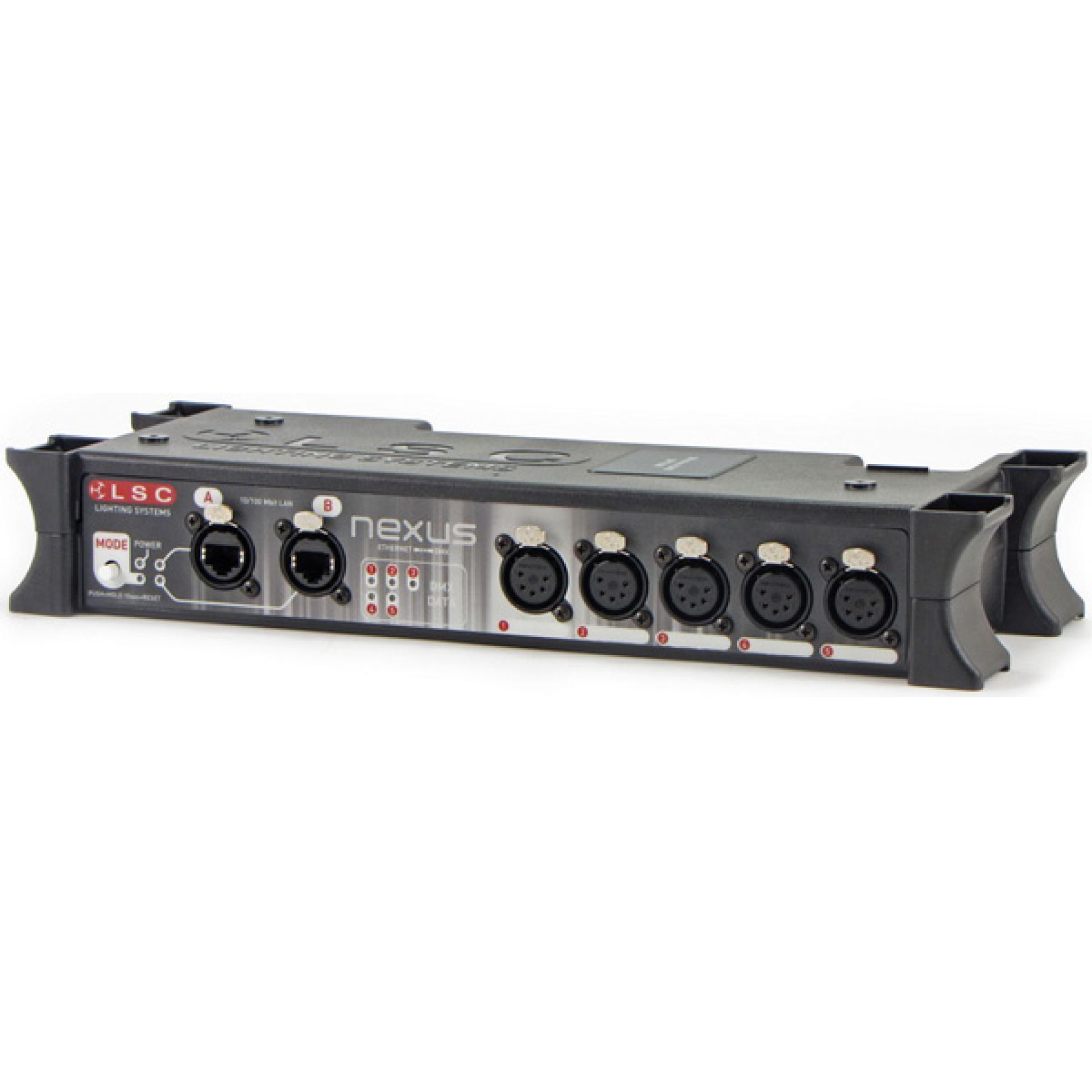

LSC NEXUS 5 port truss mount
NEXUS Truss Mount
  • Inlet Ports: 2 x RJ45
  • Outlet Ports: 5 x 5 pin XLR
  • Mounting: Truss mount

Enquiry Form

Able to support Art-Net, ShowNet and sACN over Ethernet and then convert to DMX512-A and RDM signals, the NEXUS can also be used as a backup switch for multiple lighting controllers. A truly essential piece of kit for your next big show.

The NEXLAN software is necessary to configure the NEXUS range however, it can also be used as a system monitor or to control and test any lighting fixture and it supports RDM for discovery and configuration of any RDM devices in the lighting rig. NEXLAN is a free download and is supported on Windows and MAC OS systems.

  • NXS1 is a single-port DMX512-A/RDM to Ethernet converter supporting Art-Net, ShowNet and sACN

    NXST and NXSR are 5-port DMX512-A/RDM to Ethernet converter supporting Art-Net, ShowNet and sACN and may act as a backup switch for multiple lighting controllers

    Softpatch merge of three selected Art-Net, ShowNet and sACN Universes

    HTP merge of three Art-Net, ShowNet and sACN Universes

    Select three Universes and merge individual

NEXUS Range - Variant Downloads
