GenVI Rack Mount

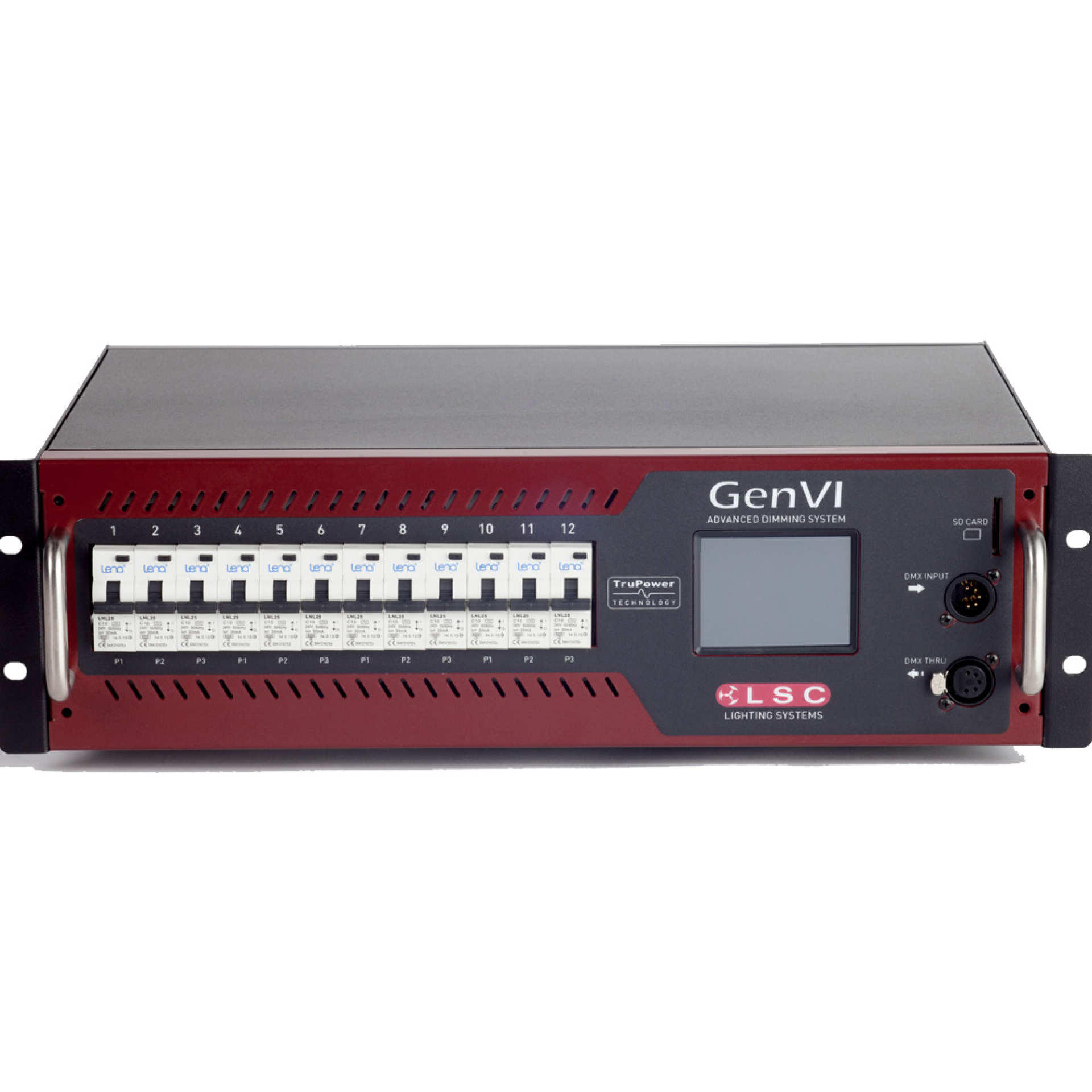

LSC Control Systems GenVi Rack Mount Dimmer

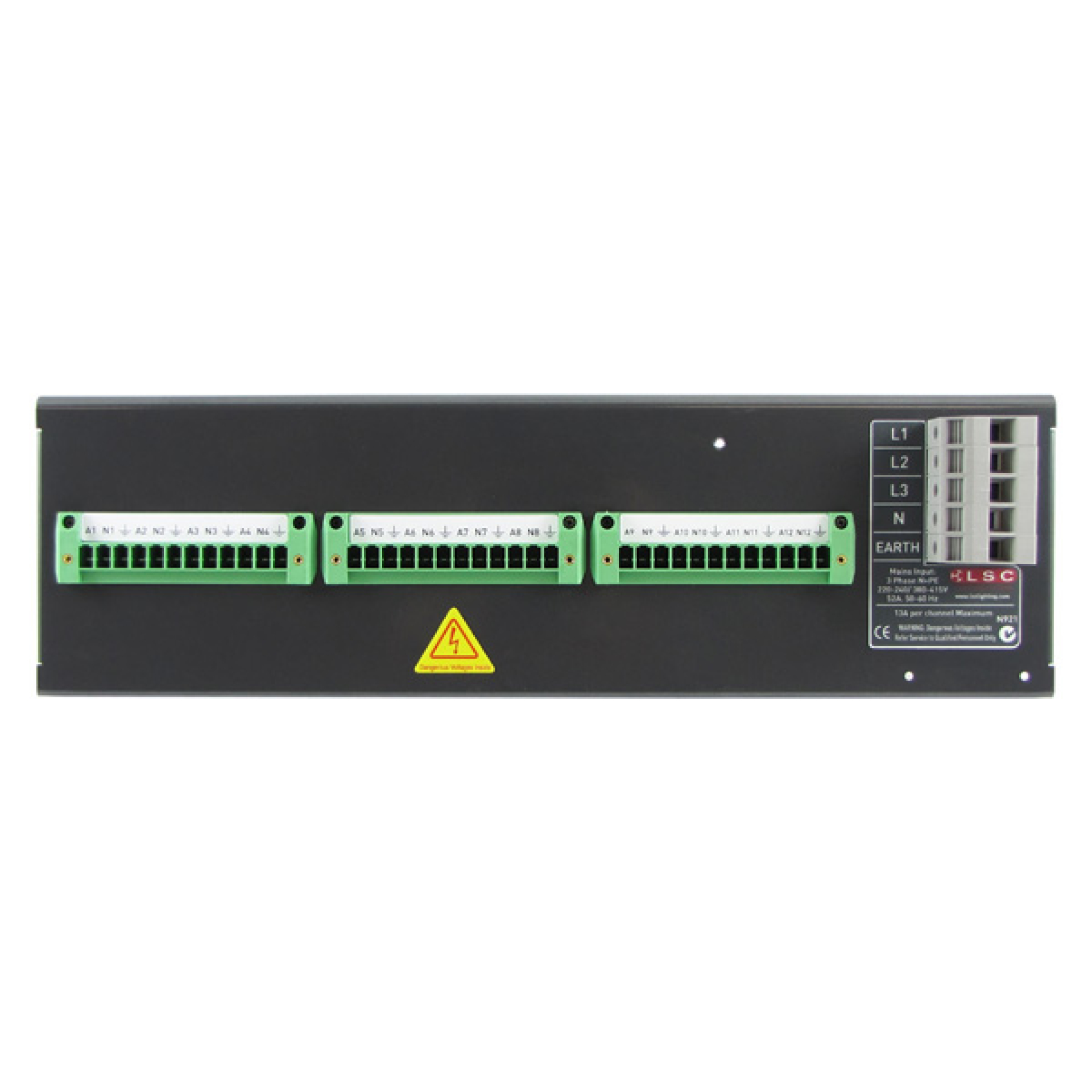

LSC Control Systems GenVi 10T rear view

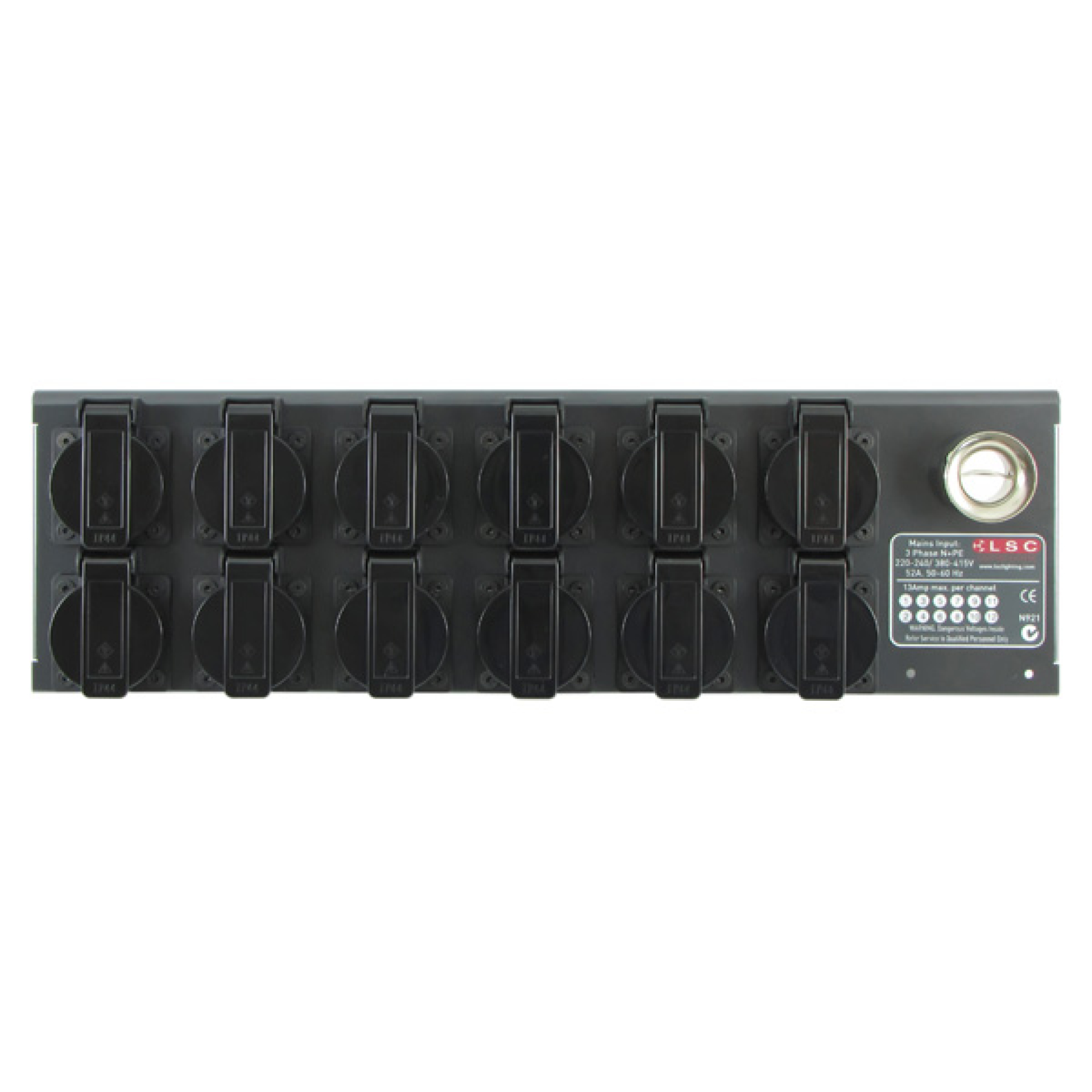

LSC Control Systems GenVI 12S rear view
LSC Control Systems GenVi 10T rear view
LSC Control Systems GenVI 12S rear view

GenVI Rack Mount

Key Features:

  • TruPower dimmer & power distribution
  • RCBO circuit breaker per channel
  • PTFD (Pulse Transformer Fired Dimming)
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GenVI Rack Mount

More than just a dimmer, the GEN VI heralds a new era in power and dimming control. Developed from extensive feedback, the GEN VI provides an elegant and flexible solution to today’s complex lighting and power requirements.

Product Variants

GenVi Rack Mount Dimmer
LSGEN12/10S
  • 12x10A
  • Load Connectors: Schuko
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/10T
  • 12x10A
  • Load Connectors: Terminal
  • Power input: Terminal strip

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/10W
  • 12x10A
  • Load Connectors: 2 x 16 Pin Wieland
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/10X
  • 12x10A
  • Load Connectors: 2 x 19 Pin Socapex
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/13S
  • 12x13A
  • Load Connectors: Schuko
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/13T
  • 12x13A
  • Load Connectors: Terminal
  • Power input: Terminal strip

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/13W
  • 12x13A
  • Load Connectors: 2 x 16 Pin Wieland
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGENVI12/13X
  • 12x16A
  • Load Connectors: 2 x 19 Pin Socapex
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/16P
  • 12x16A
  • Load Connectors: PowerCON
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/16PT1
  • 12x16A
  • Load Connectors: PowerCON TRUE1
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/16S
  • 12x16A
  • Load Connectors: Schuko
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGENVI/16T
  • 12x16A
  • Load Connectors: Terminal
  • Power input: Terminal strip

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN12/16W
  • 12x16A
  • Load Connectors: 2 x 16 Pin Wieland
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSGENVI/16X
  • 12x16A
  • Load Connectors: 2 x 19 Pin Socapex
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSTRS48/13
  • 48x13A
  • Load Connectors: Socapex

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN3/63C
  • 3x63A
  • Load Connectors: 3 x 63A CEE
  • Power input: Three phase mains tail

Enquiry Form

GenVi Rack Mount Dimmer
LSTRS24/25
  • 24x25A
  • Load Connectors: 25A CEE

Enquiry Form

GenVi Rack Mount Dimmer
LSTRS12/63
  • 12x63A
  • Load Connectors: 63A CEE

Enquiry Form

GenVi Rack Mount Dimmer
LSGENVI6/25T
  • 6x25A
  • Load Connectors: Terminal
  • Power input: Terminal strip

Enquiry Form

GenVi Rack Mount Dimmer
LSGEN3/63T
  • 3x63A
  • Load Connectors: Terminal
  • Power input: Terminal strip

Enquiry Form

The GenVI advanced dimming system allows you to configure any of its outputs in any combination, to be an 8 bit or 16 bit dimmer or a direct power relay channel using TruPower. This enables GenVI to dim traditional lamps or power moving lights, LED fixtures, video screens or audio power amplifiers – in fact anything where controlled power distribution is needed.

The GenVI rackmount is available as a 19” 3RU high chassis for flight case and portable situations.

  • Dimmer channels selectable between 8-bit and 16-bit Auto Power Mode – switches relay channels on when DMX is applied and off when DMX is no longer present Control and remote monitoring via RDM On-board help screens Visual alarms for phase fail, over temperature and loss of DMX Sophisticated local rigger’s control that can replay scenes or chases Auto fan control (user defined) Colour touchscreen with intuitive navigation
GenVI Rack Mount - Variant Downloads
