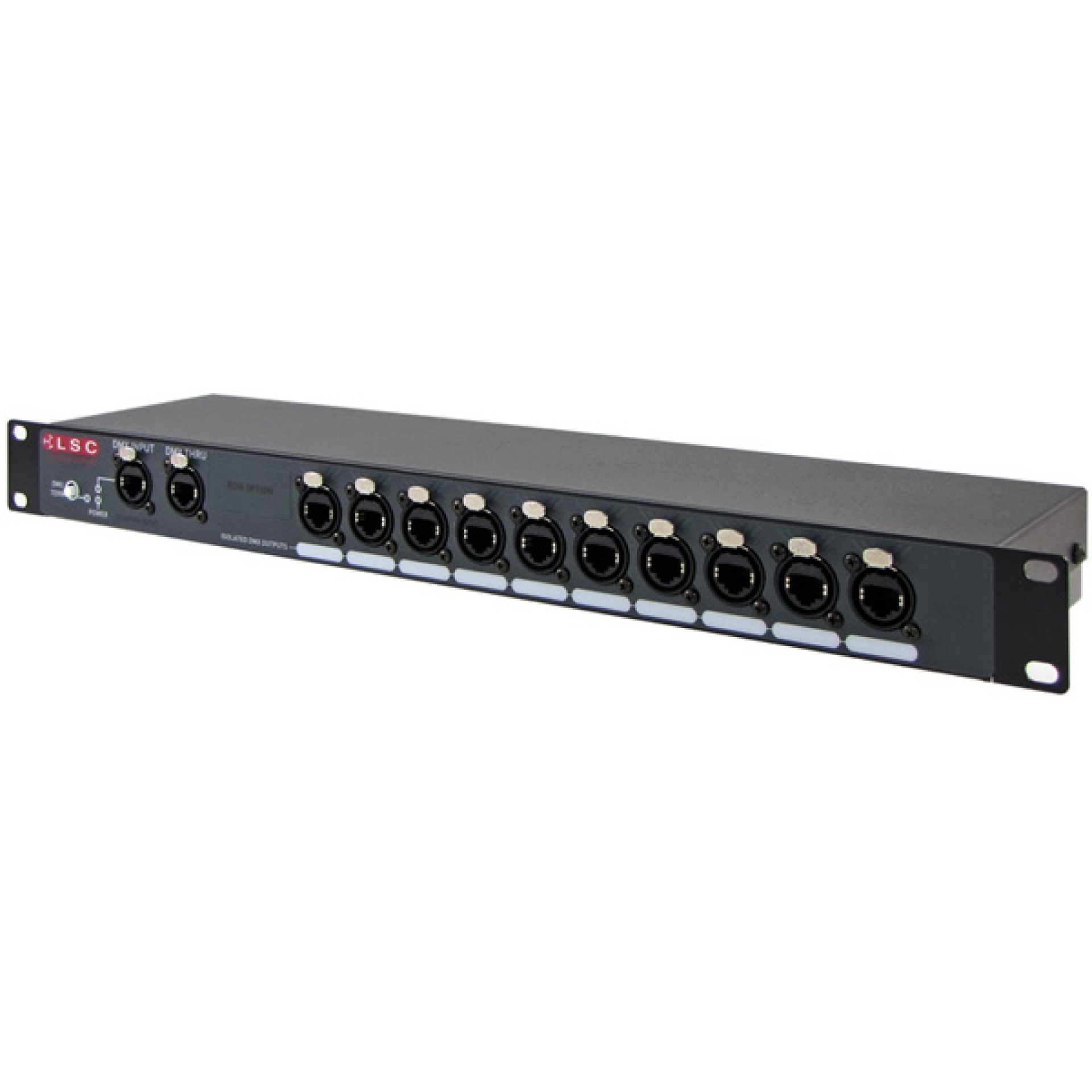

LSC MDR rack mount

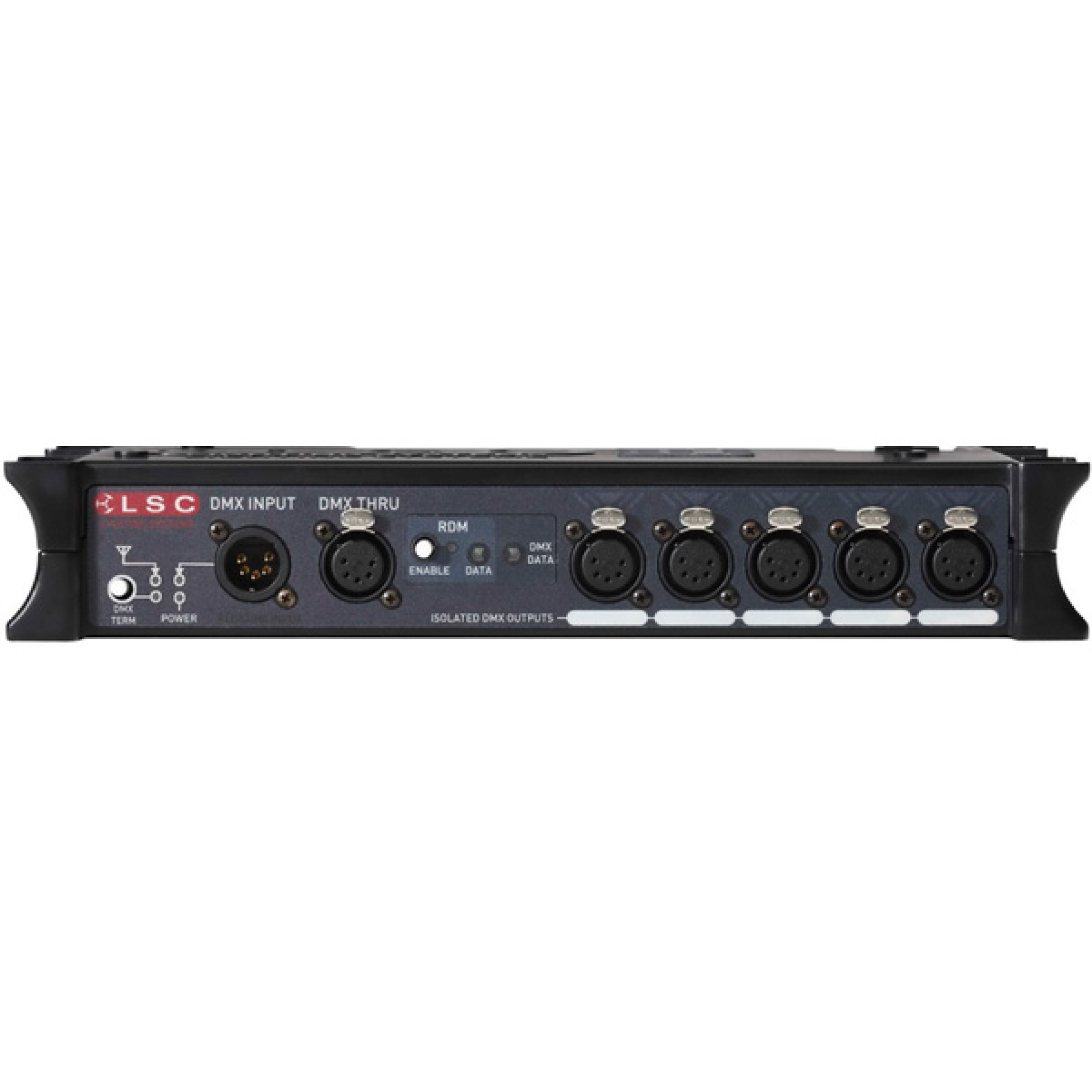

LSC MDR truss mount
LSC MDR truss mount

MDR

Key Features:

  • Supplied standard with DMX512/RDM capability input and outputs
  • 5-way rackmount version field upgradeable to 10 way
  • In-built power supply – no nuisance external plugpaks
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

MDR

The LSC Control Systems range of MDR professional DMX512/RDM splitters provides the best protection, delivering correct DMX512 earth isolation and data integrity.

Product Variants

MDRX
LSMDRR
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 5 Pin XLR
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Rack

Enquiry Form

MDRT
LSMDRR/5
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 3 Pin XLR
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Rack

Enquiry Form

MDRT
LSMDRR/N
  • Input Ports: 1 x 3 Pin XLR
  • Output Ports: 5 x 3 Pin XLR
  • RDM Enabled: Yes
  • Power: IEC
  • Mounting: Rack

Enquiry Form

MDRT
LSMDRR/P
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 5 Pin XLR
  • RDM Enabled: No
  • Power: Powercon
  • Mounting: Rack

Enquiry Form

MDRT
LSMDRR/R
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 5 Pin XLR
  • RDM Enabled: Yes
  • Power: IEC
  • Mounting: Rack

Enquiry Form

MDRT
LSMDRT
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 5 Pin XLR
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Truss

Enquiry Form

MDRT
LSMDRT/10
  • Input Ports: 1 x 3 Pin XLR
  • Output Ports: 5 x 3 Pin XLR
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Truss

Enquiry Form

MDRT
LSMDRT/5
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 3 Pin XLR
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Truss

Enquiry Form

MDRT
LSMDRT/N
  • Input Ports: 1 x 3 Pin XLR
  • Output Ports: 5 x 3 Pin XLR
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Truss

Enquiry Form

MDRT
LSMDRT/P
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 5 Pin XLR
  • RDM Enabled: No
  • Power: PowerCon
  • Mounting: Truss

Enquiry Form

MDRT
LSMDRT/R
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 5 x 5 Pin XLR
  • RDM Enabled: Yes
  • Power: IEC
  • Mounting: Truss

Enquiry Form

MDRX
LSMDRJ/R
  • Input Ports: 1 x RJ45
  • Output Ports: 10 x RJ45
  • RDM Enabled: Yes
  • Power: IEC
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRJ
  • Input Ports: 1 x RJ45
  • Output Ports: 10 x RJ45
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRR/10
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 10 x 5 Pin XLR
  • RDM Enabled: No
  • Power: IEC
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRX
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 10 x 5 Pin XLR
  • RDM Enabled: No
  • Power: N/A
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRX/10
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 10 x 5 Pin XLR
  • RDM Enabled: No
  • Power: N/A
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRX/5
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 10 x 3 Pin XLR
  • RDM Enabled: No
  • Power: N/A
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRX/N
  • Input Ports: 1 x 3 Pin XLR
  • Output Ports: 10 x 3 Pin XLR
  • RDM Enabled: No
  • Power: N/A
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRX/P
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 10 x 5 Pin XLR
  • RDM Enabled: No
  • Power: N/A
  • Mounting: Rack

Enquiry Form

MDRX
LSMDRX/R
  • Input Ports: 1 x 5 Pin XLR
  • Output Ports: 10 x 5 Pin XLR
  • RDM Enabled: Yes
  • Power: N/A
  • Mounting: Rack

Enquiry Form

The MDRs are available with 5-way and 10-way outputs and can be rack-mounted or truss or hand-rail mounted. The 5-way rack-mounted version has the ability to be field upgradable to a 10-way version, by the simple addition of an upgrade kit.

    • Portable 5-way output model in tough ABS plastic UL94-VO rated housing; perfect for truss-mounting or handrail-mounting
    • Supplied Velcro straps with portable unit enables quick mounting of unit to rails and truss; optional hook clamp bracket available for more rigid mounting requirements
    • 19” rackmount versions available in rugged metal casings with choice of 5 and 10-way outputs
    • Indicator LEDs for Power, DMX and RDM activity
