GigaCore S30-I

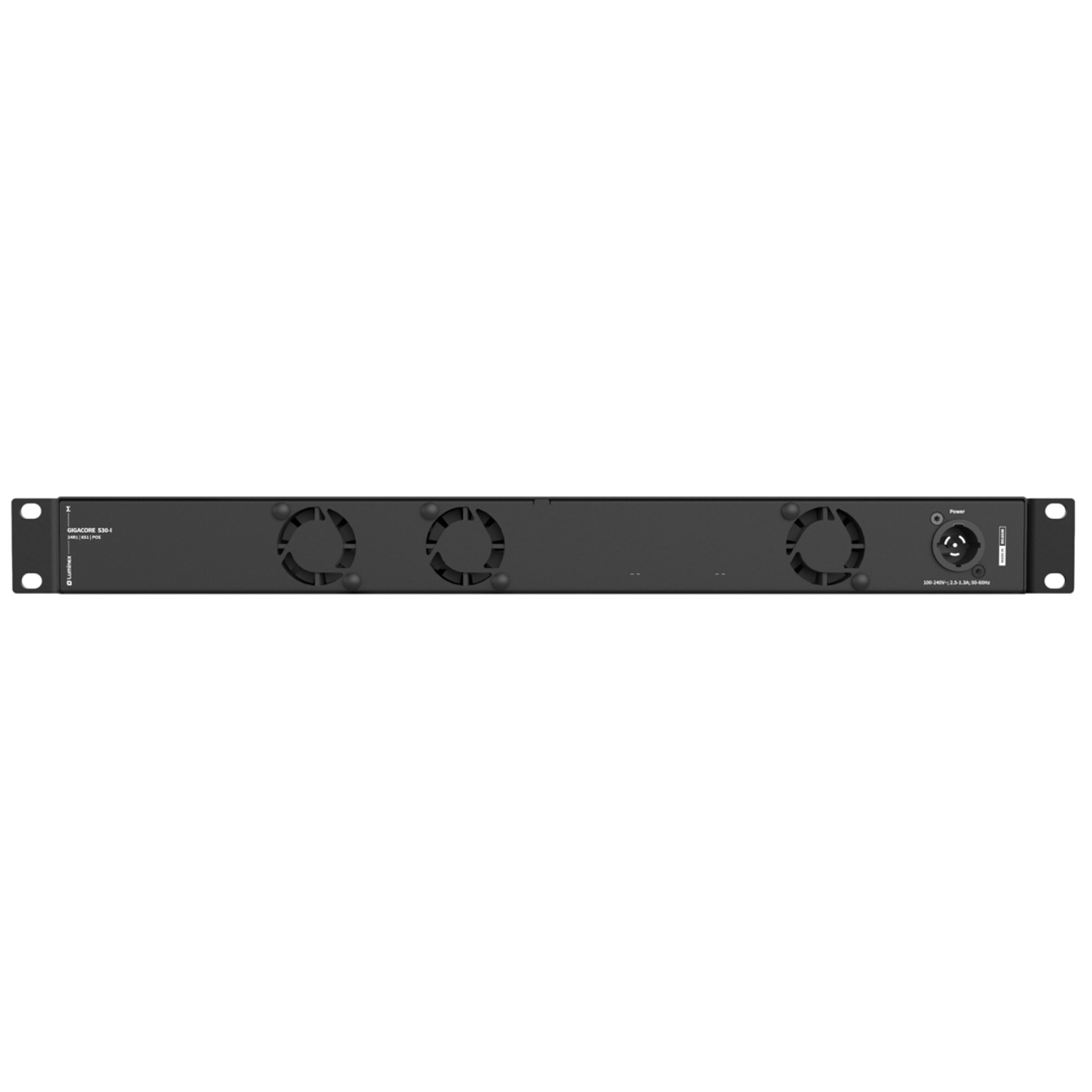

Luminex GigaCore S30-I - rear straight on

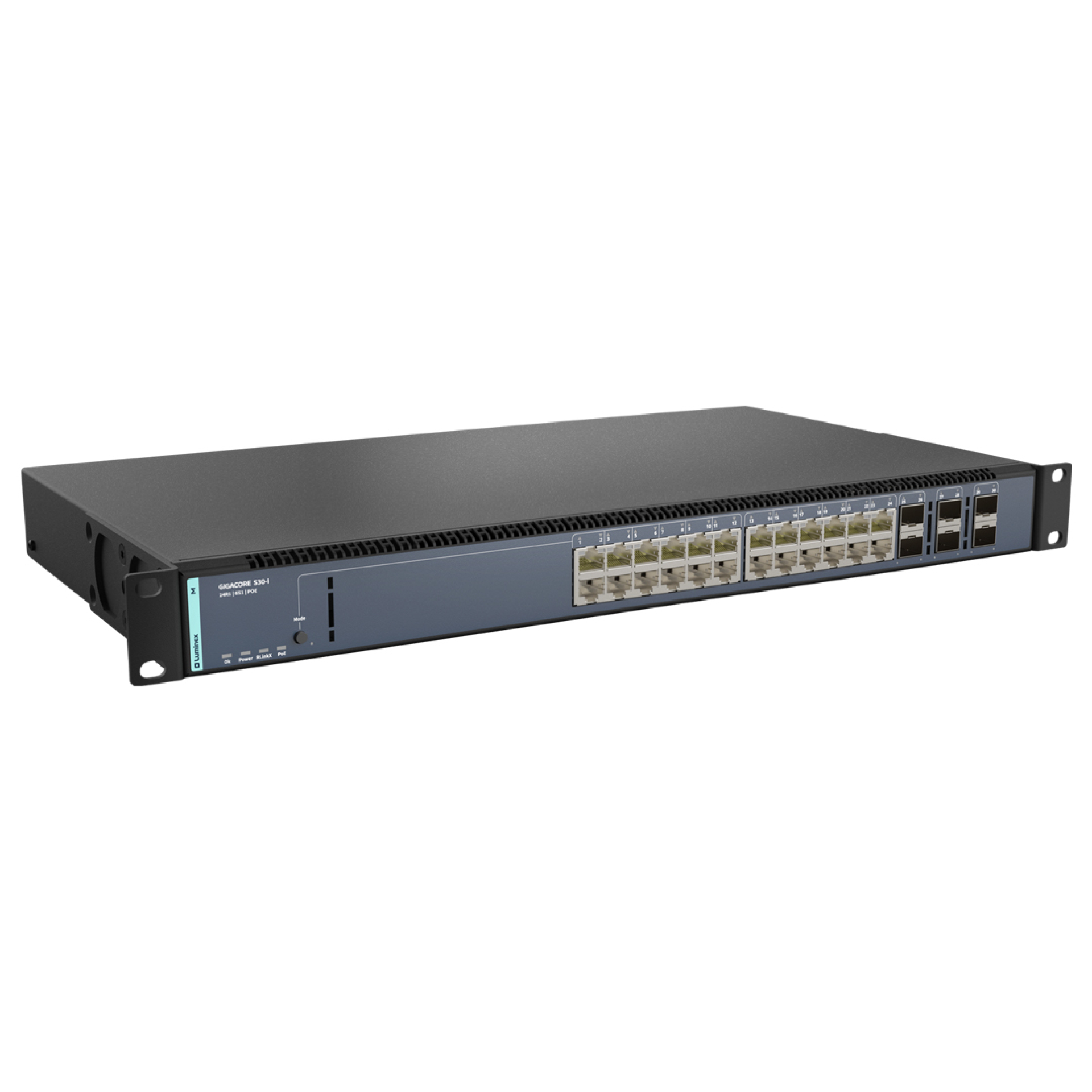

Luminex GigaCore S30-I - front angled view

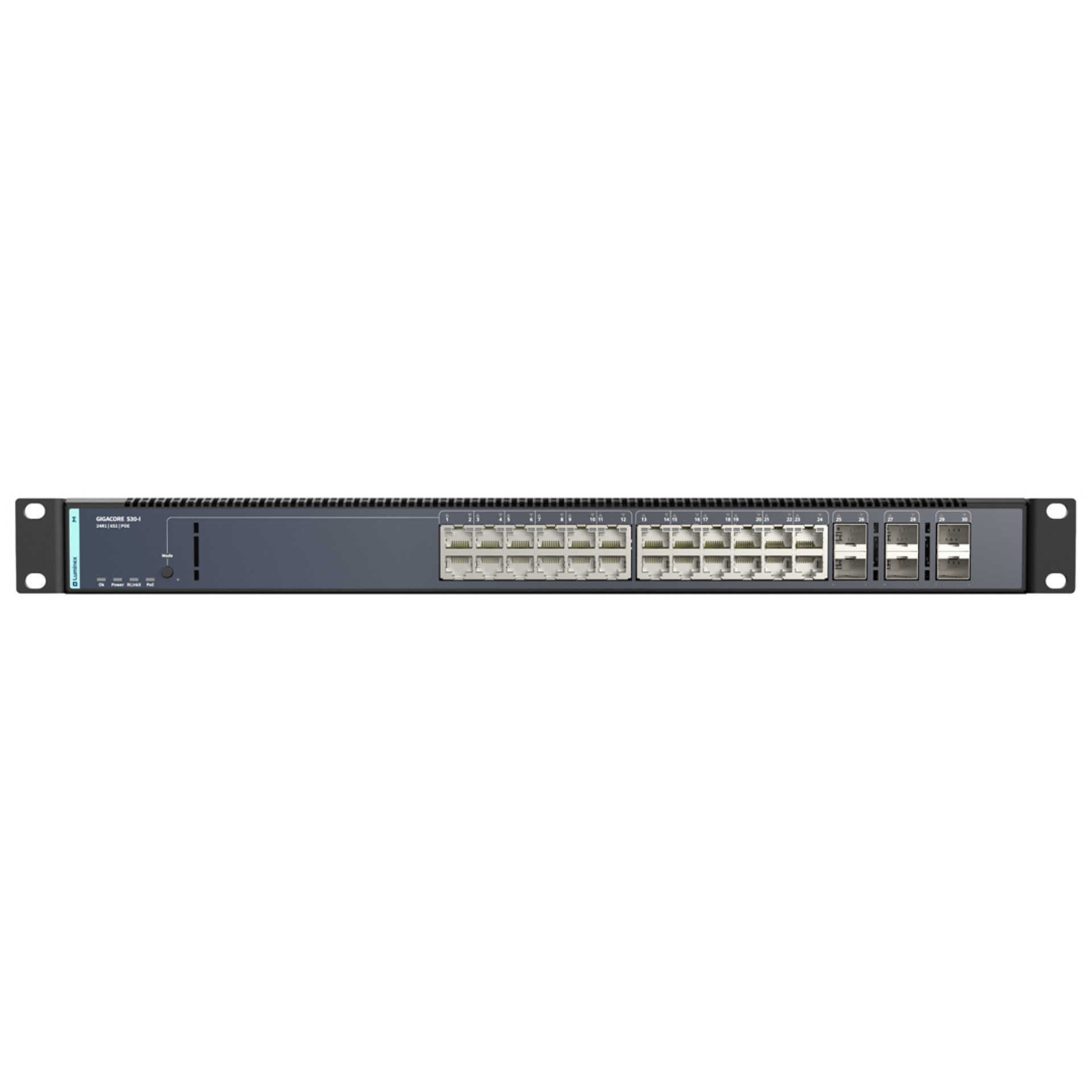

Luminex GigaCore S30-I - front straight on
Luminex GigaCore S30-I - front angled view
Luminex GigaCore S30-I - front straight on

GigaCore S30-I

LU0100106-1G

Key Features:

  • 1Gb AV Network Switch
  • Installation. Integration. Touring
  • Easy to configure with ARANEO & WebUI
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GigaCore S30-I

The GigaCore S30-I is an indispensable part of any AV network where reliability and quick, straightforward setup are required.

With six independent SFP ports supporting 1 Gbps data transfer and 24, 1 Gbps copper ports, the GigaCore S30-I offers an ample port count. Paired with Araneo, the GigaCore S30-I enables one-click AV network deployment for fixed installations.

Like all GigaCore models, it is designed to natively support the most advanced AV protocols, serving as the basis for a converged network and enabling multiple applications to coexist seamlessly on the same network.

GigaCore offers a reliable, user-friendly platform to transport light, audio, and video IP protocols without IT configuration. Time synchronization is critical in many applications. The GigaCore S30-I is a PTPv2-enabled switch that supports most major audio protocols (e.g., RAVENNA/AES67, Milan AVB, ST 2110, Dante, Q-SYS/Q-LAN) without requiring complex device configuration.

  • 6 SFP ports | 1 Gbps

    24 RJ45 ports | 1 Gbps

    Easy to configure with ARANEO & WebUI

    Pre-configured for ProAV – no compromises required

    Pre-defined Groups (VLANs), Custom

    Groups (VLANs), and Custom Trunk technology with matching color-coded LED indicators per port

    PoE and non-PoE versions available

  • Most suitable applications: System integrations, Installs

    PoE: PoE+ Optional (up to 300W)

    RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes

    Profile manager: Yes

    Memory: 1 GB RAM – 8 MB NOR flash 4 GB EMMC storage

    MAC address table: 16384 entries

    Address learning / Aging: Self learning, Auto aging

    Switching throughput 64 Byte: 44,4Mpps

    Switching capacity: 60Gbps

    Jumbo frames: MTU up to 120000

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Auto negotiation

    Auto crossover: MDI / MDIX

    Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

    Ethernet connectivity: 24x Gigabit (10/100/1000 BASE-T) copper RJ45 on front panel

    Fiber connectivity: 6x 1 Gbps SFP cages on front panel, independent from other ports

    Ethernet port speed: NA

    Serial: No

    Power connectivity: 1x PowerCON True1 in

    Power input: 100-240VAC, 50-60Hz

    Power consumption:

    • S30-I PoE: max 333W

    • S30-I non PoE: max 30W

    Fuse: NA

    Backup power input: NA

    Backup PoE power input: NA

    PoE: PoE+ Optional (up to 300W)
