The GigaCore 10t is a 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

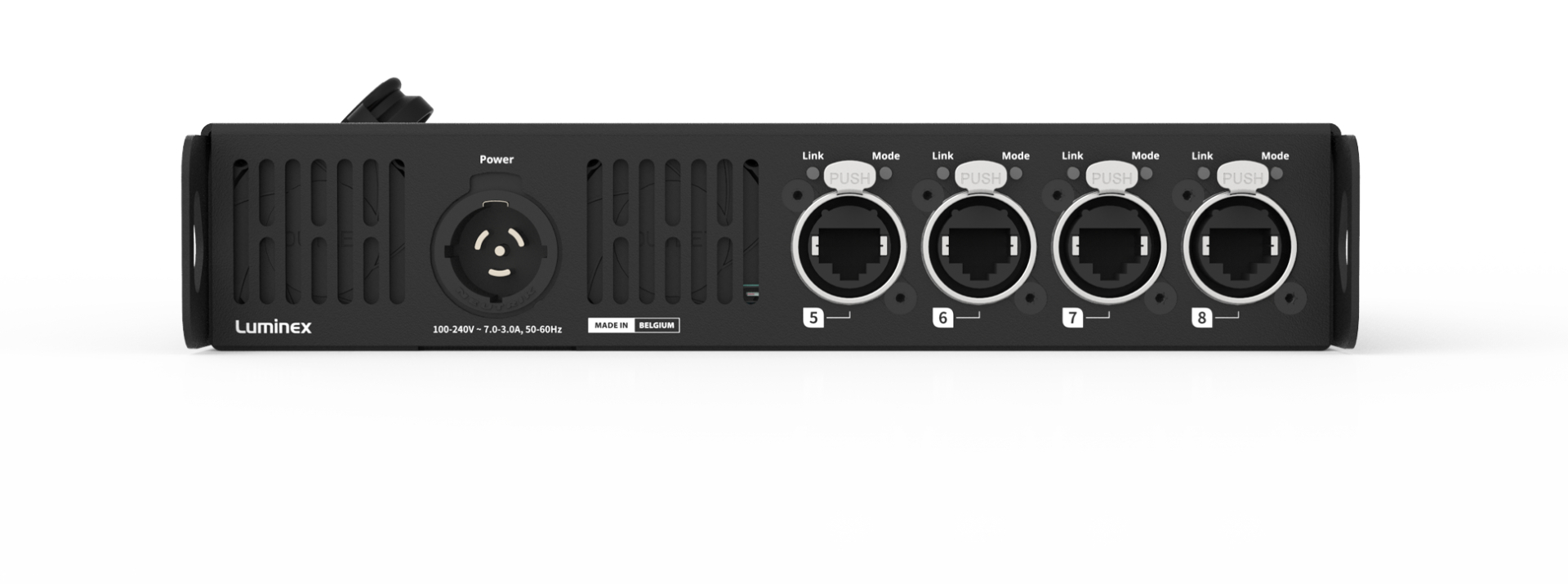

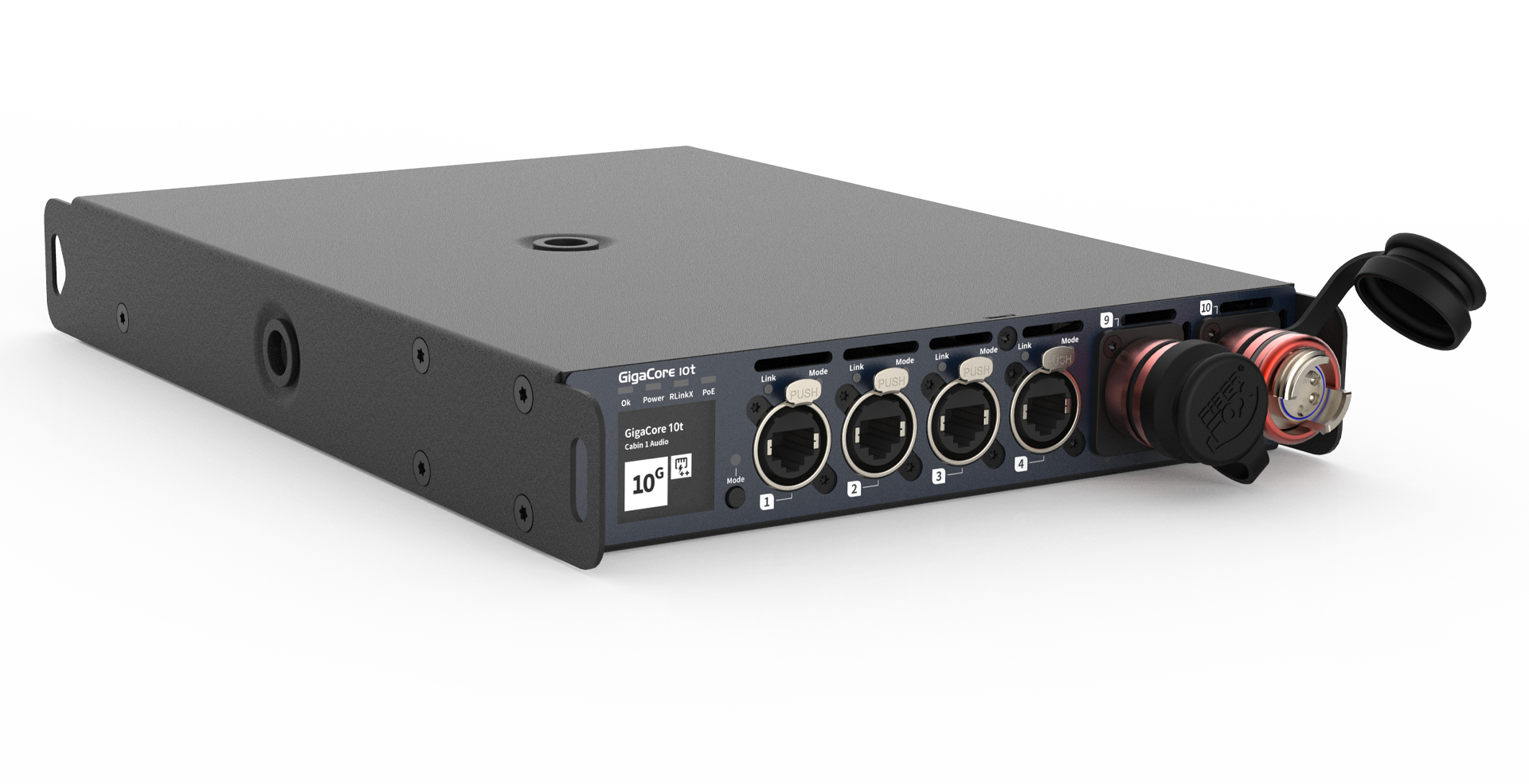

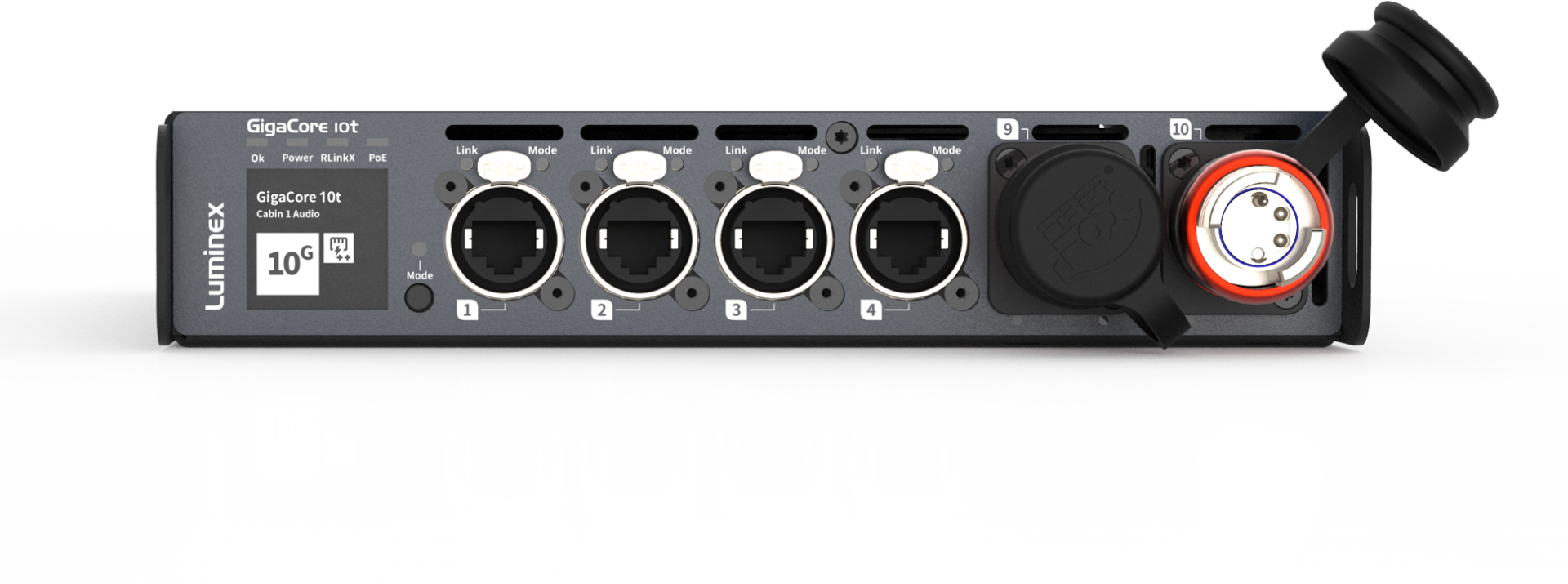

Most suitable applications: Touring applications, Rack mount and Truss mount (through 2x M10) applications PoE: PoE ++ Optional (up to 450W) RLinkX (Link redundancy): Yes Groups (VLAN segmentation): Yes MultiLinkX (Link aggregation): Yes (With future FW upgrade) Profile manager: Yes Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage MAC address table: 16384 entries Address learning / Aging: Self learning, Auto aging Switching throughput 64 Byte: 1G Models: 14881Mpps | 10G Models: 41667Mpps Switching capacity: 1G Models: 20Gbps | 10G Models: 56Gbps Jumbo frames: MTU up to 12000 IGMP support: Yes (V1/V2/V3) IGMP snooping: Yes, enabled by default Port sensing: Auto negotiation (Copper ports) Auto crossover: MDI / MDIX Auto sensing: Full or Half Duplex (Gigabit is Full Duplex) Ethernet connectivity: 8 x EtherCon connectors ) (4x front, 4x rear) (1Gbps) Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports) (front panel) Ethernet port speed: 1Gbps
