GigaCore O26-I

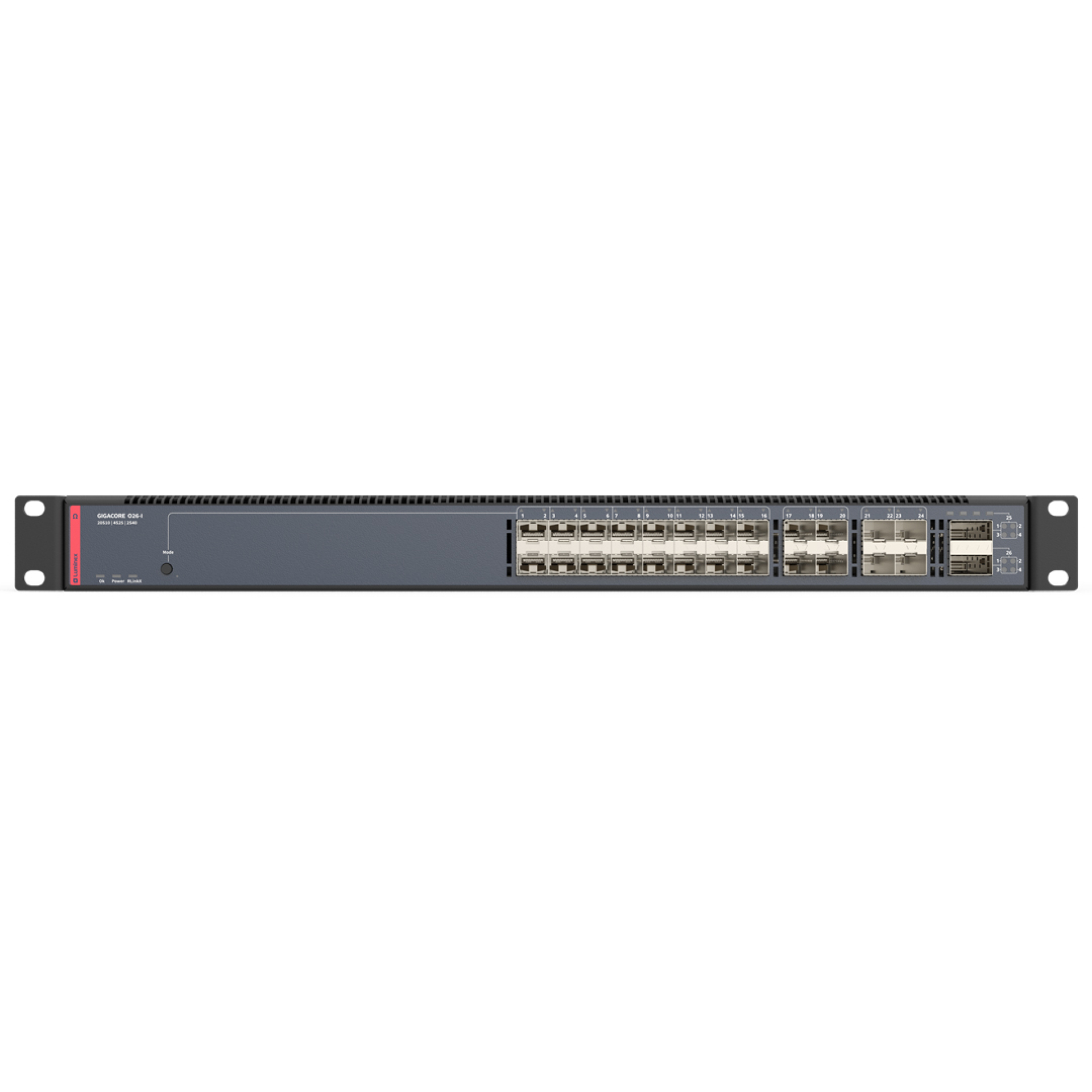

Luminex GigaCore O20-I - front straight on

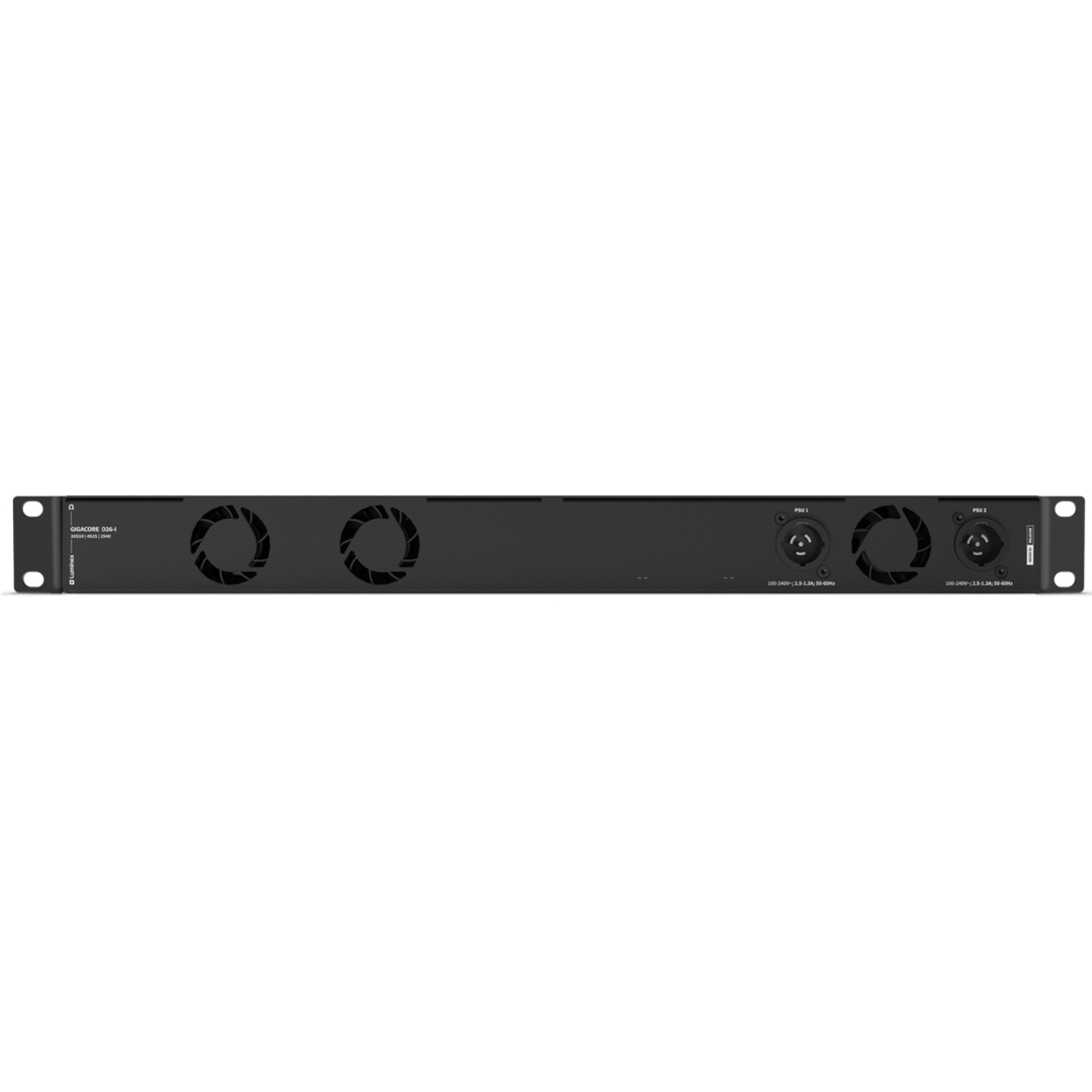

Luminex GigaCore O20-I - back straight on

GigaCore O26-I

LU0100101

Key Features:

All-SFP 40-Gigabit switch

Easy to configure with WebUI & ARANEO

Dedicated to AV integration, installation, and touring

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

GigaCore O26-I

The GigaCore O26-I is a 40-Gigabit Ethernet switch dedicated to AV integration, installation, and touring, designed to support the most advanced AV protocols. It is the ideal solution to serve as the high-bandwidth backbone for professional AV networks with a star or mesh topology.

Bandwidth, connectivity, and port availability are no longer issues with 20 independent SFP+ ports supporting speeds up to 10 Gbps, 4 SFP28 ports up to 25 Gbps, and 2 QSFP ports up to 40 Gbps.

The GigaCore O26-I is an indispensable part of any AV network requiring high bandwidth, reliability, and quick, easy setup. With two built-in power supply units, it delivers redundant power within the same 1U rack space. GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, RAVENNA/AES67, ST-2110, IPMX, MA-Net, and many more.

We don’t just approve against a protocol but actually test it. Because of real-world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.

Luminex's support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

- 2 QSFP ports | 40 Gbps.
- 4 SFP28 ports | 25 Gbps.
- 20 SFP+ ports | 10 Gbps.
- Easy to configure with WebUI & ARANEO.
- Pre-configured for ProAV – no compromises required.
- Pre-defined Groups (VLANs), Custom Groups (VLANs), and Custom Trunk technology with matching color-coded LED indicators per port.
- 2 Built-in power supplies, redundancy in 1U rack space.

- Most suitable applications: System integrations, Installs
- PoE: NA
- RLinkX (Link redundancy): Yes
- Groups (VLAN segmentation): Yes
- MultiLinkX (Link aggregation): Yes
- Profile manager: Yes
- Memory: 1GB NAND – 8Mb NOR - 1GB RAM
- MAC address table: 32768 entries
- Address learning / Aging: Self learning, Auto aging
- Switching throughput 64 Byte: 565,48Mpps
- Switching capacity: 760Gbps
- Jumbo frames: MTU up to 12000
- IGMP support: Yes (V1/V2/V3)
- IGMP snooping: Yes, enabled by default
- Port sensing: Fixed speed
- Auto crossover: NA
- Auto sensing: NA
- Ethernet connectivity: NA
- Fiber connectivity: 2x 40Gbps QSFP cages on front panel - 40G BASE-X or 4x 10G BASE-X 4x 25Gps SFP28 cages on front panel - 25G BASE-X, 10G BASE-X or 1000 BASE-X 20x 10 Gbps / 1 Gbps SFP+ cages on front panel - 10G BASE-X or 1000 BASE-X
- Ethernet port speed: NA
- Serial: No
- Power connectivity: 2 x IEC (C14)
- Power input: 100-240VAC, 50-60Hz
- Power consumption: Max 100W
- Fuse: NA
- Backup power input: Yes - via 2nd IEC (C14)
- Backup PoE power input: NA
- PoE: NA
