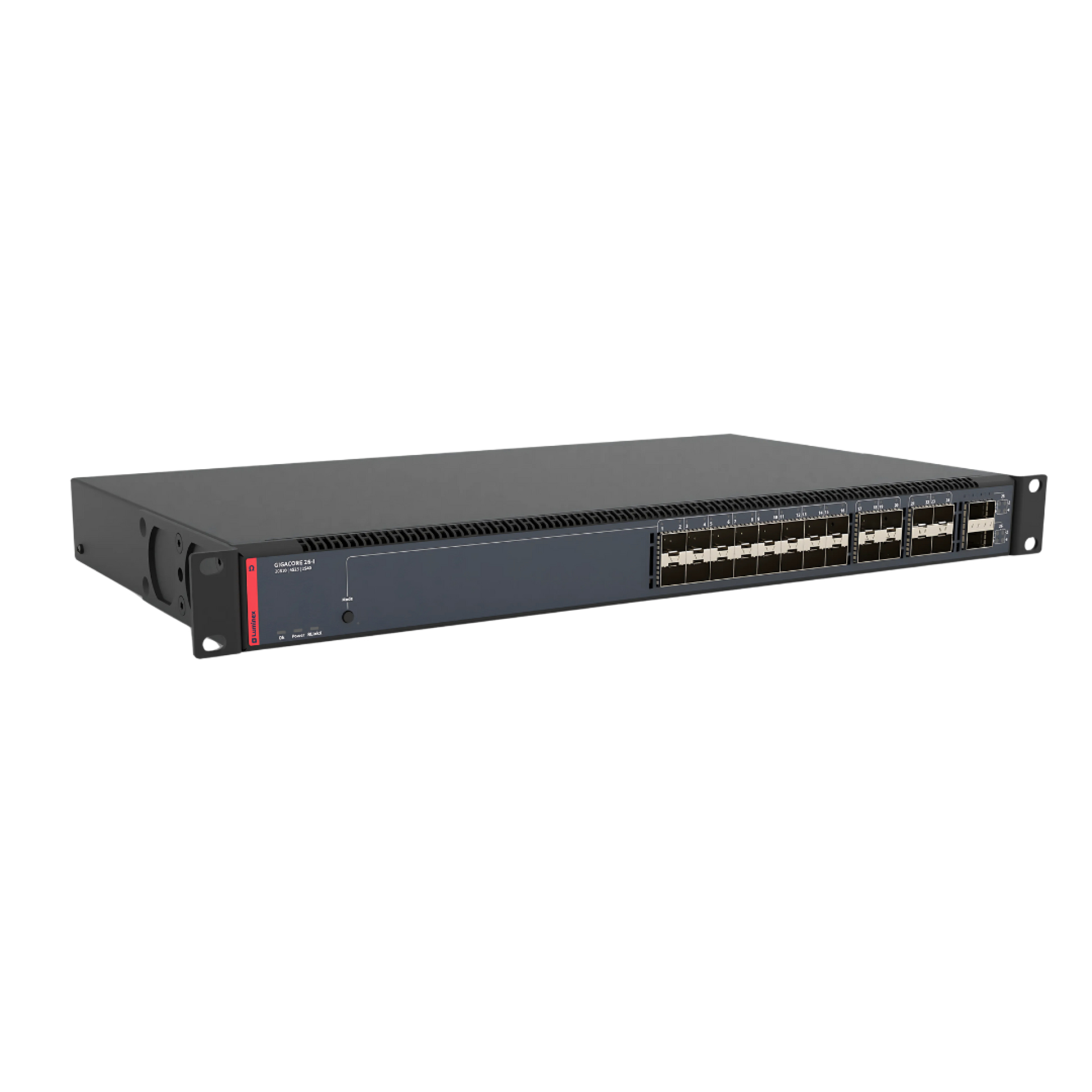

GigaCore 26-I

The GigaCore 26-I is a 40-Gigabit Ethernet switch dedicated to AV integration, installation, and touring, designed to support the most advanced AV protocols. It is the ideal solution to serve as the high-bandwidth backbone for professional AV networks with a star or mesh topology.

Bandwidth, connectivity, and port availability are no longer issues with 20 independent SFP+ ports supporting speeds up to 10 Gbps, 4 SFP28 ports up to 25 Gbps, and 2 QSFP ports up to 40 Gbps.

The GigaCore 26-I is an indispensable part of any AV network requiring high bandwidth, reliability, and quick, easy setup. With two built-in power supply units, it delivers redundant power within the same 1U rack space. GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, RAVENNA/AES67, ST-2110, IPMX, MA-Net, and many more.

We don’t just approve against a protocol but actually test it. Because of real-world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.

Luminex's support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

  • 2 QSFP ports | 40 Gbps.

    4 SFP28 ports | 25 Gbps.

    20 SFP+ ports | 10 Gbps.

    Easy to configure with WebUI & ARANEO.

    Pre-configured for ProAV – no compromises required.

    Pre-defined Groups (VLANs), Custom Groups (VLANs), and Custom Trunk technology with matching color-coded LED indicators per port.

    2 Built-in power supplies, redundancy in 1U rack space.

  • Most suitable applications: System integrations, Installs

    PoE: NA

    RLinkX (Link redundancy): Yes

    Groups (VLAN segmentation): Yes

    MultiLinkX (Link aggregation): Yes

    Profile manager: Yes

    Memory: 1GB NAND – 8Mb NOR - 1GB RAM

    MAC address table: 32768 entries

    Address learning / Aging: Self learning, Auto aging

    Switching throughput 64 Byte: 565,48Mpps

    Switching capacity: 760Gbps

    Jumbo frames: MTU up to 12000

    IGMP support: Yes (V1/V2/V3)

    IGMP snooping: Yes, enabled by default

    Port sensing: Fixed speed

    Auto crossover: NA

    Auto sensing: NA

    Ethernet connectivity: NA

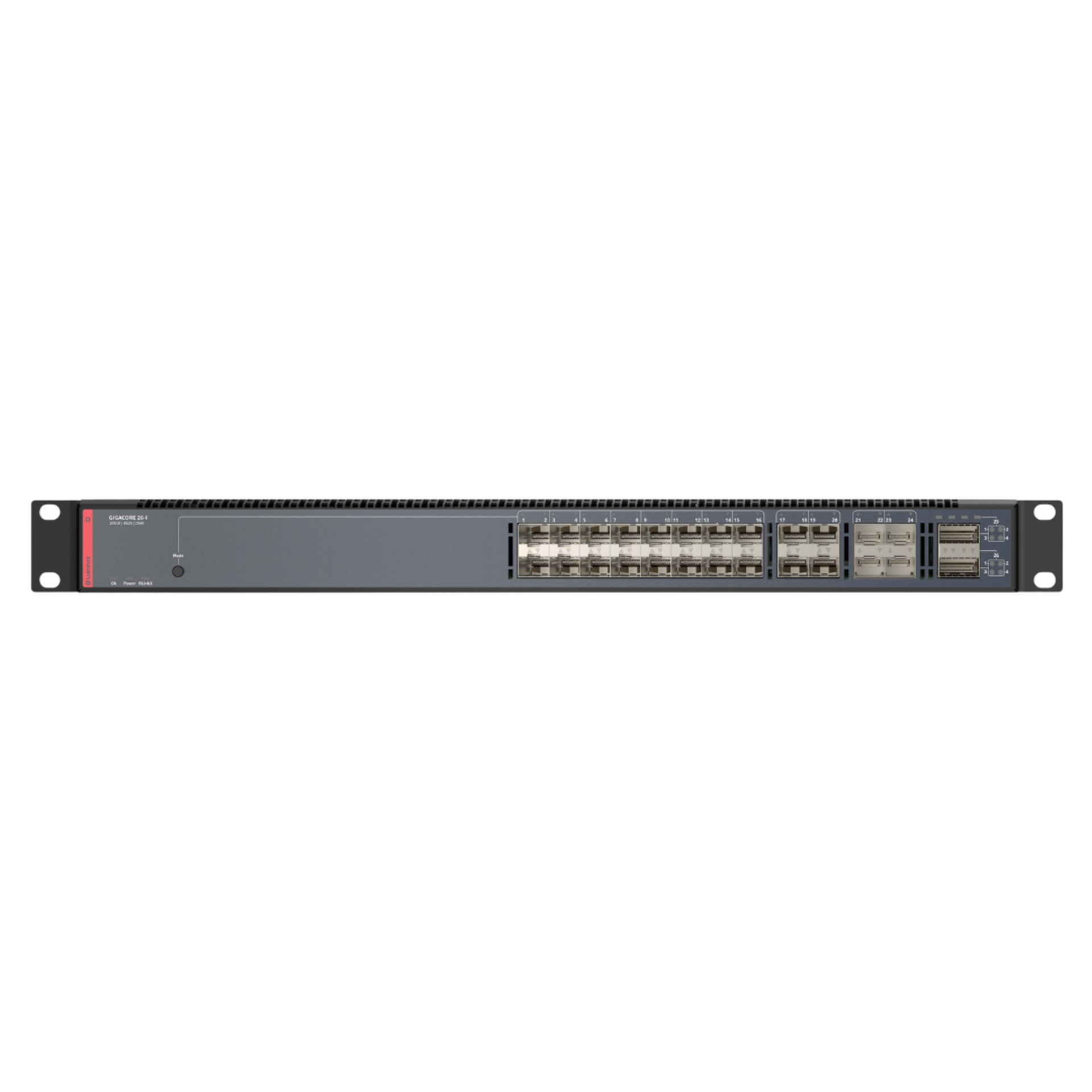

    Fiber connectivity: 2x 40Gbps QSFP cages on front panel - 40G BASE-X or 4x 10G BASE-X 4x 25Gps SFP28 cages on front panel - 25G BASE-X, 10G BASE-X or 1000 BASE-X 20x 10 Gbps / 1 Gbps SFP+ cages on front panel - 10G BASE-X or 1000 BASE-X

    Ethernet port speed: NA

    Serial: No

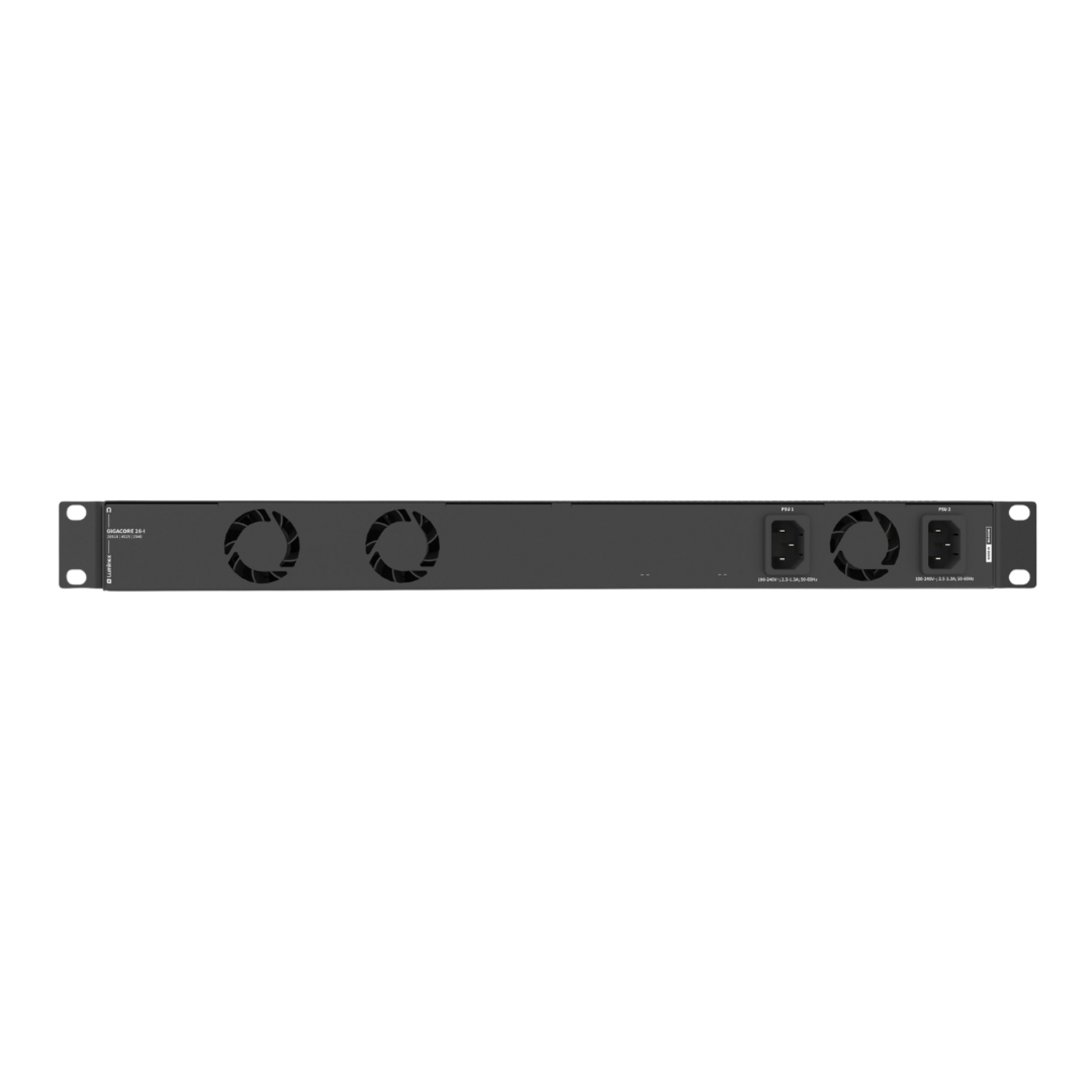

    Power connectivity: 2 x IEC (C14)

    Power input: 100-240VAC, 50-60Hz

    Power consumption: Max 100W

    Fuse: NA

    Backup power input: Yes - via 2nd IEC (C14)

    Backup PoE power input: NA

    PoE: NA

GigaCore 26-I - Downloads
Luminex GigaCore 26-I Spec Sheet
Download
