EVC Compact Loudspeakers For Fixed Installation

EVC Compact Loudspeakers For Fixed Installation

Key Features:

  • Compact, cost-effective design
  • Contractor-friendly features
  • Available in black or white finishes
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

EVC Compact Loudspeakers For Fixed Installation

Great sound for small- and medium-sized installations is more affordable and more reliable than ever before with the EVC series.

Product Variants

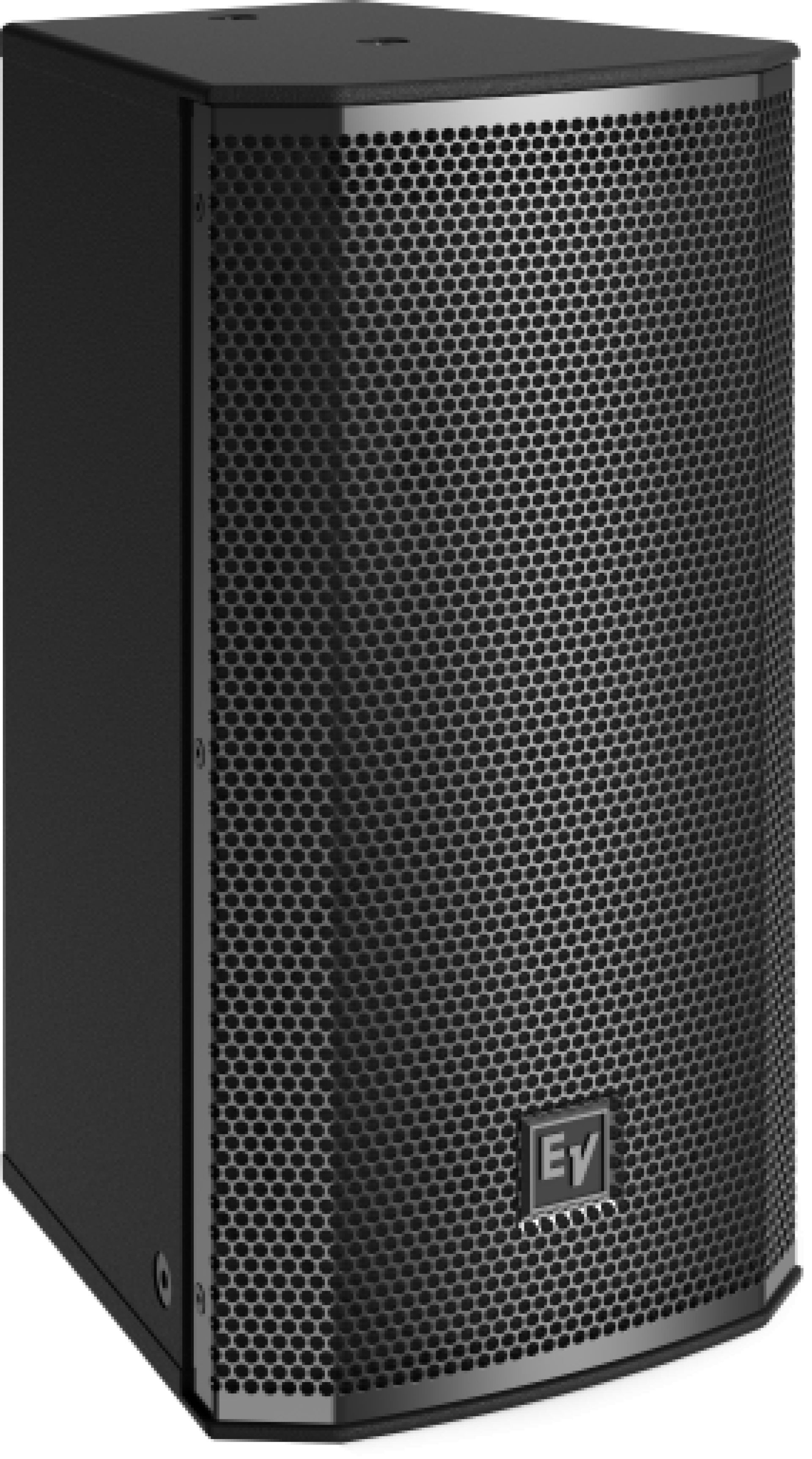

EVC-1082-00
  • 8-inch, two-way loudspeaker, with 100˚ x 100˚ constant directivity, rotatable waveguide
  • Power rating: 200 W Continuous, (800 W Peak)
  • Passive system: 91 dB, 120 dB maximum

Enquiry Form

EVC-1082-96
  • 8-inch, two-way loudspeaker, with 90˚ x 60˚ constant directivity, rotatable waveguide.
  • Power rating: 200 W Continuous, (800 W Peak).
  • Passive system: 91 dB, 120 dB maximum

Enquiry Form

EVC-1122-64
  • 12-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
  • Power rating: 300 W Continuous, (1200 Peak)
  • Passive system: 95 dB, 126 dB maximum

Enquiry Form

EVC-1122-95
  • 12-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
  • Power rating: 300 W Continuous, (1200 Peak)
  • Passive system: 95 dB, 126 dB maximum

Enquiry Form

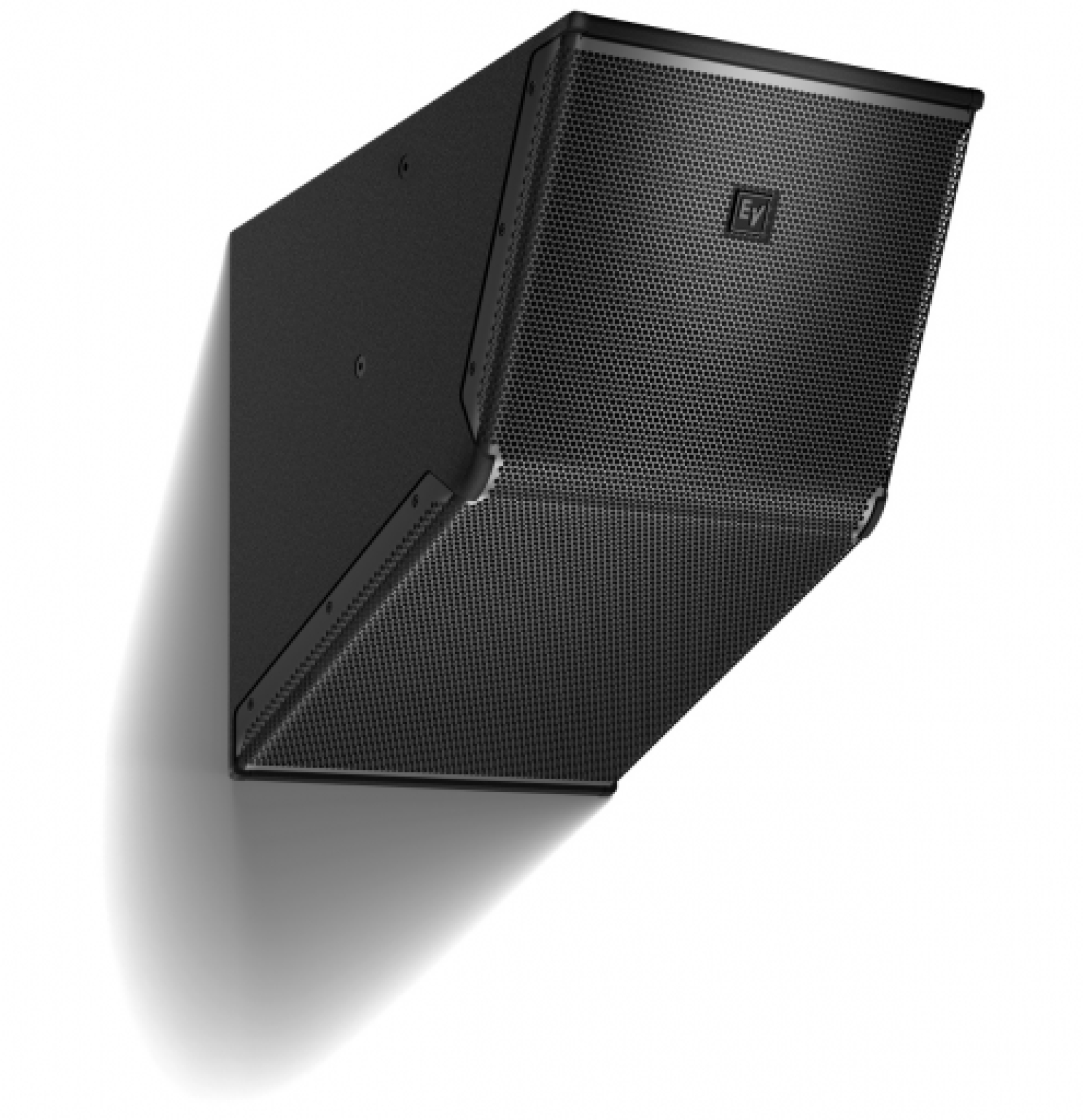

EVC-1122-VI
  • 12-inch two-way loudspeaker with asymmetrical horn uniformly covers a defined rectangular area
  • Power rating: 300 W Continuous, (1200 W Peak)

Enquiry Form

EVC-1122-VI EN54
  • EN 54 EVAC certified for emergency voice alarm
  • 12” two-way loudspeaker with asymmetrical horn uniformly covers a defined rectangular area
  • Power rating: 150 W Continuous, (600 W Peak)

Enquiry Form

EVC-1152-64
  • 15-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
  • Power rating: 350 W Continuous, (1400 W Peak)
  • Passive system: 98 dB, 129 dB maximum

Enquiry Form

EVC-1152-95
  • 15-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
  • Power rating: 350 W Continuous, (1400 W Peak)
  • Passive system: 98 dB, 129 dB maximum

Enquiry Form

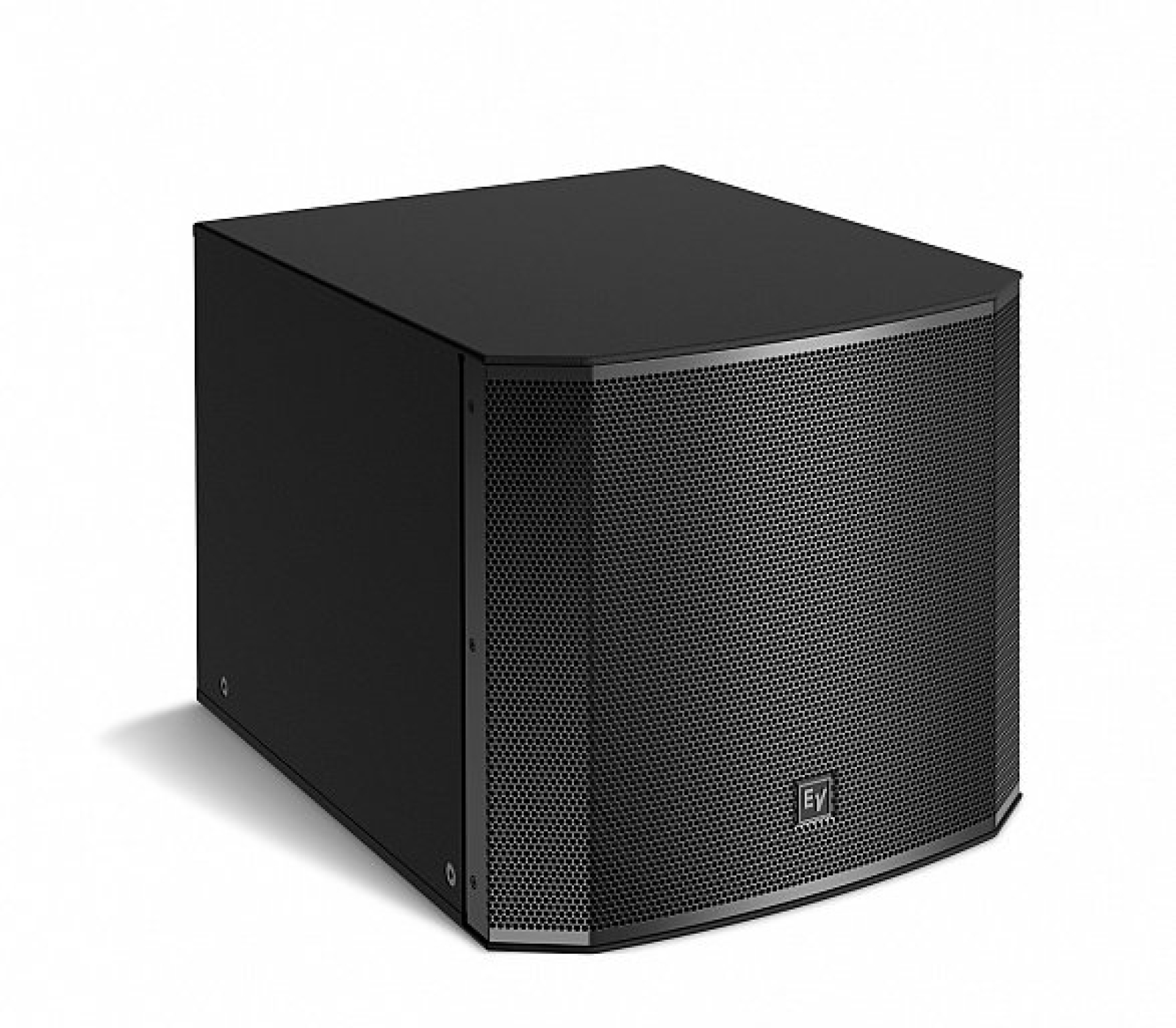

EVC-1181S
  • 18 inch subwoofer
  • 97 dB sensitivity, 129 dB maximum SPL
  • System rating: 350 W Continuous, (1400 W Peak)
  • Recommended frequency range: 30 Hz to 135 Hz

Enquiry Form

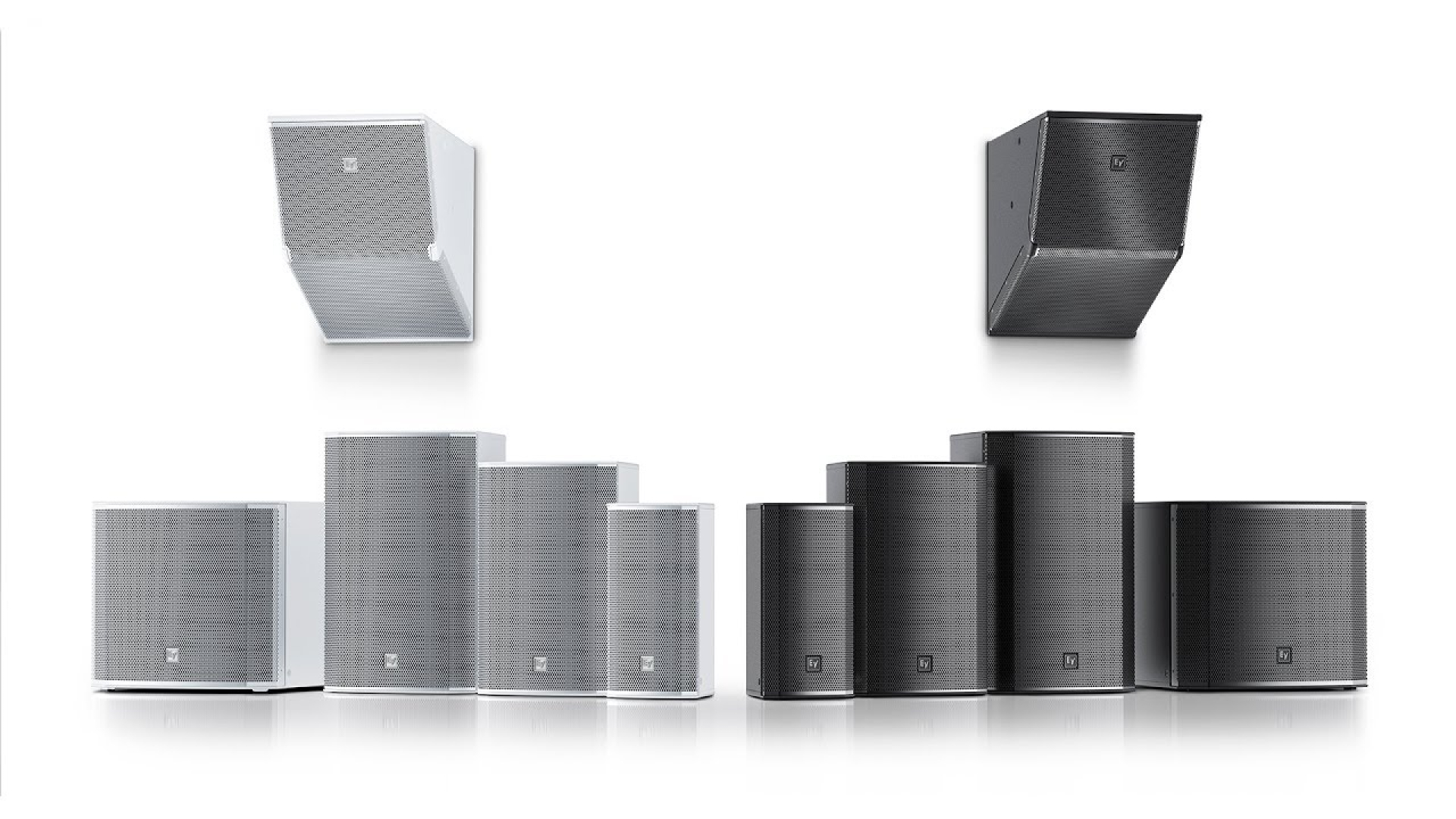

Acoustically and aesthetically matched with all the existing series under the EV-Innovation family umbrella – including front-loaded (EVF, EVU), horn-loaded (EVH) and line array (EVA) models – the front-loaded EVC models are compact, cost-effective and versatile options with none of the compromises in audio quality often heard in similarly sized products.

EVC fills out the family by addressing the need for 2-way loudspeakers with installation-appropriate features at a significantly lower price point than EVF, while producing sound that is voiced to integrate with other EV-Innovation models.

The EVC series offers specific solutions for small/medium venues in which coverage, acoustic performance, and aesthetics are key factors. The line-up features five base models – four compact 2-way models and a complementary subwoofer – with multiple mounting accessories available.

EVC Compact Loudspeakers For Fixed Installation - Downloads
Download
EVC Compact Loudspeakers For Fixed Installation - Variant Downloads
EVC-1082-00
8-inch, two-way loudspeaker, with 100˚ x 100˚ constant directivity, rotatable waveguide
Download
EVC-1082-96
8-inch, two-way loudspeaker, with 90˚ x 60˚ constant directivity, rotatable waveguide.
Download
EVC-1122-64
12-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
Download
EVC-1122-95
12-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
Download
EVC-1122-VI
12-inch two-way loudspeaker with asymmetrical horn uniformly covers a defined rectangular area
Download
EVC-1122-VI EN54
EN 54 EVAC certified for emergency voice alarm
Download
EVC-1152-64
15-inch, two-way loudspeaker, with 60˚ x 45˚ constant directivity, rotatable waveguide
Download
EVC-1152-95
15-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
Download
EVC-1181S
18 inch subwoofer
Download
