Electro-Voice ELX200 Subwoofers

Key Features:

EV QuickSmart Mobile application

QuickSmartDSP

Ideal for portable and installed applications

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Electro-Voice ELX200 Subwoofers

Electro-Voice ELX200 subwoofers come in active and passive versions, black or white and 12 and 18-inch.

Product Variants

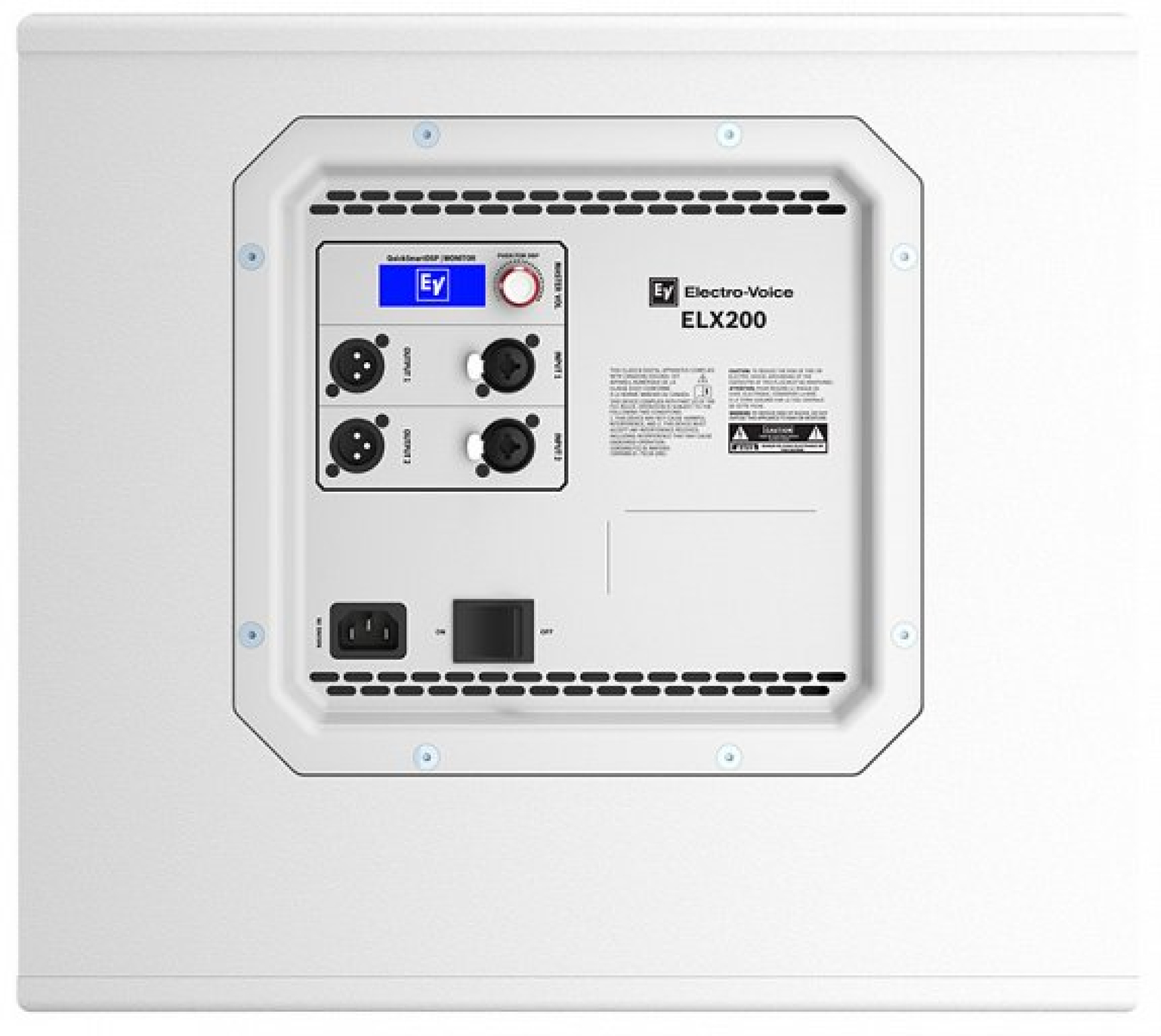

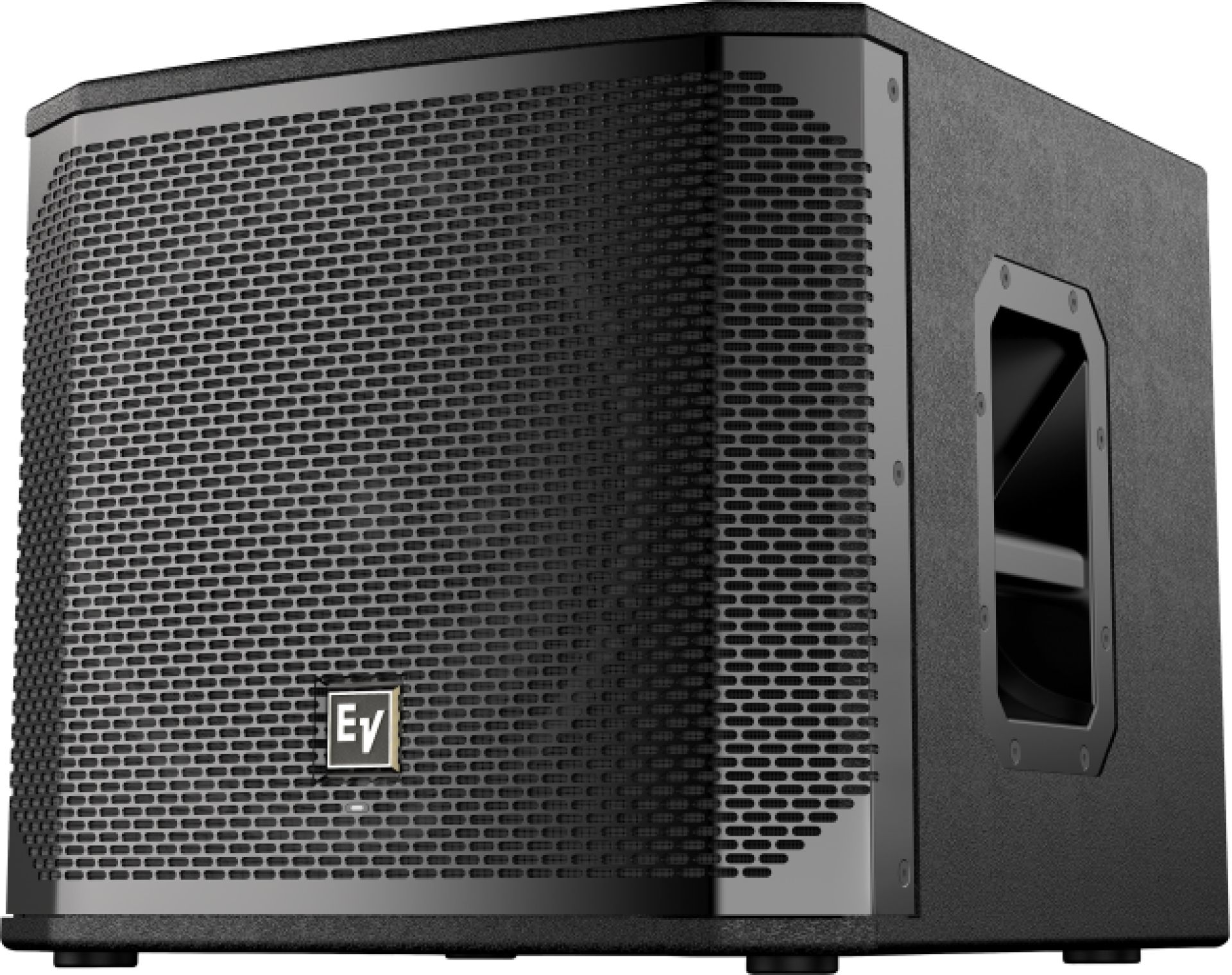

ELX200-12SP

Frequency response (-3 dB) 49 Hz - 135 Hz¹
Frequency range (-10 dB) 41 Hz - 165 Hz¹
Maximum SPL 129 dB²
Power rating 1200 W
LF transducer EVS-12L 300 mm (12 in)
Low-Pass frequency Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz
Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Colour Black or White
Dimensions (H x W x D) 397 mm x 445 mm x 457 mm (16.7 in x 17.6 in x 18.0 in)
Net weight 19.1 kg (42.2 lb)
Available in passive - ELX200-12S

Enquiry Form

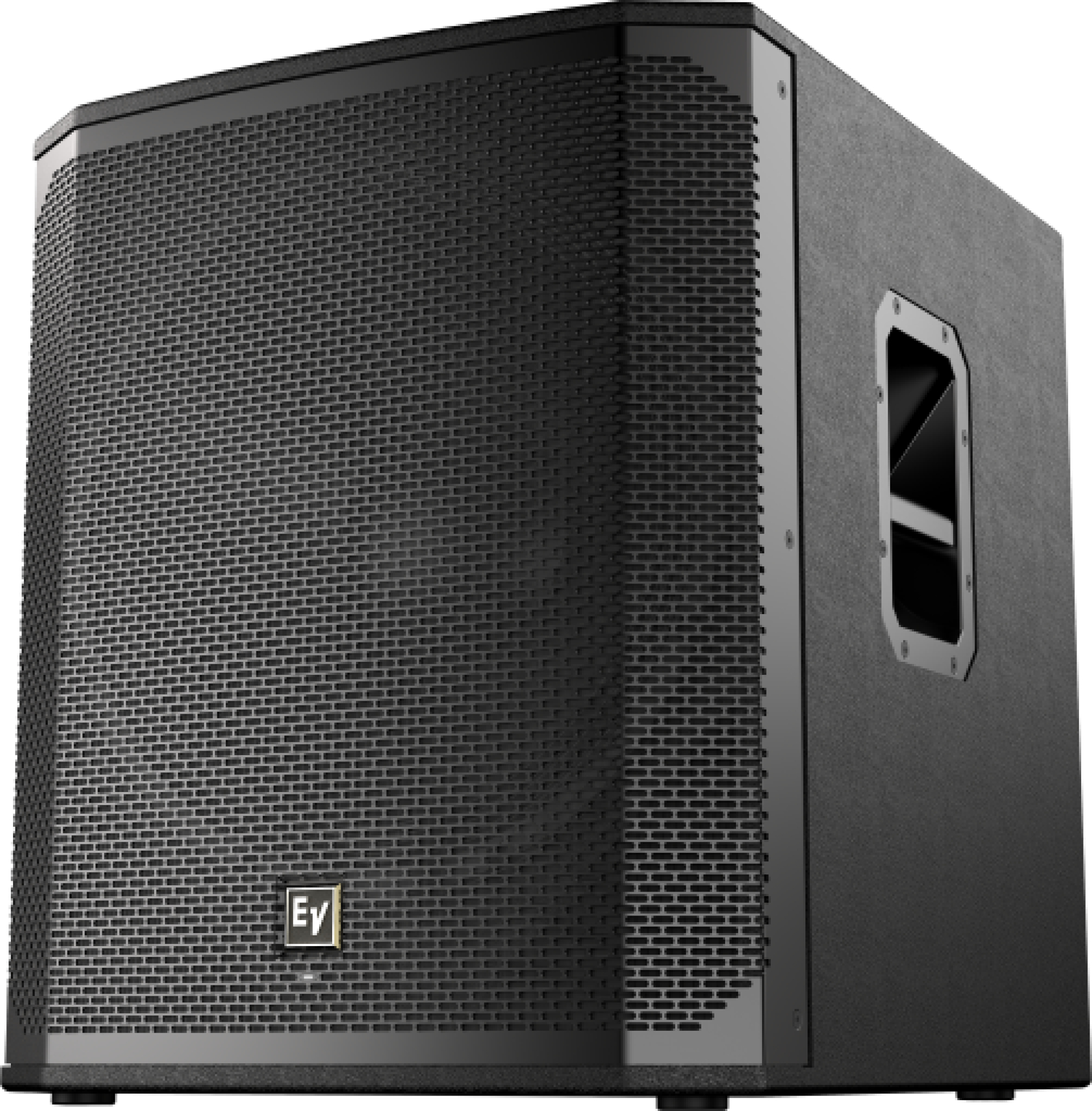

ELX200-18SP

Frequency response (-3 dB) 47 Hz - 105 Hz¹
Frequency range (-10 dB) 40 Hz - 145 Hz¹
Maximum SPL 132 dB²
Power rating 1200 W
LF transducer EVS-18L 457 mm (18 in)
Low-Pass frequency Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz
Connectors (2) XLR/TRS combo jacks and (2) XLR link outputs
Enclosure 15 mm plywood with EVCoat
Grille 18 AWG steel with powdercoat
Colour Black or White
Dimensions (H x W x D) 600 mm x 507 mm x 574 mm (23.7 in x 20.0 in x 22.6 in)
Net weight 29.0 kg (64 lb)
Available in passive - ELX200-18S

Enquiry Form

Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth is available in select countries.

Features

EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.
