Alpha+ System

Alpha+ System

Key Features:

  • Precision Directivity Control
  • Design the optimum system and predict its performance with NS-1 System Configuration Software
  • Full range of accessories
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Alpha+ System

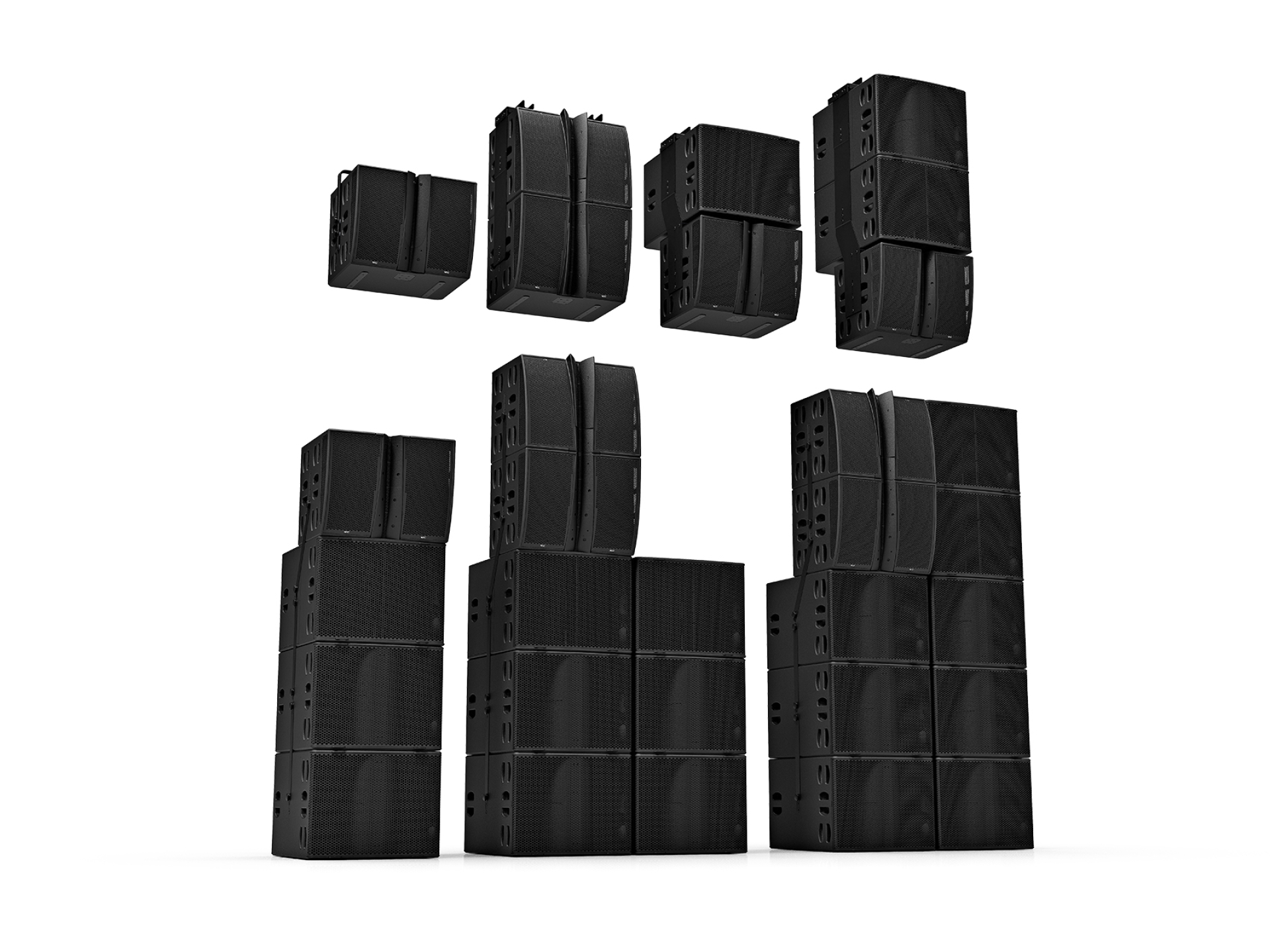

NEXO's Alpha+ system is an ultra-powerful, long-throw, ‘three-box’ FOH system that combines the benefits of line source coupling with the easy deployment typical of point source speakers.

Product Variants

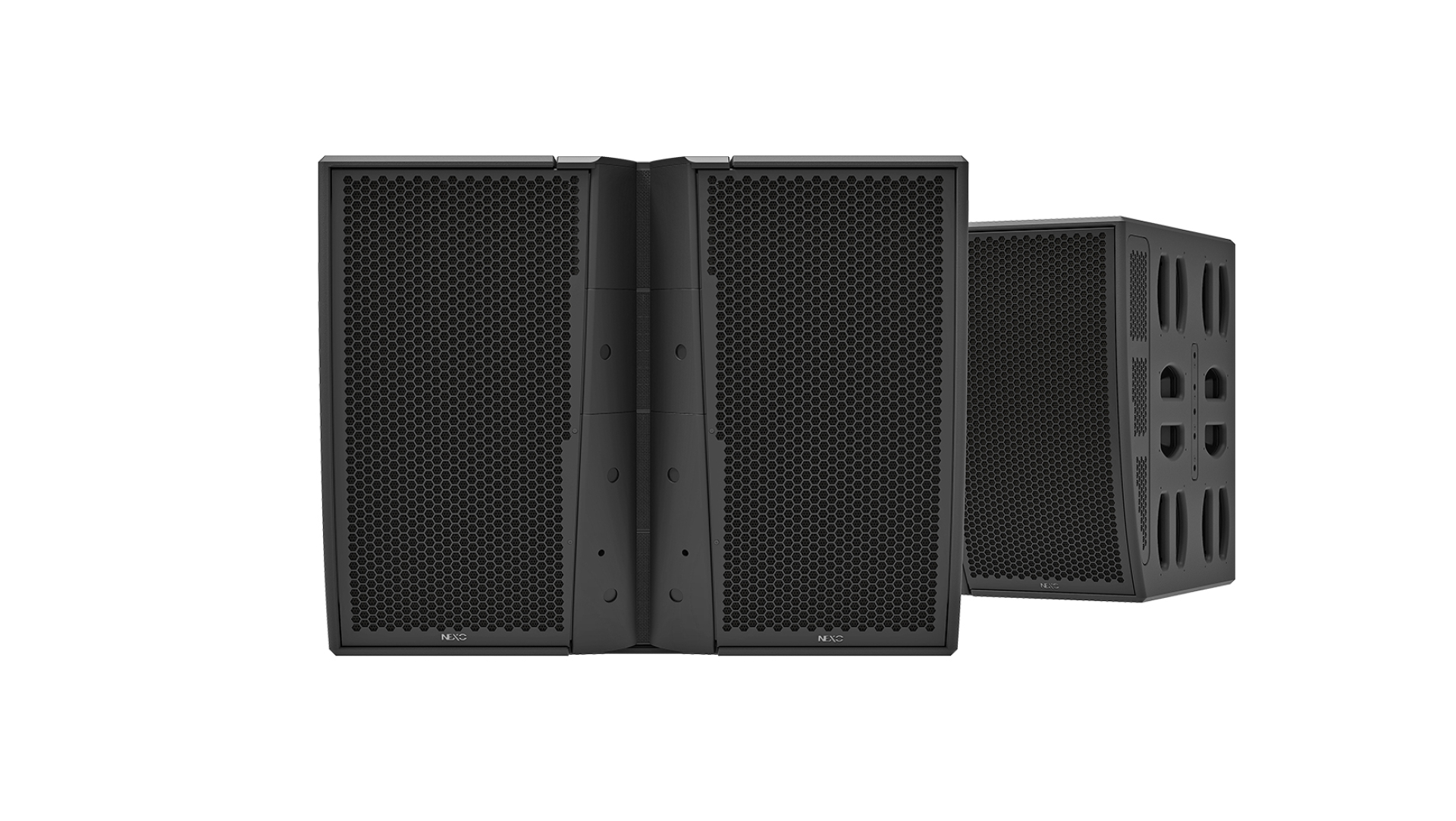

M210
  • Hybrid Horn Loaded module, with variable dispersion.
  • Extremely Powerful (148 dB peak) main module of the Alpha+ system
  • Lightweight (53 kg / 117 lbs) design using custom made 15 mm bent plywood of Birch and Poplar
  • Unique articulated HF waveguide to adjust vertical directivity

Enquiry Form

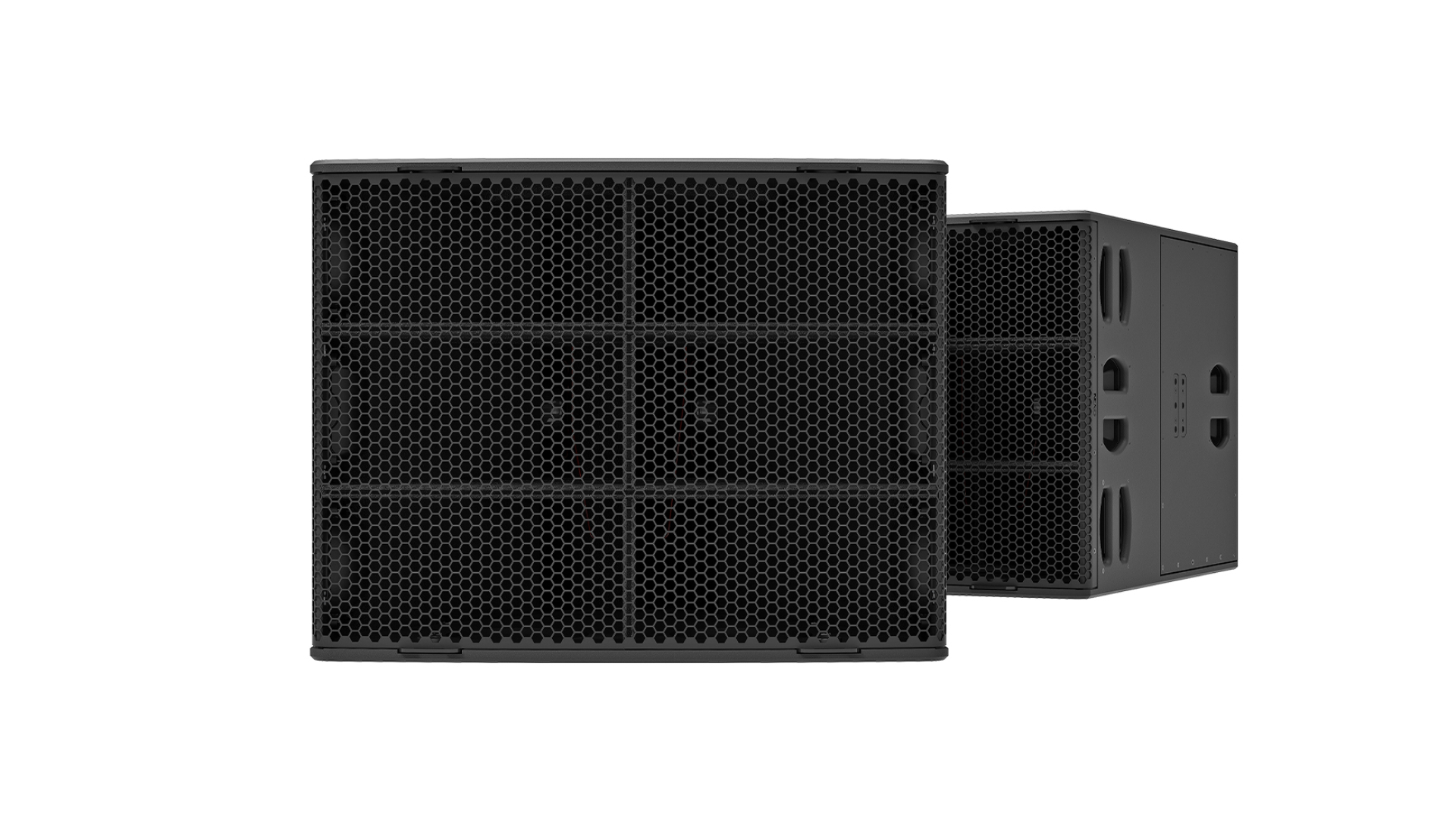

B218
  • Compact Horn Loaded bass, with dual high force 18”.
  • Extremely Powerful (146 dB peak) bass module of the Alpha+ system
  • Compact footprint using custom made 15 mm bent plywood of Birch and Poplar
  • Rounded shape to prevent damage in the corners and match Alpha+ system design

Enquiry Form

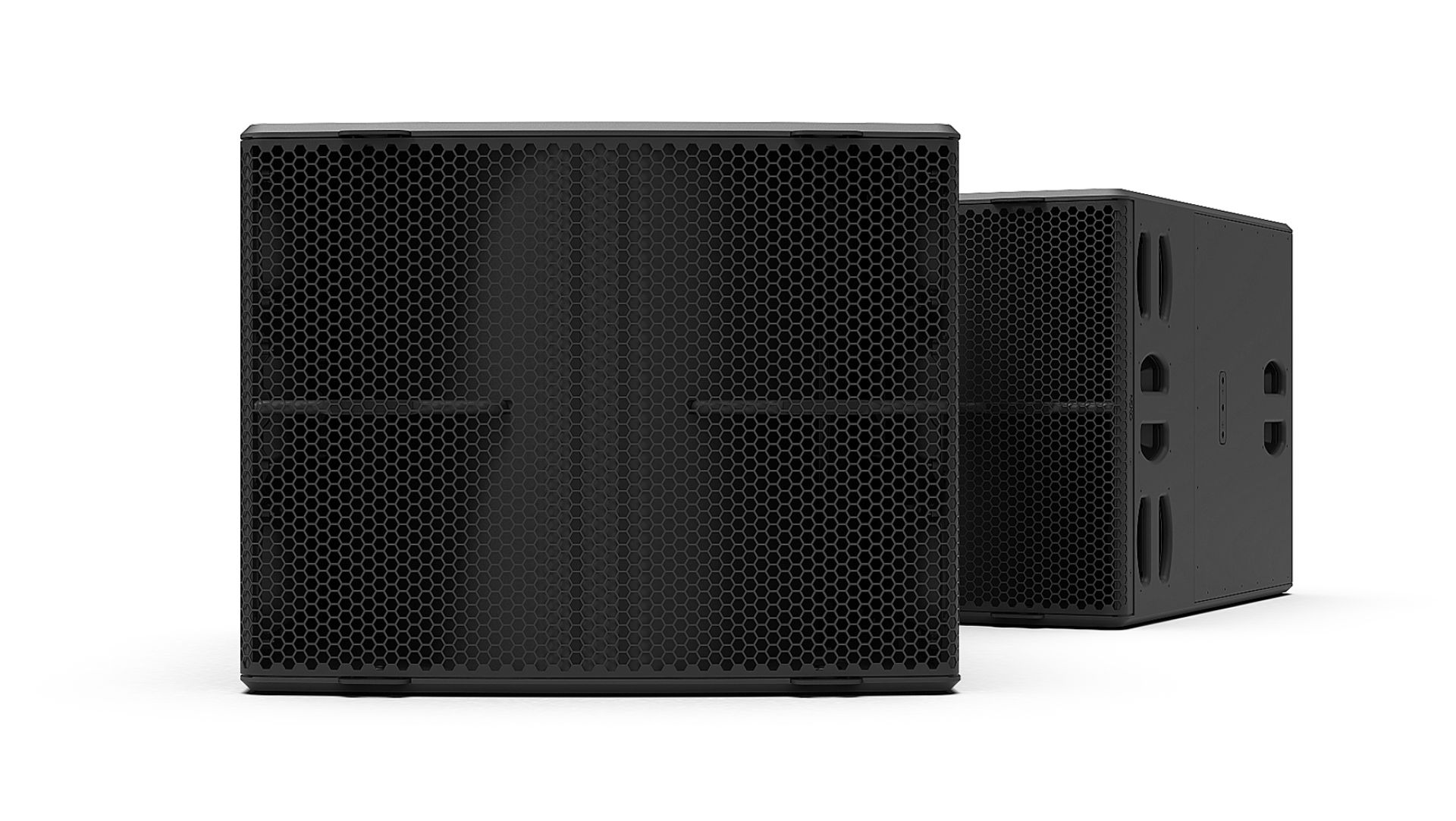

L20
  • Compact Horn Loaded sub-bass, with high-excursion 20” woofer.
  • Extends LF performance to 28Hz Extremely Powerful (141 dB peak) sub tailored to match the P18 main speaker.
  • Lightweight (59 kg / 130 lbs) design using custom made 15 mm bent plywood of Birch and Poplar.
  • Rounded shape to prevent damage in the corners and optimize air flow.

Enquiry Form

Three decades on and original NEXO Alpha systems are still thrilling live music audiences and clubbers around the world with their characteristic power and presence. Now NEXO have drawn on the spirit of that ‘90s classic to create Alpha+.

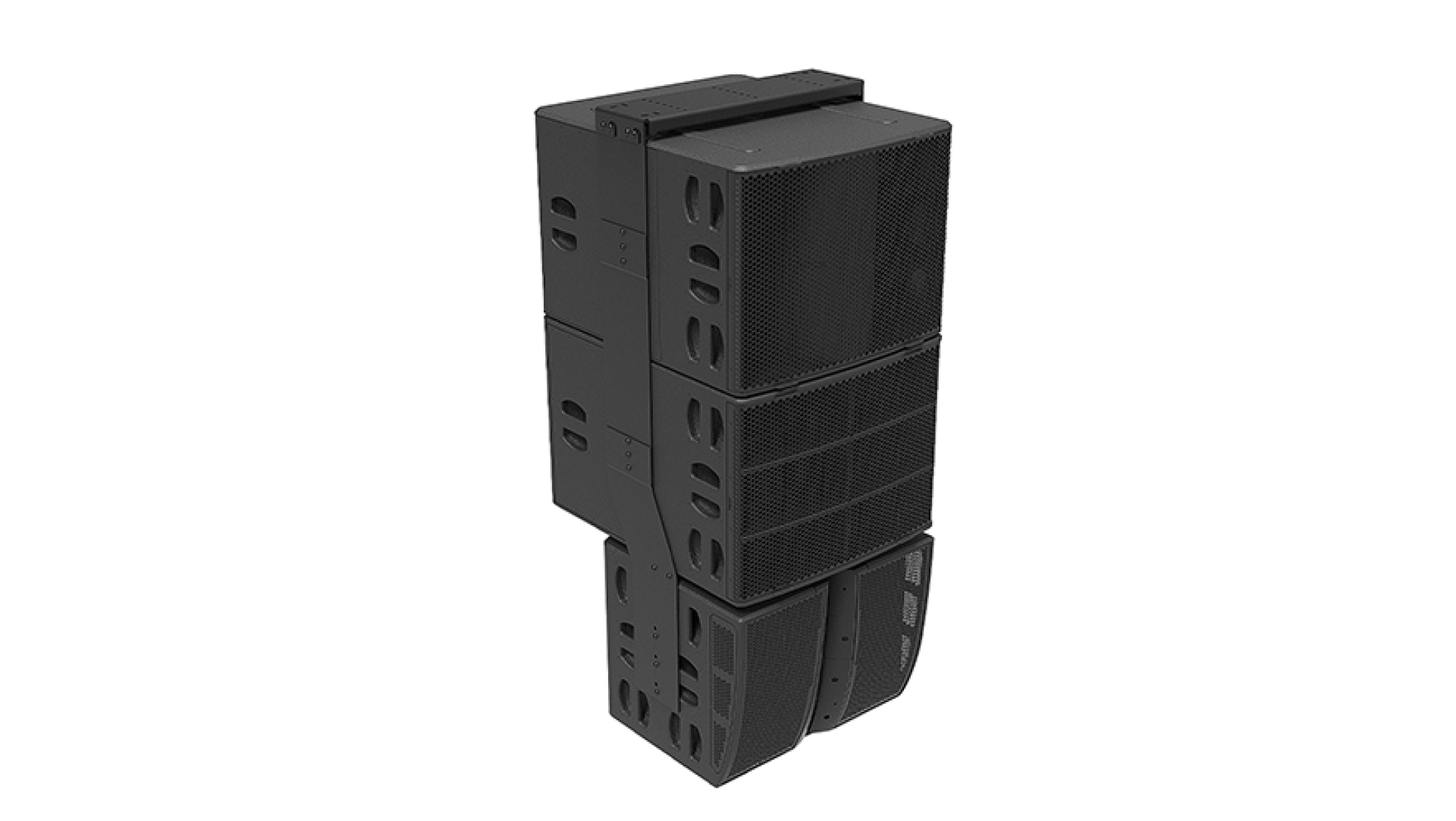

Stacked on a mid-sized festival stage, installed in a club or deployed in a theatre where a line array can’t be flown, it’s all Alpha, reimagined for the modern age.

The HF dispersion control of the M210 Main module comes not from rigging angles between boxes, but from an ingenious waveguide block that can be ‘unlocked’ and its articulation changed from Narrow vertical coverage to Wide/Standard, while the continuously varying horizontal directivity can be modified using magnetic flanges.

A horn-loaded 2 x 10″ coaxially mounted with 4 x 3″ HF compression drivers, the M210 achieves an impressive 148dB peak SPL and makes its presence felt very clearly from 30 metres. What’s more, it sits at the perfect height to achieve excellent audience coverage on top of B218 Bass and L20 Sub modules that extend LF performance down to 28Hz with cardioid configuration limiting spillage.

Alpha+ System - Downloads
NEXO Alpha+ Spec Sheet
Download
Alpha+ System - Variant Downloads
M210
Hybrid Horn Loaded module, with variable dispersion.
Download
B218
Compact Horn Loaded bass, with dual high force 18”.
Download
L20
Compact Horn Loaded sub-bass, with high-excursion 20” woofer.
Download
