Shure ANX4 Wireless Receiver

ANX4 SCALABLE WIRELESS RECEIVER FORAXIENT® DIGITAL AND ULX-D® SYSTEMS

Shure ANX4 Wireless Receiver

SHANX4

Key Features:

Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems

Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space

Wide tuning range covers 174 MHz to 2 GHz

Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Shure ANX4 Wireless Receiver

The ultimate high-tier, high-channel-count wireless receiver, Shure ANX4, receives up to 16 channels of Shure Axient Digital or 24 channels of Shure ULX-D wireless audio in a single rack space.

Delivering maximum flexibility, ANX4 ships without preconfigured active wireless channels, allowing you to purchase channels in single- or four-channel increments and activate the exact number you need. Licenses can be activated in one ANX4 and later moved to a different ANX4 as needs change. ANX4 channel licenses are perpetual, not subscription-based. They can be purchased through the same authorised suppliers. ANX4 hardware units are sold (or at Shure.com/anx4) and managed via your ShureCloud user account. All the exceptional features found in award-winning Axient Digital and ULX-D receivers, which have made them standards on stages, in facilities, on tour, and in locations worldwide, are available in the ANX4**. Whether you operate ANX4 in Axient Digital or ULX-D transmission mode, ANX4 maximises your budget, rack space, and rack weight by delivering large wireless audio channel counts in a single rack. What’s more, this 1RU format also enables streamlined antenna configurations for environments with a large channel count. The ANX4 receiver does not ship preconfigured with active wireless channels. Channel licenses are sold separately and are required for operation. *System features are dependent on the activated transmission mode: Axient Digital or ULX-D (ANX4 does not support both systems simultaneously).

- Scalable Wireless Receiver for use with Axient Digital and ULX-D wireless systems
- Receives up to 16 channels of Axient Digital or 24 channels of ULX-D in a single rack space
- Channel licenses are perpetual licenses, available in single- and four-channel options (sold separately)*
- Purchased channel licenses can be activated in one ANX4 and later removed and activated in another ANX4, as needed, conveniently via ShureCloud user account
- Wide tuning range covers 174 MHz to 2 GHz, covering all Axient Digital and ULX-D options (except for the ULX-D 902 MHz band)
- All Axient Digital or ULX-D features included**

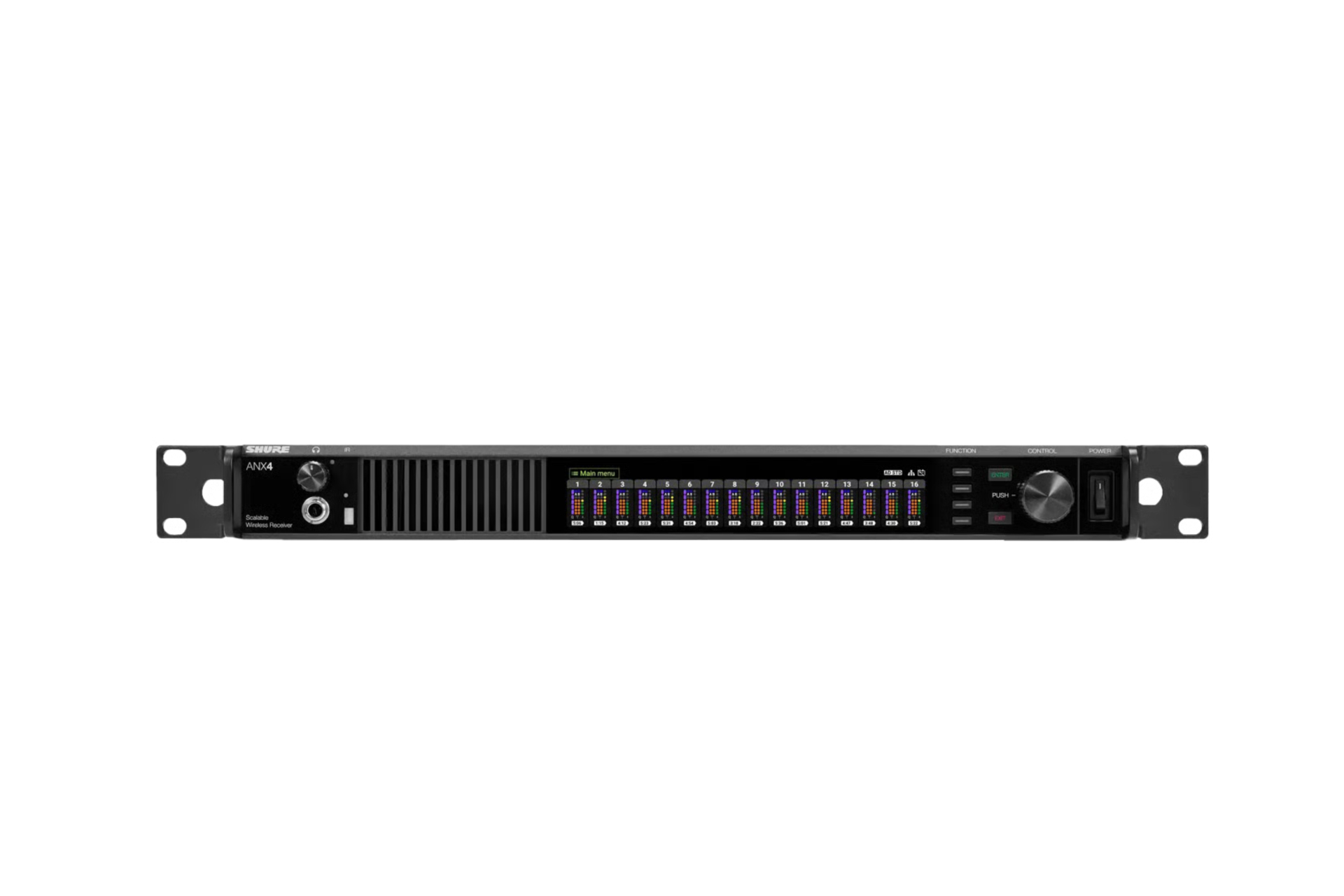

- Large, 6.6-inch front panel colour display
- Five-segment Channel Quality meter displays RF signal-to-noise
- ¼-inch front-panel headphone connector for monitoring with Dante Browse (for both Axient Digital and ULX-D)
- Streamlined and cost-saving antenna setup for large-scale wireless deployment scenarios

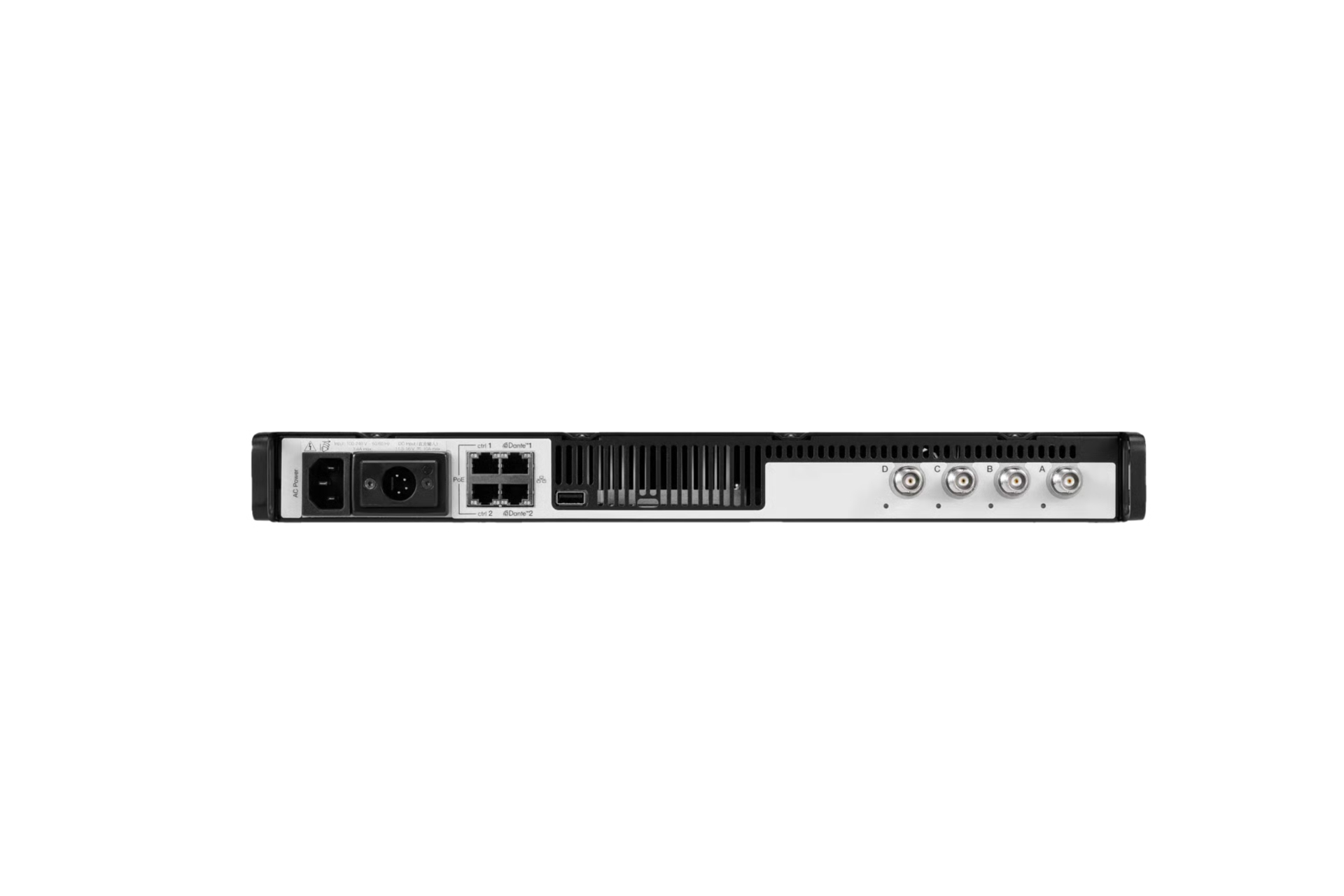

- 4 x Ethernet ports for network control and Dante/AES67 digital output options
- 4 x coaxial RF antenna input connectors support multiple frequency bands and provide greater coverage for complex setups
- Networked control with Shure Wireless Workbench® for extended and enhanced RF monitoring and management
- DC module version available to support redundant power
