Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution

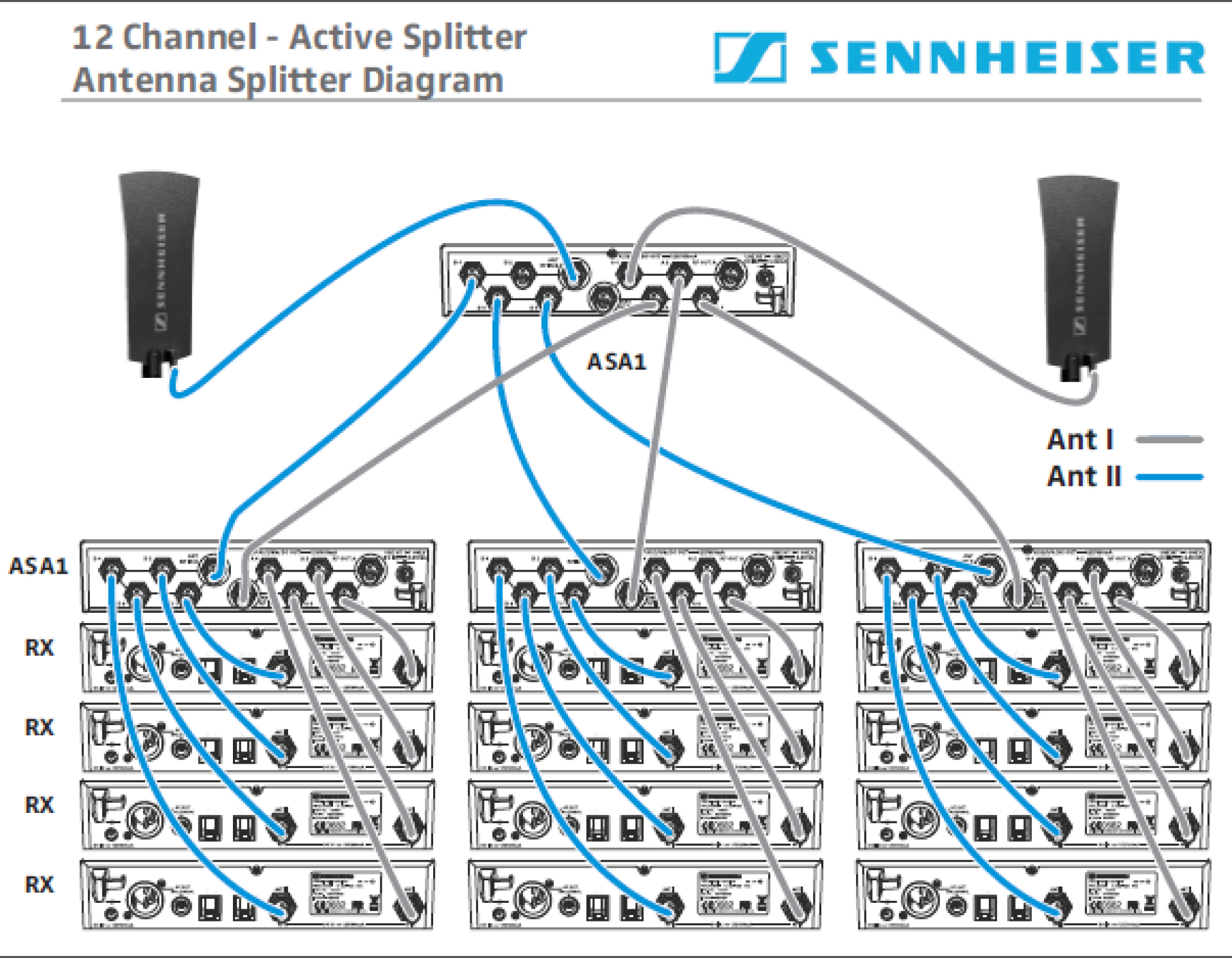

Sennheiser ASA Distro Example
Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution
Sennheiser Wireless Antenna Distribution
Sennheiser ASA Distro Example

Sennheiser Wireless Antenna Distribution

Key Features:

  • For use with Evolution Wireless Digital (EW-D/ EW-DX), Evolution Wireless G4, IEM Systems & Digital 6000.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Sennheiser Wireless Antenna Distribution


Sennheiser Wireless Antenna Distribution including various combiner/ splitters, antennas/ paddles and signal boosters.

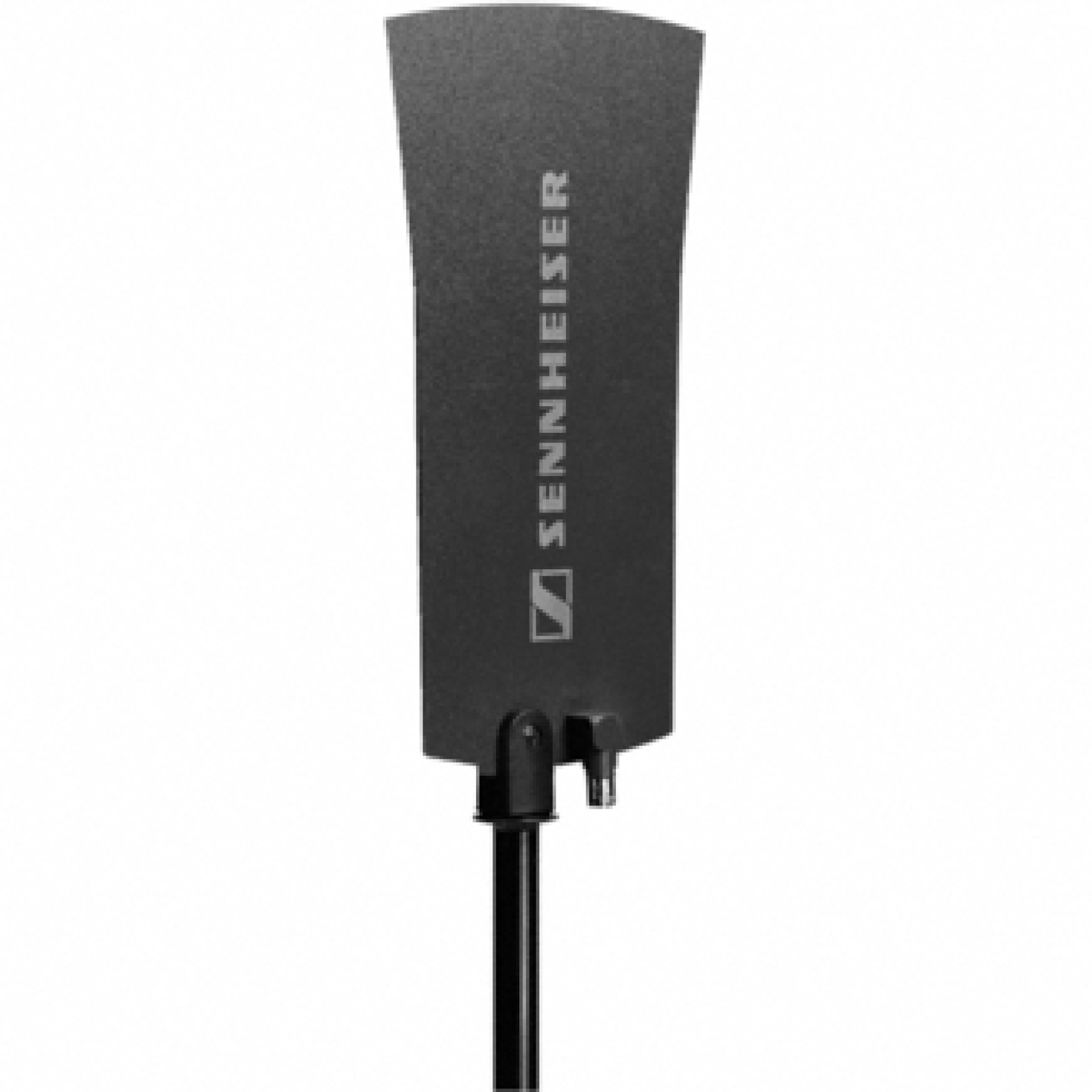

  • A 1031-U Passive omni-directional antenna.

    • Transmitting and receiving antenna for frequencies between 450 and 960 MHz.

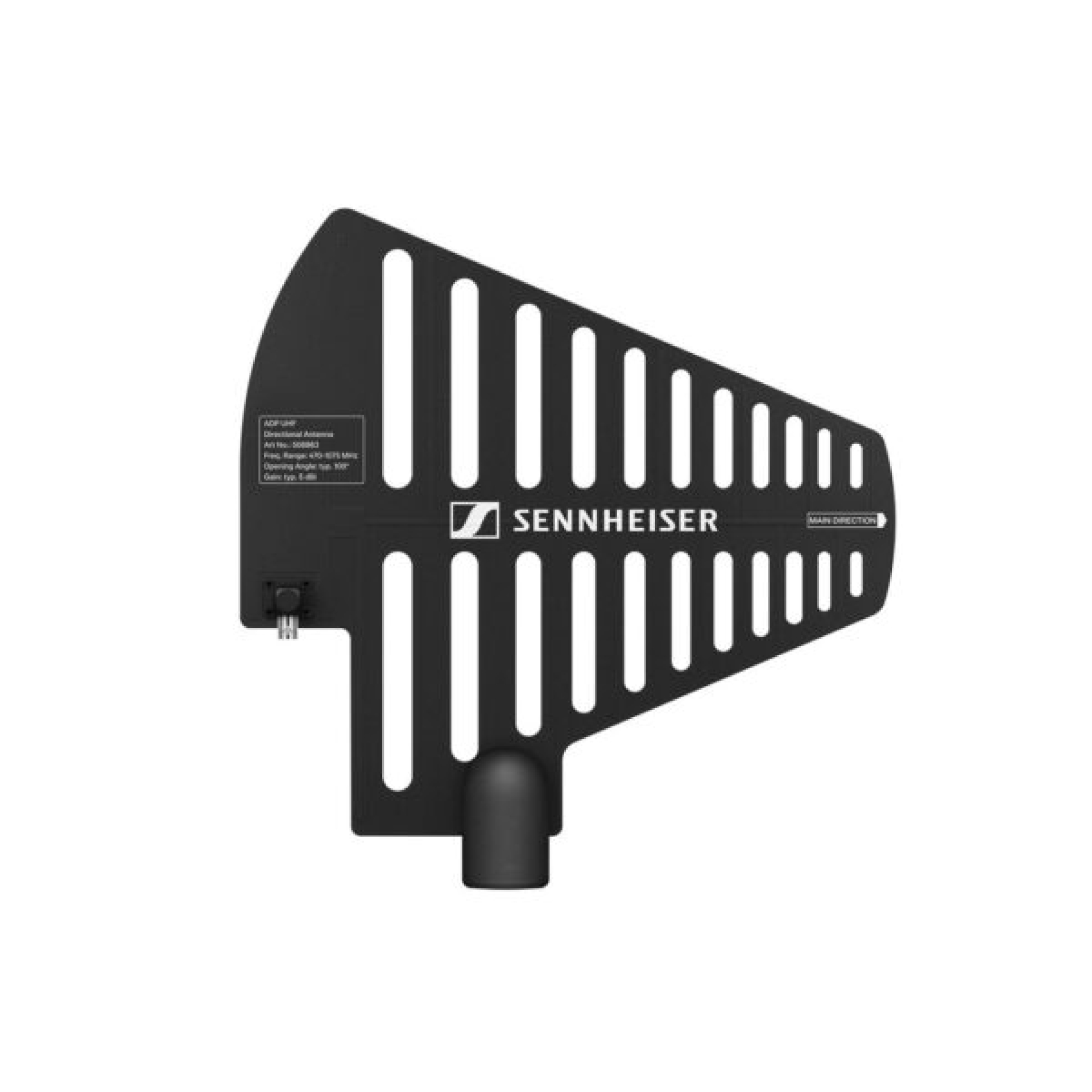

    ADP-UHF Passive external directional antenna.

    • UHF transmission greatly enhances range, reliability and scalability

    • Built-in ⅝” and ⅜” threads allow for easy mic stand mounting

    A 5000-CPCircular polarized helical passive antenna.

    The A 5000-CP passive antenna provides an optimum solution for both transmitting and receiving RF signals throughout the UHF spectrum. Installations have demonstrated that the circular polarization of this antenna minimizes variations in signal strength and almost eliminates multipath problems, a primary cause dropouts. The gain of this antenna over the entire UHF band is superior to common `off the shelf’ antennas.

    The wideband design (450-960MHz) of the A 5000-CP allows it to accommodate antenna distribution systems for either wireless monitors or wireless microphones across multiple frequency ranges, offering maximum flexibility when designing complex RF systems.

    • High Gain

    • Minimized Multipath

    • Broadband

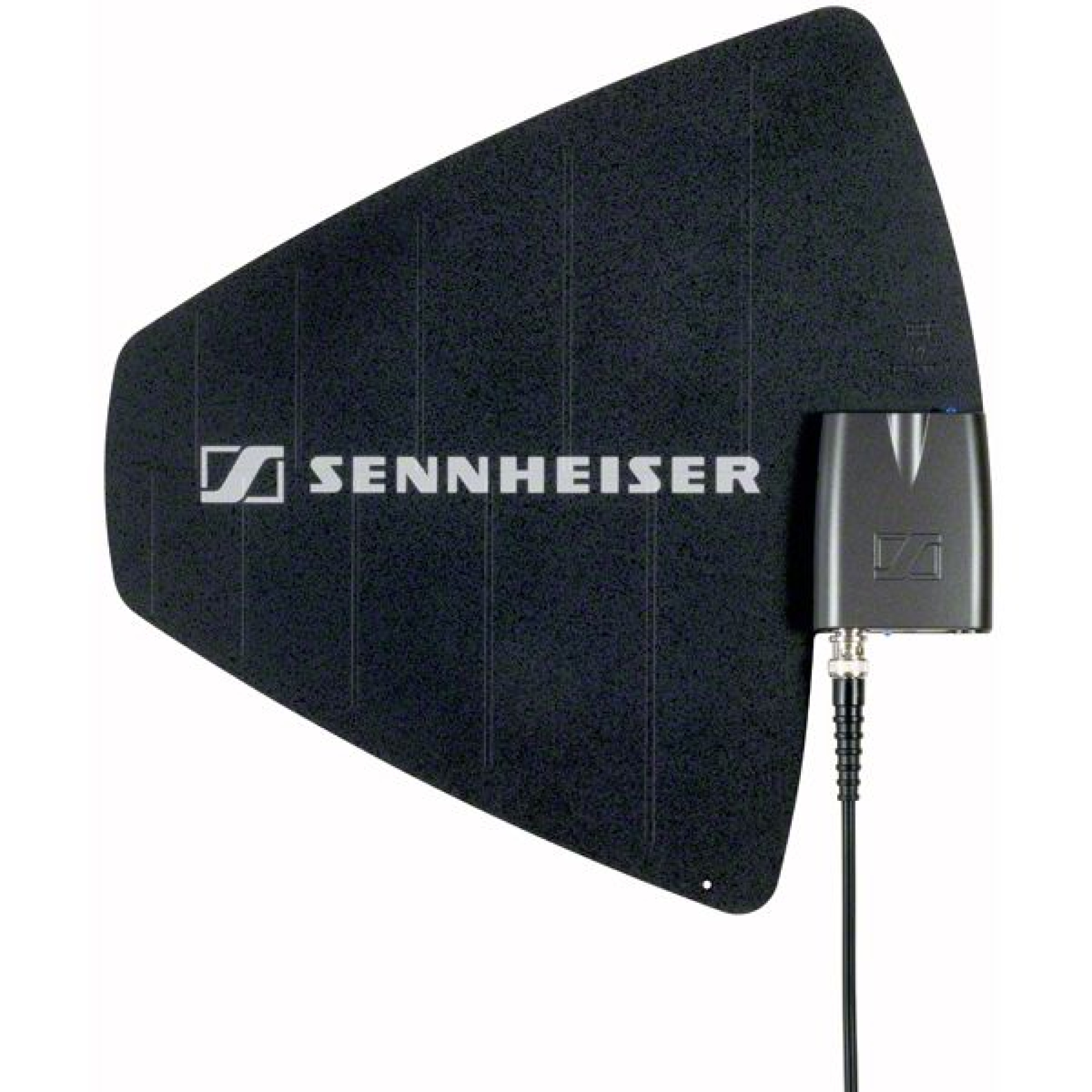

    AD 3700 Directional antenna with integrated AB3700 for EM 3731/3732, EM 2000/2050 and EM 6000 receivers only.

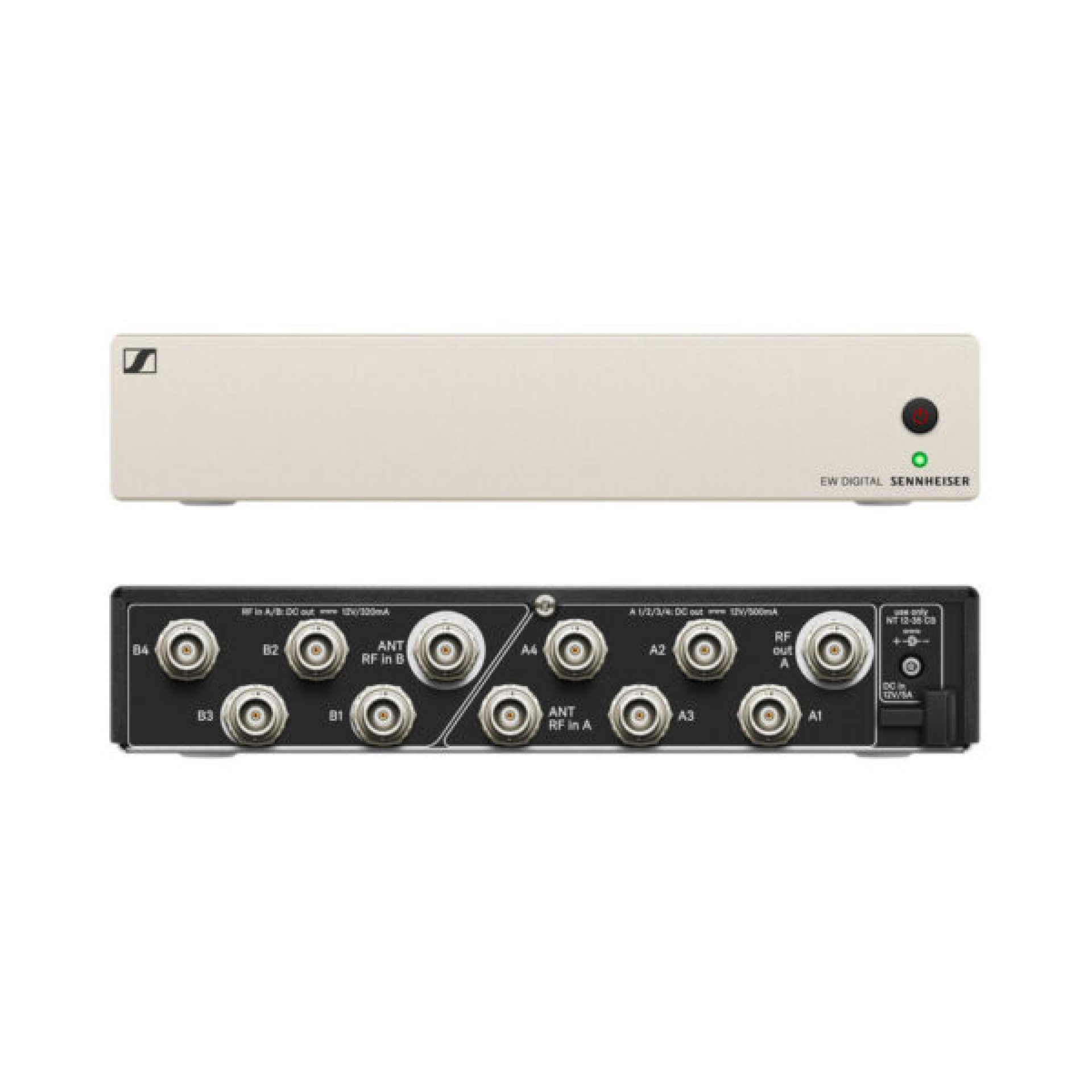

  • EW-D ASAActive antenna splitter for use with Evolution Wireless Digital systems. Includes PSU & (8) BNC cables. Backwards compatible with G4 systems.

    ASA 3000-UKActive wideband antenna splitter for up to 16 channels (8 dual receivers), may be made narrowband with optional IM3000 selective RF input modules – cables not included.

    AC 3200-IIActive 8-channel antenna combiner for large, wireless monitor systems. Up to eight inputs, up to 100mW per channel, for transmission via single antenna. Avoids bothersome intermodulation; quick overview via LED strip.

    AC 41-UK Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.

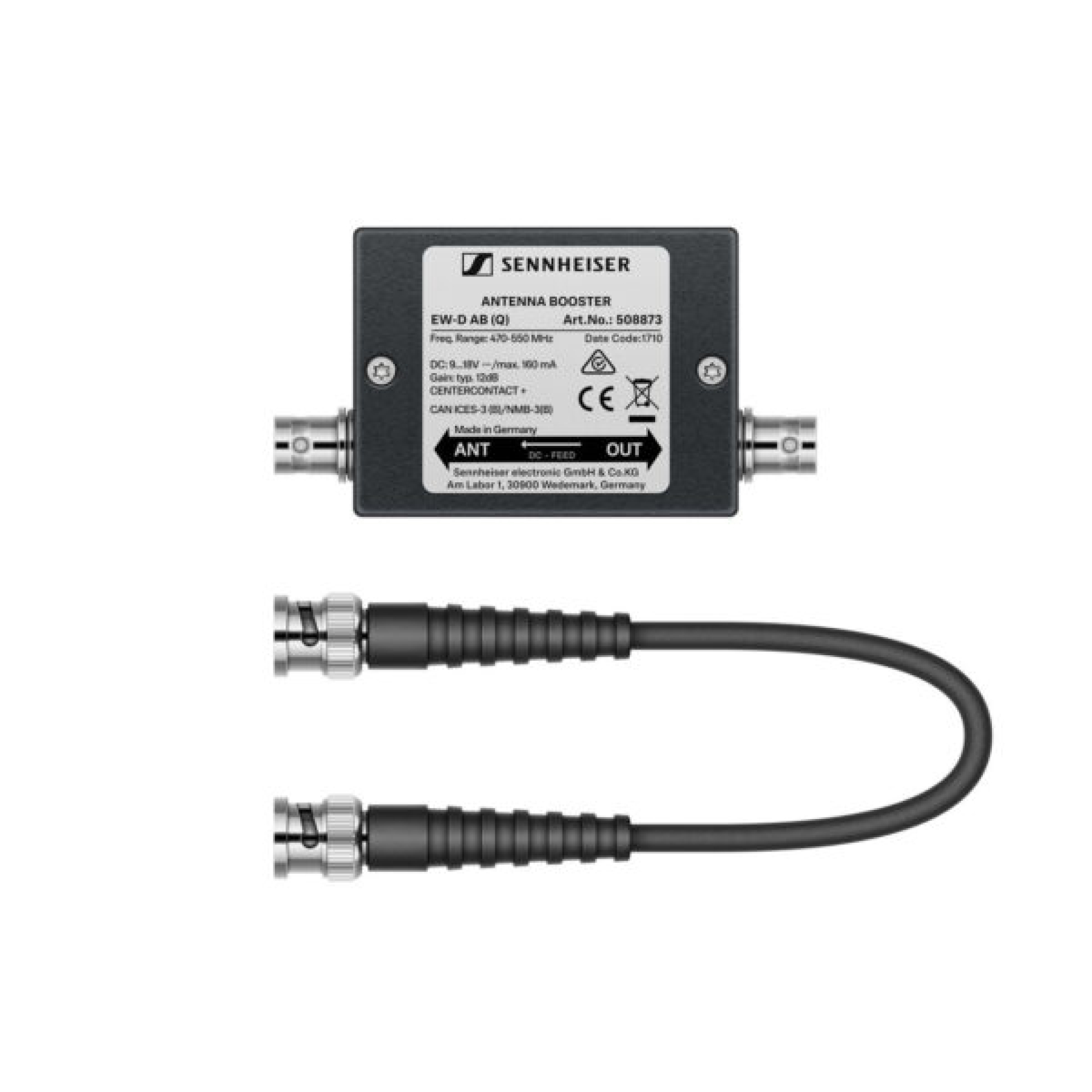

  • EW-D ABAntenna booster for use with Evolution Wireless Digital systems.

    AB 4-GBWFiltered, inline antenna booster module with BNC connectors, designed to offer typ. +12dB of boost to compensate for signal losses created by long antenna cable runs. The AB 4 is fully compatible with all legacy evolution wireless systems. Additionally, the AB 4’s filters have been expanded to support the bandwidths up to 88 Mhz.

    AB 3700Broadband antenna booster for EM 3731/3732, EM 2000/2050 and EM 6000 receivers only.
