OmegaPix 26B

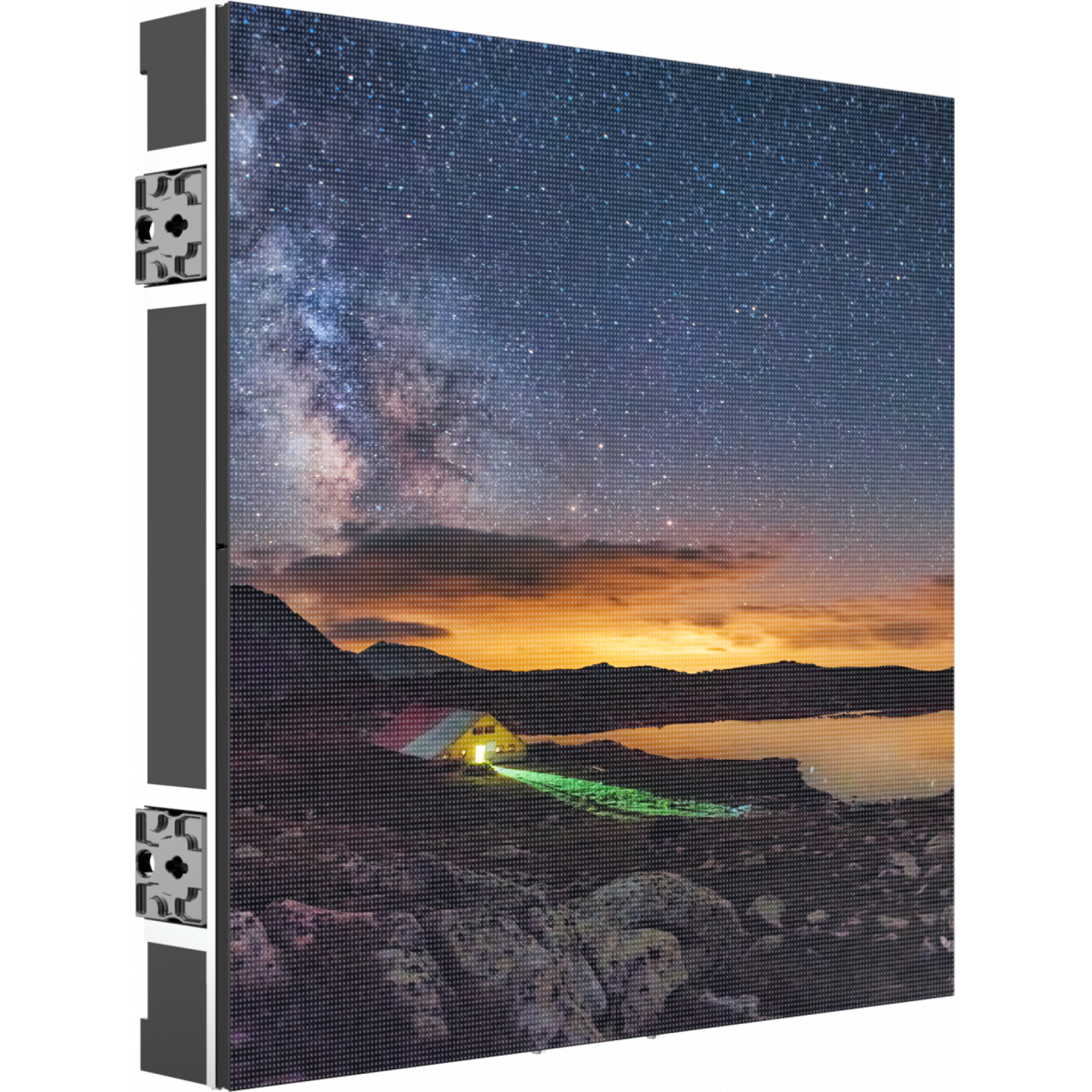

PROLIGHTS OmegaPix 26B - front angled, screen on

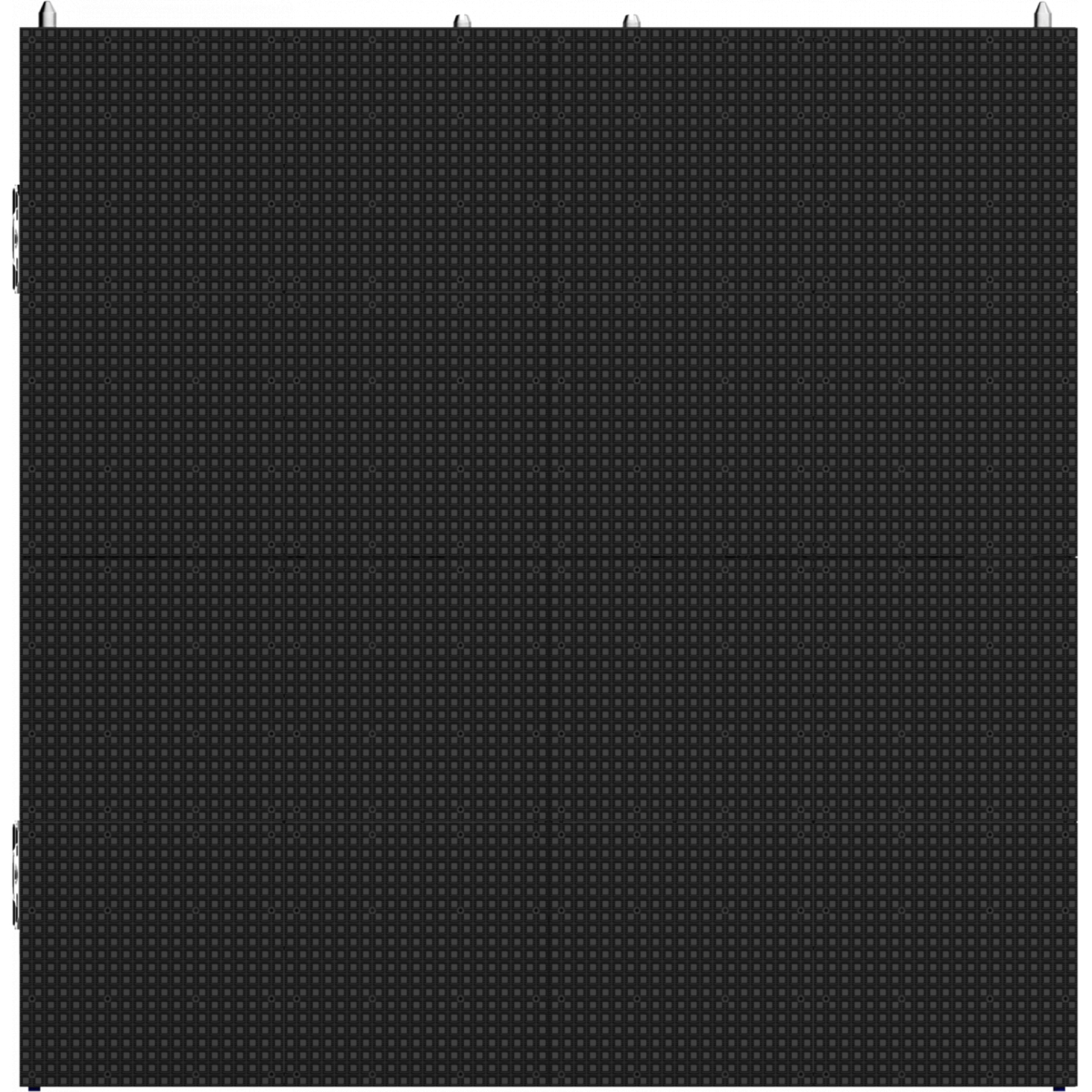

PROLIGHTS OmegaPix 26B - front, straight on, screen off

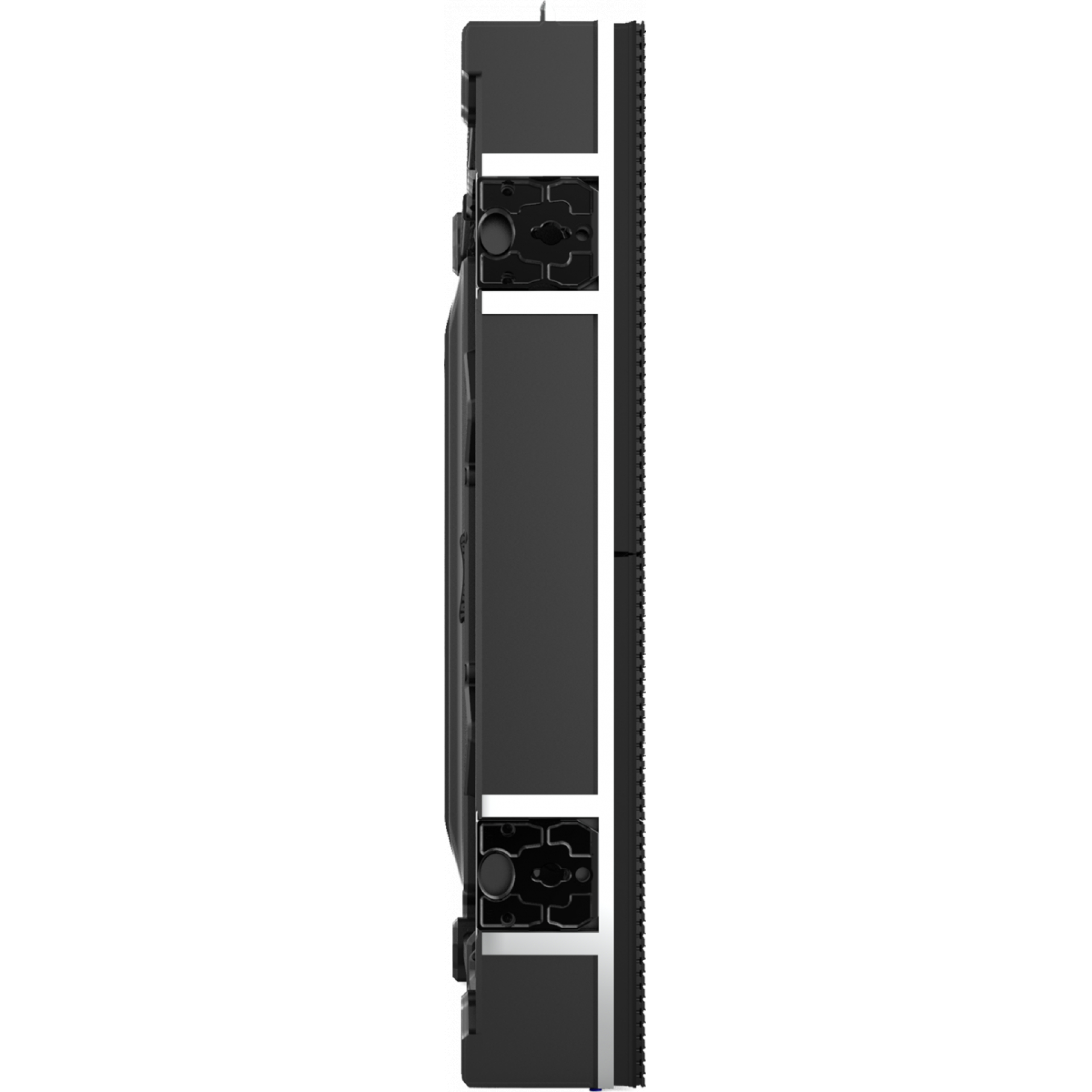

PROLIGHTS OmegaPix 26B - side

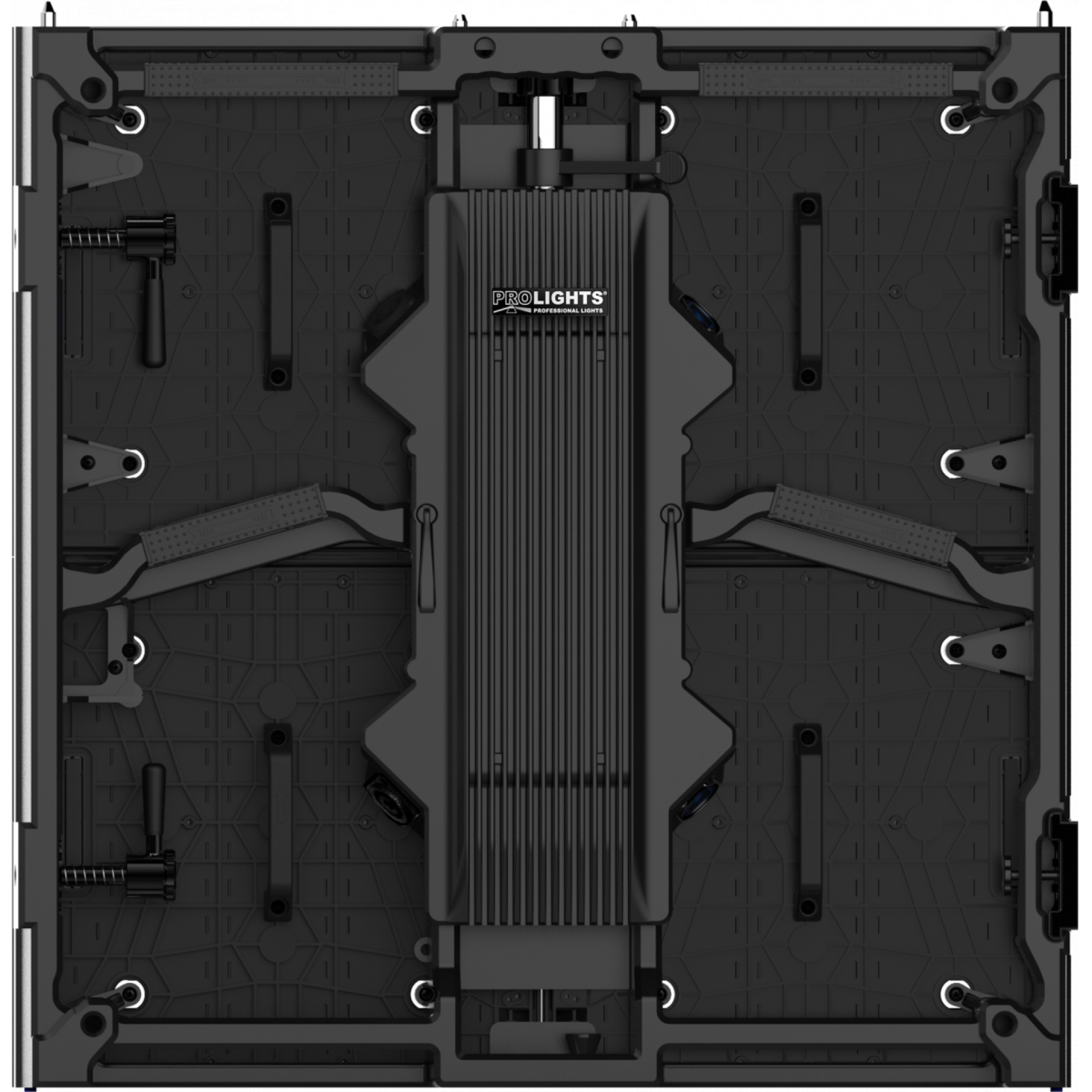

PROLIGHTS OmegaPix 26B - back
PROLIGHTS OmegaPix 26B - front, straight on, screen off
PROLIGHTS OmegaPix 26B - side
PROLIGHTS OmegaPix 26B - back

OmegaPix 26B

PROOMEGAX26B

Key Features:

  • 2.6mm pixel pitch indoor rental LED Screen
  • Seamless 90° angles
  • Curve configurations, concave and convex
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

OmegaPix 26B

PROLIGHTS OmegaPix 26B is a revolutionary indoor 2.6mm LED screen rental panel, designed to offer advanced mechanical features, more creative configurations and empowered video image quality.

Product Variants

PROLIGHTS OmegaPix 26B - front angled, screen on
Standard OmegaPix 26B

Enquiry Form

PROLIGHTS OmegaPix 26B - front angled, screen on
45° Right OmegaPix 26B

Enquiry Form

PROLIGHTS OmegaPix 26B - front angled, screen on
45° Left OmegaPix 26B

Enquiry Form

The PROLIGHTS OmegaPix 26B panels feature the latest NovaStar A8S receiving cards that provide 18 bit+ greyscale, 4 times higher than market average. That along with Smart Gamma correction effectively improves greyscale performance under low brightness, which contributes towards meeting the requirements of TV/Film applications.

    • LED source: SMD2121 FullBlack
    • Pixel pitch: 2.6mm
    • Panel resolution: 192x192pixels
    • Power input/output: Seetronic True PowerCON
    • Control protocol: NovaStar
    • Signal input: Waterproof Seetronic RJ45
    • Signal output: Waterproof Seetronic RJ45
    • Panel size(WxHxD): 500m×500mm×90.6mm
    • IP rating: IP30 (front and rear)
OmegaPix 26B - Variant Downloads
