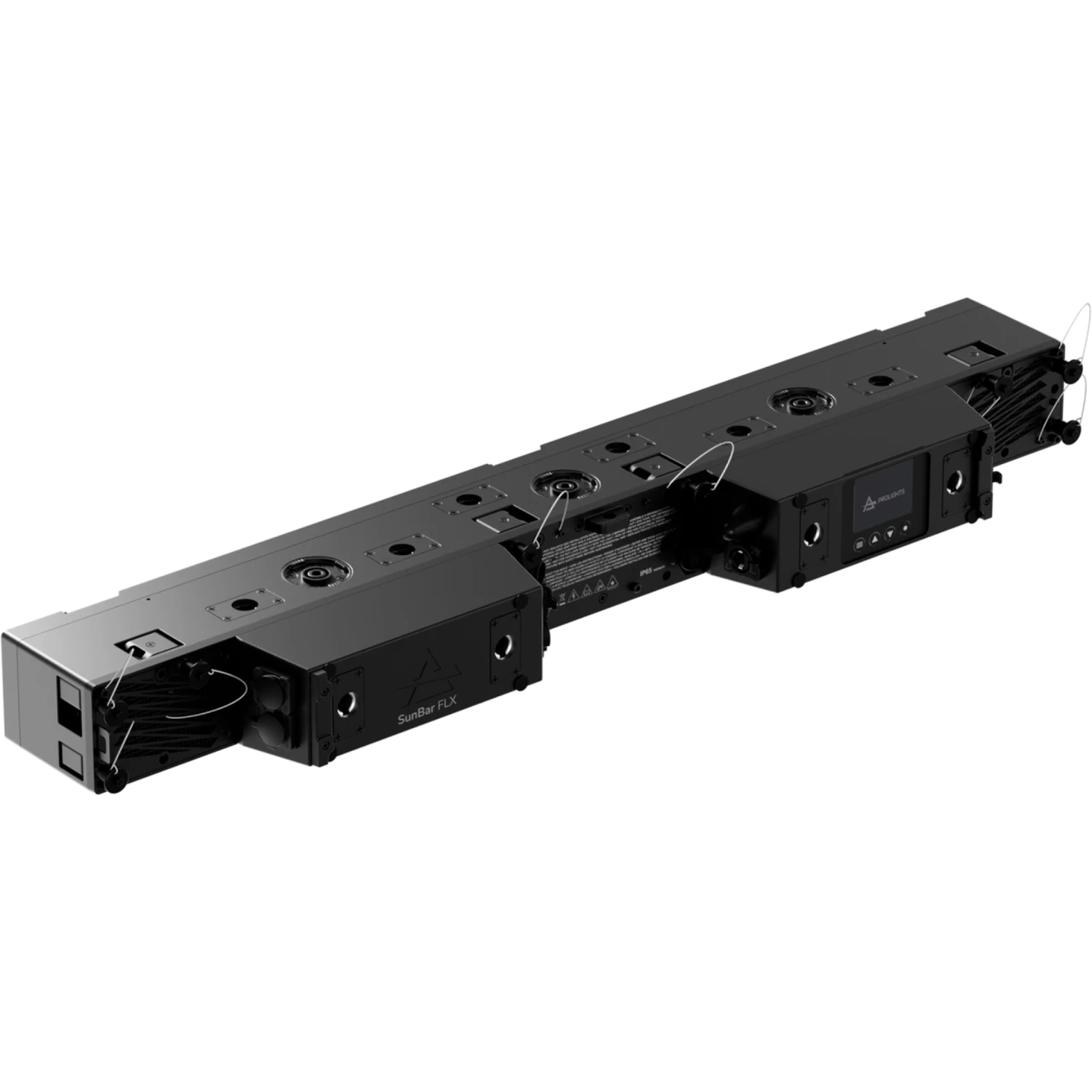

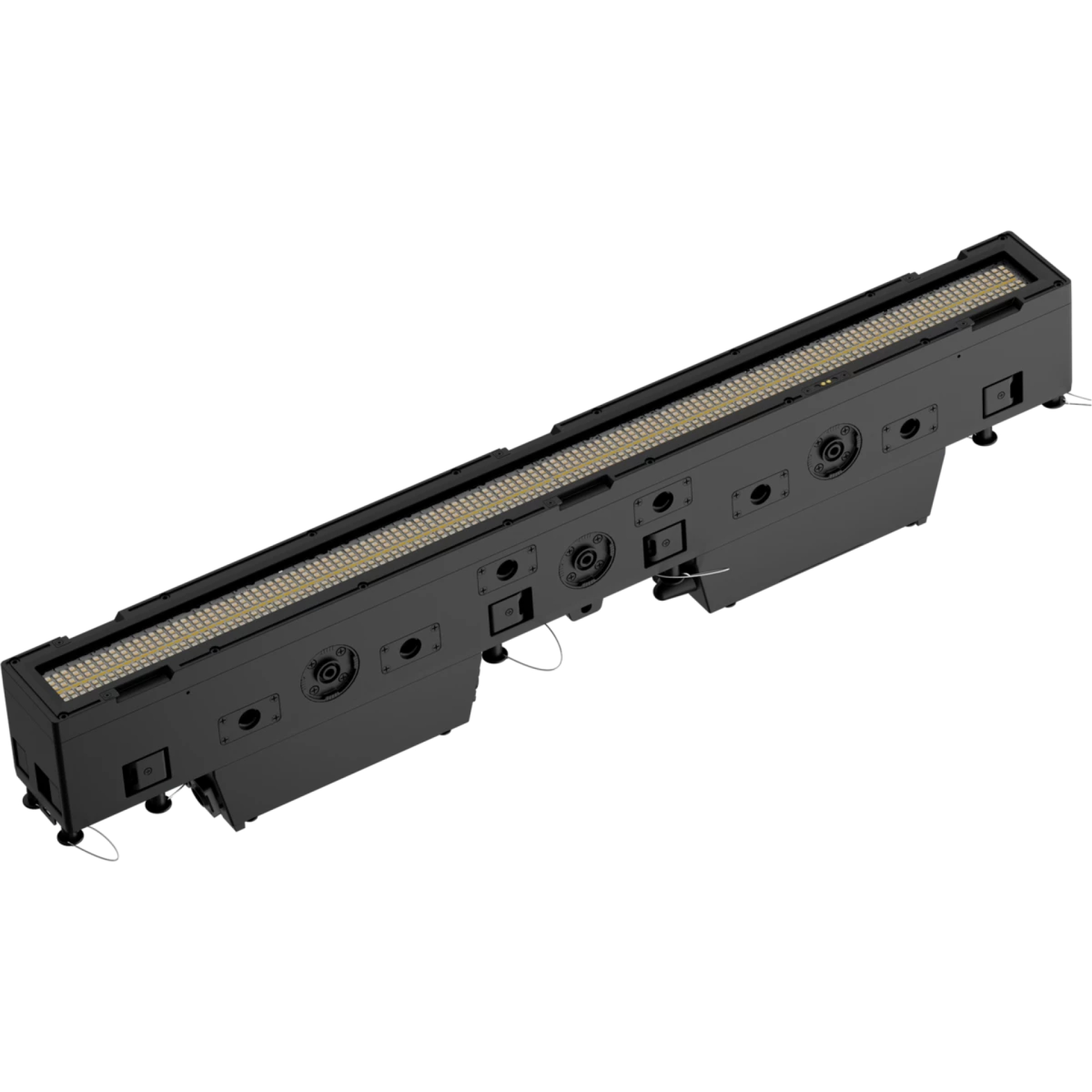

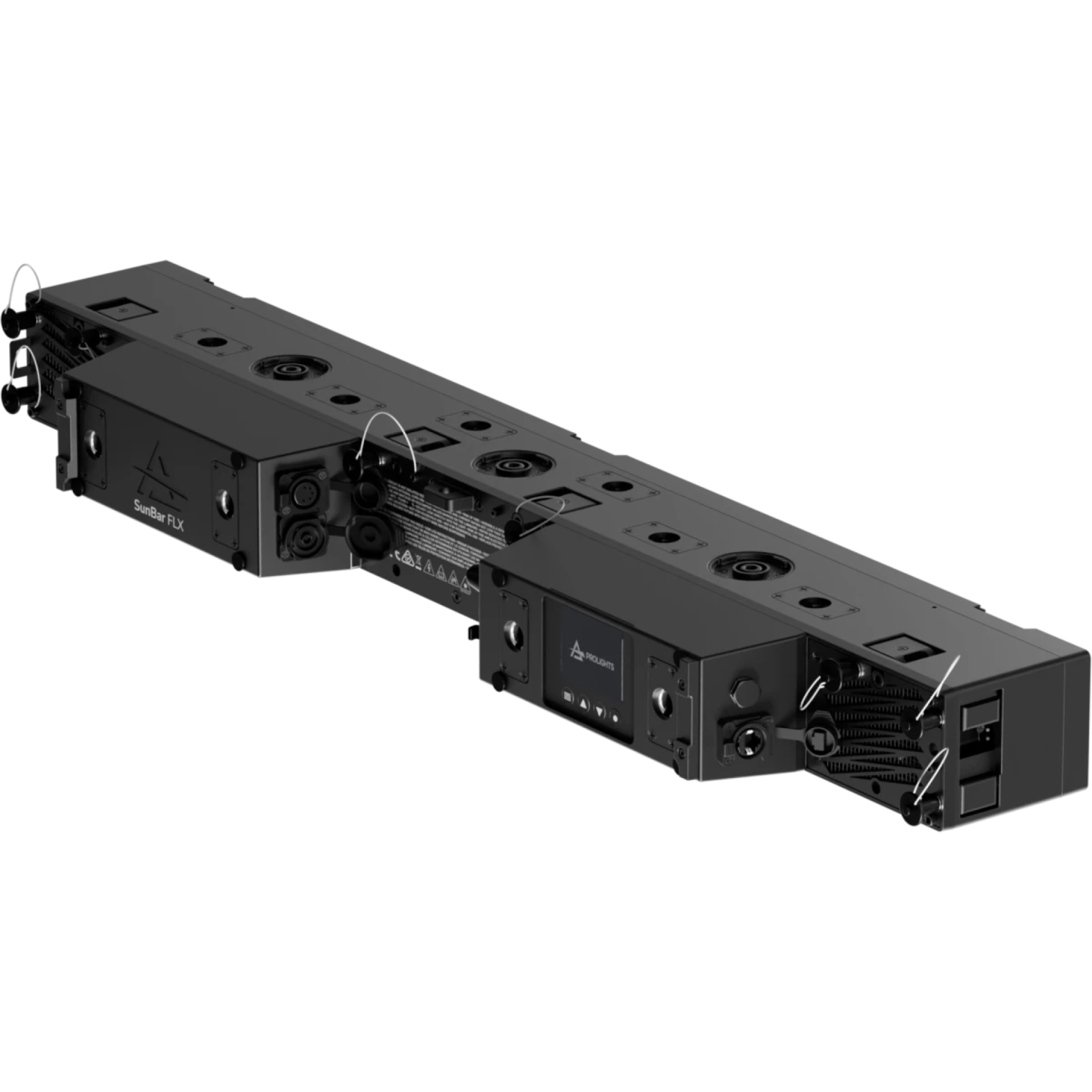

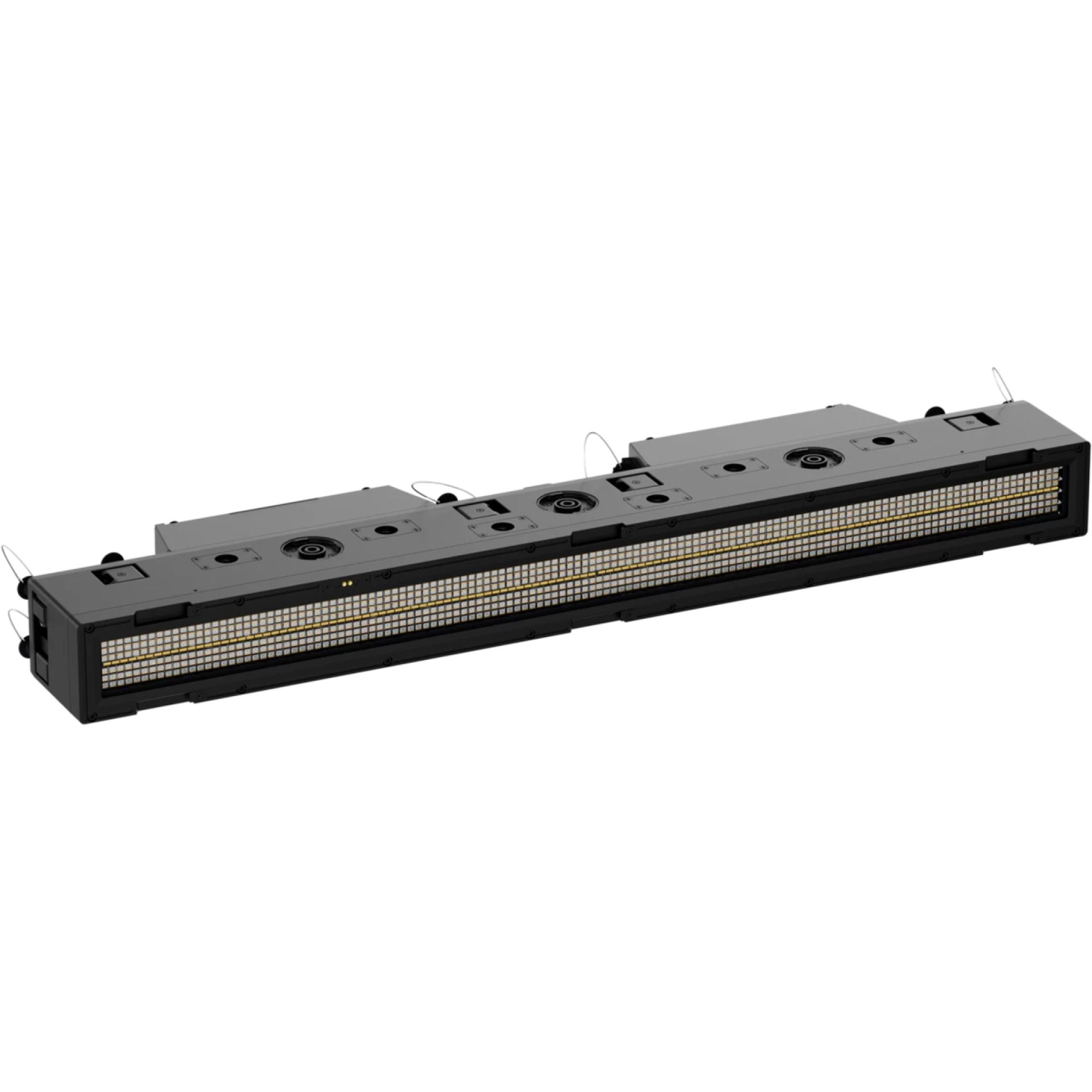

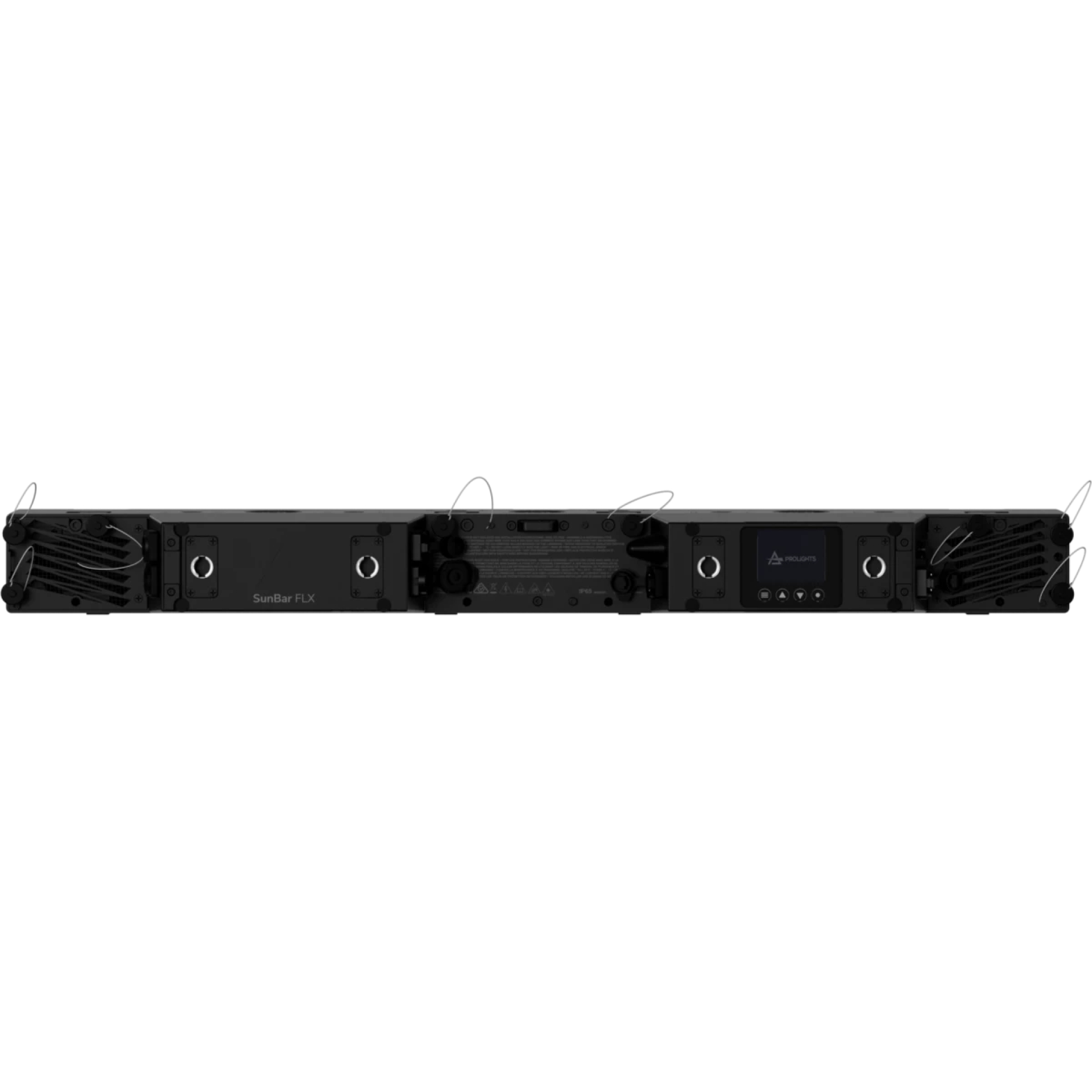

SunBar FLX is a linear IP65 hybrid LED strobe and wash fixture, expanding the family of bright, modular Sun fixtures for strobes and blinders. It retains the core strengths of the range: versatility, free-form modularity, and extremely high output.
SunBar FLX features a central white LED beam with 24 controllable sections, paired with an RGB + Warm White plate with 32 pixels. This dual-source design delivers an impressive output of >90,000 lumens, with 1200W peak power in strobe mode and 400W continuous power in wash mode. Built for creative applications, SunBar FLX supports high-impact modular configurations, advanced pixel effects, and multi-unit clusters for any indoor or outdoor stage.
The colour engine is powered by the Spektra OS ecosystem, providing multiple colour control modes, high-quality whites, and smooth, precise dimming.
Wide native beam angles on both sources make SunBar FLX equally effective as an audience blinder, colour strobe, or wide-area wash. An optional quick-lock electronic frost filter is available to soften and diffuse the output when required.
Designed for fast, tool-free assembly, SunBar FLX includes a modular rigging system for vertical or horizontal arrays and cluster setups with other Sun-series fixtures such as SunRise FLX and SunBlast FLX. With an IP65 rating, it delivers reliable outdoor performance, ideal for festivals, events, and temporary architectural lighting. Control options include wired sACN/Art-Net and optional wireless CRMX, ensuring seamless integration into any lighting system.
Source: (Beam 24 px) 120 x 12 White LEDs + (Plate 32 px) 768 x 1.2kW RGB + Warm White LEDs
Luminous flux: Full Power Strobe - Combined: 92,000 lm @ full
Luminous flux: Full Power Wash - Plate: 26,787 lm @ full
Luminous flux: Full Power Wash - Beam: 44,786 lm @ full
Luminous flux: Full Power Wash - Combined: 36,557 lm @ full
Lux: Full Power Strobe - Combined: 1,540lx @ 5m full
Lux: Full Power Wash - Plate: 397lx @ 5m full
Lux: Full Power Wash - Beam: 611lx @ 5m full
Lux: Full Power Wash - Combined: 514lx @ 5m full
Source life expectancy: > 20,000 hr
Beam angle: (Plate) RGB+WW: 111° - (Beam) White LEDs: 118°
Field angle: (Plate) RGB+WW: 152° - (Beam) White LEDs: 152°
Spektra OS: unmatched color precision and consistency
Colour control: CCT, RGBW, Colour Macros
Colour mixing: RGB+WW + White LEDs
CCT: CCT channel from 2800K to 10000K
White presets: 2800-10000K
Control Resolution: 16-bit dimmer and color control
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Frost: optional electronic frost filter, continuously variable - see available accessories
Static mode: selection of static dimmer, colors and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
