StudioCob Plus Range

Key Features:

  • Single source COB LED with parabolic reflector
  • Rugged IP65 housing
  • Working barndoors and interchangeable lenses for beam control
Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

StudioCob Plus Range

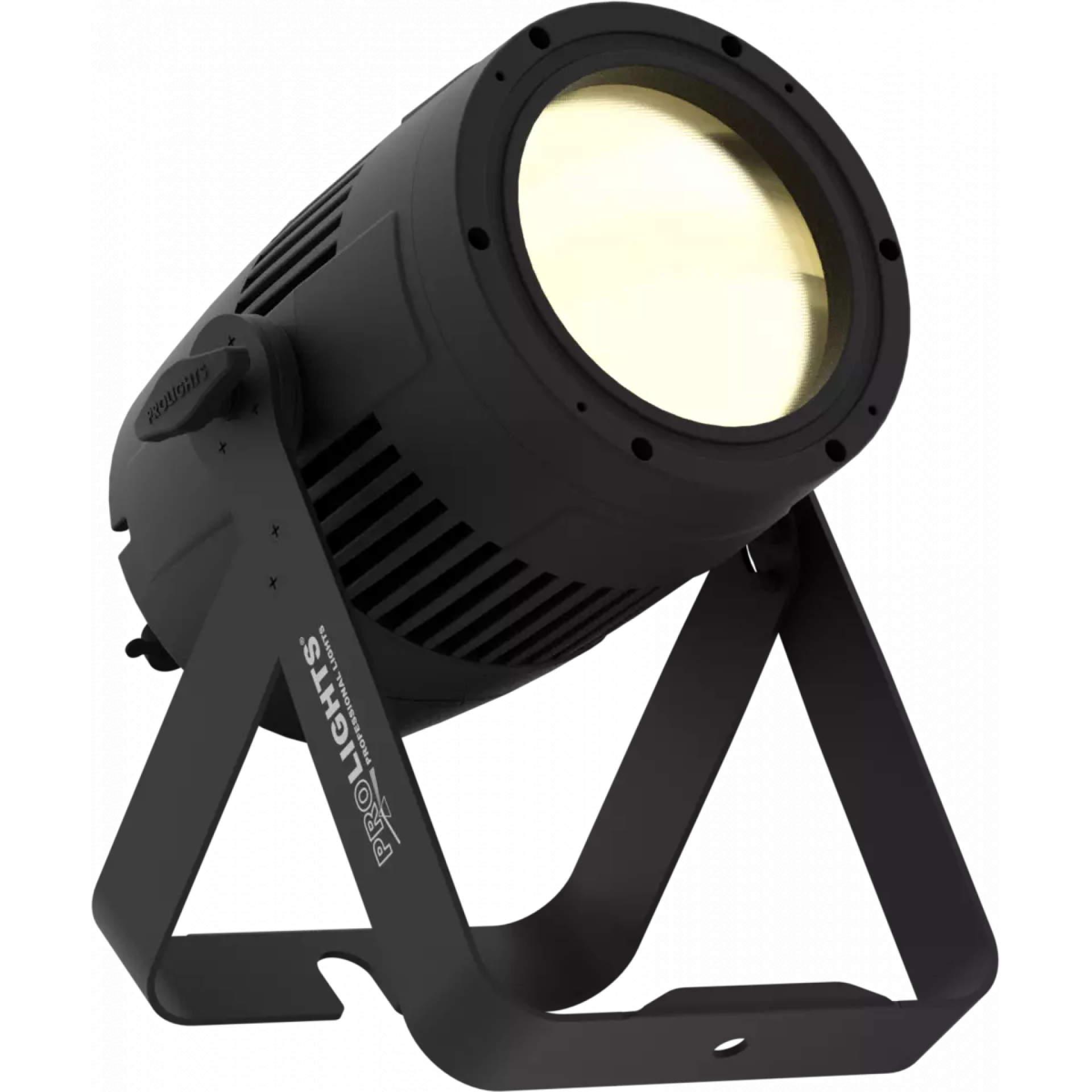

PROLIGHTS StudioCob Plus is a powerful, and incredibly versatile, IP65 rated LED par.

Product Variants

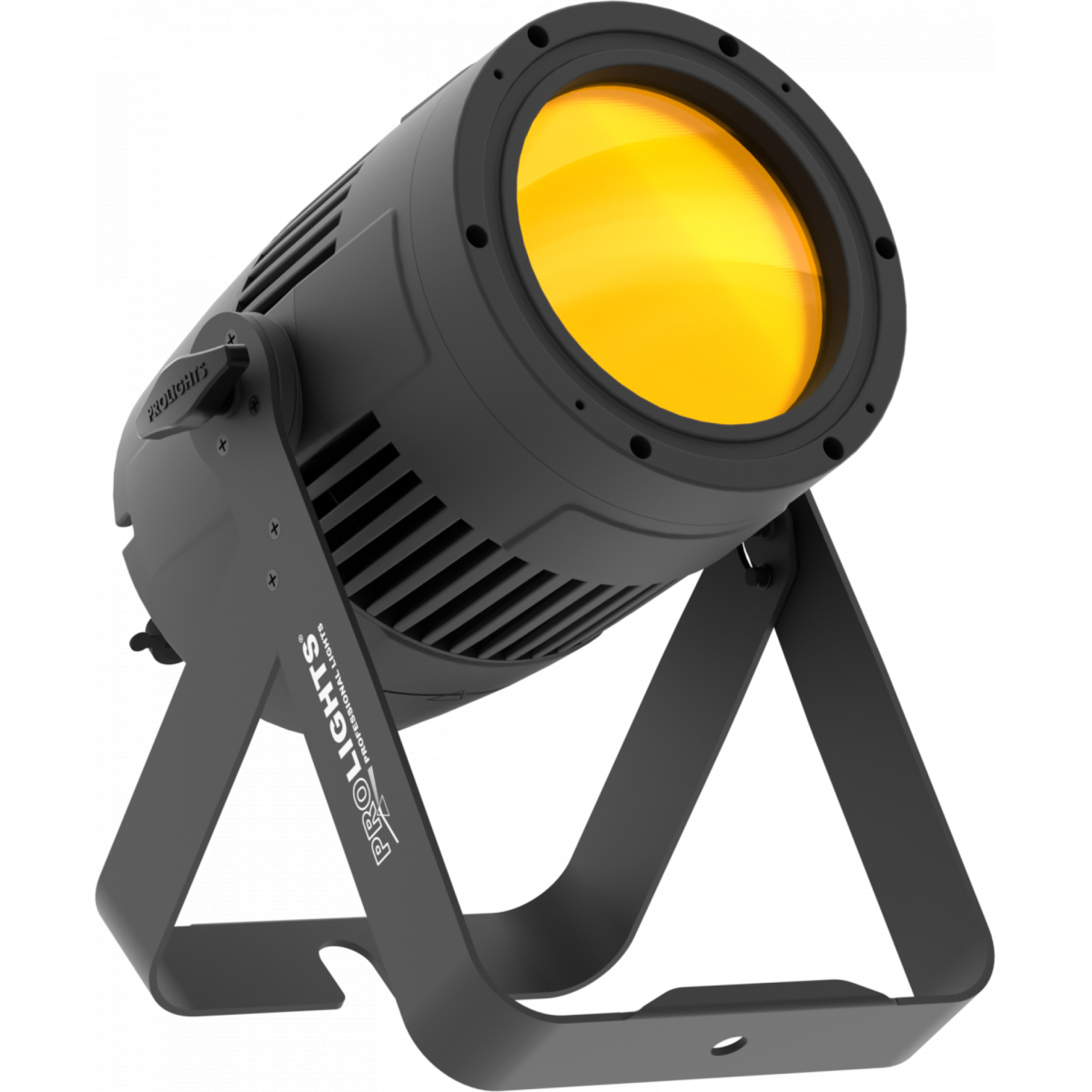

StudioCob PlusFC
PROSTUDIOCOBPLUSFC
  • 150W COB RGBW / FC LED
Enquire

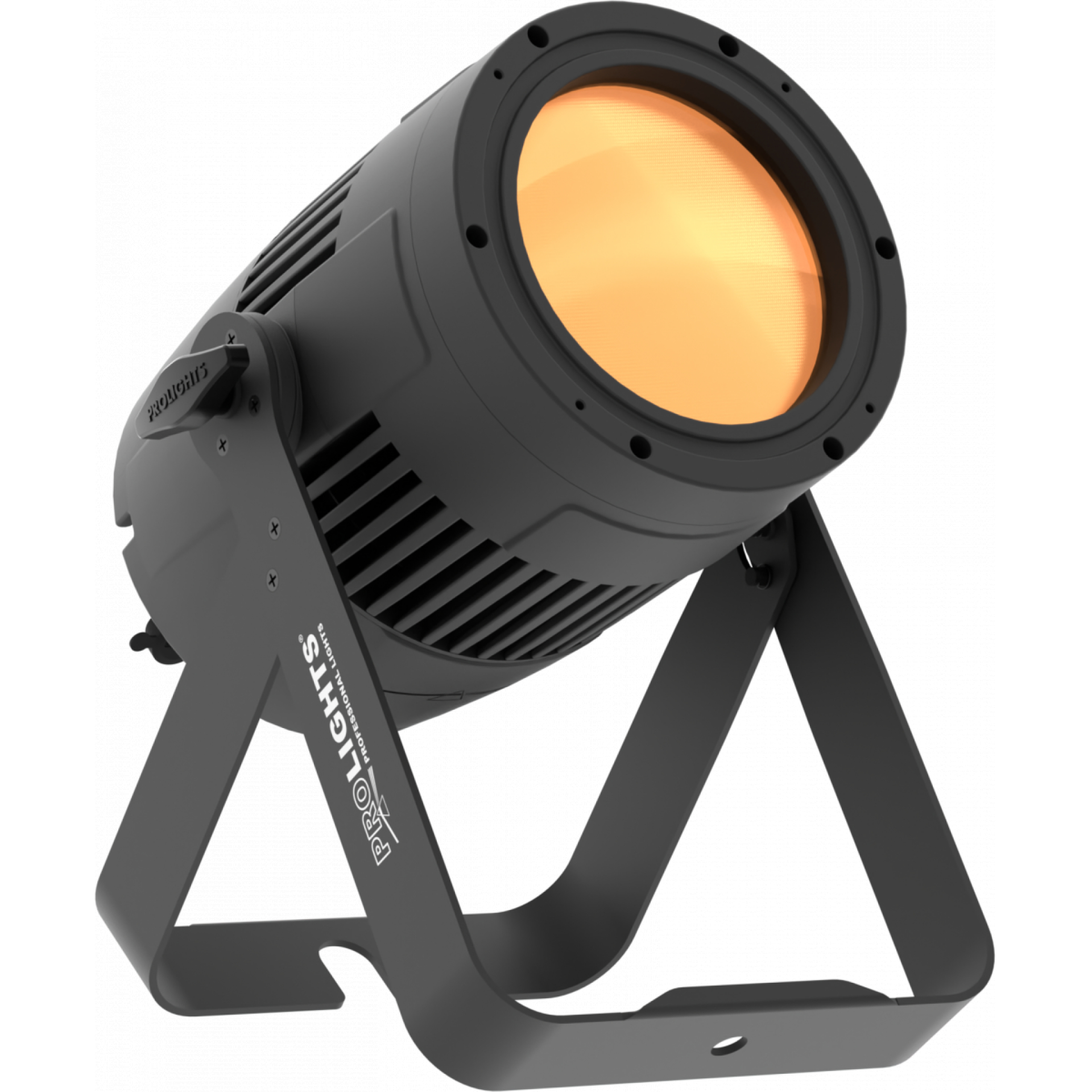

StudioCob PlusTU
PROSTUDIOCOBPLUSTU
  • 150W Tungsten White LED
  • 3,000K
Enquire
StudioCob PlusNW
PROSTUDIOCOBPLUSNW
  • 150W Neutral White LED
  • 4,000K
Enquire

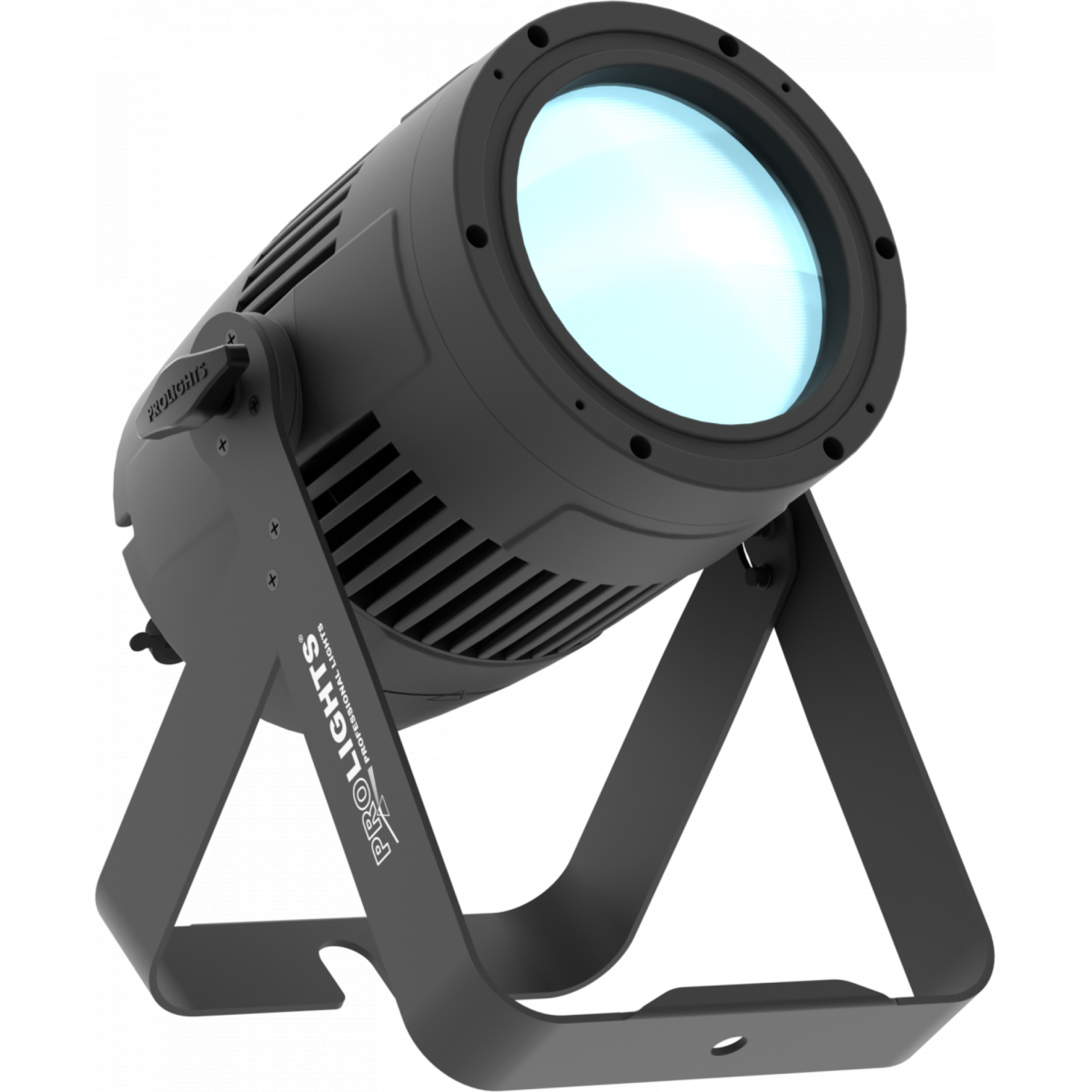

StudioCob PlusDY2
PROSTUDIOCOBPLUSDY
  • 150W daylight white LED
  • 5,000K
Enquire
StudioCob PlusTW
PROSTUDIOCOBPLUSDY
  • 155W Tunable White LED
  • WW 3,200K; CW 7,500K; NW 5,000
Enquire

Fusing the old and the new it pairs a COB LED source with a traditional parabolic reflector to deliver a proper PAR replacement with a homogenised output, single shadow, and flexible lens options.

  • Luminous flux (18°): (FC) 3,530lm; (TU) 8,419lm; (NW) 9,910lm; (DY2 19°) 9,822lm; (TW 20°) 3,809lm

    Luminous flux (38°): (FC) 3,172lm; (TU) 7,837lm; (DY2 37°) 8,595lm; (TW 36°) 3,510lm

    Lux (18°): (FC) 2,558lx; (TU) 5,873lx; (NW) 7,000lx; (DY2 19°) 2,337lx(@ 5m full); (TW 20°) @ 3m full

    Lux (38°): (FC) 645lx; (TU) 1,483lx; (DY2 37°) 600lx (@ 5m full); (TW 36°) @ 3m full

    Lux (19°): (DY2) 2,337lx @ 5m full

    Lux (37°): (DY2) 600lx @ 5m full

    Lux: (20°): (TW) WW 957lx; CW 1,462lx; NW 2,312lx @ 3m

    Lux: (34°): (TW) WW 331lx; CW 434lx; NW 732lx @ 3m

    CRI: (TU) > 90; (NW) >80; (DY2) >83; (TW) WW / CW > 95

    Source life expectancy: > 50.000hr (FC / DY2)

    Source life expectancy: > 30.000hr (TU / NW / TW)

    Beam angle: (on-board) 18°; (inc) 38°; (opt) 60° (FC / TU / NW / TW)

    Beam angle: (on-board) 19°, (inc) 37°, (opt) 53.8° (DY2)

    Field angle: (on-board) 36°, (inc) 63° (FC / TU / NW)

    Field angle: (on-board) 36.5°; (inc) 75.5°; (opt) 77.6° (DY2)

    Field angle: (on-board) 31°; (inc) 70° (TW)

    Lens type: parabolic reflector in combination with HD Fresnel lens

    Additional optics: 38° (inc)

  • Colour mixing (FC): RGBW / FC

    Colour mixing (TW): tunable white

    CCT (FC / TW): CCT control through dedicated DMX channel

    White presets (FC): 2,000K ~ 10,000K

    White presets (TW): 3,200K ~ 7,500K

    Colour wheel (FC): virtual colour wheel with macros

    Static mode: selection of static colour

    Manual mode (FC): manual adjustment of colour

    Manual mode (TU / NW / DY2 / TW): manual adjustment of dimmer and strobe

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, RDM

    DMX channels: 4 / 6 / 10 channel (FC)

    DMX channels: 1 / 2 / 5 channel (TU / NW / DY2

    DMX channels: 2 / 4 / 7 channel (TW)

    RDM: RDM for remote monitoring and settings

    Display: black OLED touch display (FC / TU / NW TW)

    Display: LCD high resolution colour display (DY2)

    Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

    Master/Slave: for synchronised operation of more units linked in a chain

StudioCob Plus Range - Variant Downloads

You might like...

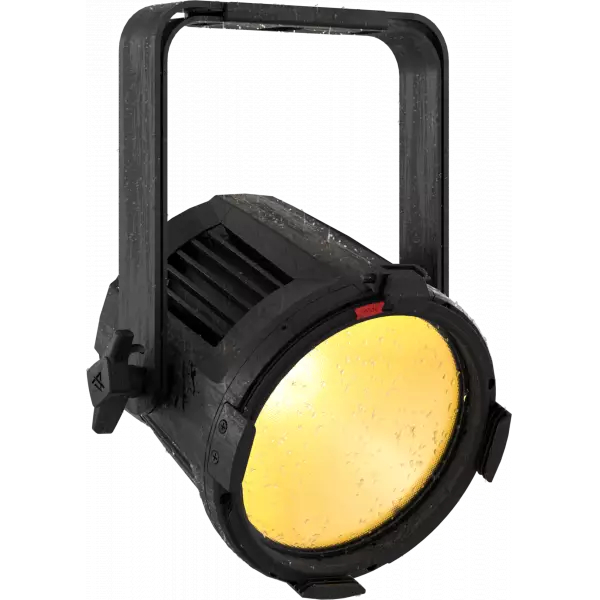

PROLIGHTS EclPar IPMFC LED PAR
Product - LIGHTING
EclPar IPMFC
    • 100W Spektra calibrated RGB + Warm White LED
    • Flex lens system: 15° on-board - 30° and 60°
    • IP65 for exterior application
Find out more

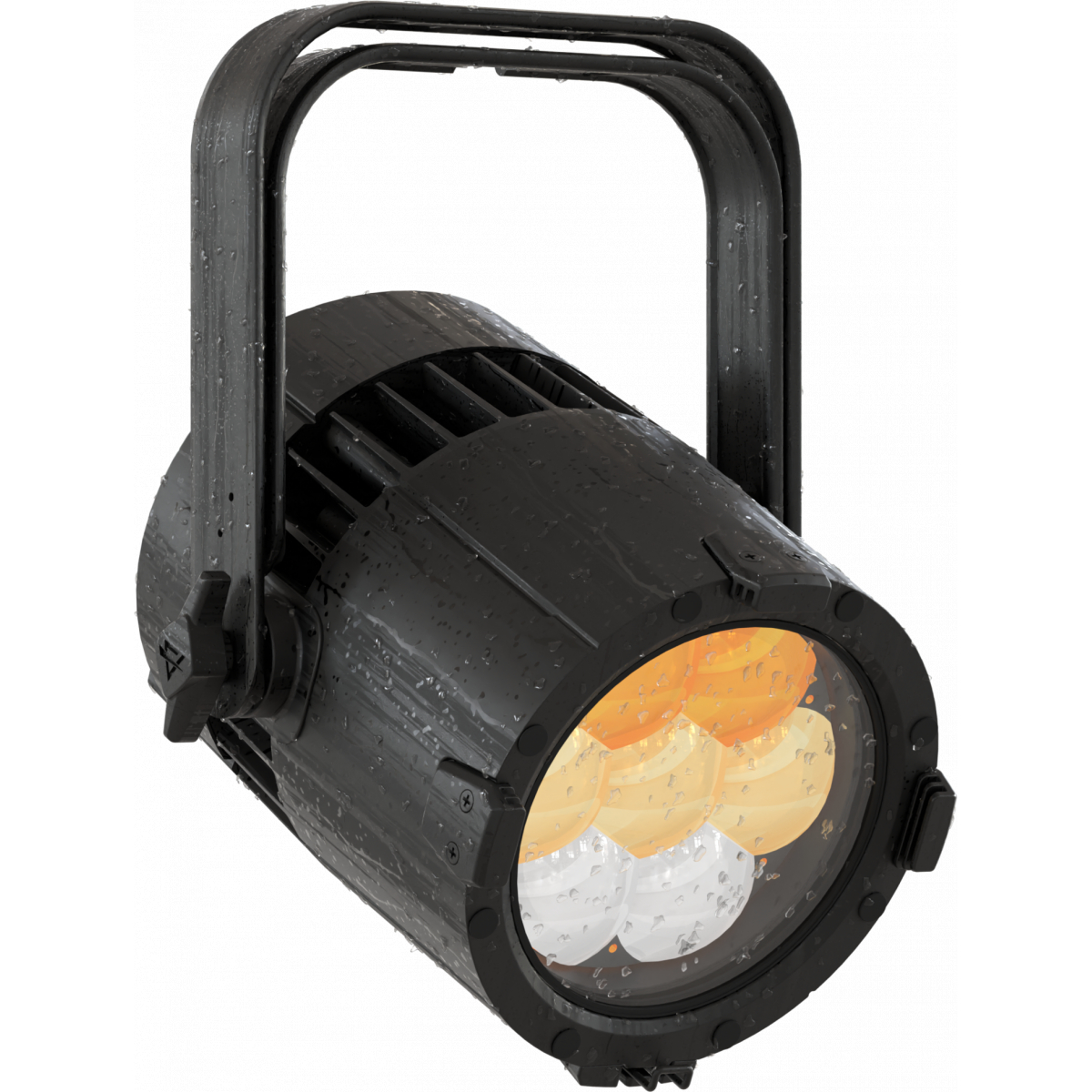

PROLIGHTS Astra PAR7ZIP LED PAR
Product - LIGHTING
Astra PAR7ZIP
    • 7x40W RGB + Warm White LED
    • 4.5° - 53° motorised linear zoom
    • IP65 rating for outdoor installations
Find out more

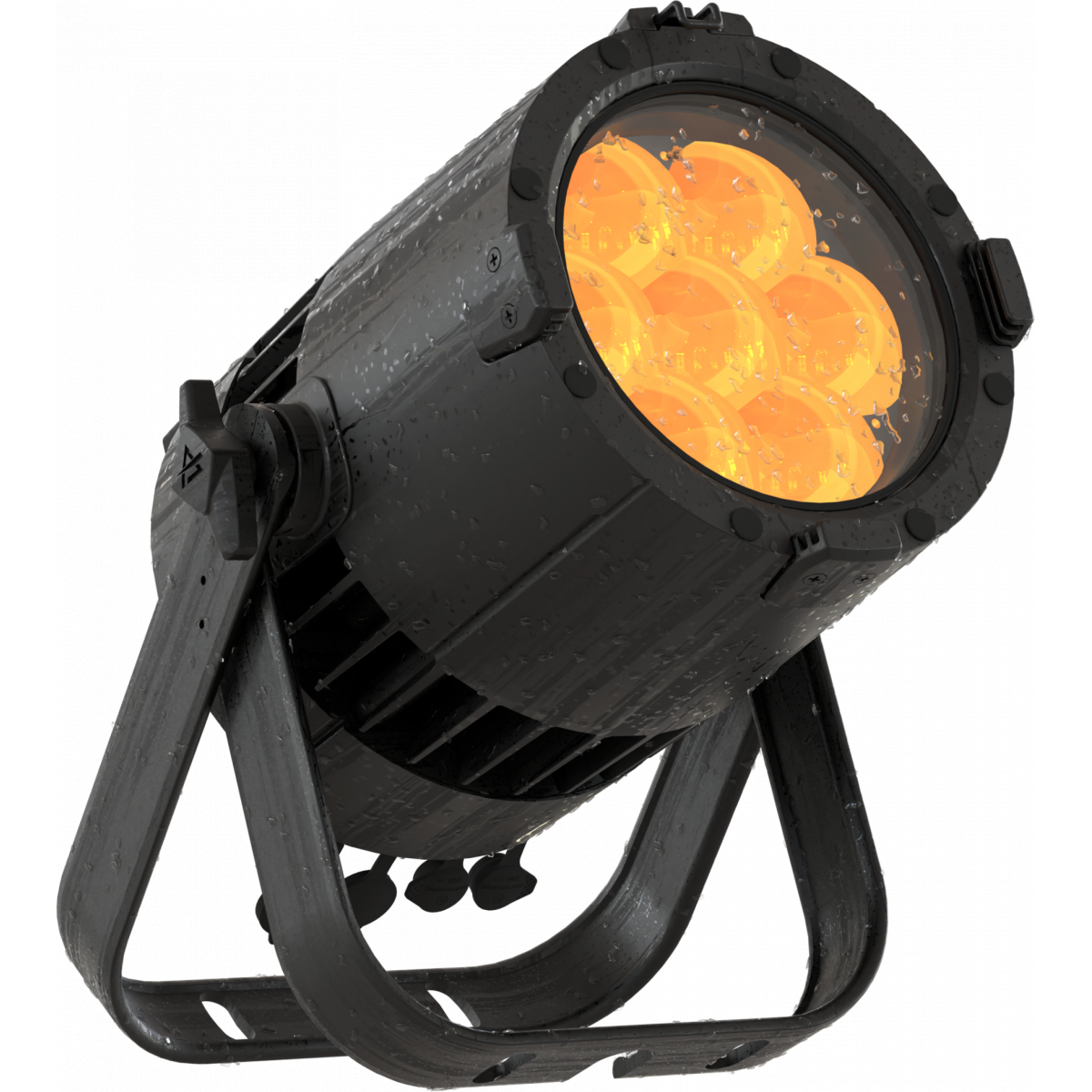

PROLIGHTS Jet PAR7ZIP
