PanoramaIP WBX

PanoramaIP WBX

PROPANORAMAIPWBX

Key Features:

IP65 for outdoor events

19 LED RGBW/FC Osram 40W + outer RGB pixel ring

Massive 3° to 45° linear zoom range from beam to wash

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

PanoramaIP WBX

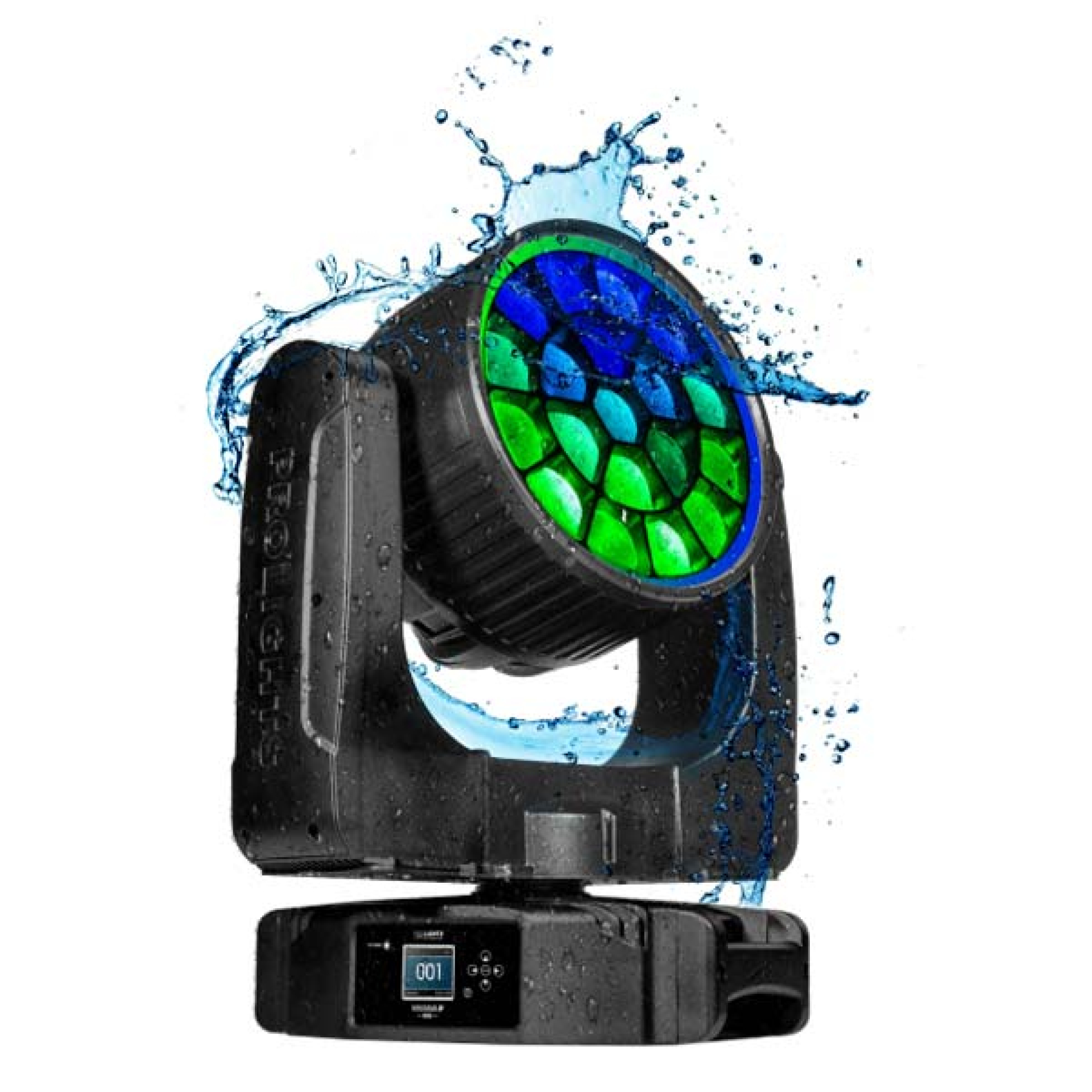

The PROLIGHTS PanoramaIP WBX moving wash light is a stunning IP65 high output, LED wash luminaire, with pixel ring effects, designed to bring the workhorse LED wash light to outdoor events.

Featuring 19 of Osrams new 40W RGBW Ostar LEDs it delivers a massive output with a huge colour range and extensive toolkit of effects.

The PanoramaIP WBX is rated at IP65 for temporary outdoor application. It delivers a massive output with a huge colour range and an extensive toolkit of effects.

- Source: 19x40W RGBW Osram Ostar LED
- Lux: (3°) 60,000 lux (45°) 5,010lux @ 3m full
- Lux: (3°) 31,500 lux (45°) 2,000lux @ 5m full
- Source Life Expectancy: >50,000hr
- Other: outer RGB pixel ring with frost film
- Zoom: 3-45° motorised linear zoom
- Lens type: HQ glass lens optics
- Additional optics: diffuser on outer pixel ring

- Colour mixing: RGBW/FC
- CTC: CTC control through independent DMX channel
- White presets: 2,000-10,000K
- Colour wheel: virtual colour wheel with presets
- Macros: several pre-build pixel macros with adjustable speed
- Pixel patterns: preprogrammed dynamic and static patterns
- FX generator: adjustable foreground/background colour, index, speed, direction
- Special features: outer RGB pixel ring with several built in customizable FX macros

- Protocols: DMX512, RDM, Art-Net
- DMX channels: 18/44/120/42ch
- Pixel control: Pixel2Pixel control
- W-DMX: included, Wireless Solution receiver
- RDM: RDM ready for fixture remote monitor and settings
- Display: LCD high resolution colour display with autoflip
- Firmware upgrade: yes, via USB-DMX interface (UPBOX2) not included
