EclProfile JrZIP Range

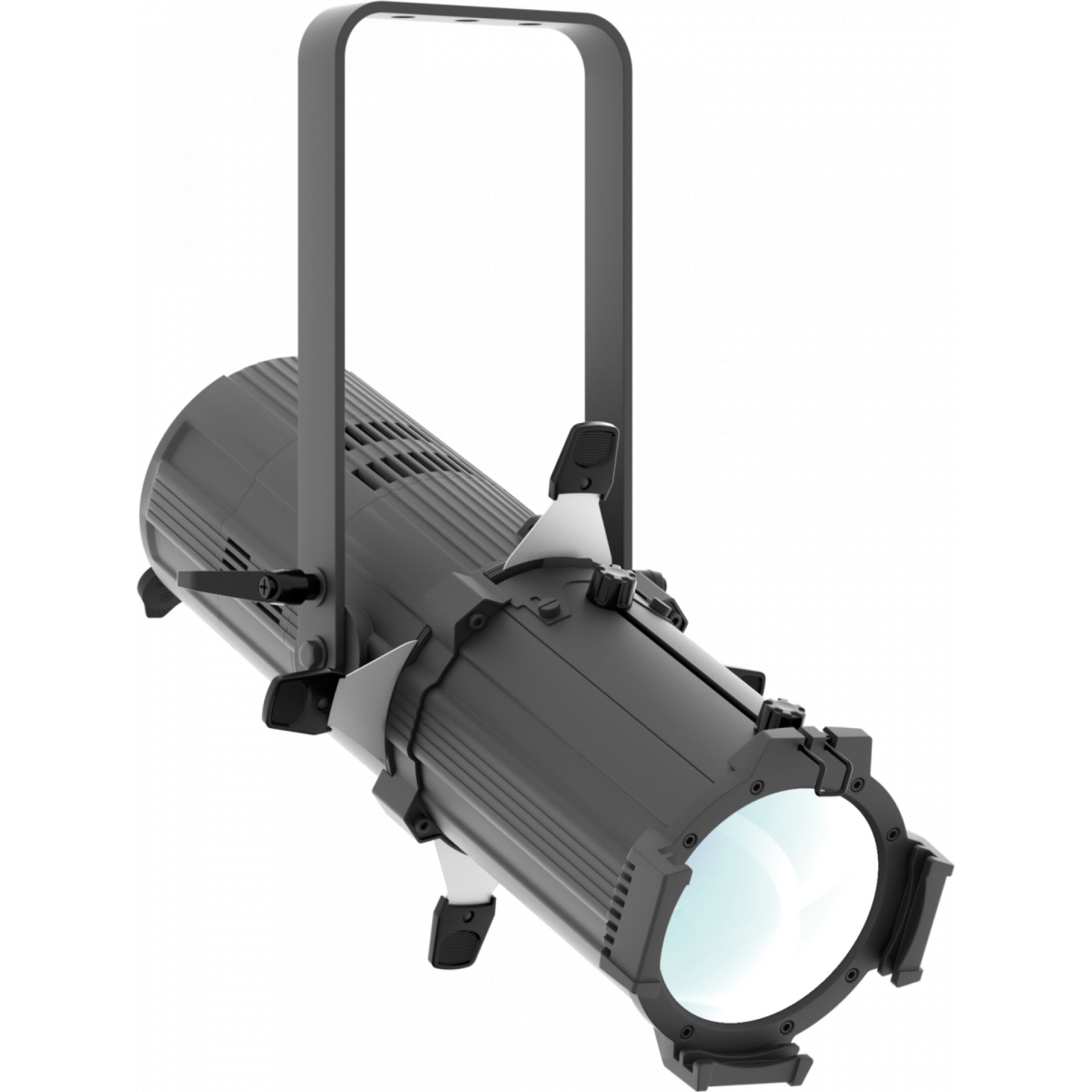

PROLIGHTS EclProfile JrZIP - front - warm white
PROLIGHTS EclProfile JrZIP - front - cool white

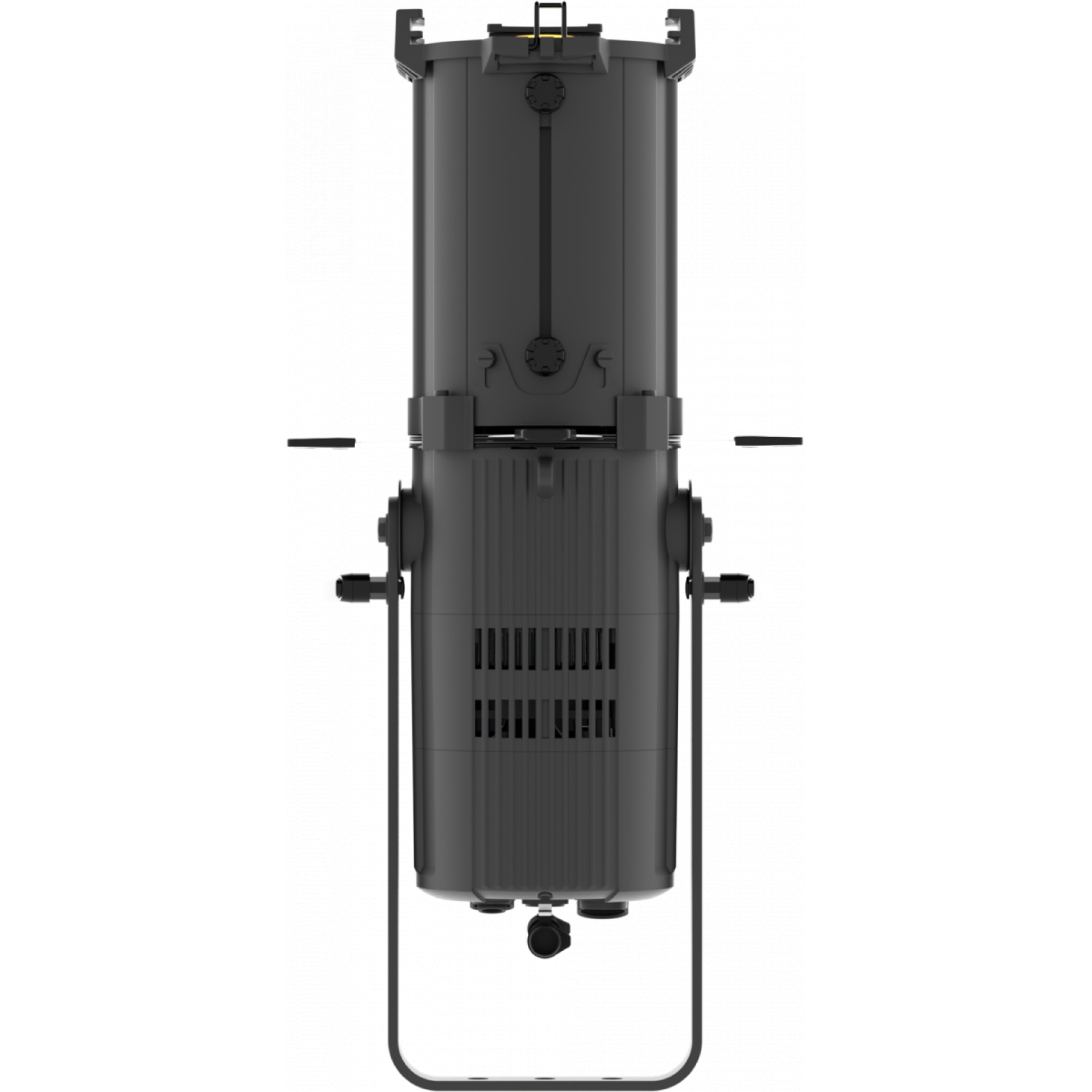

PROLIGHTS EclProfile JrZIP - top

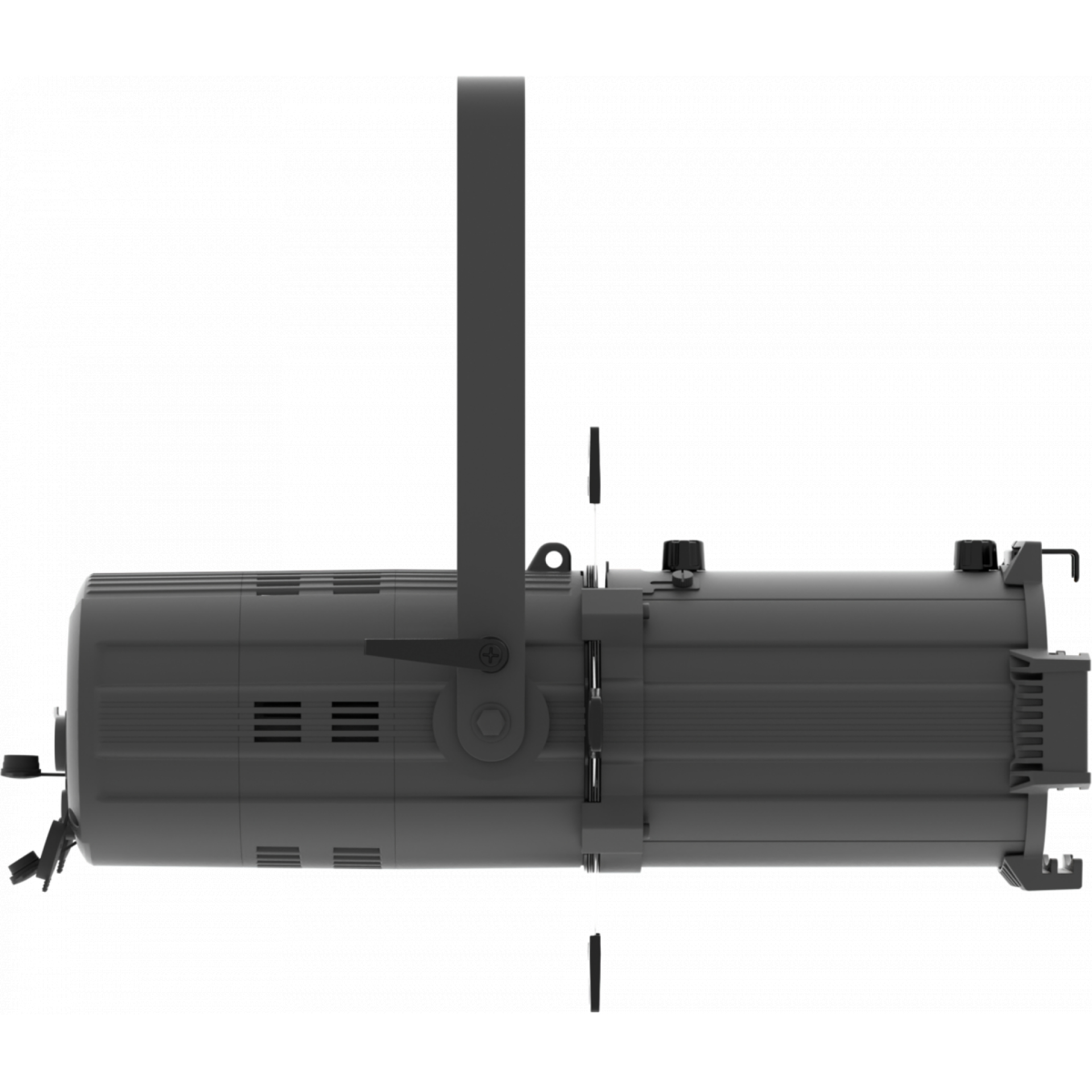

PROLIGHTS EclProfile JrZIP - side

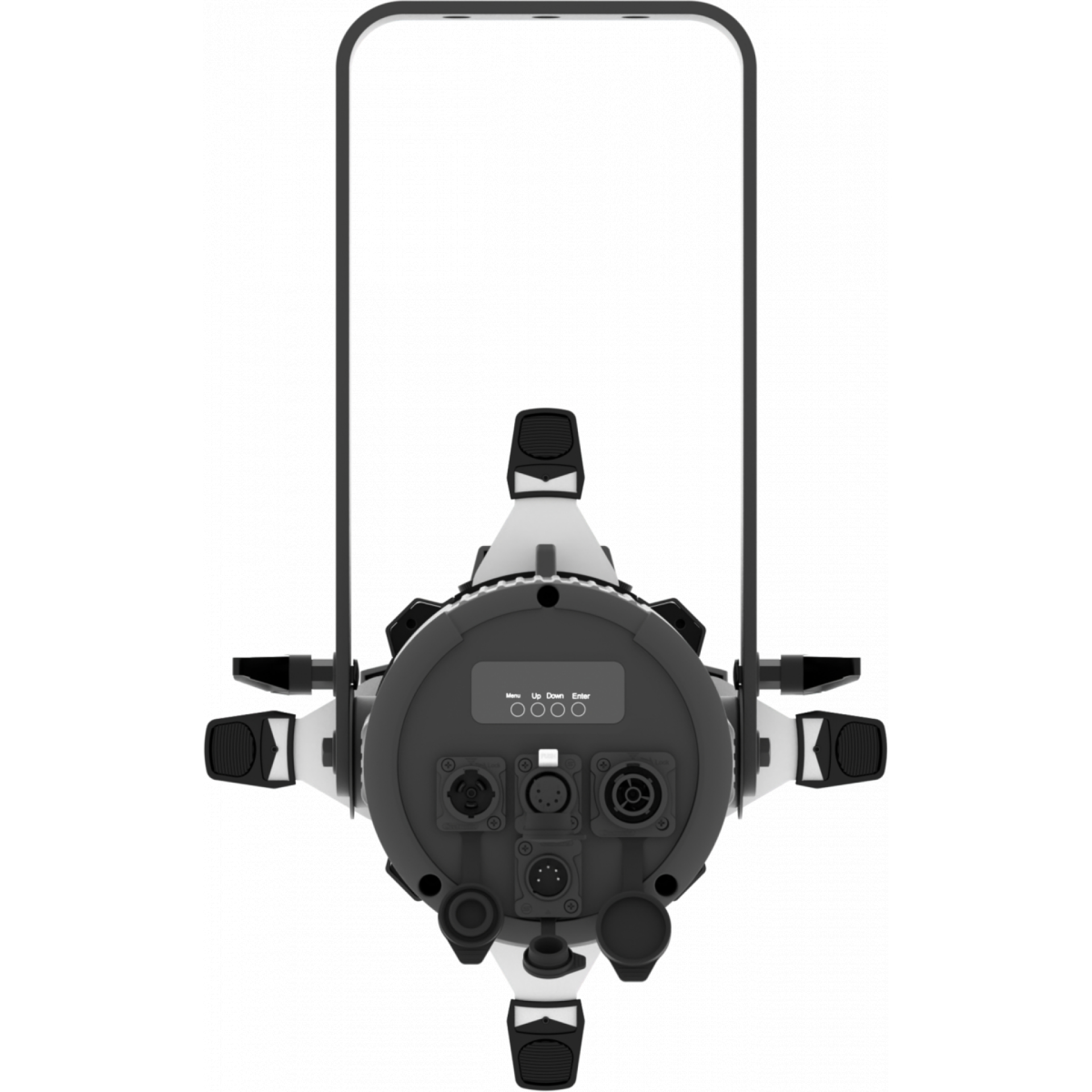

PROLIGHTS EclProfile JrZIP - back
PROLIGHTS EclProfile JrZIP - front - cool white
PROLIGHTS EclProfile JrZIP - top
PROLIGHTS EclProfile JrZIP - side
PROLIGHTS EclProfile JrZIP - back

EclProfile JrZIP Range

Key Features:

  • 160W white LED engine with 3,000K CT, delivering nearly 6,000 lumens
  • IP65 allowing for temporary outdoor installations and events
  • Optional optics available: 15°-30° and 25°-50°

Enquiry Form

Call us today on

+44 (0)1494 446000

EclProfile JrZIP Range

The PROLIGHTS EclProfile JrZIP is an IP65 rated 160W zoomable ellipsoidal designed for exterior use. Featuring around 6,000 lumens of output in a compact form factor it is ideal for use on any outdoor show or event.

Product Variants

PROLIGHTS EclProfile JrZIP - front - warm white
EclProfile JrZIP
  • 3,100K

Enquiry Form

PROLIGHTS EclProfile JrZIP - front - cool white
EclProfile JrZIP
  • 5,500K

Enquiry Form

The EclProfile JrZIP uses two different manual zoom lenses (optional), 15° – 30° or 25° – 50°. It can be mounted at any distance from the projection surface.

  • Source: 160W Warm White LED

    CCT: (TU) 3,100K; (DY) 5,500K

    Luminous flux (TU): (50°) 5,274lm; (25°) 5,770lm; (30°) 4,200lm; (15°) 5,012lm

    Luminous flux (DY): (50°) 5,390lm; (25°) 4,911lm; (30°) 3,844lm; (15°) 4,450lm

    Lux (TU): (50°) 2,040lx; (25°) 5,160lx; (30°) 3,710lx; (15°) 12,900lx @ 3m

    Lux (DY): (50°) 1,750lx; (25°) 4,530lx; (30°) 3,000lx; (15°) 11,200lx @ 3m

    Lux (TU): (50°) 734lx; (25°) 1,857lx; (30°) 1,336lx; (15°) 4,644lx @ 5m

    Lux (DY): (50°) 630lx; (25°) 1,630lx; (30°) 1,080lx; (15°) 4,032lx @ 5m

    CRI: >90

    Source life expectancy: > 50,000hr

    Beam angle: (not included) manual zoom lens 15°-30° or (not included) manual zoom lens 25°-50°

    Lens diameter: 87mm / 3.43”

    Lens type: high-quality glass lens optics

    Focus: manual

  • Macros: several pre-built macros with adjustable speed

    Gobo size: M, outer: 66mm; image: 45mm; thickness: 1.1mm

    Static mode: selection of static dimmer

    Manual mode: manual adjustment of dimmer and strobe

    Auto mode: built-in programs with execution speed adjustment

  • Protocols: DMX512, W-DMX

    DMX channels: 1 / 3 channel

    Wireless control: included, wireless solution receiver

    RDM: RDM for remote monitoring and settings

    Display: graphic user interface

    Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

    Master/slave: for synchronised operation of more units linked in a chain

    Other: 16bit control of dimmer

EclProfile JrZIP Range - Variant Downloads
