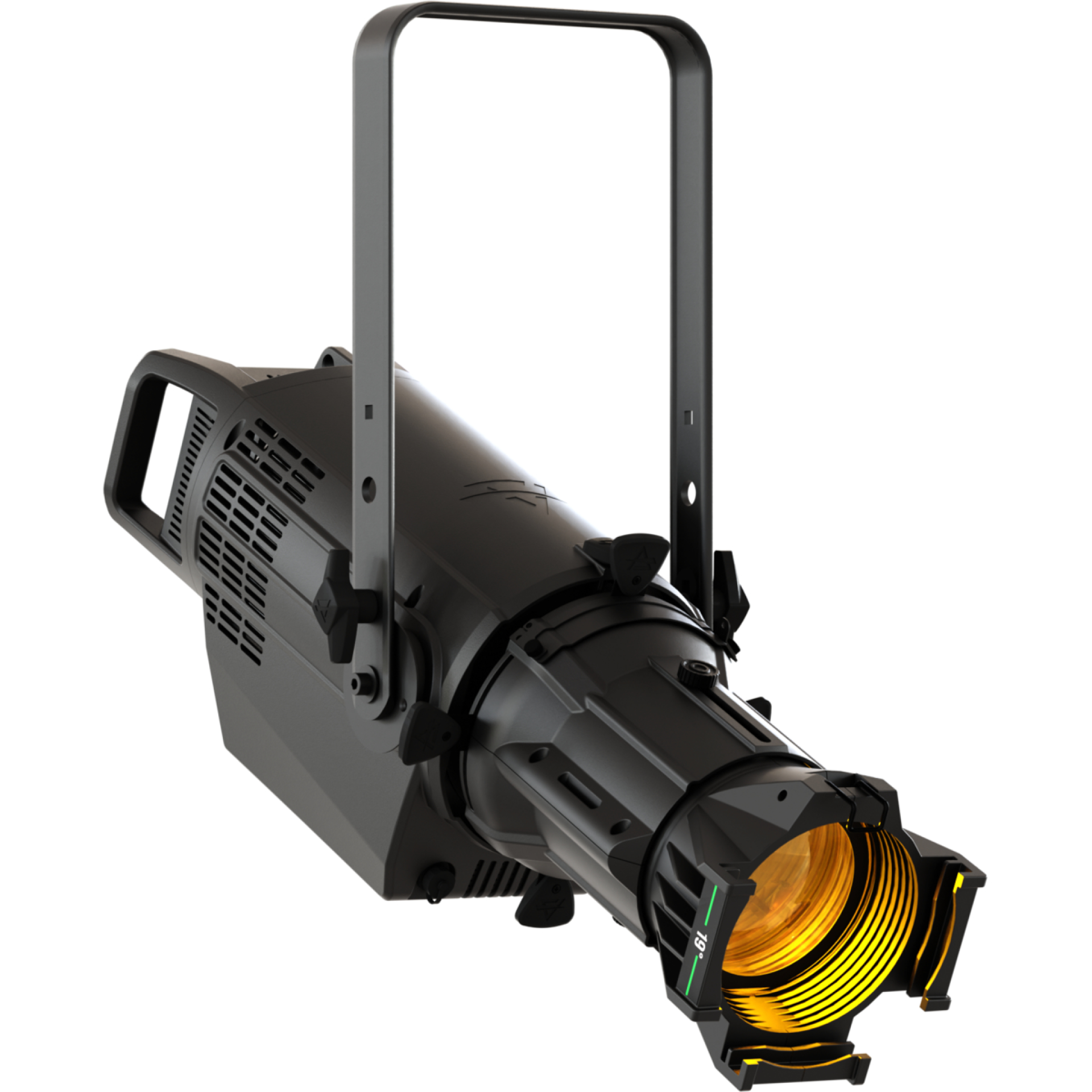

EclProfile CT+HP

The EclProfile CT+HP elevates the benchmark in LED ellipsoidals by delivering 450 Watts of fixture power, effectively doubling its lumen output to an impressive 14,000 lumens.

Retaining the renowned 6-color LED engine of the CT+ series, it offers superior colour rendering for unparalleled light quality. Specifically designed for longer throw distances and higher hanging positions, the CT+HP is the ideal replacement for traditional HPL 750W and 2kW tungsten fixtures, excelling in large venues such as theatres, studios, and auditoriums.

The latest generation of Spektra OS equips the EclProfile CT+HP with cutting-edge UI and control features. Seamlessly aligned with the PROLIGHTS ecosystem, it offers advanced colour mixing, precision CCT reproduction, and user-friendly operation. The enhanced 2.4-inch display, complemented by four RGB backlit, pushable encoders, ensures a streamlined user experience. This innovation delivers intuitive control across multiple operating modes, ensuring consistency and efficiency for professionals

Despite its increased output, the fixture maintains the compact dimensions of its predecessor, offering compatibility with industry-standard fixed-angle and zoomable lenses, including the PRL and PRLZ lenses. This ensures seamless integration with existing inventories, making it a versatile and cost-effective solution for diverse lighting needs.

- Source: 450W 6 colour LEDs source
- Luminous flux: 14,000 lm
- CRI: up to 96
- R9: up to 97
- Source life expectancy: > 50,000hr
- Lens type: high-quality glass lens optics
- Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
- Focus: manual

- Colour control: XY, CCT, Gel with Source Emulation, Tungsten emulation, HSI, User preset
- CCT: CCT control range from 1800K to 20000K, + / - green correction, tungsten emulation
- Colour wheel: LEE filter emulation and RGB / HSI / CMY input mode selectable
- Gobo size: B, outer: 86mm; image: 64.5mm; thickness: 1.1mm
- Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours

- Protocols: DMX512, RDM, CRMX
- Stand Alone: 4 pushable RGB backlit encoder
- DMX channels: from 1 channel to 30 channel
- Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (Lumen Radio) and W-DMX (Wireless DMX), Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software
- Master/Slave: for synchronised operation of more units linked in a chain
