Astra Wash7PixIP

Astra Wash7PixIP

Key Features:

IP65 in a compact lightweight form factor

Zoom from 4° to 56° with a high-optical efficiency

Pixel control, precise white CCT, multiple FXs and colour features

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

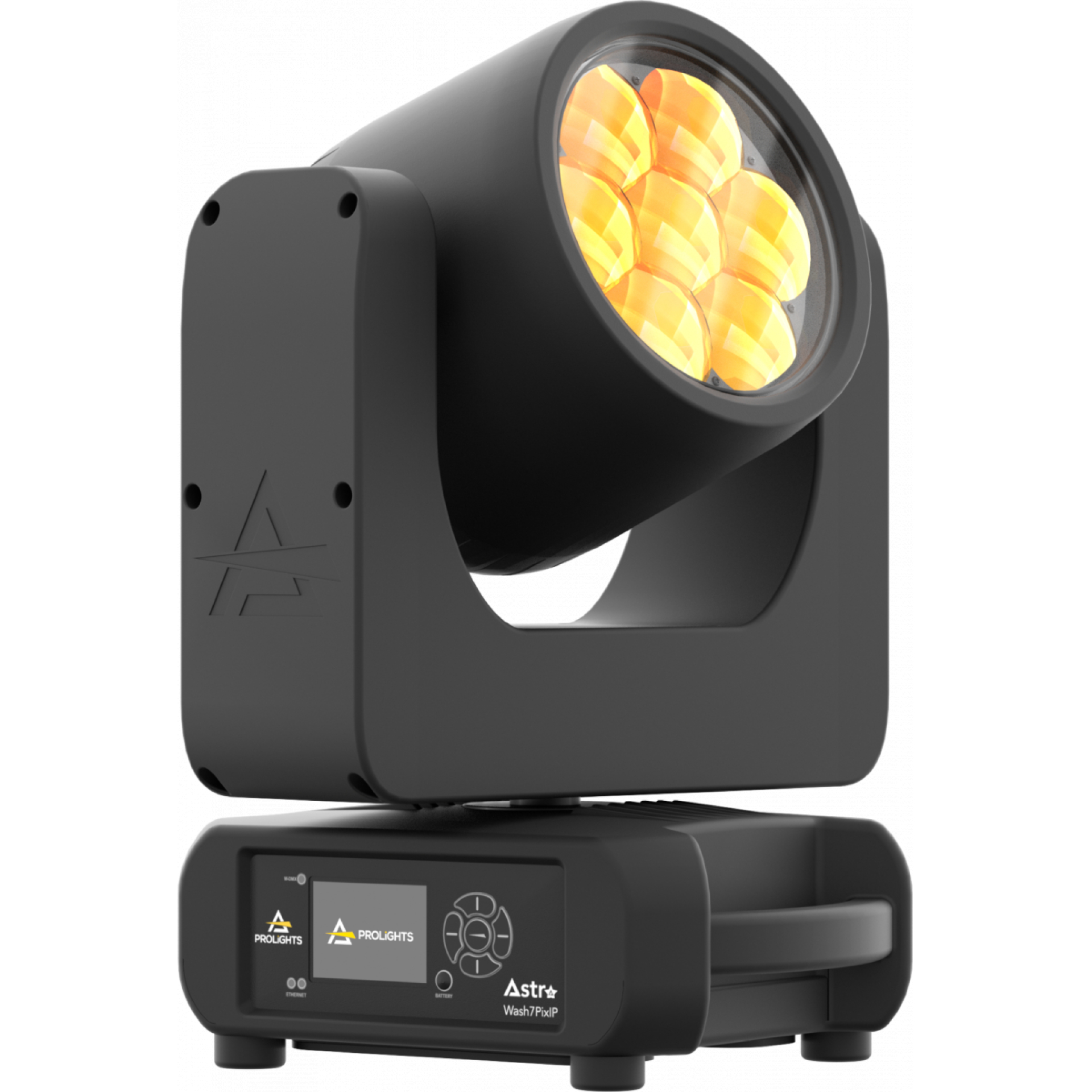

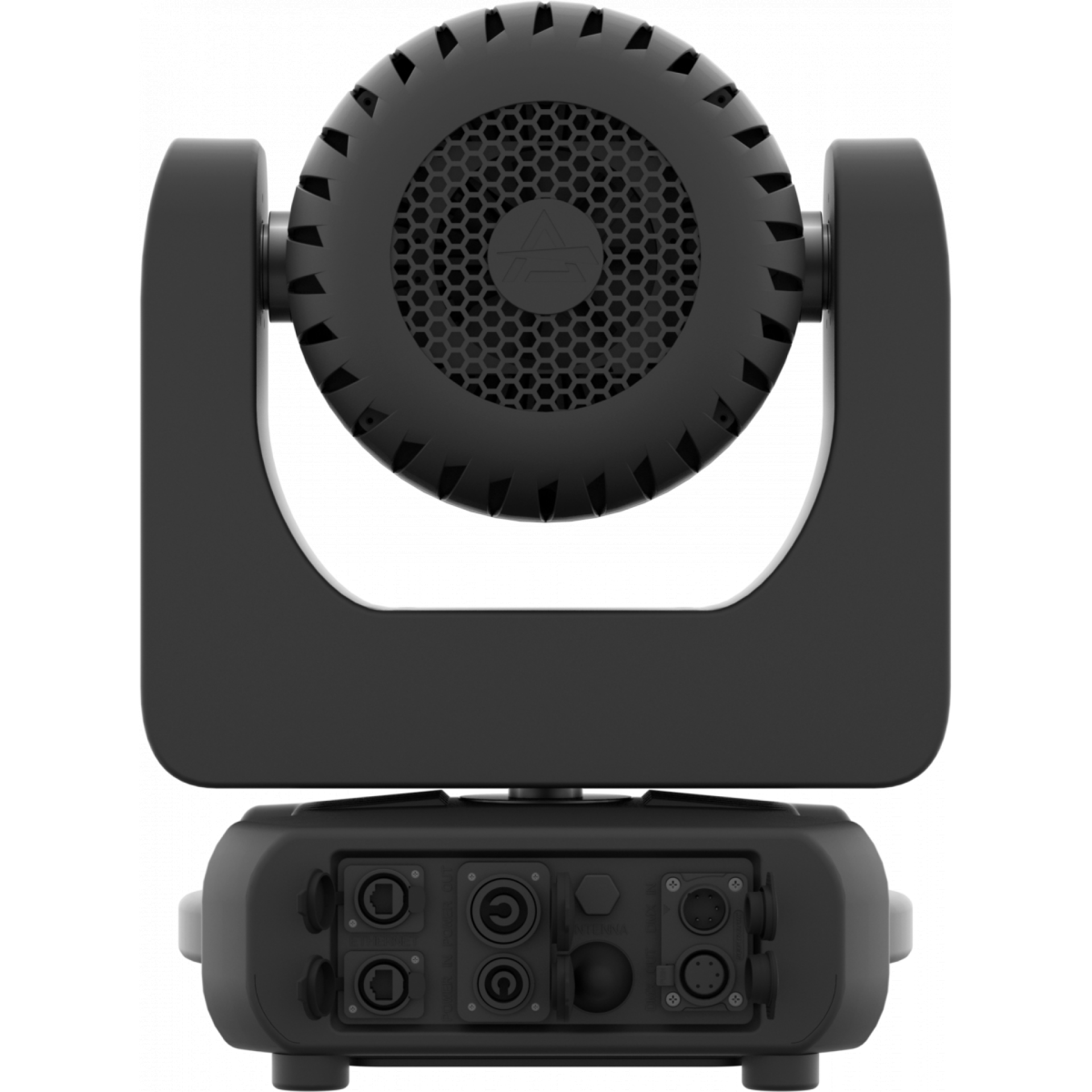

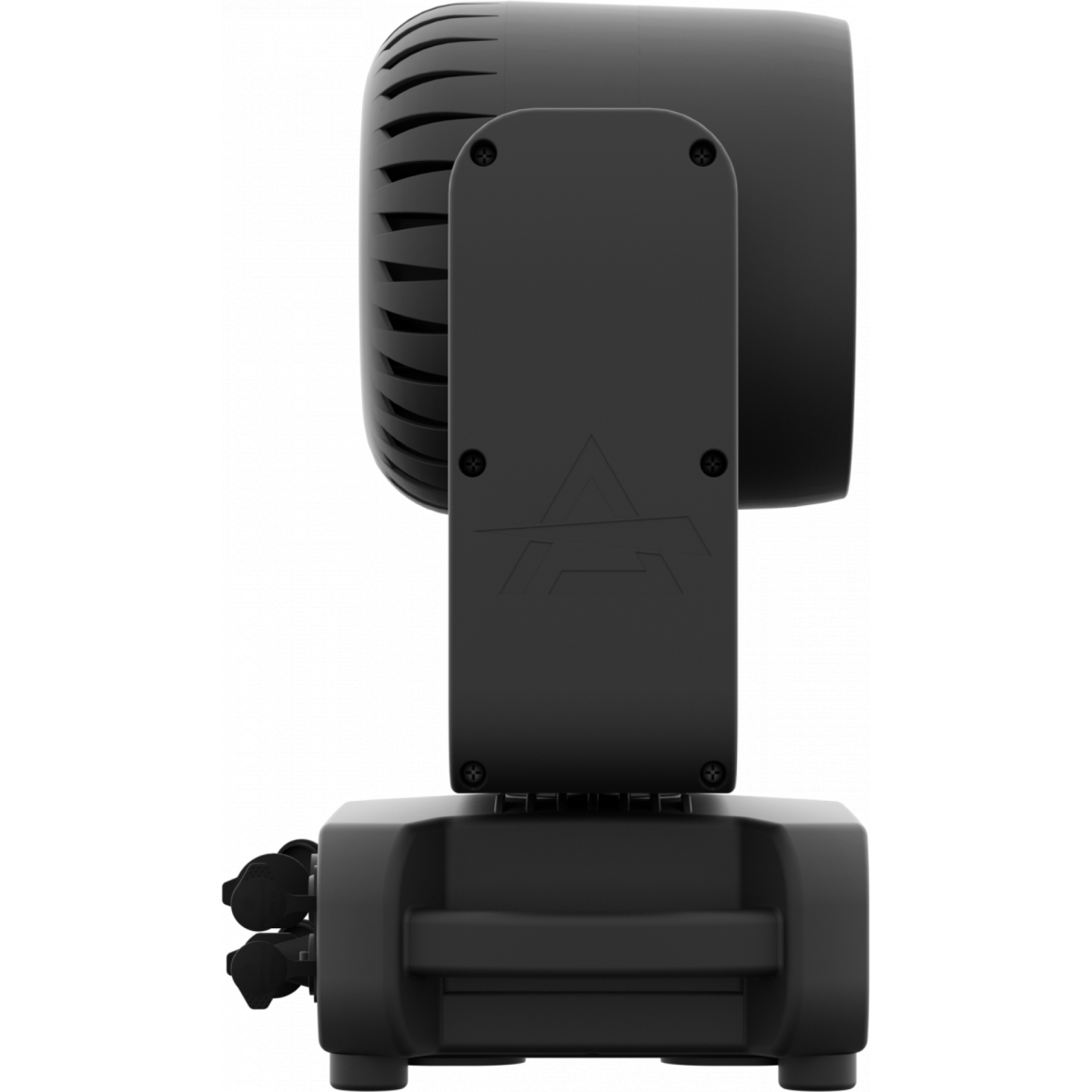

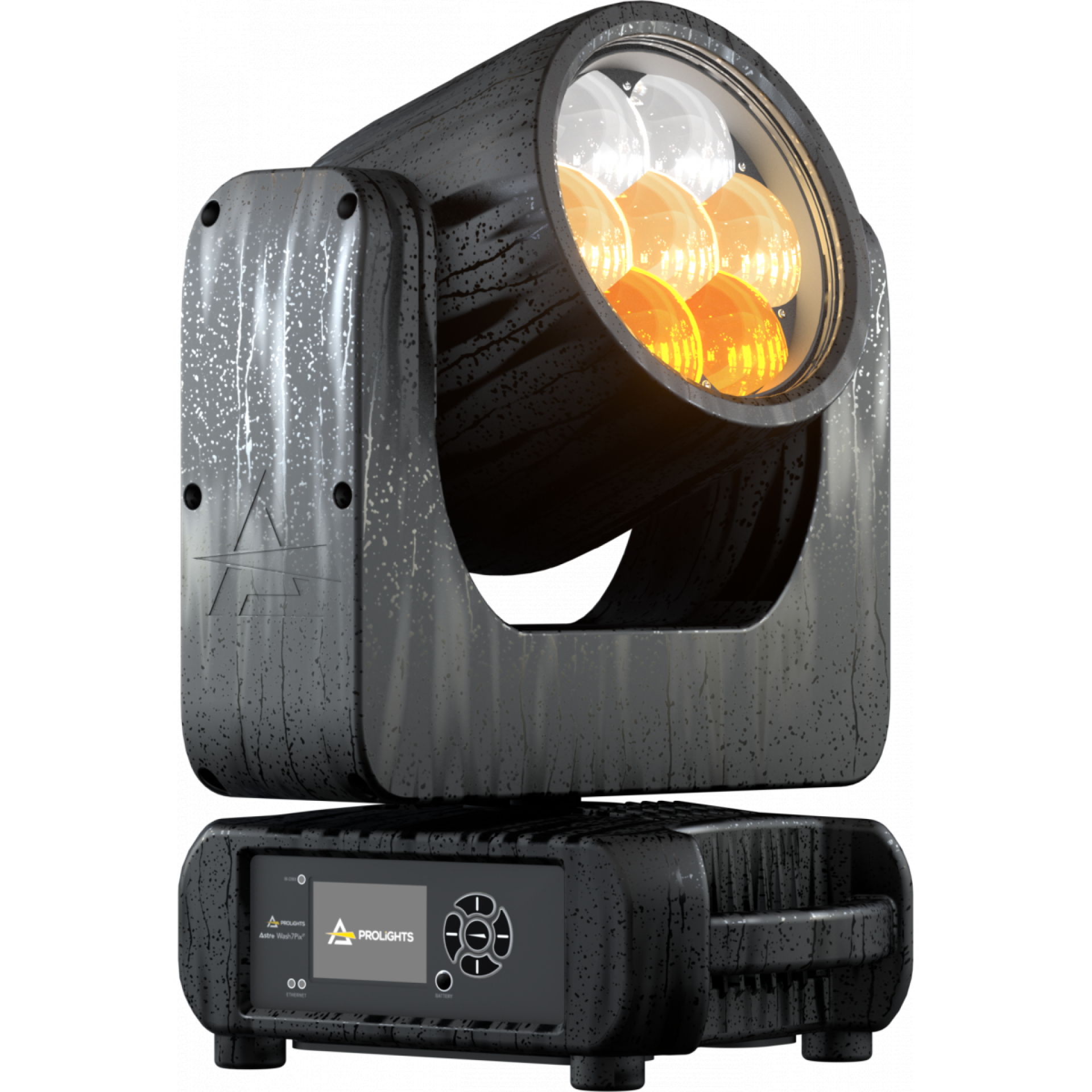

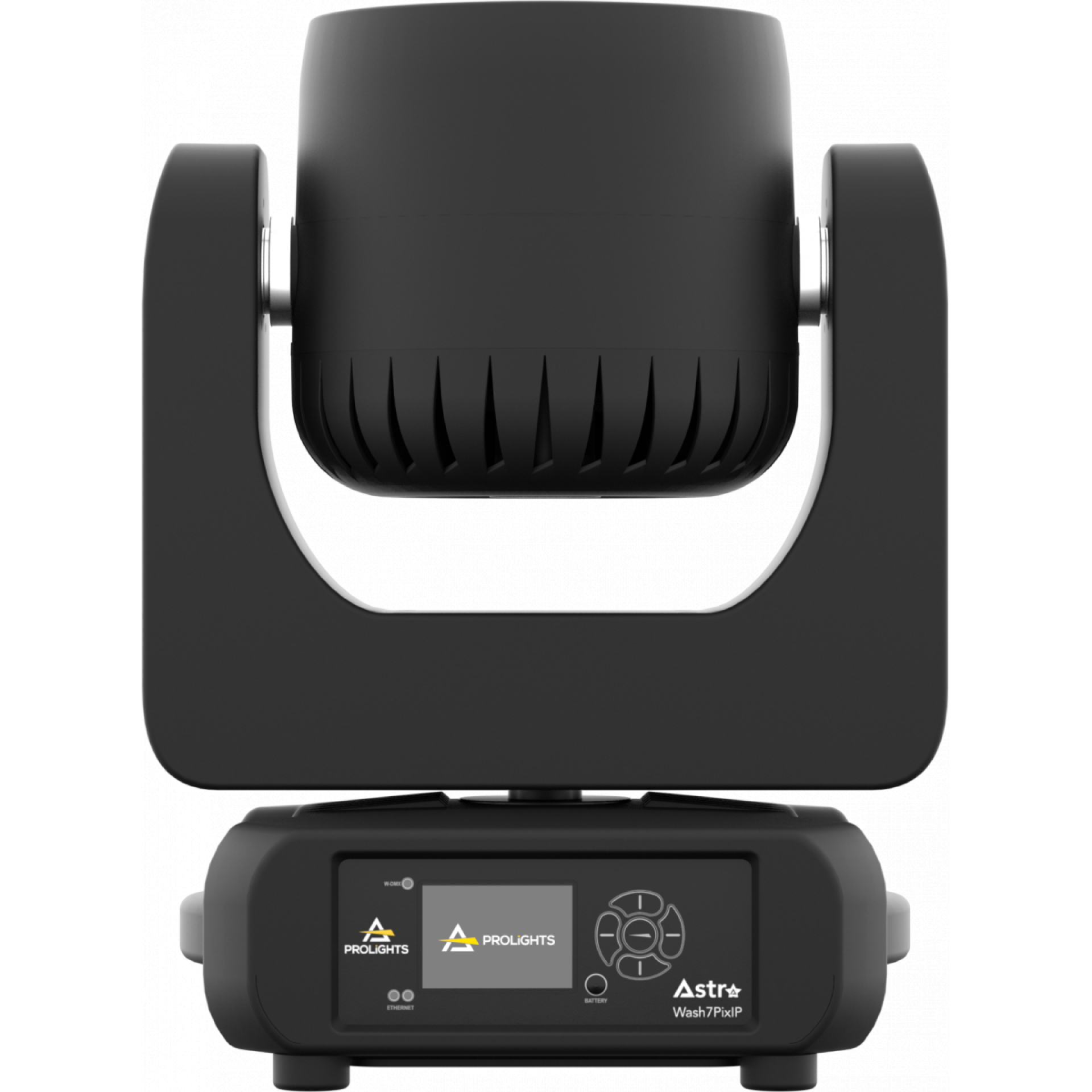

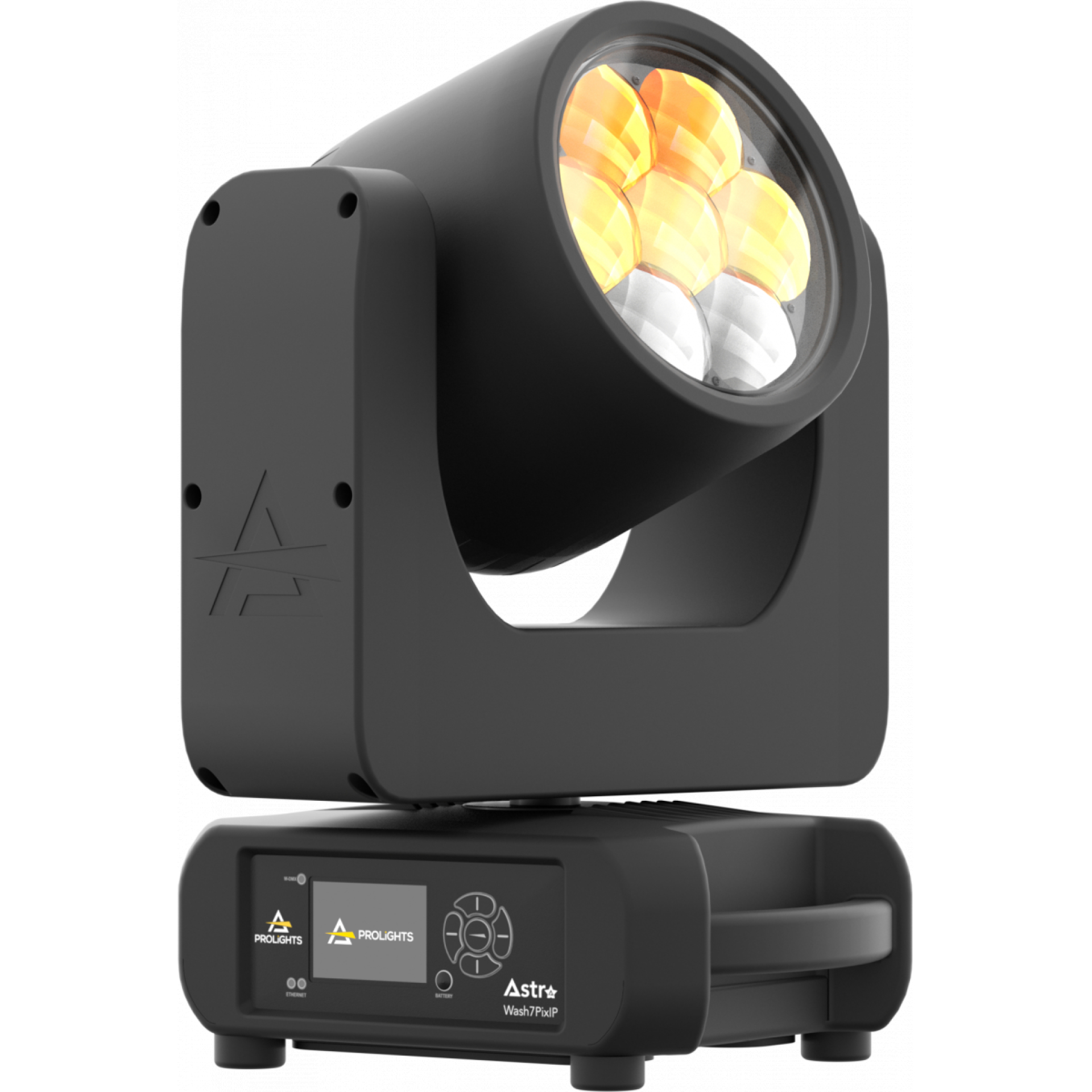

Astra Wash7PixIP

The Astra Wash7PIXIP is an IP65 LED moving wash light, designed in a small and lightweight body, with the same features and performances as its indoor version.

The Astra Wash7PIXIP has a 7x40W Osram RGBW LED light source, and an extremely high-efficiency optical system capable of zooming from 4° to 56°, making this luminaire extremely versatile for any application as a beam or wash light.

The Astra Wash7PIXIP is single pixel controllable, with multiple on-board FX, along with precise and advanced white and colour control, all through DMX/RDM, W-DMX, Art-Net, sACN and Kling-Net.

Source: 7x40W RGBW Osram Ostar LEDs

Luminous flux: (4°) 2,013lm - (56°) 3,543lm @ full

Lux: (4°) 18,360 lx - (56°) 364lx @ 5m full

Source life expectancy: > 50,000hr

Zoom: 4° - 56° motorised linear zoom

Lens type: honeycomb gapless plano-convex optics

Colour mixing: RGBW / FC

CCT: CCT control, + / - green correction, tungsten emulation

White presets: 2,800 K ~ 10,000K

Colour wheel: virtual colour wheel with macros

Macros: several pre-built pixel macros with adjustable speed

Control Resolution: 16-bit dimmer

Pixel patterns: pre-programmed dynamic and static patterns

FX generator: adjustable foreground/background colour, index, speed, direction

Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

Protocols: DMX512, RDM, Art-Net, Klingnet, sACN, W-DMX

DMX channels: main personality 24 / 27 / 39 channel

Pixel control: OFF, ring and pixel2pixel selectable options

Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)

RDM: RDM for remote monitoring and settings

Display: LCD high resolution colour display with autoflip

Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
