CM Lodestar Low Voltage
CM-ET Lodestar Electric Chain Hoists
CM-ET Lodestar Low Voltage Control
CM-ET Lodestar Low Voltage Control
Columbus McKinnon Lodestar Low Voltage Control Electric Chain Hoist D8+
CM-ET Lodestar Low Voltage Control
CM-ET Lodestar Low Voltage Control
Columbus McKinnon Lodestar Low Voltage Control Electric Chain Hoist D8+

CM Lodestar Low Voltage

Key Features:

  • 8:1 design safety factor on load chain
  • Available with a range of features to your own specifications
  • Our in-house department can assemble, inspect and repair Lodestar hoists
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

CM Lodestar Low Voltage

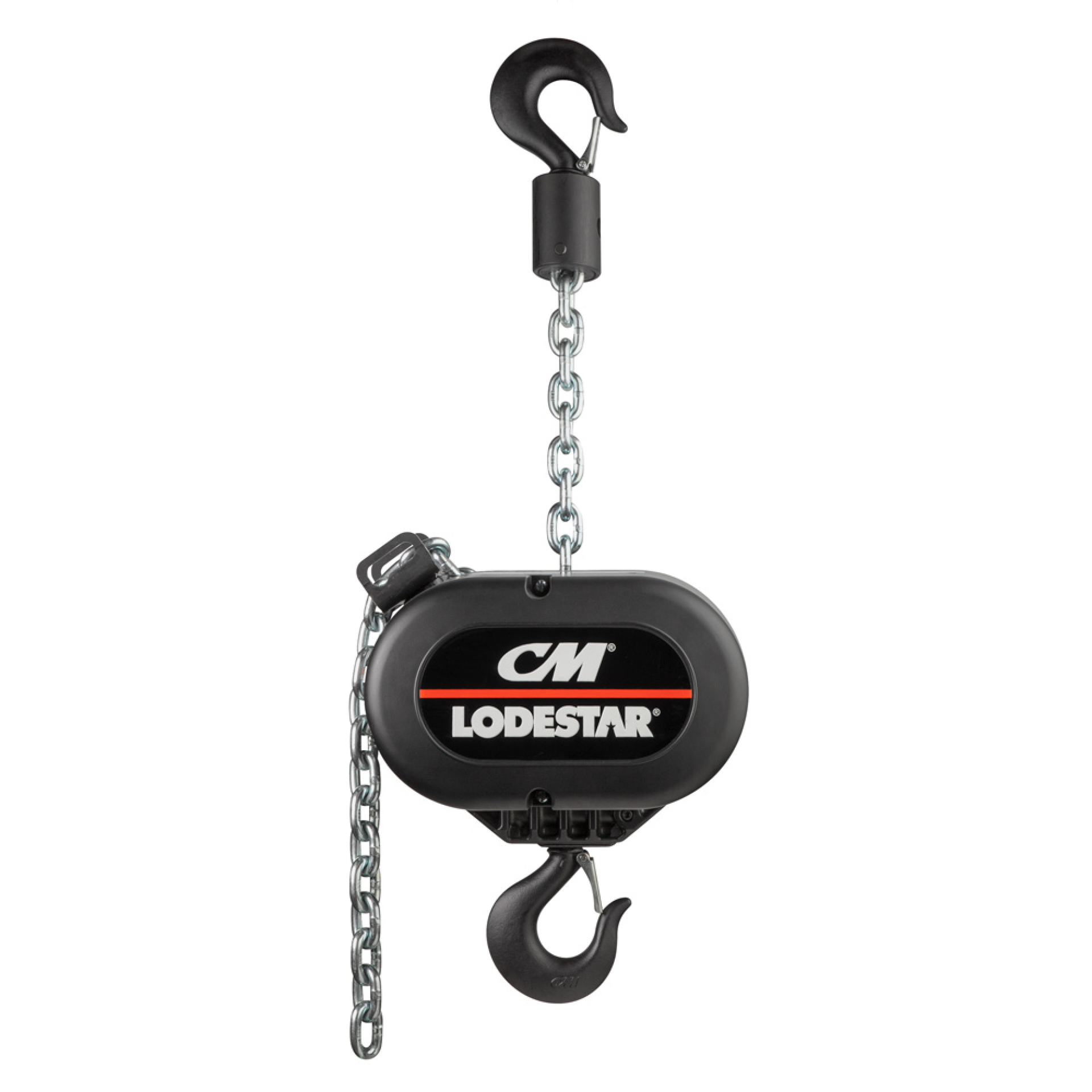

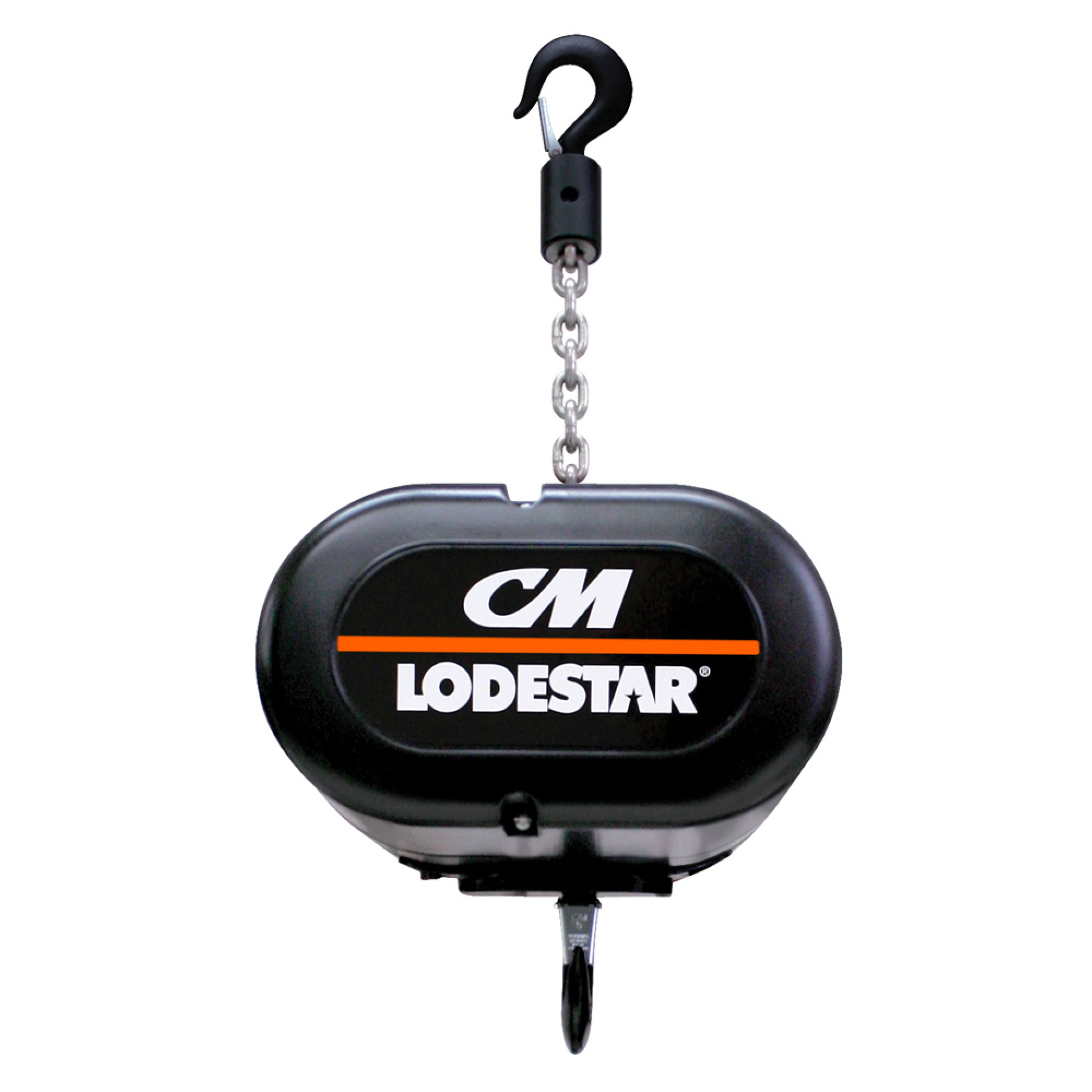

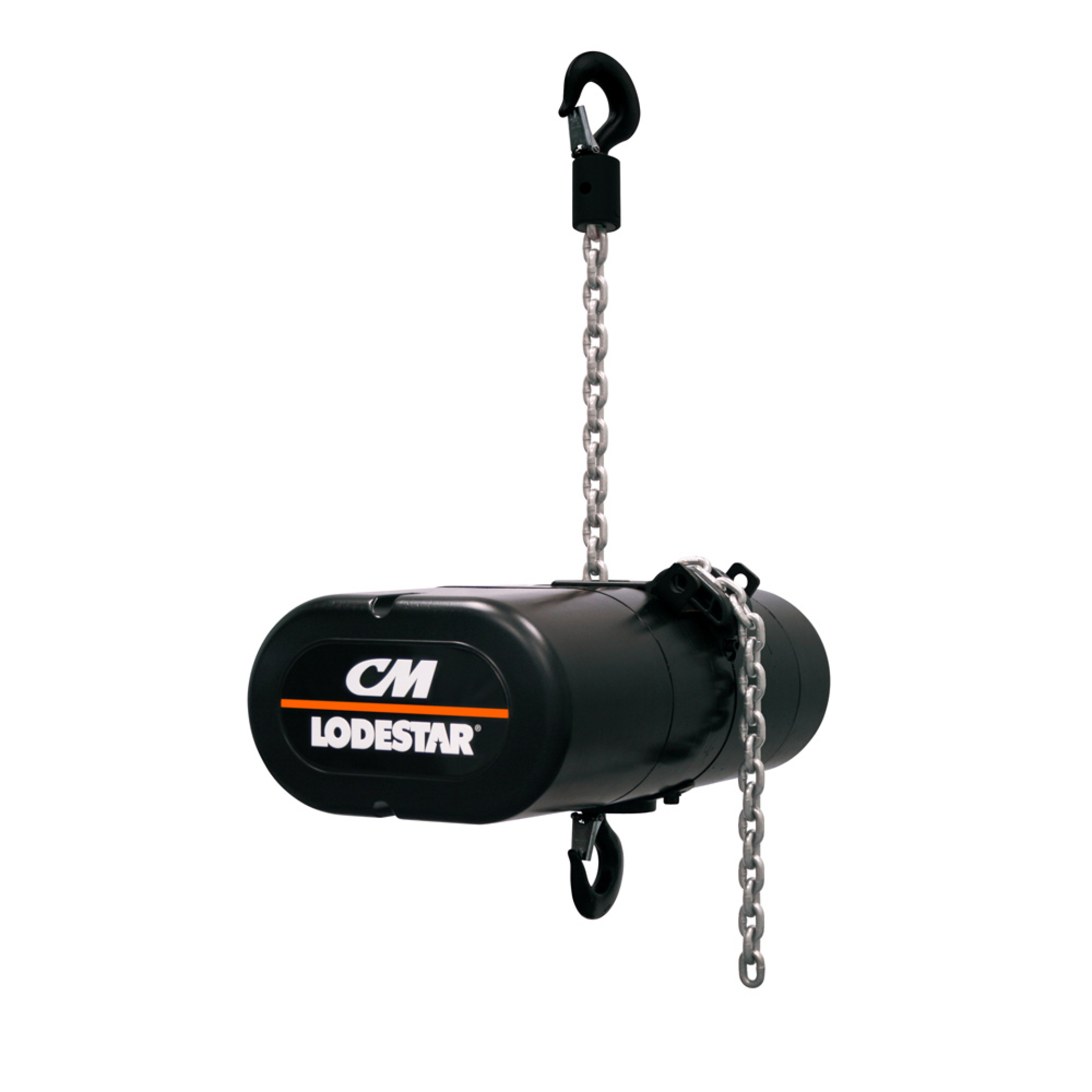

The Columbus Mckinnon (CM-ET) Lodestar low voltage control electric chain hoists come in a variety of specifications to suit your lifting needs.

Product Variants

Lodestar Low Voltage
CMD8F500L415ACLHSFB27-20
  • 500Kg

Enquiry Form

Lodestar Low Voltage
CMD8L1000L415ACLHLFB26-20
  • 1000Kg

Enquiry Form

Lodestar Low Voltage
CMD8RRS2000L415ACLHXLFXML25-20
  • 2000Kg

Enquiry Form

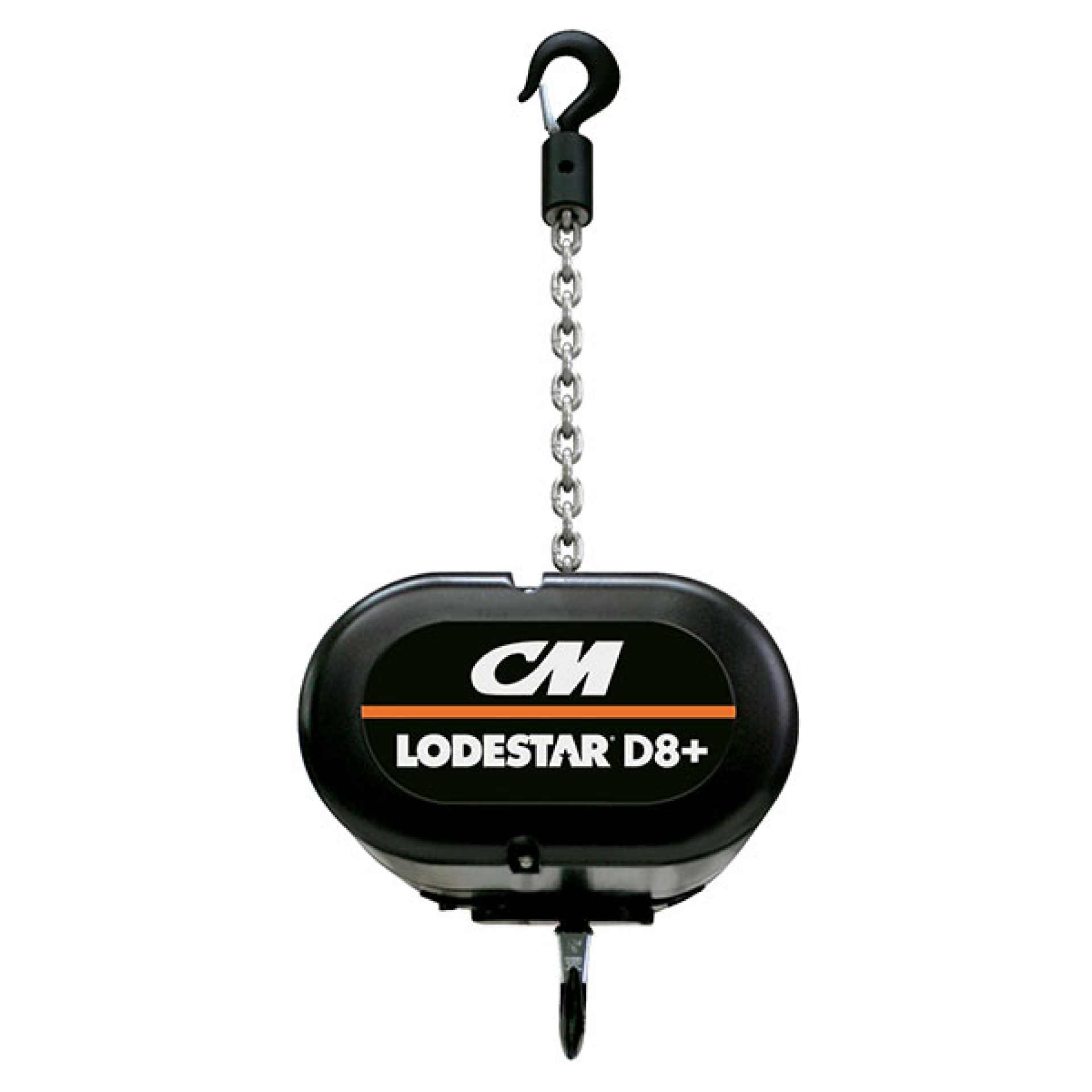

Lodestar D8+ TUV Low Voltage
CMD8PLUSTF500L415ACLHSFB36-20
  • 500Kg

Enquiry Form

Lodestar D8+ TUV Low Voltage
CMD8PLUSTL1000L415ACLHSFB31-20
  • 1000Kg

Enquiry Form

Lodestar D8+ TUV Low Voltage
CMD8PLUSTRR2000L415ACLHLFB70-41
  • 2000Kg

Enquiry Form

Legendary in performance and globally recognised as an industry leader, riggers around the world have come to rely on the CM-ET Lodestar electric chain hoists, featuring quiet operation, an environmentally friendly design, easy access to components, higher duty ratings, less maintenance and enhanced safety features.

Standard off the shelf options include 500kg, 1000kg and 2000kg double and single reeve versions.

  • Load chain 8:1 design safety factor

    Star grade chain is zinc plated to protect against corrosion

    Adjustable clutch outside gear train (meets international standards) designed to prevent lifting of excessive overloads

    50% duty cycle or 300 on/off per hour. – H-4 duty rated for heavy duty application. 2M+ FEM class

    IP65 rated

    5 pocket lift wheel (reduces chain interlink wear)

    Capacities: 125kg to 2000kg

    110V low voltage control – long cable runs

    Lifetime warranty – the industry’s best

    Heavy duty DC brake – long service life with quick access & easy inspection

    Precision helical gearing – long life and quiet operation

    Durable & lightweight housing – cast aluminium with matt black coated finish

    Finger safe wiring meets all electrical codes

    Quick change plugs for voltages 208 through 460

    Adjustable screw limit switch to stop the hook at a predetermined point when lifting or lowering, preventing over travel

    Chain bags: cloth type bags easy-to-mount

    Tourmate Ceeform red 4pin plug and yellow 4pin socket

    Road ready with leather handles – ease of handling and to stow and travel

    Meets or exceeds world standards

  • D8+ specification according to IGVW SQP2

    Double DC brake: two independent acting DC brakes for redundant braking (upgrade kit available)

    24 & 48V control

    Single phase

    Encoders: incremental & absolute.

    Alternative fixed speed options between 2 to 16 meters/min and variable speed units

    Alloy Latchlok hooks: remains locked until released by the operator, even if chain goes slack

CM Lodestar Low Voltage - Variant Downloads

You might like...

Centauri Stage Deck Toplok Centauri Stage logo
Product - RIGGING

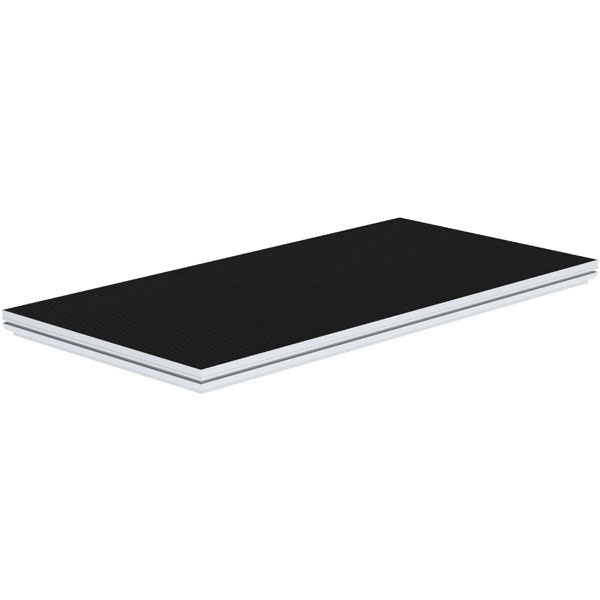

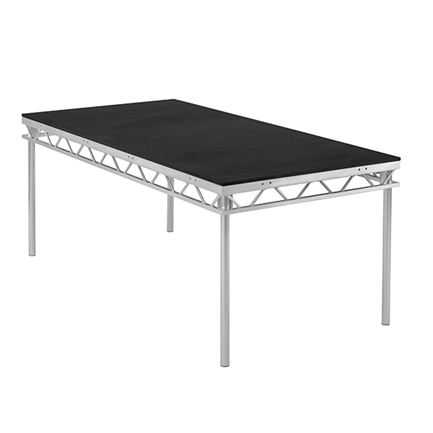

Centauri Stage Deck Range
