Avolites Diamond 7 215

Key Features:

15 motor playback faders, 15 encoder playbacks

2 x 14” capacitive touchscreens with adjustable brightness

Dual, motorised, touch-sensitive, master cue-list and sequence faders with 9 control buttons

Enquire

Enquiry Form

Call us today on

+44 (0)1494 446000

Avolites Diamond 7 215

Key product features of the New D7 include a new clam shell screen panel and locking mechanism. The console control surface follows the Diamond 9 design language. The D7-215 fits into a standard Peli-Air case and is under European aircraft hold weight limit.

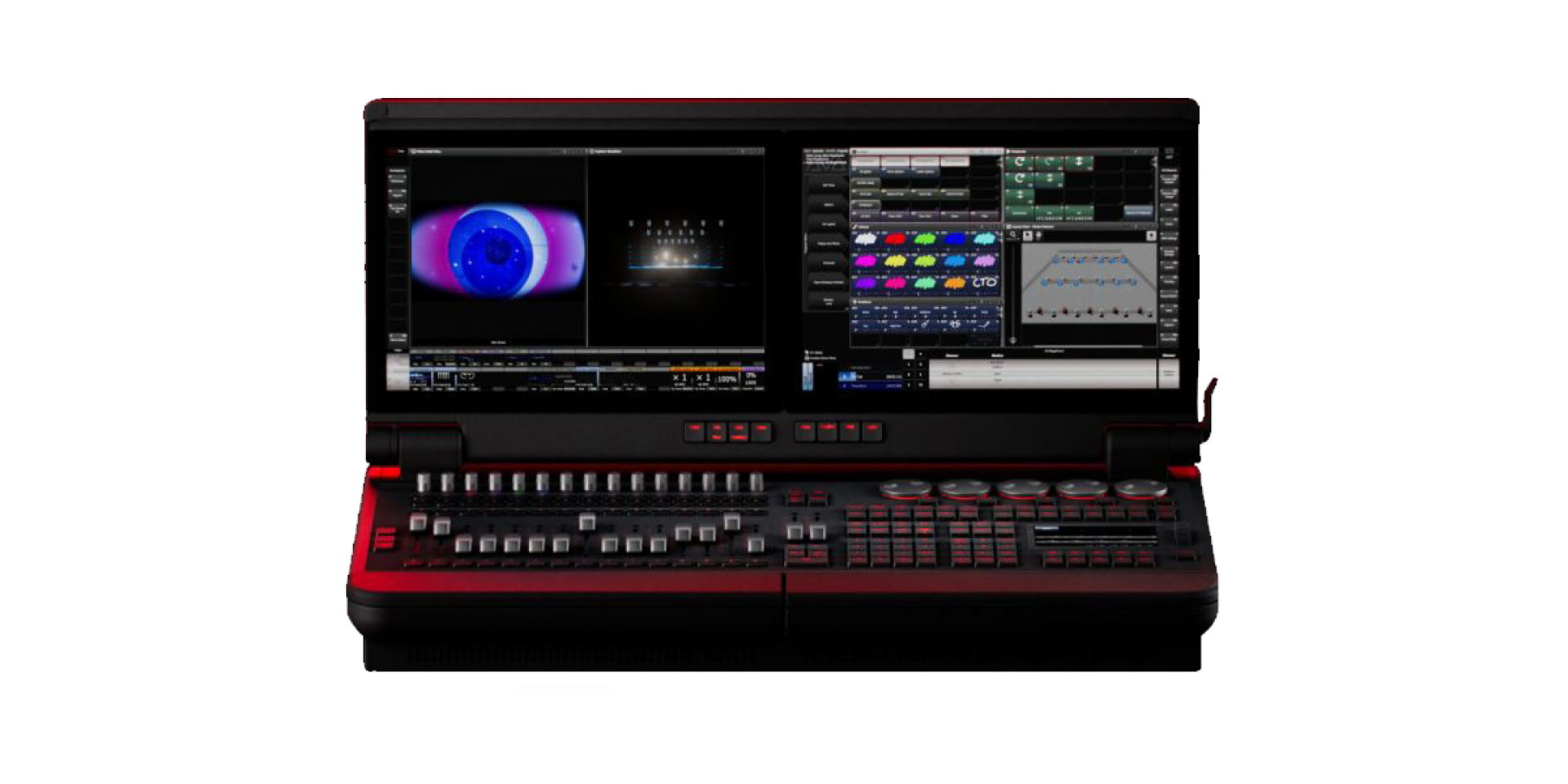

Avolites Diamond 7 215 Lighting Console

The Diamond 7 215 includes generative, animation-based pixel mapping, Quicksketch labelling for ultimate personalisation, feature-packed cue lists supporting macros, tracking, autoloads, timecode and more.

- Generative, animation-based pixel mapping
- Quicksketch labelling for ultimate personalisation
- Powerful multi-user networking with any Titan console
- Create huge effects in seconds with Key Frame Shapes
- Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
- Expand DMX channel capacity with Titan Net Processors
- Synergy-ready. Add any Ai product to unlock seamless video integration

- 15 motorised touch-sensitive faders, with designer fader cap and RGB fader indicator
- 15 ultra high resolution touch sensitive playback encoders with push function, and RGB encoder indicator
- 5 x custom RGB backlit optical attribute encoders
- Programming buttons all RGB backlit, short travel Cherry® MX Low Profile switches
- 2 x 14” 850 nits 1920x1200 capacitive touch main screens with adjustable brightness, mounted on folding panel
- Dedicated level wheel and onscreen level indication
- Full custom backlit QWERTY keyboard in drawer, keys identical to program panel
- LED strip reading light in panel above screens and over rear panel
- 4x isolated DMX outputs via 5 pin XLR connectors
- Ethernet switch with 4x Neutrik XLR on the Primary network port, Secondary network port
- MIDI in, Loop & Out port in DIN 5, SMTP in/loop out, Foot trigger input, Audio trigger Input,
- SMPTE RTU Timecode in and Loop out via 3 pin XLR with transformer isolation
- GPIO with 4 inputs and 4 outputs on 15 Pin D sub connector
- Supports two additional external DisplayPort 1920*1080 touchscreens
