Avolites D3 Series

Avolites D3 Series. Compact lighting control, powered by Titan. Five products, one flexible Titan system.

Product Variants

Avolites D3-010
D3-010 - Titan power in a compact 8U console
  • Standalone Titan console with integrated processing. No laptop required
  • Supports 8 DMX universes natively
  • 10 playback faders, 3 encoder wheels, 12 macro buttons and features Avolites’ Compact key layout
  • Compatible with USBC touchscreen

Enquiry Form

D3-110 - Compact 24U Titan console with touchscreen
D3-110 - Compact 24U Titan console with touchscreen
  • Standalone lighting control console with Titan processor
  • Supports 24 DMX universes natively
  • 10 playback faders, 3 encoder wheels, 12 macro buttons and features Avolites’ Compact key layout
  • Mixture of USB C and A ports
  • Built-in touchscreen

Enquiry Form

Avolites D3 Wing - Add more control to your D3 setup
D3 Wing - Add more control to your D3 setup
  • Adds physical playback control to any D3 setup
  • Includes 20 extra playback faders
  • Seamlessly matches the layout, angle, and finish of the D3-010 and D3-110

Enquiry Form

D3 Core - Rack-mounted Titan processing
D3 Core - Rack-mounted Titan processing
  • 1U rack-mounted Titan processor
  • Runs full Titan OS as a standalone controller or with a connected surface
  • No front panel: designed for remote, fixed, or embedded control setups

Enquiry Form

AvolitesD3 Touch - Remotely trigger Titan from a reliable touchscreen
D3 Touch - Remotely trigger Titan from a reliable touchscreen
  • Pre-configured touchscreen interface designed to control Titan systems
  • Compatible with a D3 Core or other Titan consoles
  • Provides touch access to playbacks and macros

Enquiry Form

From standalone consoles to intuitive installation controls, this is Avolites' most compact, lightweight and versatile Titan setup yet.

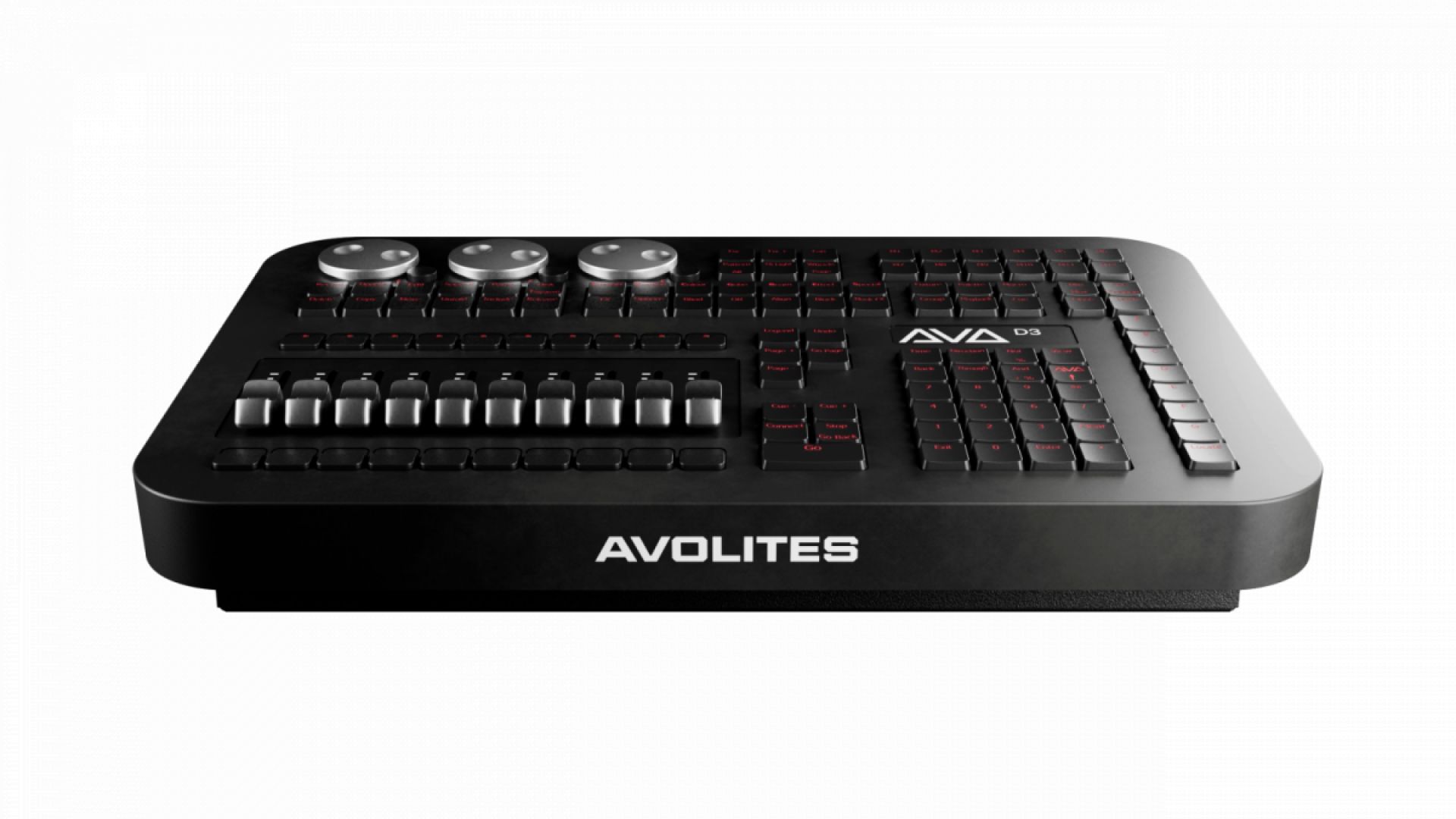

  • Access powerful Titan control in Avolites' smallest ever portable console. Powered by Titan, the D3-010 supports 8 universes without a laptop: just add a monitor and you’re ready to go. Built for live environments, the D3-010 is compact, tough, travel-ready, and performs straight out of the case.

    • Standalone Titan console with integrated processing. No laptop required

    • Supports 8 DMX universes natively

    • 10 playback faders, 3 encoder wheels, 12 macro buttons and features Avolites’ Compact key layout

    • Compatible with USBC touchscreen

    • 1x up to 4K (UHD) external screen (USB-C or DisplayPort)

    • Compact layout (reduced version of D7 & D9 layouts)

    • 10x 60mm playback faders

    • 20x C&K flash buttons with custom cap

    • 76x backlit Cherry MX Low Profile programming/setup keys

    • 3x backlit Cherry MX Low Profile playback paging keys

    • 5x backlit Cherry MX Low Profile playback control keys, incl. double-width Go key

    • 12x backlit Cherry MX Low Profile macro/executor keys

    • 3x high resolution, metal Avo attribute encoders with select buttons

    • Support for D3 Wing, T3 Wing, or Titan Mobile Wing

    • Support for unlimited D3 Touch

    • iOS & Android mobile app ("Titan Remote")

    • 4x DMX ports (Neutrik 5-pin XLR)

    • 2x RJ45 (Gigabit Ethernet)

    • 1x SMPTE LTC port (Neutrik 3-pin XLR)

    • Avolites Titan & Capture Engine

    • 8 Universes (4,096 channels)

    • Unlimited Fixtures

    • TitanNet Multi-Console session

    • Streaming ACN

    • Art-Net & Art-RDM

    • CITP

    • SMPTE LTC

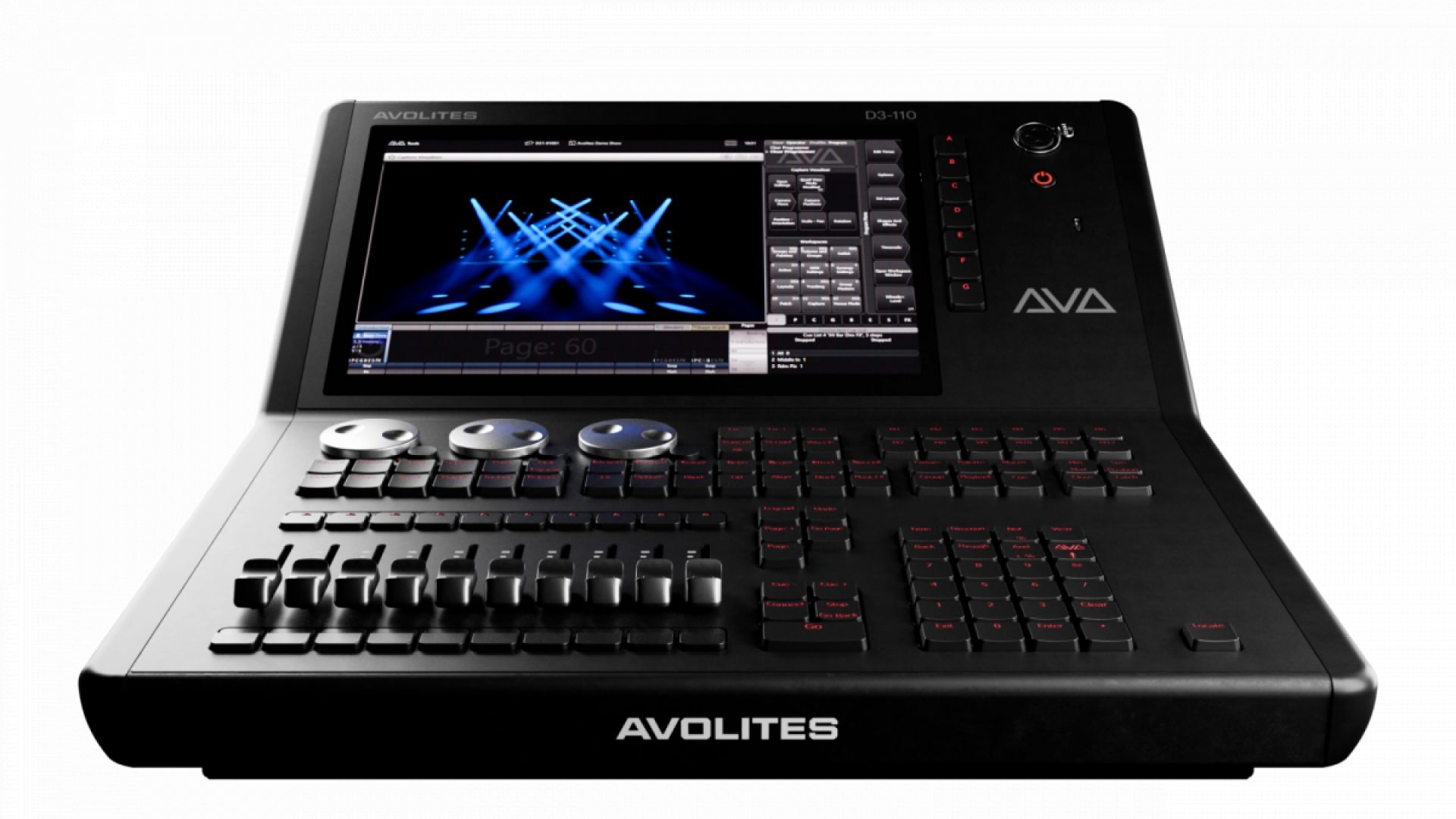

  • Control 24 universes from a neat, lightweight console. With a built-in touchscreen and more processing power, D3-110 is ready for bigger shows and tighter schedules. Powered by Titan, it supports 24 universes in a compact, self-contained design that fits into any tour, install or rental fleet. Tough and fully featured, D3-110 delivers high-end control in a neat package.

    • Standalone lighting control console with Titan processor

    • Supports 24 DMX universes natively

    • 10 playback faders, 3 encoder wheels, 12 macro buttons and features Avolites’ Compact key layout

    • Mixture of USB C and A ports

    • Avolites Titan & Capture Engine

    • 24 Universes (12,288 channels)

    • Unlimited Fixtures

    • TitanNet Multi-Console session

    • Streaming ACN

    • Art-Net & Art-RDM

    • CITP

    • SMPTE LTC

    • 1x 12.1", 800nit (cd/m2), WXGA capacitive multi-touch internal screen with adjustable brightness

    • 1x optional up to 4K (UHD) external screen (DisplayPort)

    • Compact layout (reduced version of D7 & D9 layouts)

    • 10x 60mm playback faders

    • 20x C&K flash buttons with custom cap

    • 76x backlit Cherry MX Low Profile programming/setup keys

    • 3x backlit Cherry MX Low Profile playback paging keys

    • 5x backlit Cherry MX Low Profile playback control keys, incl. double-width Go key

    • 12x backlit Cherry MX Low Profile macro/executor keys

    • 3x high resolution, metal Avo attribute encoders with select buttons

    • Support for D3 Wing, T3 Wing, or Titan Mobile Wing

    • Support for unlimited D3 Touch

    • iOS & Android mobile app ("Titan Remote")

    • 4x DMX ports (Neutrik 5-pin XLR)

    • 2x EtherCON (Gigabit Ethernet)

    • 1x SMPTE LTC port (Neutrik 3-pin XLR)

    • 1x Audio Input port (Neutrik 3-pin XLR)

    • 1x Audio Output port (6.35 mm (1⁄4”) jack)

    • 12V optional Gooseneck

    • Kensington Security Lock

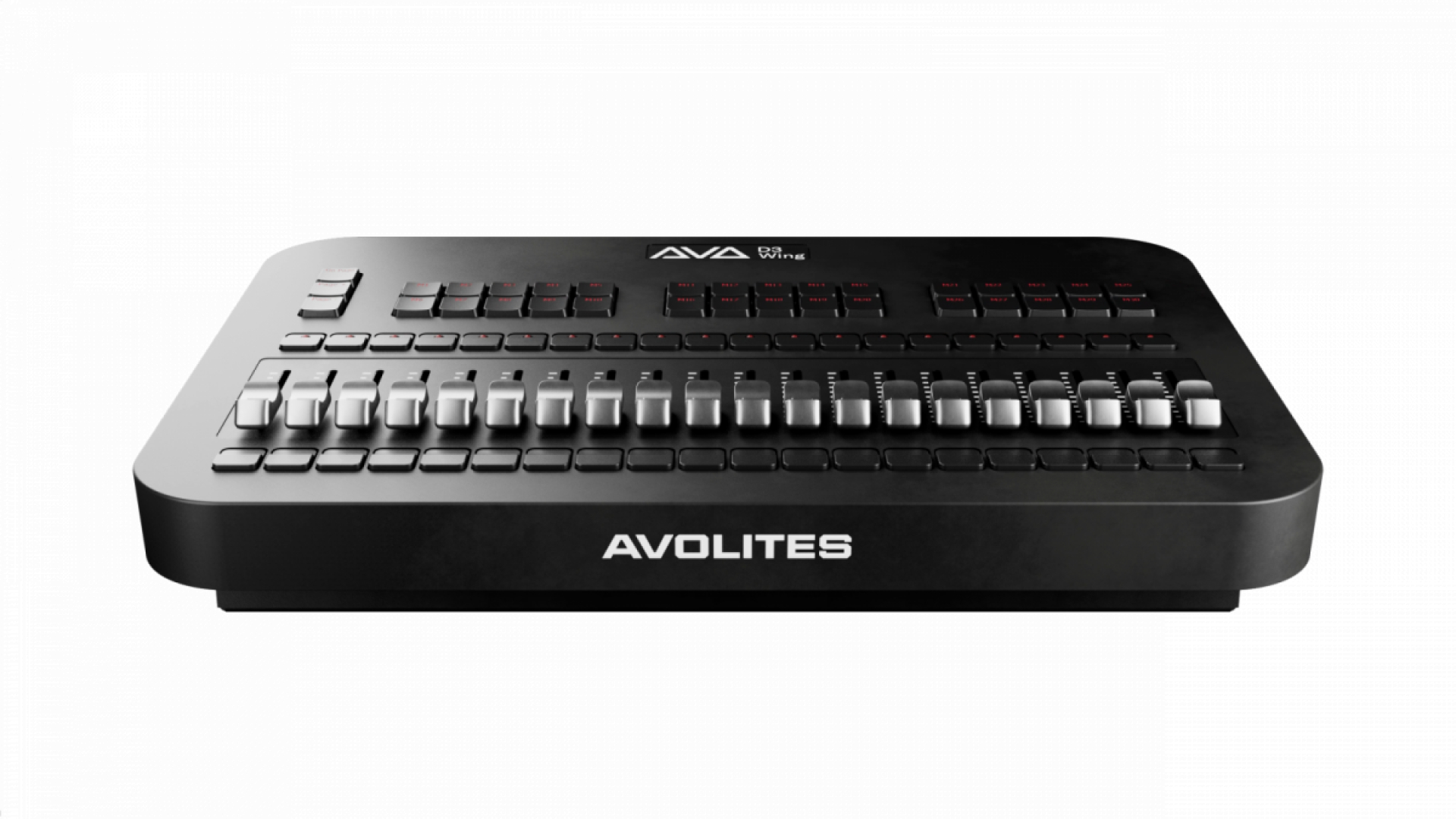

  • Plug in, extend your control, and stay hands-on during every show. D3 Wing adds extra faders and buttons to your D3 setup – giving you more physical control for live playback, cue stacking, and fast programming. It’s built to match the D3 range perfectly, with the same angles, layout and red LED scheme. Plug in, extend your control, and stay hands-on during every show.

    •  20x 60mm playback faders

    • 40x C&K flash buttons with custom cap

    • 3x backlit Cherry MX Low Profile playback paging keys

    • 30x backlit Cherry MX Low Profile macro/executor keys

    • Adds physical playback control to any D3 setup

    • Includes 20 extra playback faders

    • Seamlessly matches the layout, angle, and finish of the D3-010 and D3-110

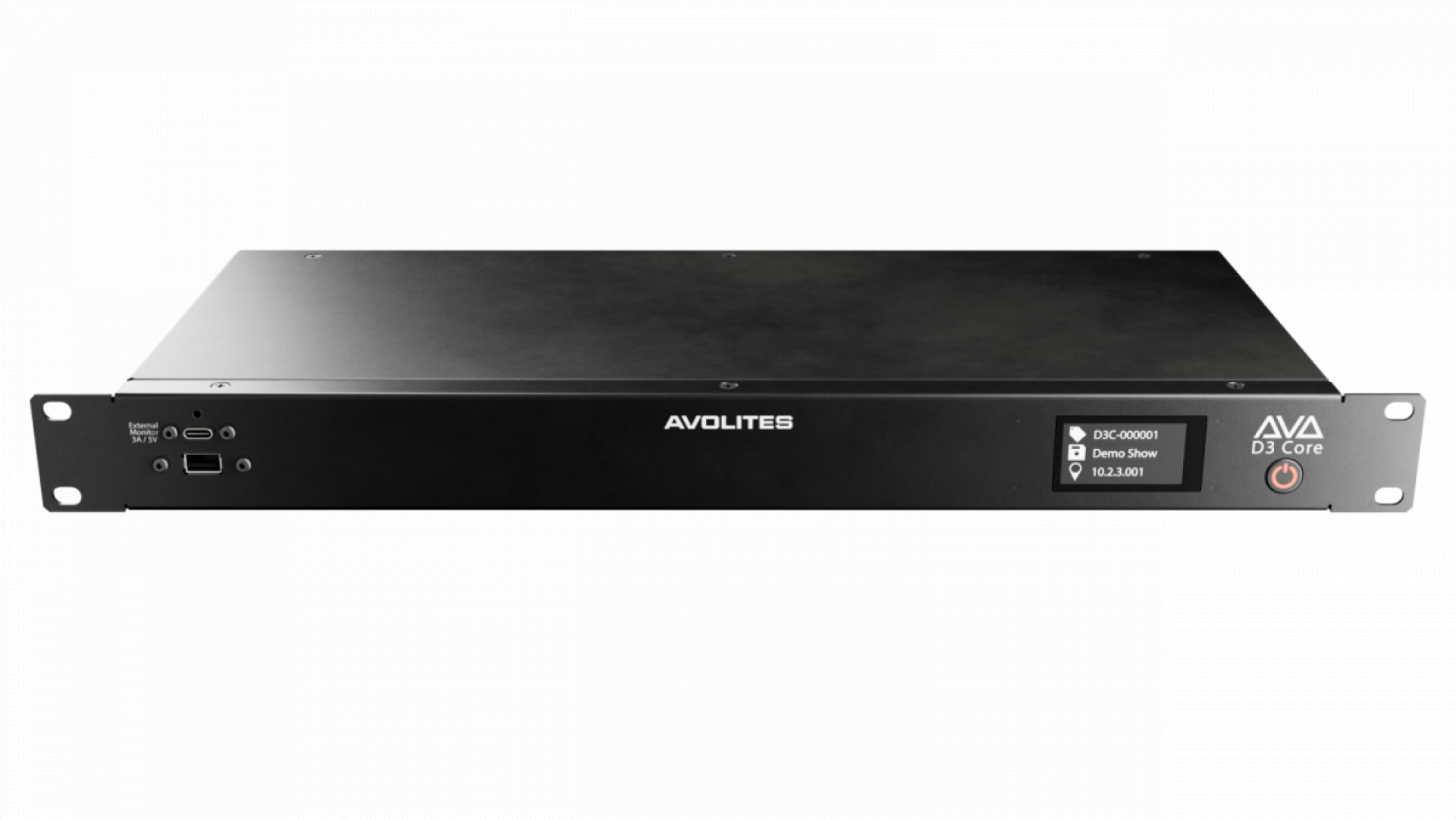

  • Add Titan to a fixed installation. D3 Core is a 1U rack-mounted processor that runs Titan as a standalone controller. It’s built for fixed installs, remote control setups, and situations where space is tight but you need reliable Avolites control.

    • 1U rack-mounted Titan processor

    • Runs full Titan OS as a standalone controller or with a connected surface

    • No front panel: designed for remote, fixed, or embedded control setups

    • Avolites Titan & Capture Engine

    • 16 Universes (8,192 channels)

    • Unlimited Fixtures

    • TitanNet Multi-Console session

    • Streaming ACN

    • Art-Net & Art-RDM

    • CITP

    • SMPTE LTC

    • 1x 1.9" (displays Console ID, Showfile Name, IP Address)

    • 1x optional up to 4K (UHD) external screen (USB-C or DisplayPort)

    • Support for T3 console

    • Support for D3 Wing, T3 Wing, or Titan Mobile Wing

    • Support for unlimited D3 Touch

    • iOS & Android mobile app ("Titan Remote")

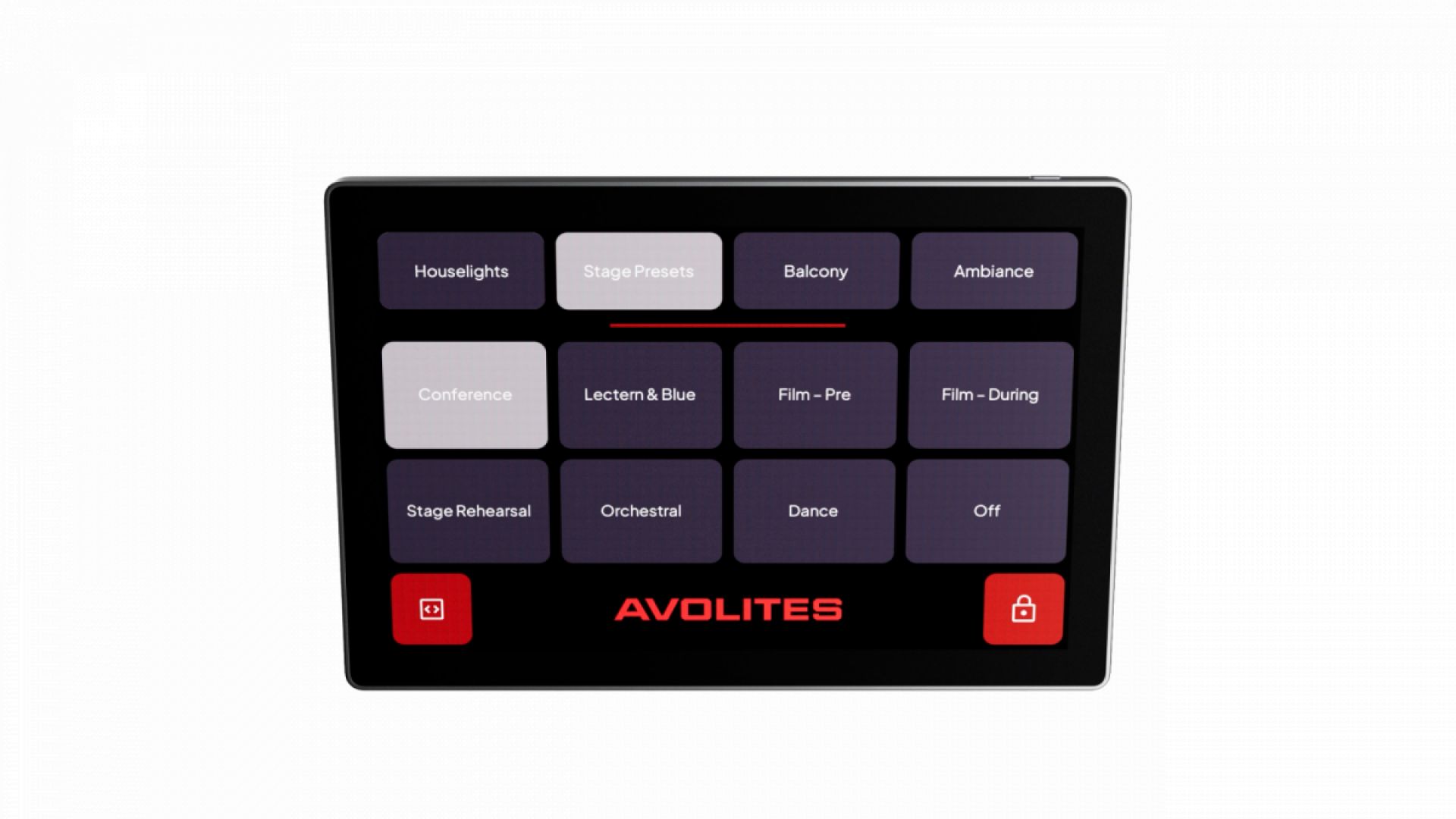

  • Make Titan processing available from a touchscreen. D3 Touch is a pre-configured, installation touchscreen interface for Titan. It’s designed for venues and installations where operators need simple, reliable access to key functions – from show playback to house light presets. Fully integrated with Titan, it’s plug-and-play, responsive, and easy to use, even for non-technical staff.

    • Pre-configured touchscreen interface designed to control Titan systems

    • Compatible with a D3 Core or other Titan consoles

    • Provides touch access to playbacks and macros

    • 4x Zones, 8x Scenes per Zone (more can be added using Titan Macros)

    • 8x Titan Macros

    • Lock Screen

    • Unlock Code

    • 1x 10", WXGA capacitive touchscreen

    • PoE powered

    • Supports all Titan consoles (excluding T1)

Avolites D3 Series - Variant Downloads
D3-010 - Titan power in a compact 8U console
Standalone Titan console with integrated processing. No laptop required
Download
D3-110 - Compact 24U Titan console with touchscreen
Standalone lighting control console with Titan processor
Download
D3 Wing - Add more control to your D3 setup
Adds physical playback control to any D3 setup
Download
D3 Core - Rack-mounted Titan processing
1U rack-mounted Titan processor
Download
D3 Touch - Remotely trigger Titan from a reliable touchscreen
Pre-configured touchscreen interface designed to control Titan systems
Download

You might like...

Avolites T3-Wing Avolites logo
Product - LIGHTING

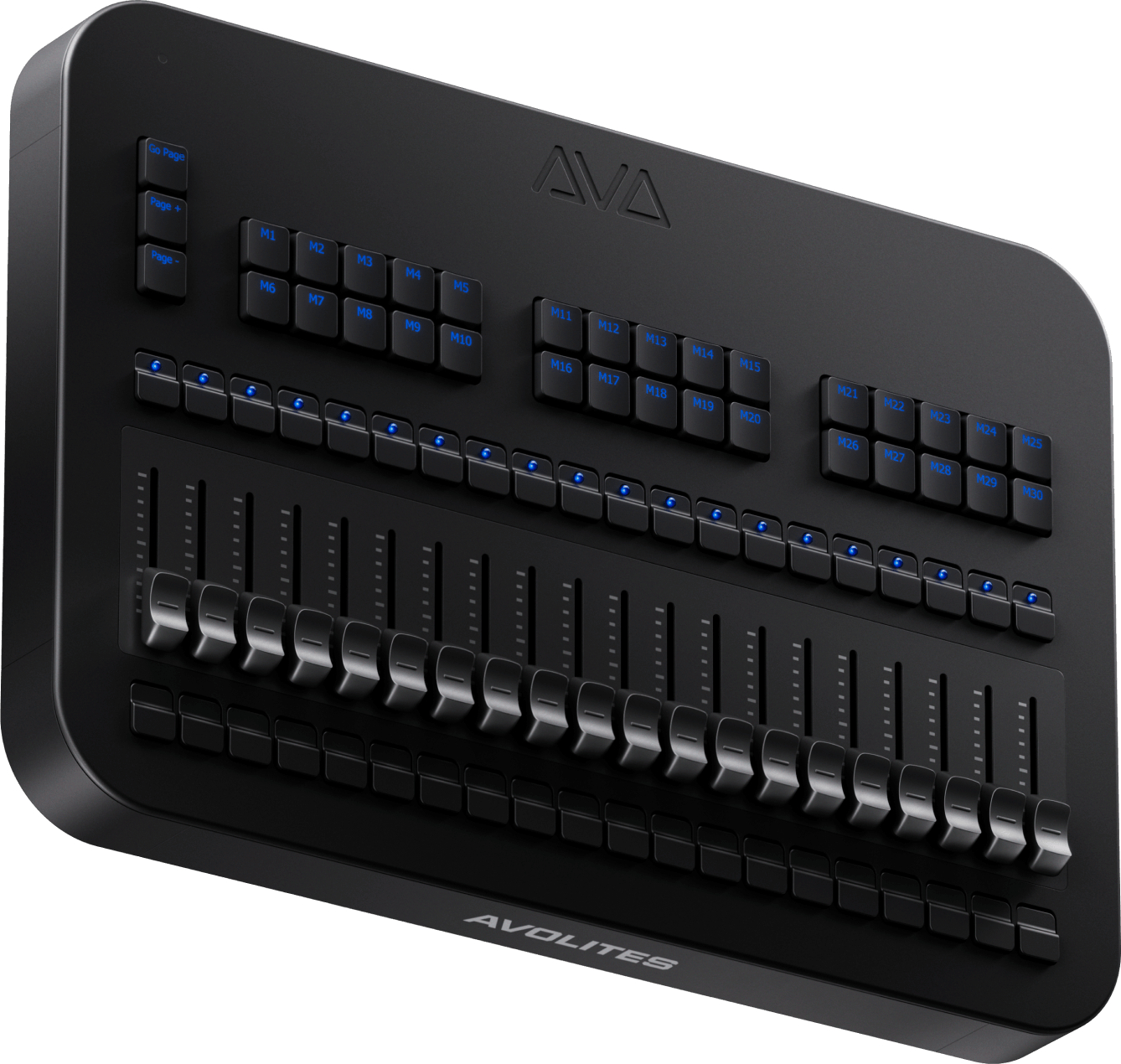

Avolites T3-Wing
    • Generative, animation-based pixel mapping
    • Quicksketch labelling for ultimate personalisation
    • Powerful multi-user networking with any Titan console
Find out more
Avolites T3 moving lights console - angle Avolites logo
Product - LIGHTING

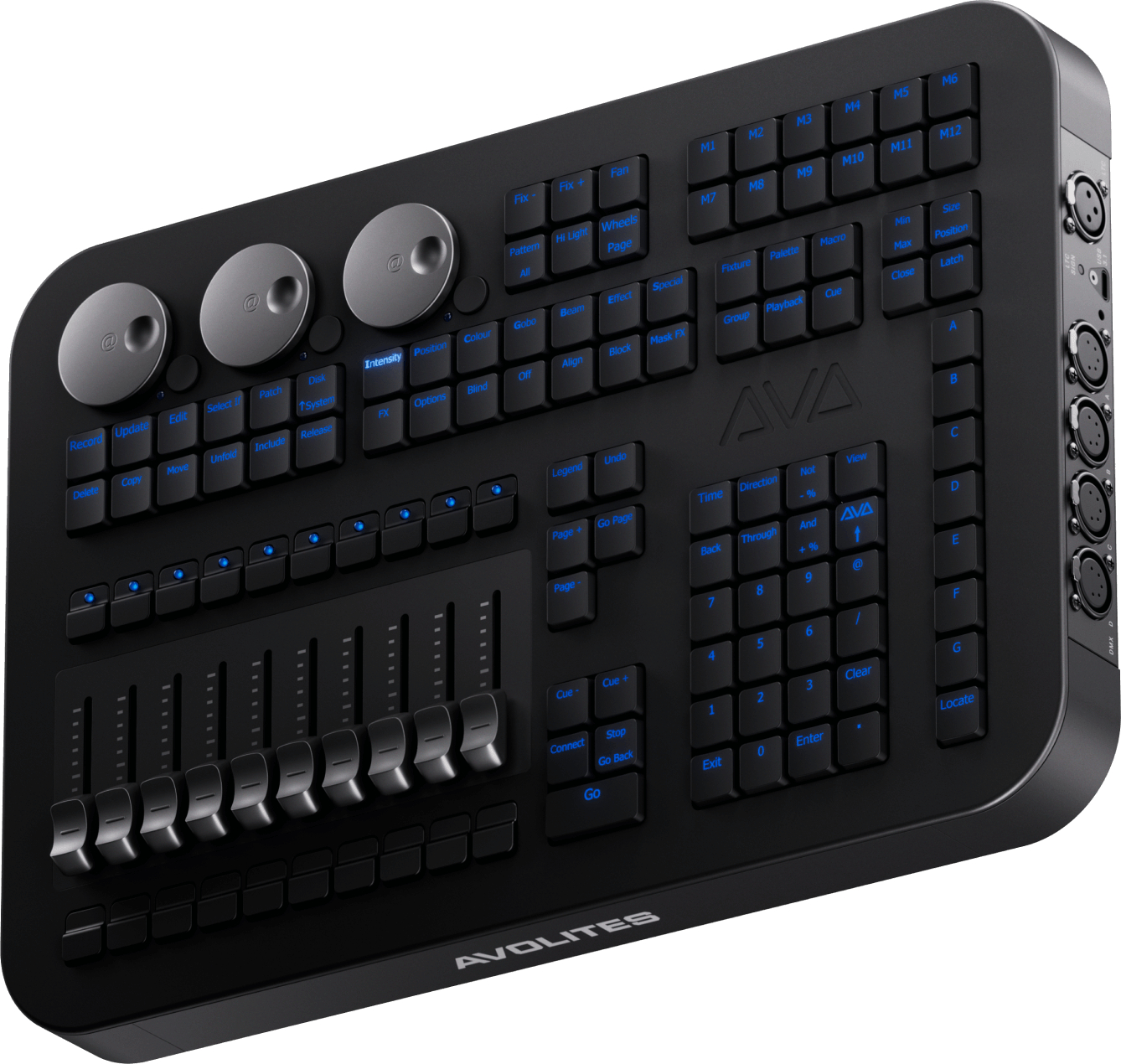

Avolites T3 Lighting Control Console
    • Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
    • Expand DMX channel capacity with Titan Net Processors
    • Synergy-ready. Add any Ai product to unlock seamless video integration
Find out more
Avolites Diamond 9 330 | AC-ET Avolites logo
Product - LIGHTING

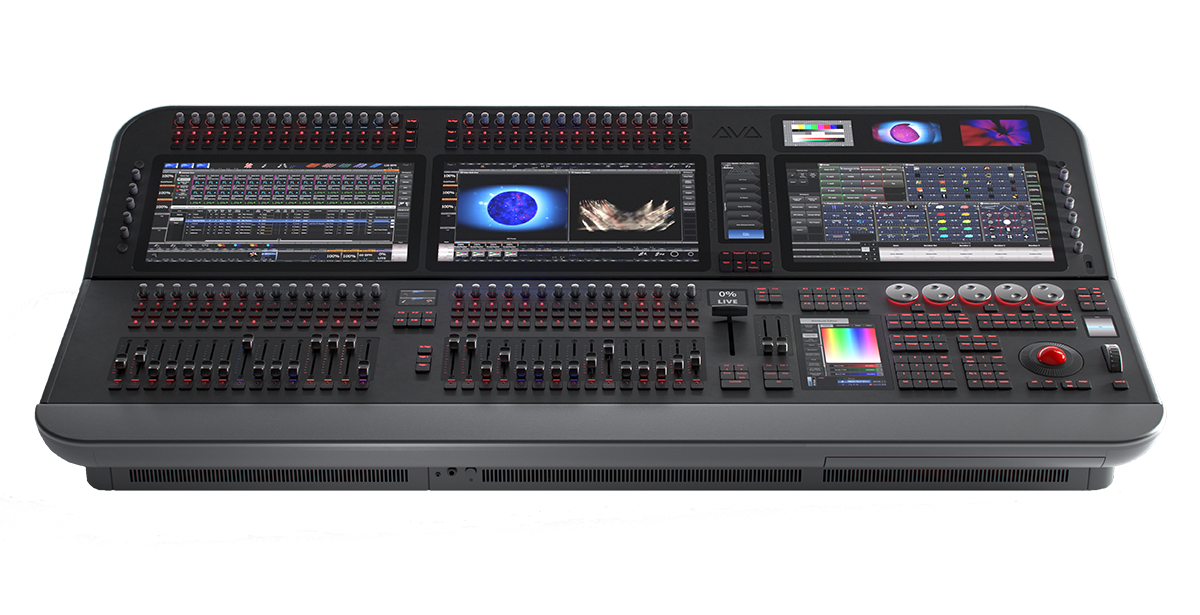

Avolites Diamond 9 330
    • 30 motorised touch -sensitive Penny & Giles
    • 3 x 15.6” touchscreens with adjustable brightness
    • 70 optical rotary touch sensitive playback encoders
Find out more
Avolites Diamond 7 330 Avolites logo
Product - LIGHTING

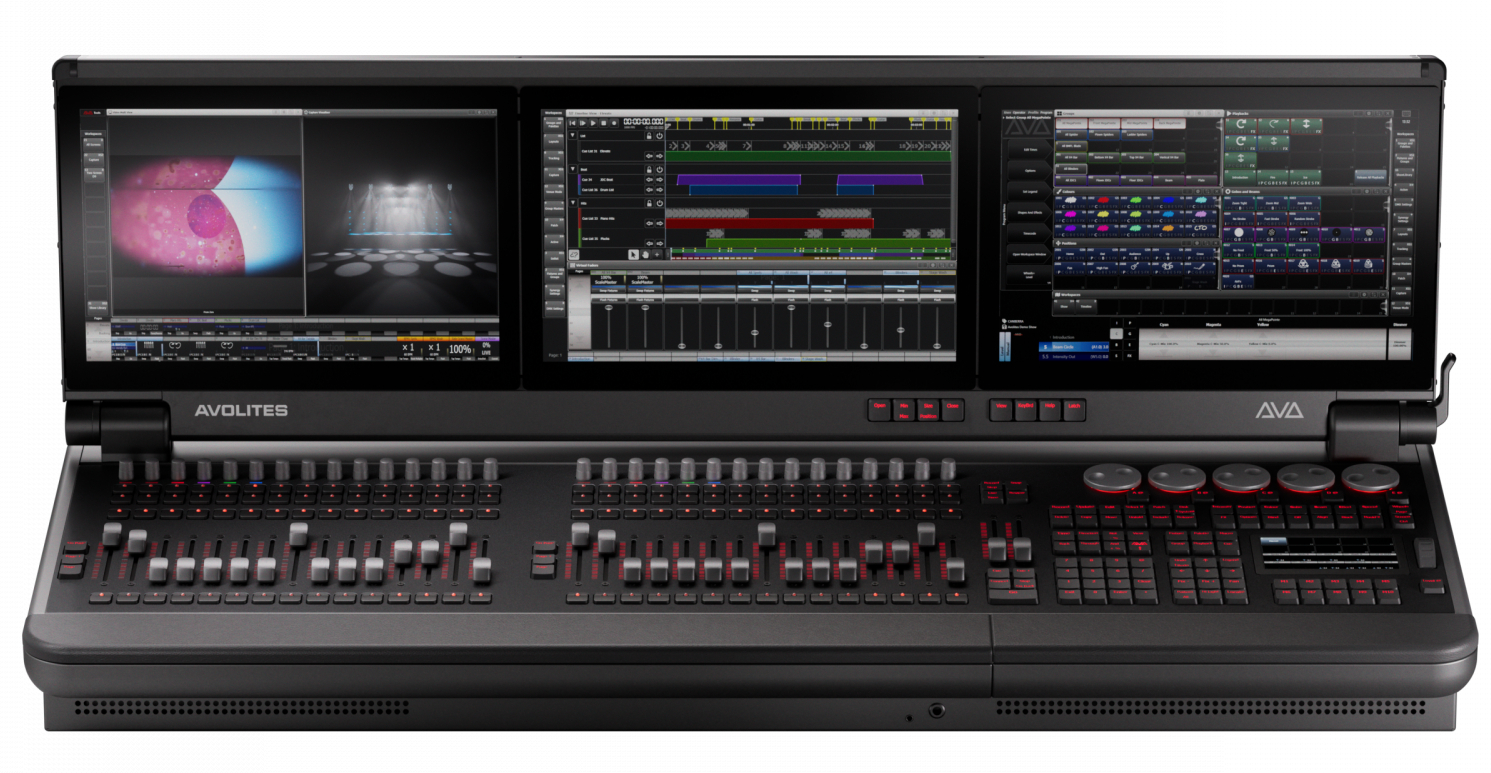

Avolites Diamond 7 330
