Allen & Heath dLive S Class MixRacks

Key Features:

  • XCVI processing core.
  • Can be controlled without a Surface.
  • All feature the same mix engine.
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Allen & Heath dLive S Class MixRacks

The Allen & Heath dLive MixRack is the heart of any dLive system. It houses the XCVI processing core complete with audio I/O, control and audio networking ports. It is typically connected to a dLive Surface, but can also be controlled at the same time as or even without a Surface using a laptop or iPad, Allen & Heath IP remotes or third party controllers via TCP/IP.

Product Variants

dLive_DM64_Front

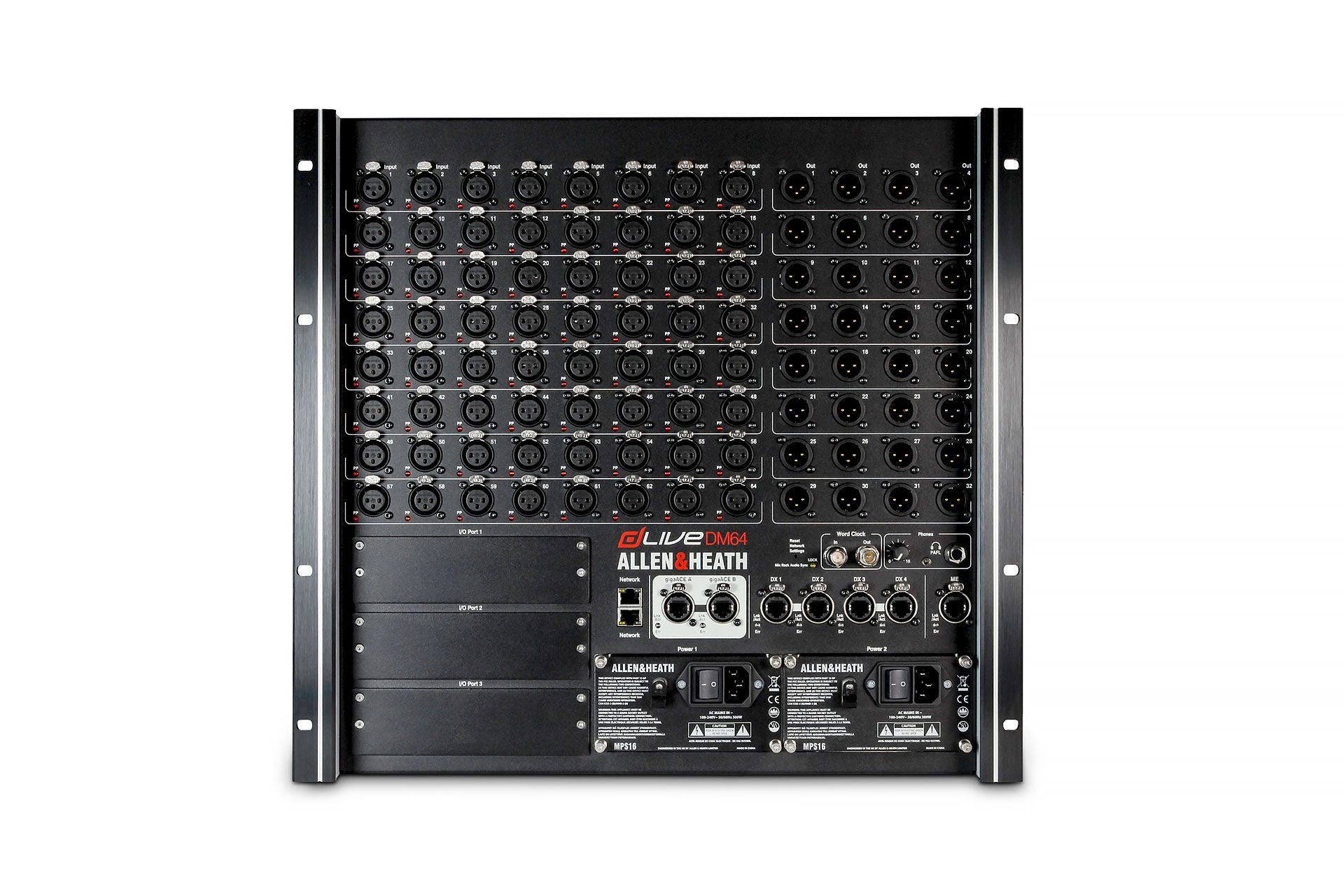

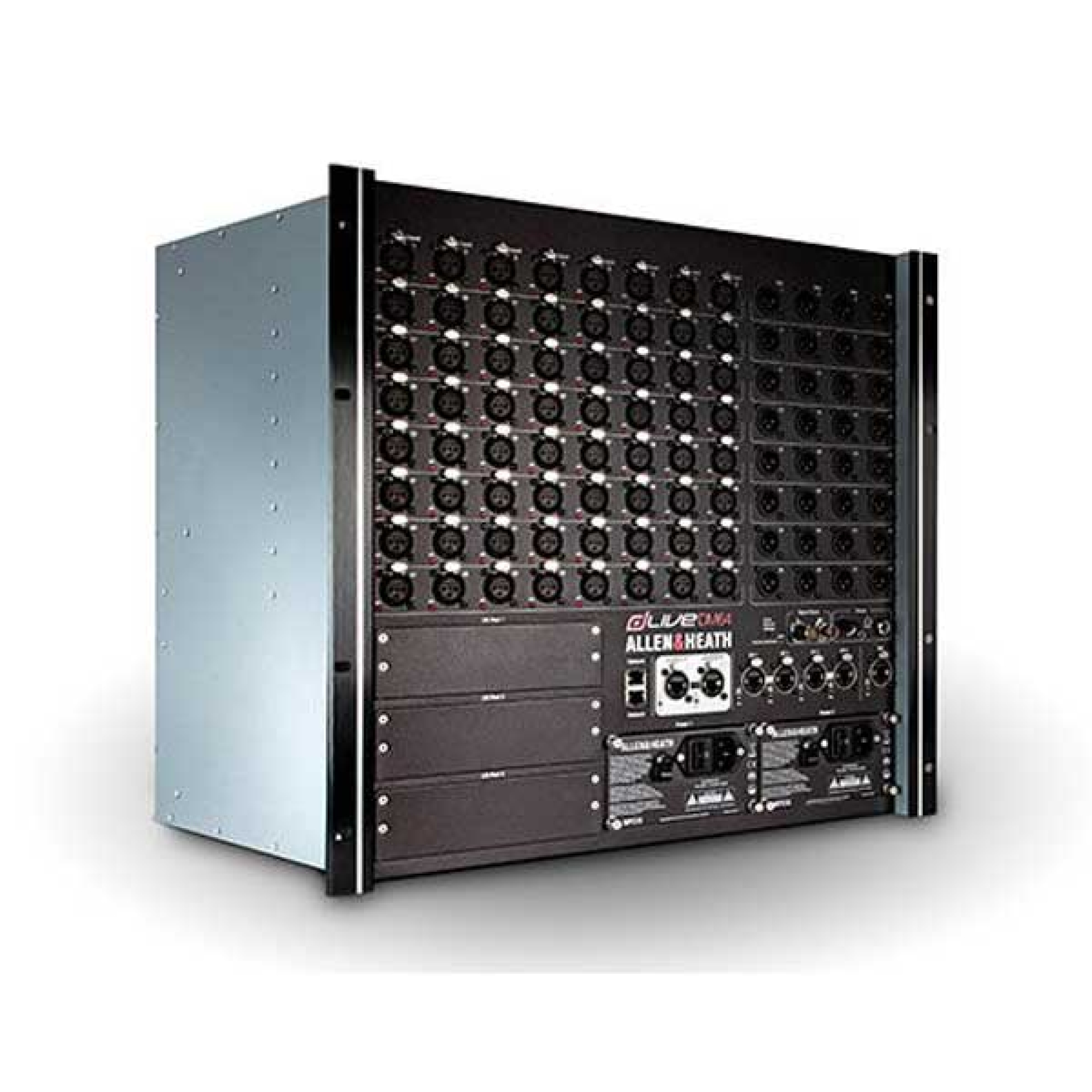

DM64
  • 64 mic/line inputs, 32 line outputs
  • XCVI 160×64 FPGA core
  • 96kHz sample rate
  • Class leading, ultra-low latency < 0.7ms
  • 128 Input Channels with full processing
  • 64 Mix Outputs with full processing
  • 24 DCAs
  • 2x redundant DX links for I/O expansion
  • 3x I/O Ports – 128 ch 96 kHz each
  • Dual redundant, hot swappable power supply

Enquiry Form

dLive_DM48_MixRack

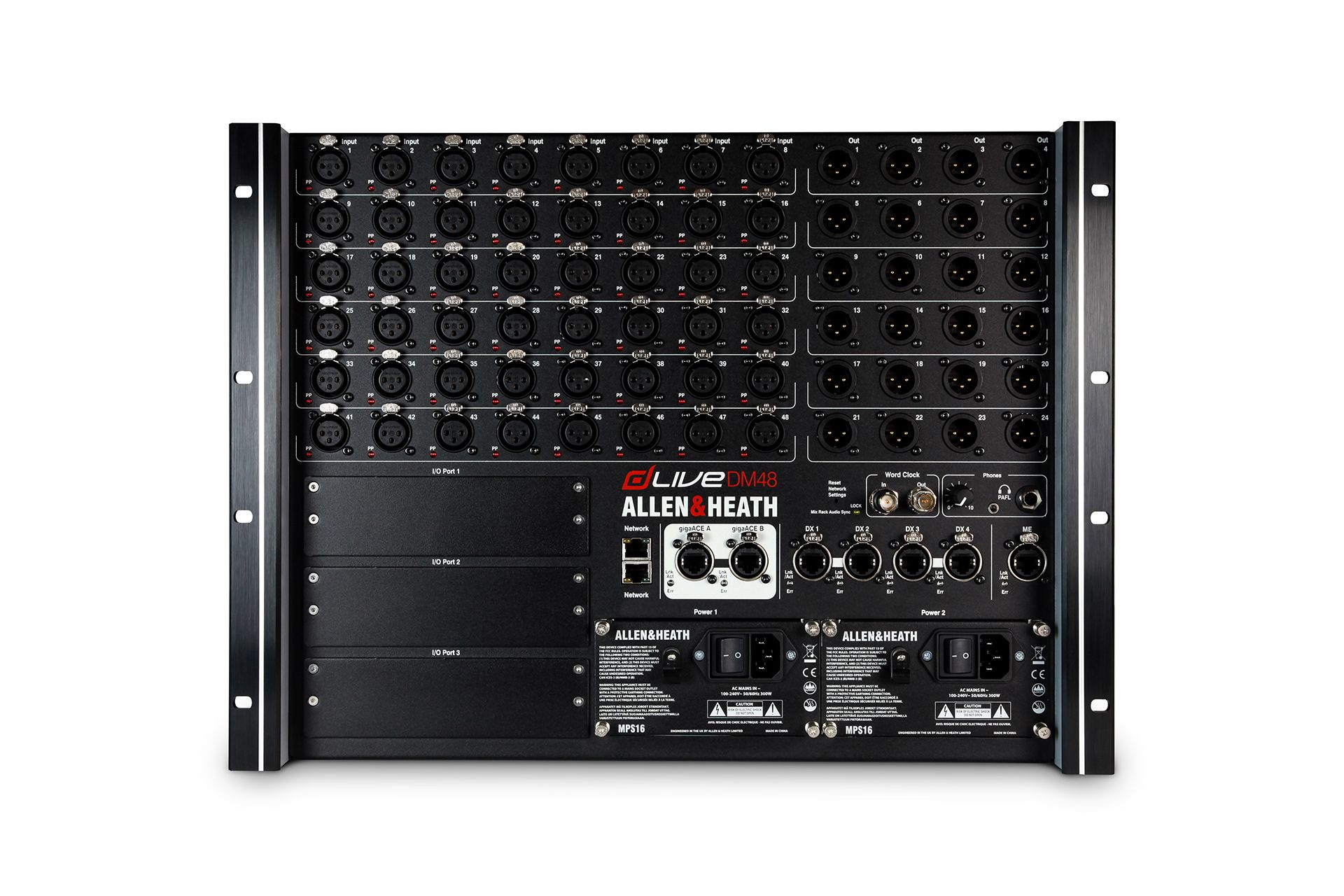

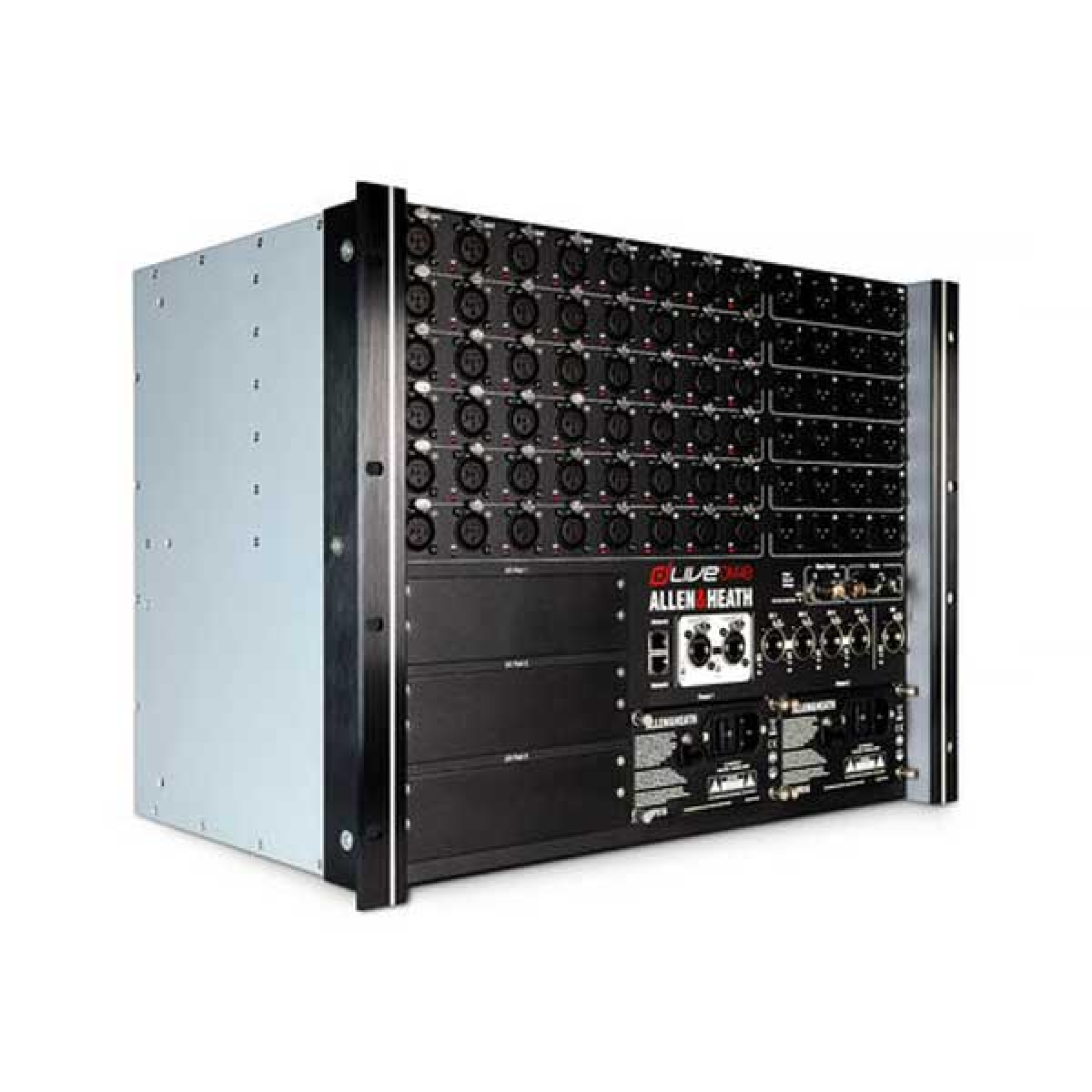

DM48
  • 48 mic/line inputs, 24 line outputs
  • XCVI 160×64 FPGA core
  • 96kHz sample rate
  • 128 Input Channels with full processing
  • 24 DCAs
  • Dual redundant GigaACE gigabit link to Surface
  • 2x redundant DX links for I/O expansion
  • 3x I/O Ports – 128 ch 96 kHz each
  • Add up to 46 DX I/O expanders via DX Hub modules or DX Link cards
  • Dual redundant, hot swappable power supply

Enquiry Form

Allen & Heath dLive DM32 MixRack

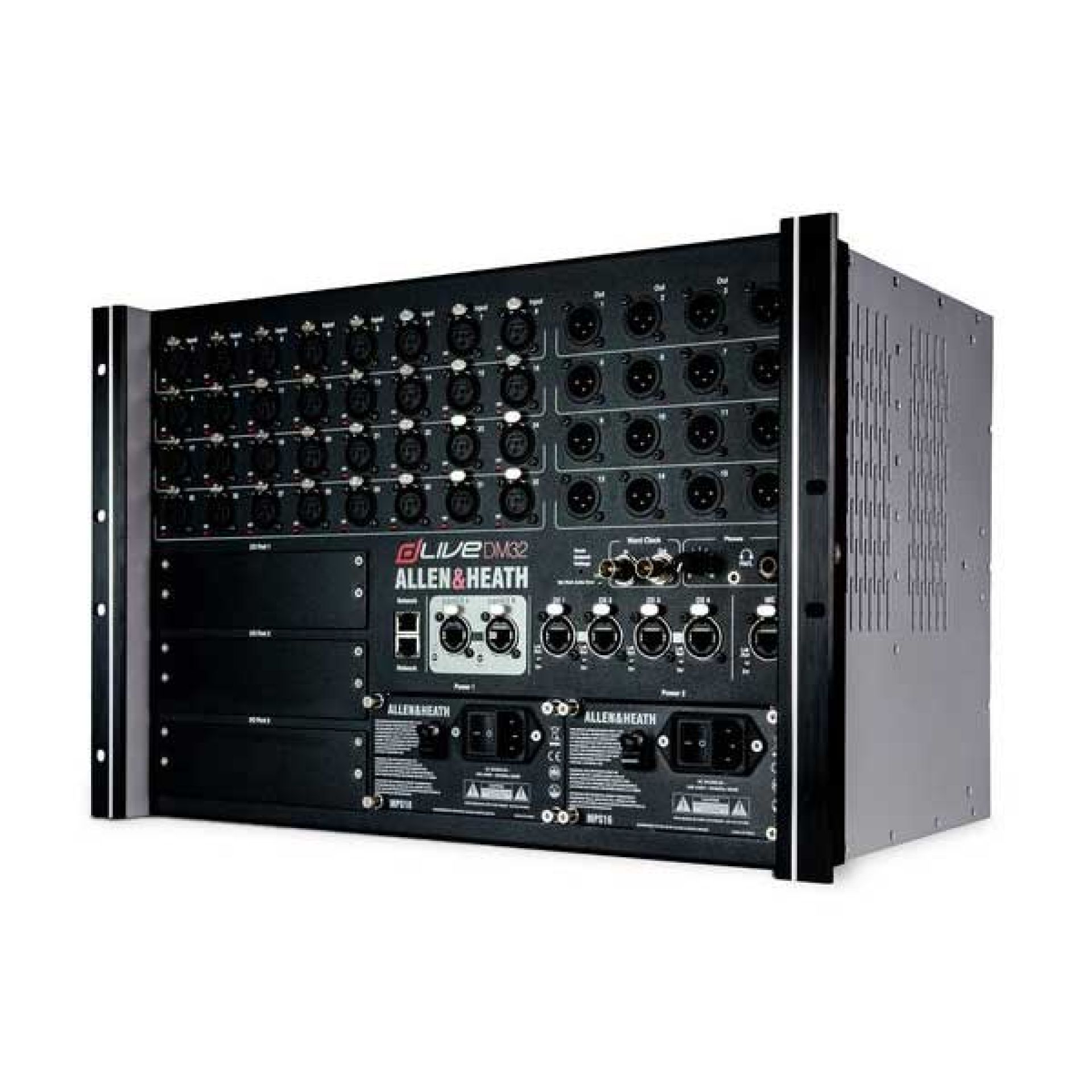

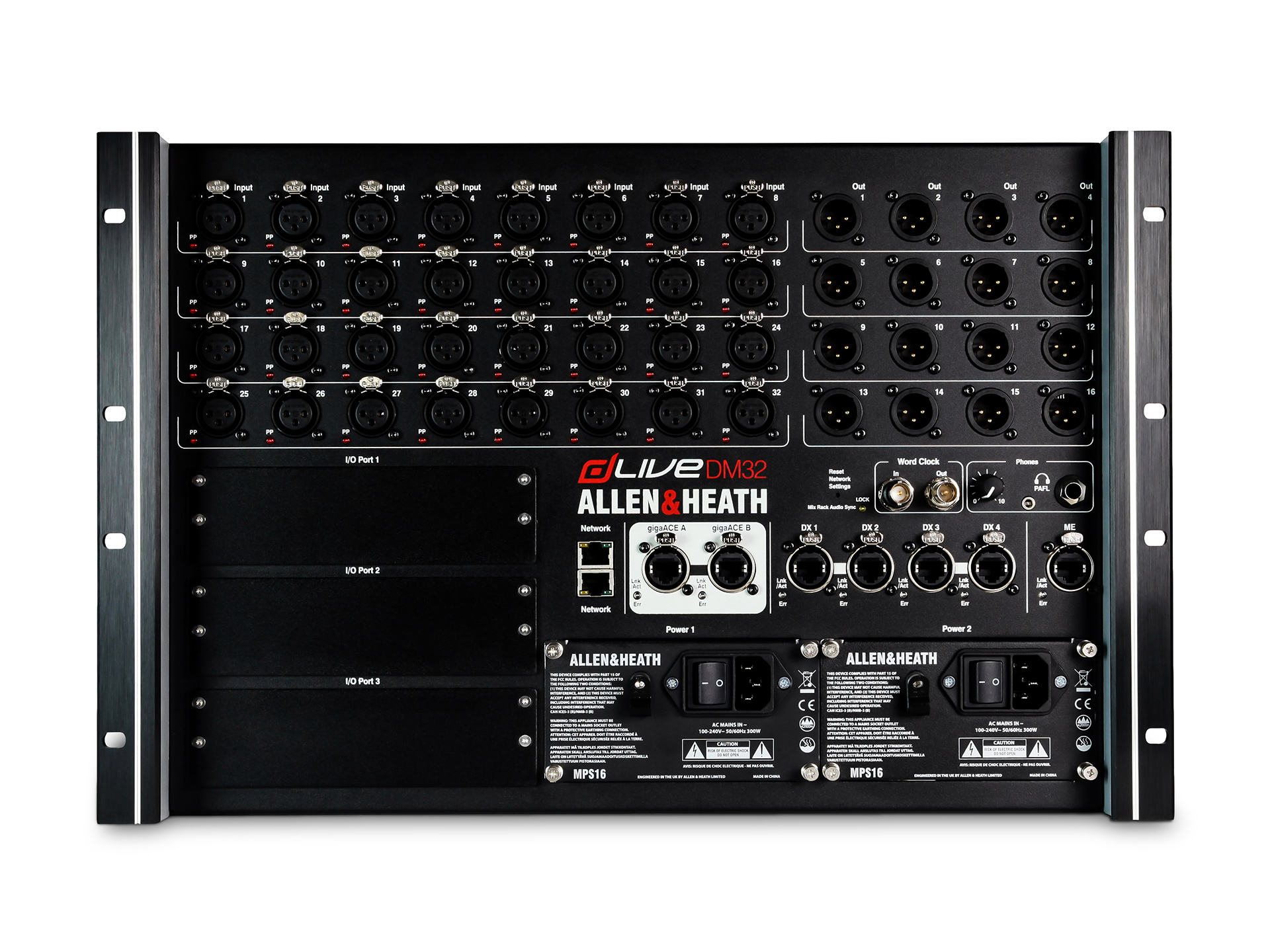

DM32
  • 32 mic/line inputs, 16 line outputs
  • XCVI 160×64 FPGA core
  • 96kHz sample rate
  • 128 Input Channels with full processing
  • 64 Mix Outputs with full processing
  • 24 DCAs
  • 2x redundant DX links for I/O expansion
  • 3x I/O Ports – 128 ch 96 kHz each
  • Add up to 46 DX I/O expanders via DX Hub modules or DX Link cards
  • Dual redundant, hot swappable power supply

Enquiry Form

dLive DM0

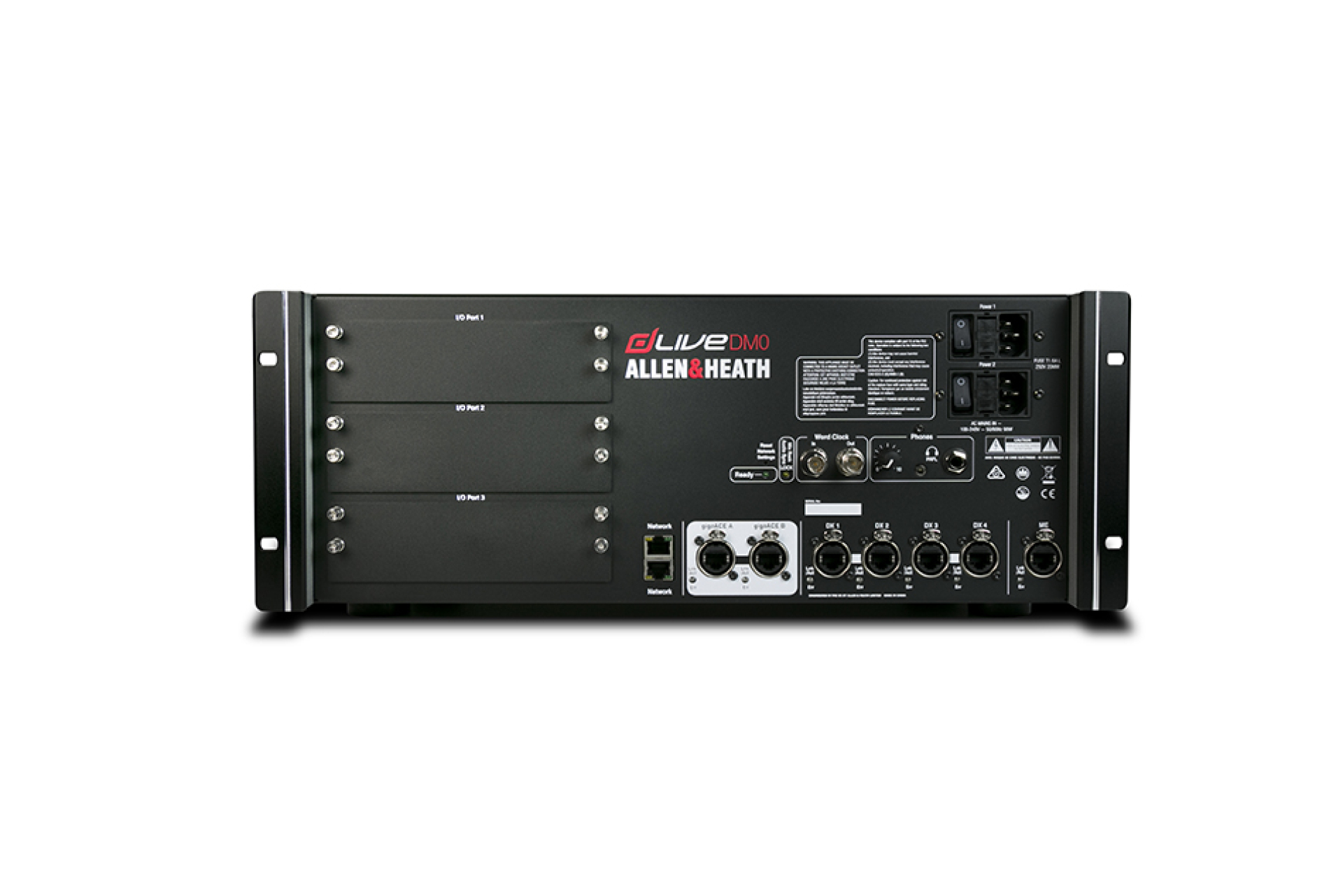

DM0
  • 128 Input Channels with full processing
  • 64 Mix Outputs with full processing
  • 24 DCAs
  • AMM (Automatic Mic Mixer) up to 64 channels across 1, 2 or 4 zones
  • 2x DX links for I/O expansion
  • I/O Port – 128 ch 96 kHz
  • 2x Network ports
  • Wordclock BNC I/O
  • Add up to 46 DX I/O expanders via DX Hub modules or DX Link cards
  • Dual redundant power supplies

Enquiry Form

dLive is Allen & Heath’s flagship digital mixing system.

The power of dLive emanates from the XCVI Core – pioneered by the Allen & Heath R&D team using next generation FPGA technology, with 36 parallel virtual processing cores generating enough power for 160×64 channels of processing at 96kHz sampling rate. Six parallel mixing engines within the Core calculate over 10,000 cross points per sample, while the FPGA router has capacity for 3,000 x 3,000 audio paths. The massive power of XCVI (25 billion operations per second) allows dLive to deliver 128 full processing inputs and 16 stereo FX returns, a configurable 64 bus architecture, variable bit depth for ultimate precision and noise performance, a virtually infinite mix headroom thanks to a 96bit accumulator, and class-leading latency at an ultra-low 0.7ms.
