Allen & Heath CQ Series
Allen & Heath CQ Series
CQ-12T
CQ-18T
CQ-20BCQ-20B
CQ-12T
CQ-18T
CQ-20BCQ-20B

Allen & Heath CQ Series

Key Features:

  • Ultra-compact digital mixers
  • Renowned processing and effects
  • Pristine 96kHz audio
Enquire

Enquiry Form

Call us today on

+44 (0)113 255 7666

Allen & Heath CQ Series

Ultra-compact digital mixers for musicians and bands, home producers, small venues and AV installers.

Product Variants

CQ-12T

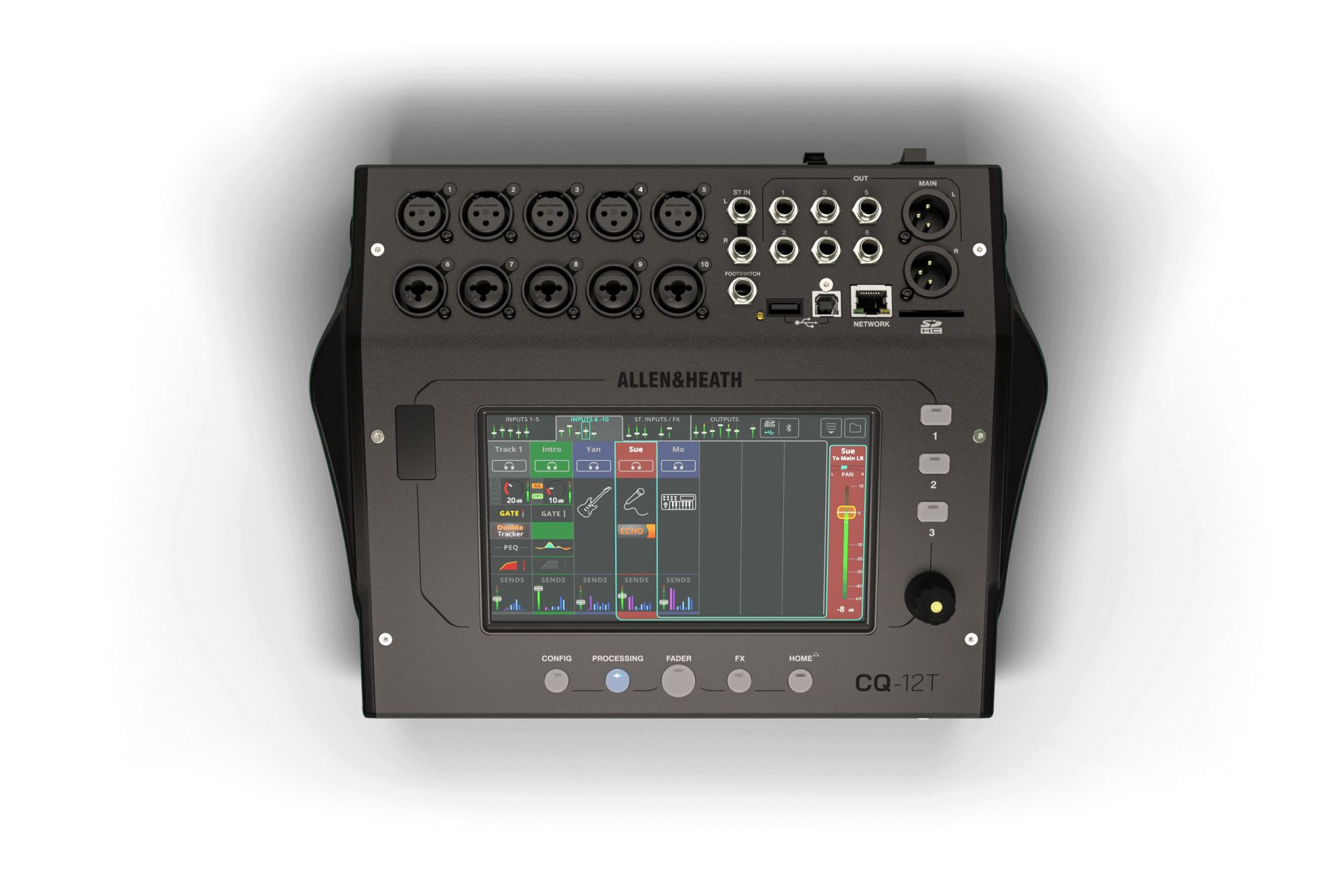

CQ-12T
  • Ultra-Compact 12in / 8out Digital Mixer
  • Inputs
  • 5 XLR
  • 5 XLR/TRS Combi
  • 2 TRS (stereo)
  • Outputs
  • 2 XLR (Main)
  • 6 TRS (Monitors)
  • Stereo USB record/playback with dedicated input channel
  • 16×16 USB-B interface (48/96kHz)
  • 16×16 SD record/playback (48/96kHz)
  • 2 FX engines
  • 3 Custom SoftKeys
  • Dual Footswitch connection
  • 7” Capacitive touchscreen with associated rotary control
  • Assignable TRS headphone output

Enquiry Form

CQ-18T

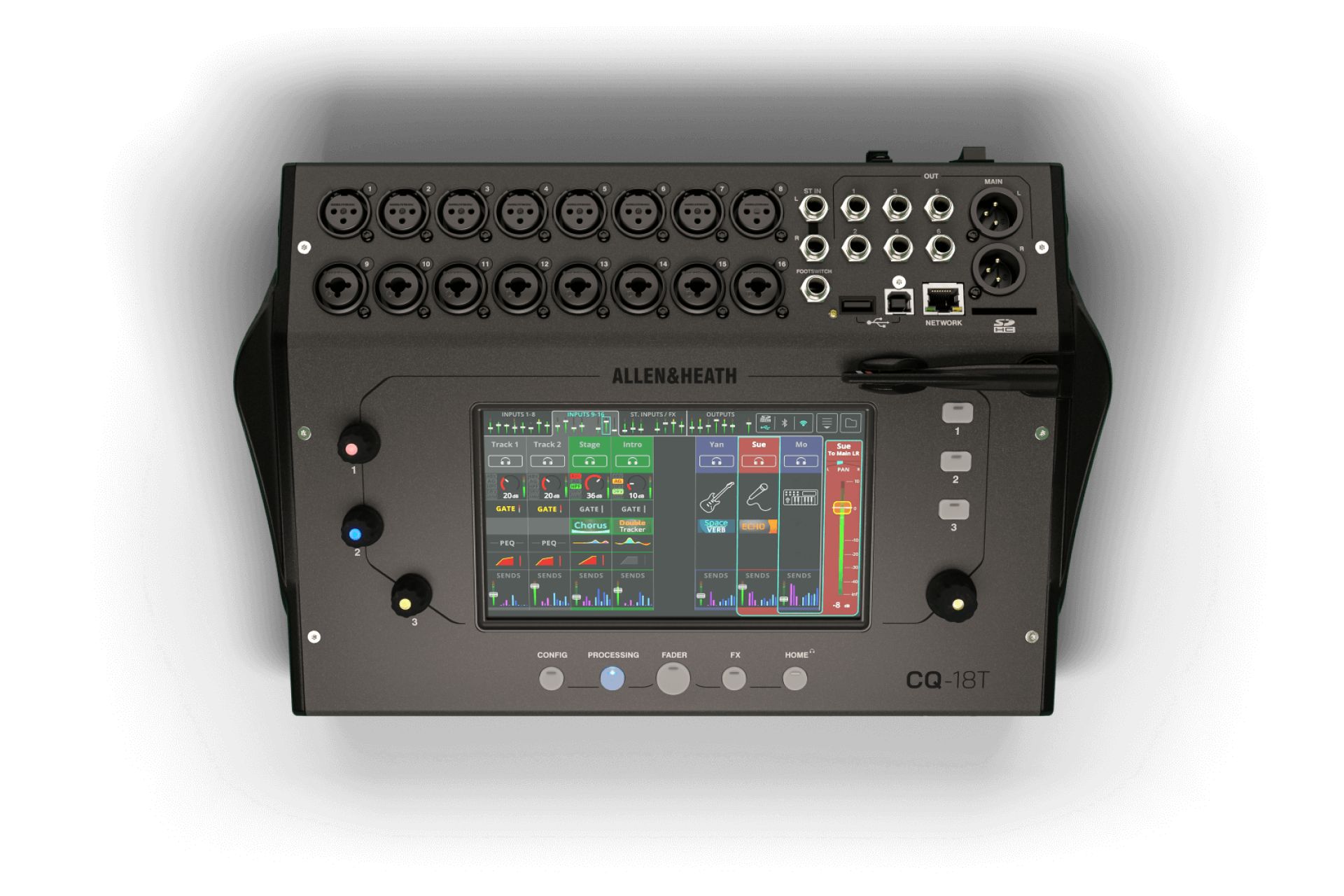

CQ-18T
  • Ultra-Compact 18in / 8out Digital Mixer with Wi-Fi
  • Inputs
  • 8 XLR
  • 8 XLR/TRS Combi
  • 2 TRS (stereo)
  • Outputs
  • 2 XLR (Main)
  • 6 TRS (Monitors)
  • 24×22 USB-B interface (48/96kHz)
  • SD record/playback
  • 24×22 (48kHz)
  • 16×16 (96kHz)
  • Stereo Bluetooth playback with dedicated input channel
  • 4 FX engines
  • 3 Custom Rotaries
  • 3 Custom SoftKeys
  • Dual Footswitch connection
  • 7” Capacitive touchscreen with associated rotary control
  • 2 Assignable TRS headphone outputs
  • Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select

Enquiry Form

CQ-20BCQ-20B

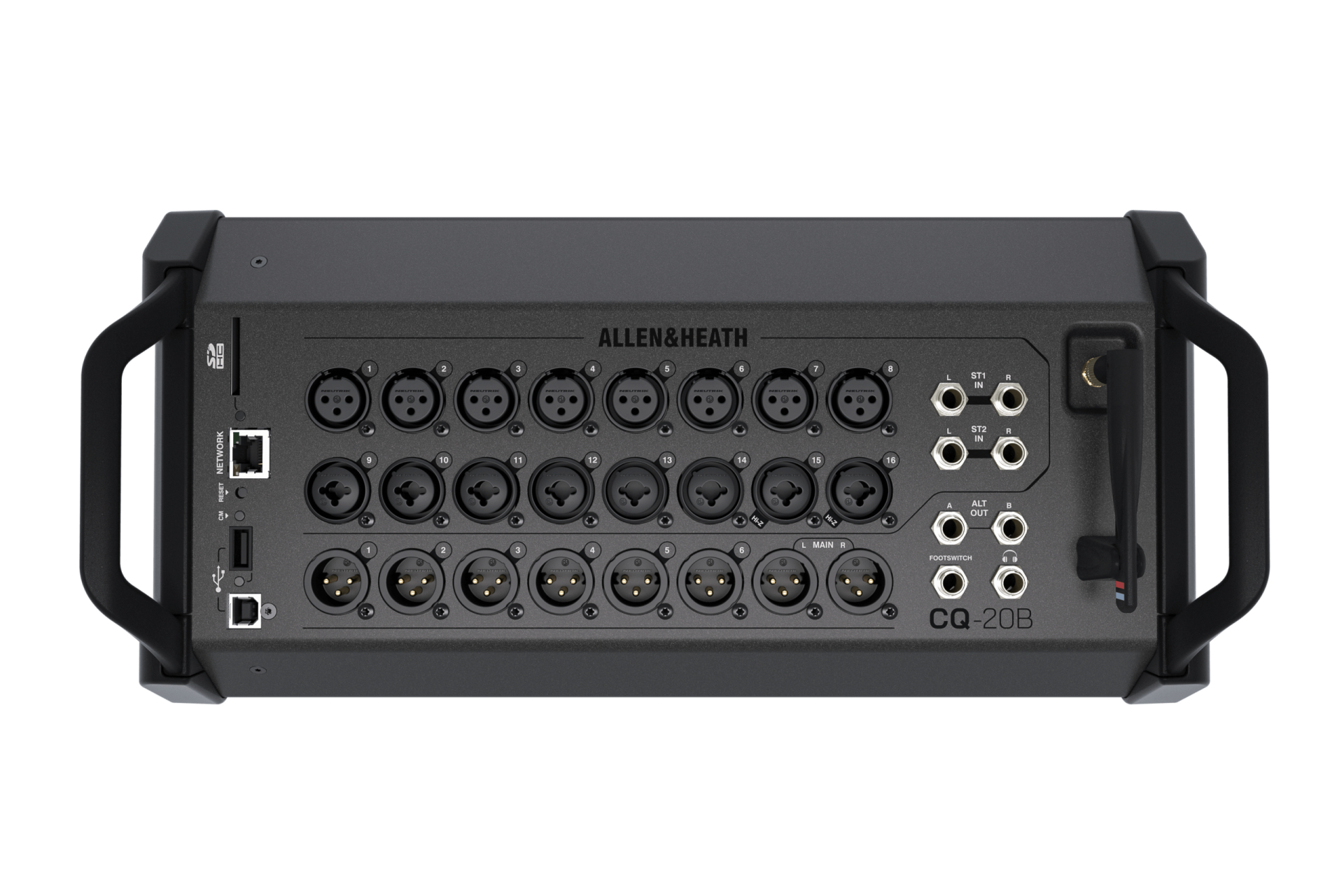

CQ-20B
  • Ultra-Compact 20in / 8out Digital Mixer with Wi-Fi
  • Inputs
  • 8 XLR
  • 8 XLR/TRS Combi
  • 4 TRS (stereo)
  • Outputs
  • 2 XLR (Main)
  • 6 XLR (Monitors)
  • Assignable Alt Out
  • 24×24 USB-B interface (48/96kHz)
  • SD record/playback
  • 24×24 (48kHz)
  • 16×16 (96kHz)
  • Stereo Bluetooth playback with dedicated input channel
  • 4 FX engines
  • Dual Footswitch connection
  • Assignable TRS headphone output
  • Built-in dual band 2.4G/5G AC Wi-Fi with auto channel select

Enquiry Form

Mix Smarter. Work Faster. Sound Better.

CQ takes renowned processing and effects, adds exciting new assistive mixing tools, and packages it all up into the smallest and most affordable digital mixer series yet.

Pick Your Mixing Style

Every input channel on CQ can be switched between two modes.

Quick Channels offer instrument and application-specific processing with the ability to dial in a full channel of processing via a single knob.

Need more control? Switch to Complete Channels for advanced, in-depth tweaking of parameters.

Faster Setups

Setting the correct amount of gain for each channel isn’t the most exciting task, and it quickly eats into your setup time with multiple channels to take care of.

CQ’s Gain Assistant quickly and accurately sets the optimal gain level for your one or multiple channels and continues to monitor levels during the performance to prevent any nasty peaks or surprises.

CQ’s Feedback Assistant automatically detects and eliminates problem frequencies using up to 16 filters per output so you can mix with confidence – and forget about feedback.

CQ draws on technology from our latest generation of live sound consoles to deliver audio quality previously unimaginable at this level of mixer.

Pristine 96kHz audio is partnered with studio-grade onboard processing and an optimised suite of FX to set a new standard for what’s possible with ultra-compact digital mixers.

CQ introduces a new suite of high-quality, user-friendly reverb, delay and modulation algorithms with instrument-specific presets for speedy setup.

Selected units feature our new FX Assist tool, automatically shaping the effects and dynamically responding to your input signal to ensure your mix is enhanced by FX, not engulfed.

CQ makes it easy to handle multiple channels simultaneously with 4 DCAs, each capable of controlling the level of any combination of inputs, outputs, and FX, for simple single-fader control of multiple channels, such as a drum kit, without affecting their relative levels.

There are also 4 Mute Groups, enabling you to mute and unmute multiple channels at once via a single button, perfect for muting all stage mics or monitor speakers.

CQ packs in multiple recording and playback options to ensure you’re always ready to capture the performance.

An integrated USB audio interface enables easy multitrack recording, playback and streaming via your DAW, and an SD card slot is provided for reliable multitrack recording and playback on the go.

You can record and playback stereo files via USB key, and you can even playback from your phone via the built-in Bluetooth functionality.

Allen & Heath CQ Series - Variant Downloads
