Allen & Heath AHM Matrix Processors

Allen & Heath AHM is a family of powerful Audio Matrix Processors supported by a comprehensive ecosystem of scalable I/O, control and Dante solutions. Designed to excel in corporate, retail, hospitality and education environments, AHM matrix processors allow integrators to quickly create systems that build from a single boardroom to a complete campus.

Product Variants

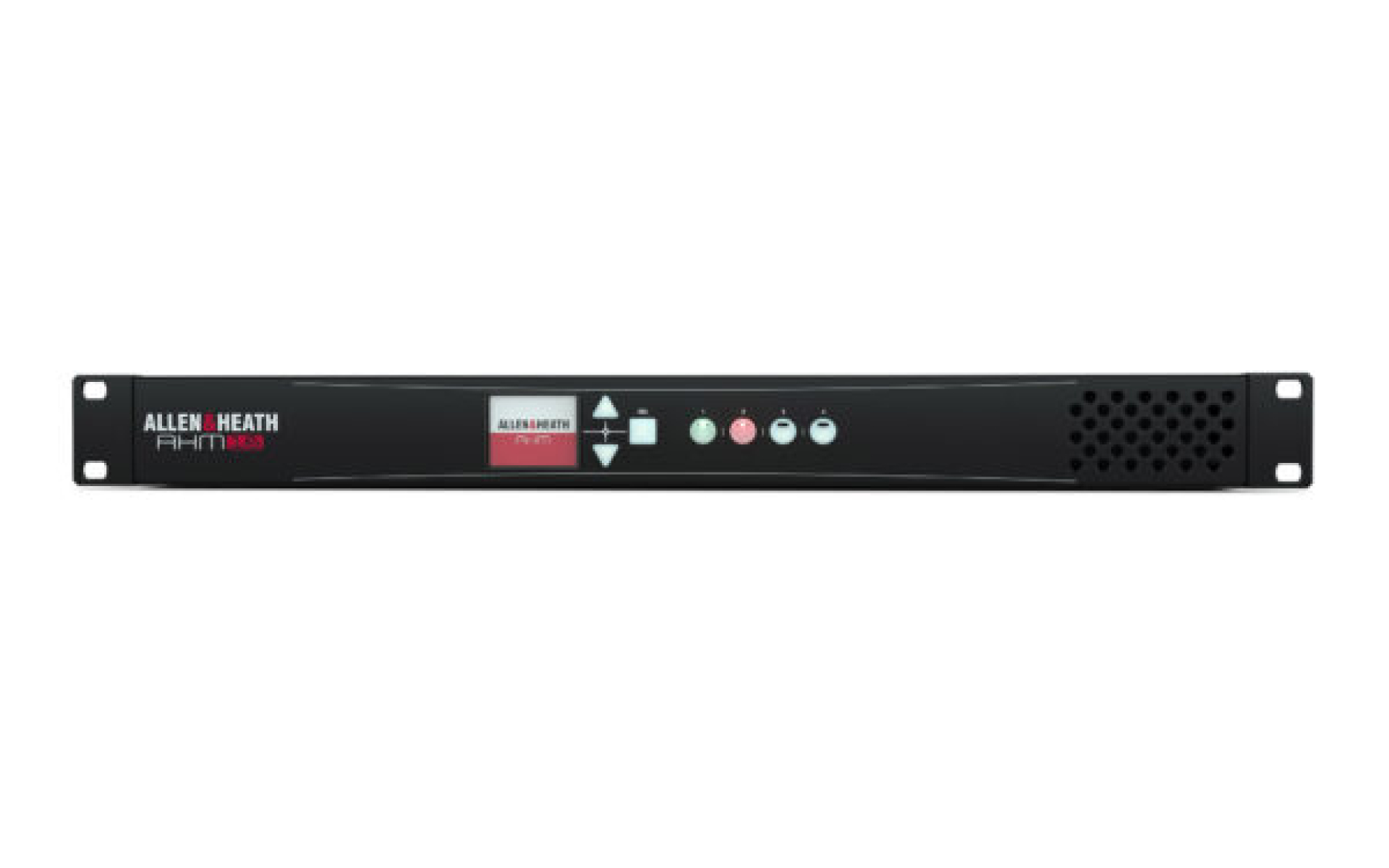

Allen & Heath AHM-16 Matrix Processor
AHM-16
  • 16x16 processing matrix
  • 8x8 local analogue I/O
  • I/O Port for audio networking, up to 128x128
  • Dante 96kHz option card (AES67 and DDM ready)
  • SLink 128x128 option card for audio expansion
  • 16 configurable processing outputs – mono / stereo zones or speaker processing
  • 96kHz FPGA core with ultra-low latency

Enquiry Form

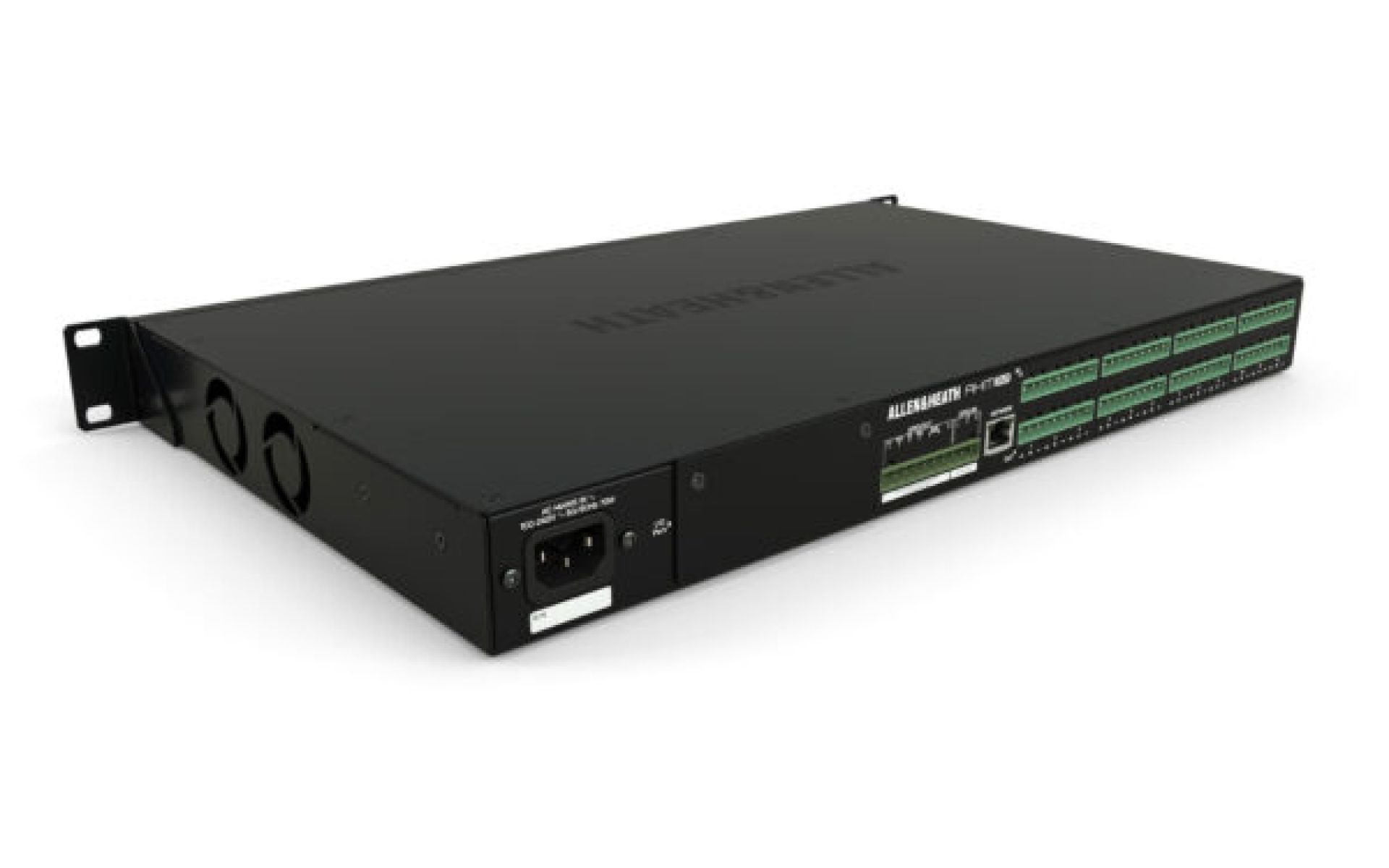

Allen & Heath AHM-32-Rear
AHM-34
  • 32x32 processing matrix
  • 12x12 local analogue I/O
  • I/O Port for audio networking, up to 128x128
  • Dante 96kHz option card (AES67 and DDM ready)
  • SLink 128x128 option card for audio expansion
  • 32 configurable processing outputs – mono / stereo zones or speaker processing
  • 96kHz FPGA core with ultra-low latency

Enquiry Form

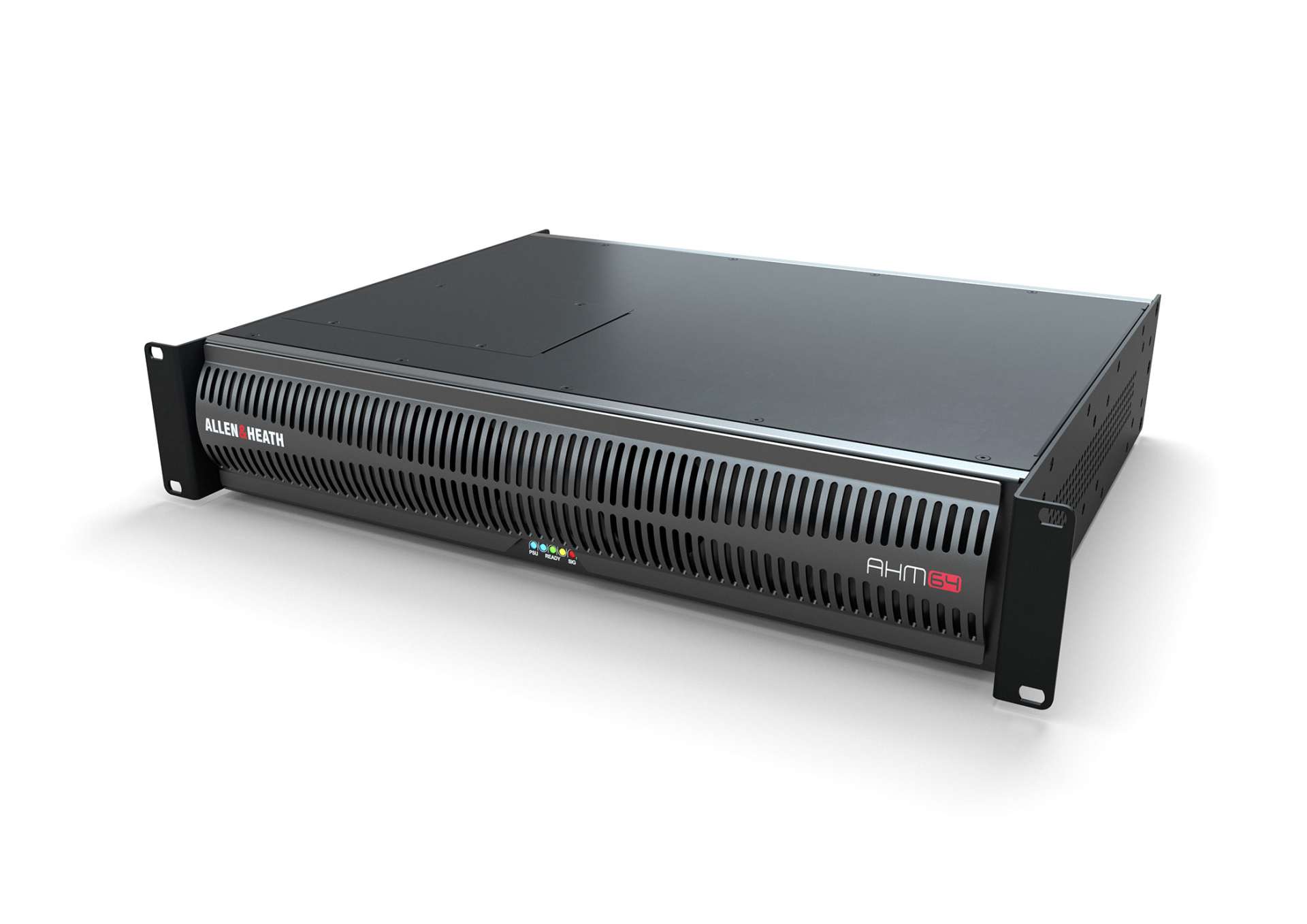

Allen & Heath AHM64
AHM-64
  • 64x64 processing matrix
  • 12x12 local analogue I/O
  • I/O Port for audio networking, up to 128x128
  • Dante 96kHz 64x64 optional card (AES67 and DDM ready)
  • 128x128 built-in SLink port for audio expansion
  • 64 configurable processing outputs – mono / stereo zones or speaker processing
  • 96kHz FPGA core with ultra-low latency

Enquiry Form

The Allen & Heath AHM processors deploy next-generation FPGA technology and 96kHz sample rate, bringing acclaimed Allen & Heath sound quality and sub-millisecond latency to installation. The audio engines have the power to deliver far more processing than the usual open architecture platforms, including 8-band PEQ, gate, compressor and delay on all input channels, and 8-band PEQ, 30-band GEQ, compressor, ANC, source selector, limiter and delay on all zone outputs.

The Acoustic Echo Cancellation (AEC) module for AHM-64 and AHM-32 provides multiple channels of AEC and is designed for teleconferencing and videoconferencing scenarios. The intuitive AHM System Manager software and AHM’s flexible architecture allow rapid configuration, with no certified programming training required. AHM matrix processors strike a balance between the simplicity and set latency of fixed architecture, and the flexibility normally reserved for open architecture platforms, allowing them to handle sound management, paging, audio distribution, conferencing and speaker processing roles.

  • With a full off-the-shelf ecosystem of control and expansion options, you don’t need to waste time sourcing and configuring third party gear. Cut your aftersales callouts with Automatic Firmware Matching – updates to the AHM processor are reflected in all connected IP remote controllers and DX expanders. No hidden costs. No charges for apps or slap on extra service fees. No compromises. AHM’s powerful fixed architecture lets you apply any and all processing to every one of its inputs and outputs if you so desire – so you never run out of processing and don’t waste time juggling resources. Easy to Learn. With its slick, smart GUI, AHM System Manager makes creating powerful audio systems easier than ever – no third-party programming or certified training needed. Go-to-solution. AHM is a tremendously scalable solution, so invest a little time in it and it’ll become your foundation for everything from bars to banks.
